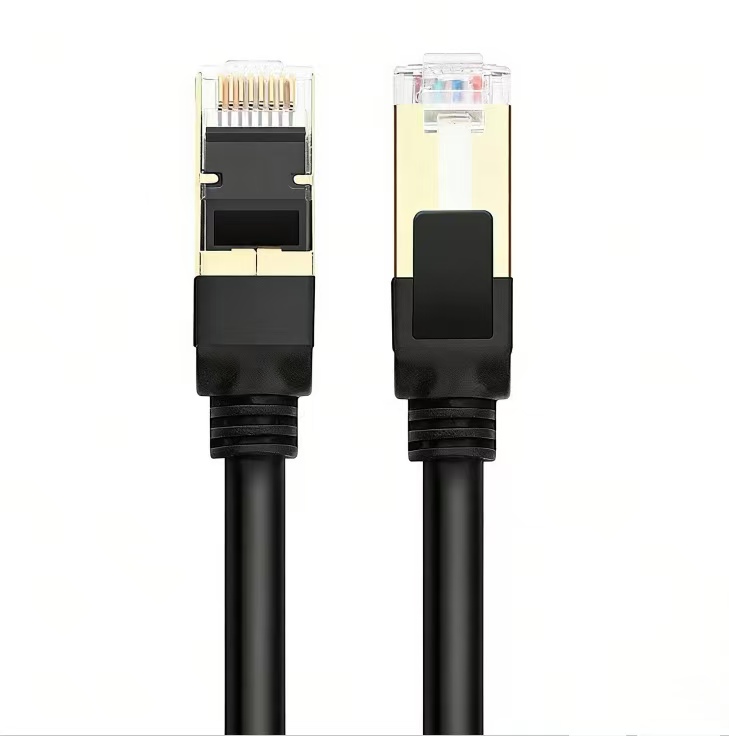

1-50M RJ45 SFTP Cat7 Ethernet LAN Cable Patch Cord Flat Gigabit
CAT7 (Category 7) is a shielded twisted pair cable specification defined by ISO/IEC 11801:2002 (Class F) that supports frequencies up to 600 MHz over 100 meters of copper cabling. It's designed for applications requiring high-speed data transmission with excellent noise immunity.
Technical Specifications
1. Cable Construction Specifications
Conductor Specifications:
Parameter | Specification | Details |
|---|
Conductor Type | Solid or Stranded | Stranded for patch cords |
Conductor Material | Pure Copper (≥99.9%) | Oxygen-free preferred |
Conductor Gauge | 23 AWG (0.57mm) typical | May vary by manufacturer |
Stranding | 7×0.20mm or finer | For flexibility in patch cords |
DC Resistance | ≤7.54Ω/100m @ 20°C | Per conductor |
DC Resistance Unbalance | ≤5% | Between pairs |
Insulation Specifications:
Parameter | Specification |
|---|
Insulation Material | High-density Polyethylene (HDPE) |
Insulation Thickness | 0.2-0.3mm typical |
Insulation Diameter | 1.0-1.2mm (including conductor) |
Color Code | Blue, Orange, Green, Brown with white stripe |
Shielding Specifications (Key Differentiator):
Layer | Specification | Purpose |
|---|
Pair Shields | Individual foil shields for each pair | Alien crosstalk prevention |
Overall Shield | Braided copper shield (≥85% coverage) | External EMI protection |
Drain Wire | Tinned copper, 26 AWG minimum | Grounding continuity |
Shielding Effectiveness | ≥65 dB @ 100 MHz, ≥55 dB @ 600 MHz | Measured per IEC 61196-1 |
2. Performance Specifications
Frequency & Bandwidth:
Parameter | Specification |
|---|
Maximum Frequency | 600 MHz |
Supported Applications | 10GBASE-T, 40GBASE-T (to 50m) |
Channel Performance | Up to 100 meters |
Component Performance | Up to 100 meters |
Characteristic Impedance:
- Nominal: 100Ω ±15Ω (85-115Ω)
Frequency Range: 1-600 MHz
Return Loss: See table below
3. Electrical Performance Parameters
Attenuation (Insertion Loss):
Frequency (MHz) | Maximum Attenuation (dB/100m) |
|---|
1 | 2.0 |
10 | 4.6 |
100 | 17.4 |
250 | 28.8 |
500 | 41.4 |
600 | 46.0 |
CAT7 patch cables represent the pinnacle of shielded twisted pair technology for copper networks, offering:
- Exceptional Performance: 600 MHz bandwidth, superior shielding
- Future-Proof Design: Ready for 25G/40G Ethernet
- Noise Immunity: Ideal for challenging environments
- High Reliability: Robust construction for critical applications
However, their adoption is limited by:
- Higher cost compared to CAT6A
- Connector compatibility issues
- Installation complexity
- Lack of TIA recognition
For most applications, CAT6A provides the best balance of performance and cost. But for specialized applications requiring maximum performance, noise immunity, and future readiness, CAT7 remains a compelling choice when properly implemented with the right connectors and installation practices.
Recommendation: Use CAT7 when you need guaranteed performance in high-noise environments or are building infrastructure intended to last 10+ years with minimal upgrades. For general-purpose 10Gbps networking, CAT6A with proper installation is usually sufficient and more cost-effective.
