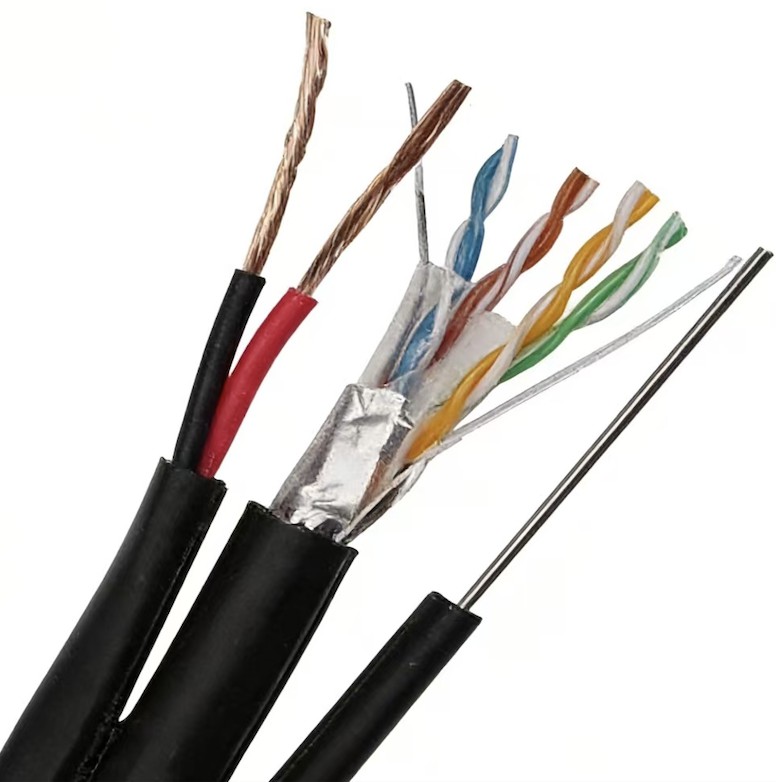

External Self-supporting Messenger Cat6 FTP with 2-Core Power Cable

This is an advanced, hybrid infrastructure cable designed for outdoor aerial deployment. It integrates a high-speed, shielded data link (Cat6 FTP) and a separate AC power circuit within a single, self-supporting assembly. The integrated steel messenger wire provides the structural strength for overhead suspension, eliminating the need for separate support lines or conduit.

1. Key Specifications

Data Cable Component:
- Standard: Category 6 Ethernet, compliant with TIA/EIA-568-C.2.
- Construction: 4 twisted pairs of 23 AWG solid bare copper.
- Shielding: F/UTP (Overall Foil shield).
- Performance: Bandwidth up to 250 MHz, supporting 1 Gbps at 100m and 10 Gbps at reduced distances (~55m).

Power Cable Component:
- Conductors: 2 insulated copper cores (typically solid or stranded).
- Voltage Rating: Commonly rated for 300V or 600V.
- Gauge: Varies by model (common sizes: 18 AWG, 16 AWG, 14 AWG) to support different power loads and distances.
- Insulation: Color-coded (e.g., Black & White) with PVC or other durable insulation.

Messenger (Support Strand):
- A high-strength, galvanized steel wire is integrally attached to the cable assembly, forming a 'figure-8' or '8-shaped' cross-section. It bears all mechanical tension.

Outer Jacket:
- Material: Black Linear Low-Density Polyethylene (LLDPE) or Polyethylene (PE).
- Properties: UV-resistant, waterproof, and rated for a wide temperature range (typically -40°C to +75°C).
Overall Design: The data cable, power conductors, and messenger are co-extruded within a single ruggedized, outdoor-rated jacket. The messenger is either centrally located or runs parallel, forming a self-supporting unit.

2. Primary Advantages

Single-Run Installation for Power & Data: The most significant benefit. It allows you to deploy both power and a network connection in one aerial cable pull, dramatically reducing installation time, labor, hardware (clamps, conduits), and overall cost compared to running two separate cables.

Self-Supporting Aerial Design: The integrated steel messenger provides all necessary tensile strength for secure, code-compliant overhead spans between poles, buildings, or towers without additional support wires.

Optimized for Active Outdoor Devices: Perfectly designed to power and connect devices that require both electricity and data connectivity in remote or exposed locations.

Environmental Durability: The PE/LLDPE outer jacket provides excellent protection against sunlight, moisture, temperature extremes, and physical abrasion, ensuring long-term reliability outdoors.

Clean and Professional Installation: Results in a single, neat aerial line instead of multiple parallel cables, improving aesthetics and reducing wind load.

EMI Protection: The FTP shielding on the data pairs guards against interference, which is crucial when power and data run in close proximity and in environments with external electrical noise.

3. Typical Applications

This cable is the ideal solution for powering and networking remote, pole-mounted, or building-exterior devices that require both AC power and a data network link.

Outdoor IP Security Systems:
- Powering and connecting PTZ (Pan-Tilt-Zoom) cameras, high-resolution dome cameras, or infrared illuminators that exceed standard Power over Ethernet (PoE) budgets.

Outdoor Wireless Networks:

Intelligent Traffic & Street Lighting:

Digital Signage & Outdoor Displays:

Remote Monitoring & Industrial IoT:

Park, Campus, and Marina Infrastructure:

Critical Installation Consideration: This is a hybrid cable. The data and power components must be terminated separately and correctly by qualified personnel. The power conductors must be connected to a properly rated and grounded electrical circuit in compliance with the National Electrical Code (NEC) or local regulations. Always follow the manufacturer's specifications for voltage, current, and installation tension.
