Waterproof Outdoor Double Jacket Cat6 Shielded Foil Twisted 4Pair Ethernet Cable 1000ft/drum
1. Description

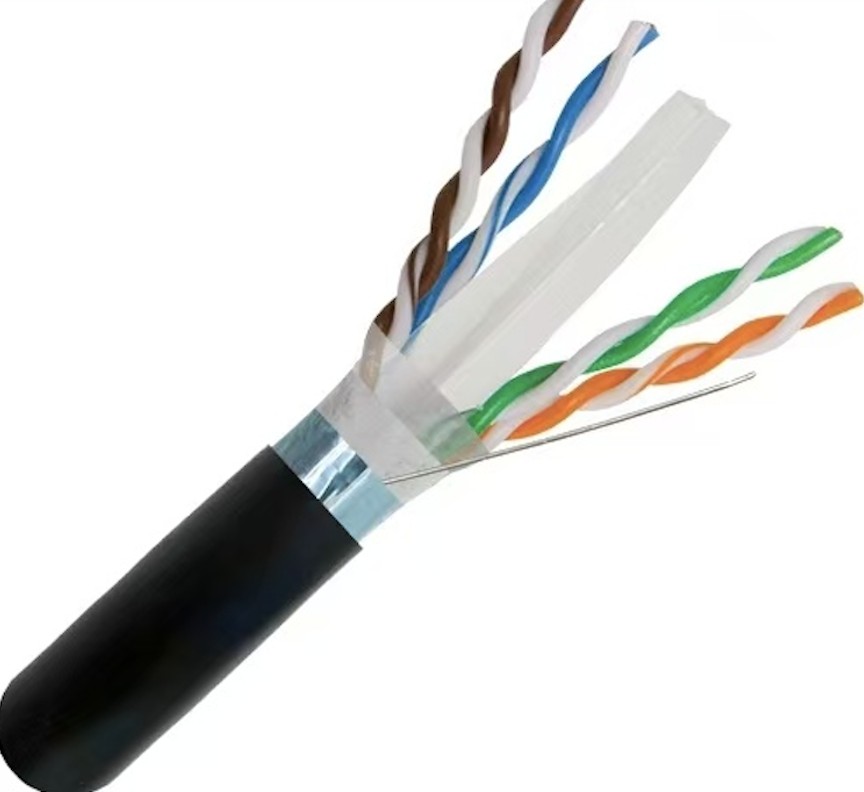

An Outdoor Cat6 FTP (Foil Shielded Twisted Pair) cable is a specialized Ethernet cable designed for reliable, high-speed data transmission in outdoor and harsh environments. It combines the performance of Category 6 cabling with robust physical protection against water, UV radiation, temperature extremes, and electromagnetic interference (EMI).
The 'FTP' designation means it features an overall foil shield (usually aluminum) wrapped around the four twisted pairs, providing excellent protection against external crosstalk and EMI. This is crucial in outdoor settings where cables may run near power lines or other sources of interference.
2. Key Specifications
Performance Standard: Complies with TIA/EIA-568-C.2 for Category 6, supporting frequencies up to 250 MHz.
- Data Rate: Supports high-speed networks up to 1 Gigabit Ethernet (1000BASE-T) at 100 meters and can often support 10 Gigabit Ethernet (10GBASE-T) at reduced distances (up to 55 meters).
- Shielding: F/UTP construction: An overall Foil shield around all four Unshielded Twisted Pairs. This provides superior EMI/RFI protection compared to unshielded (UTP) cables.
- Conductor: Typically uses 23 AWG (American Wire Gauge) solid bare copper conductors for optimal signal integrity over long distances.
Jacket Material:
Outdoor-Rated Jacket: Made from Polyethylene (PE) or Low-Density Polyethylene (LDPE), which is resistant to moisture absorption, UV rays, and temperature fluctuations.
- Often includes a flooding compound or gel-filled core to block water ingress if the jacket is compromised (for direct burial versions).
Environmental Ratings:
Water & UV Resistance: The PE jacket prevents degradation from sunlight and rain.
- Temperature Range: Designed to operate in a wide range, typically from -40°C to +75°C.
- Installation Types: Available in two main variants:
3. Advantages
Environmental Durability: The PE jacket resists cracking, peeling, and degradation caused by sunlight, rain, snow, and extreme temperatures.
- Superior EMI Protection: The foil shield is highly effective at blocking interference from power lines, motors, lighting, and other outdoor electrical sources, ensuring stable, high-speed data transmission.
- Long-Distance Reliability: Solid copper conductors and robust construction maintain signal integrity over the full 100-meter channel length, even in challenging conditions.
- Versatile Installation: Suitable for direct burial, conduit, or aerial runs, providing flexibility for various outdoor network topologies.
- Future-Proofing: Supports high bandwidths, making it suitable for current and future high-demand applications like HD video surveillance, wireless access point backhauls, and network expansions.
4. Applications
Connecting Network Infrastructure Between Buildings: Linking separate buildings (e.g., main office to a warehouse, between dormitories, across a campus).
- Outdoor Security & Surveillance Systems: Providing power and data (via PoE) to IP cameras, access control systems, and security lighting in parking lots, perimeters, and building exteriors.
- Outdoor Wireless Networks: Serving as the backhaul for Wi-Fi access points in parks, stadiums, outdoor venues, or public spaces.
- Industrial Environments: Used in factories, oil & gas facilities, or shipping yards where cables are exposed to the elements and high EMI.
- Residential/Property Networking: Connecting a main house to a detached garage, guest house, or garden office/studio.
- Temporary Event Networking: For festivals, construction sites, or outdoor markets where a reliable temporary network is needed.
Important Note: For direct burial, always ensure the cable is specifically rated for that purpose. While highly durable, it's good practice to run the cable through a conduit when possible for added physical protection from shovels or rodents. Always follow local electrical and building codes during installation.
