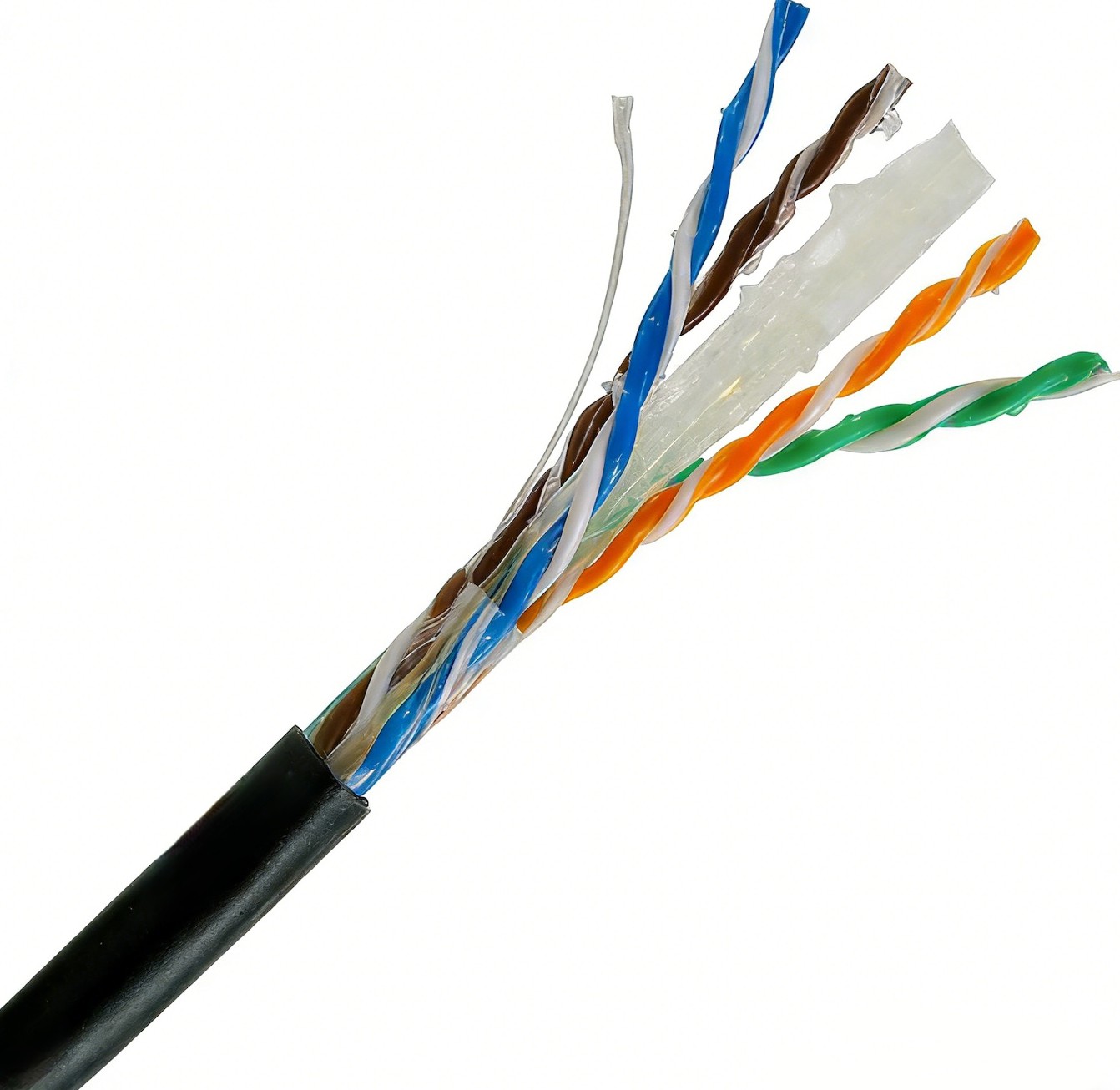

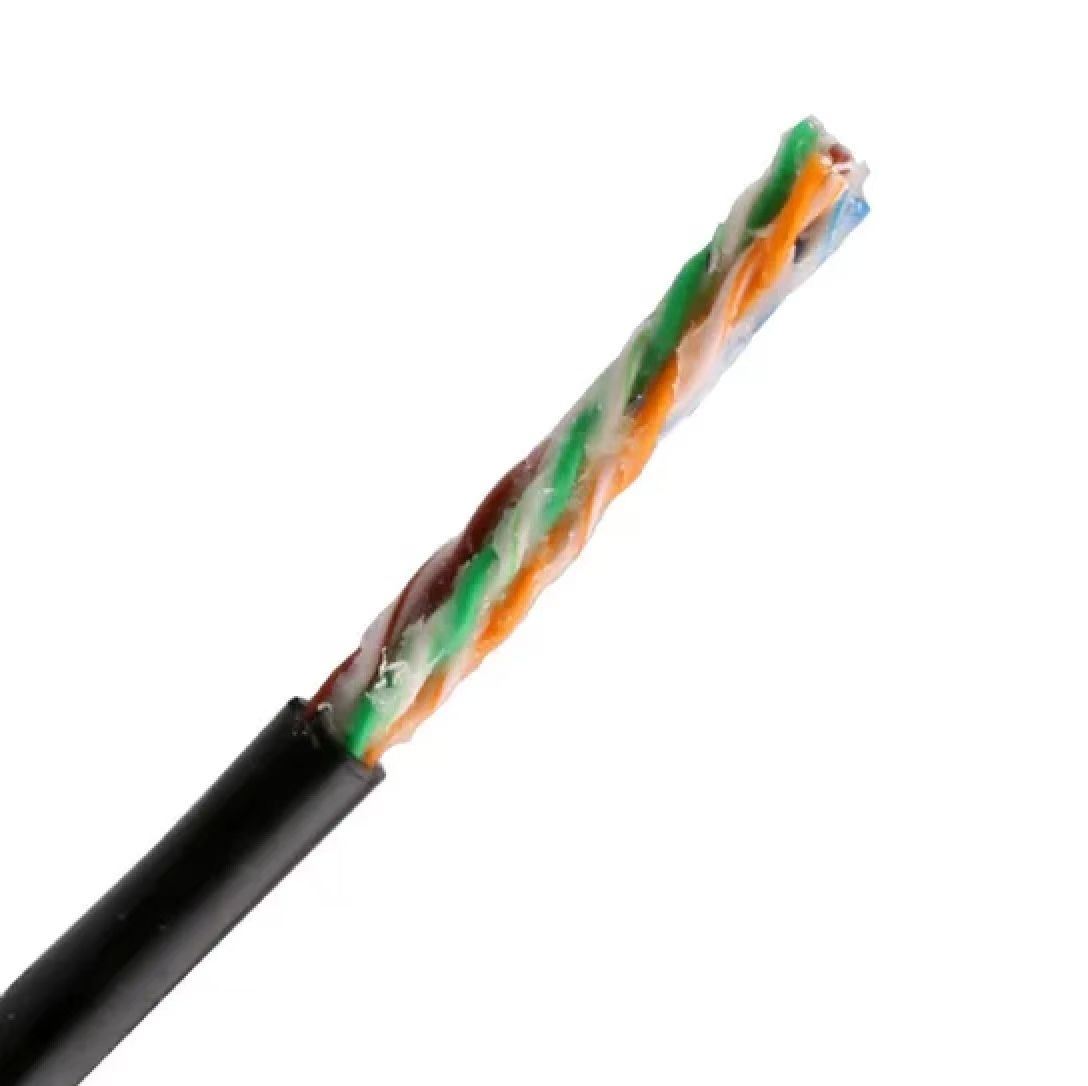

External UTP CAT6 Single Jacket Network Cable with Jelly Filled
This is a robust, waterproof outdoor Ethernet cable designed primarily for direct burial applications. It combines the standard performance of an unshielded Cat6 cable with a specialized gel filling to create a highly reliable, moisture-blocking solution for underground network installations.
1. Core Specifications
Cable Standard: Category 6 Unshielded Twisted Pair (UTP), compliant with TIA/EIA-568-C.2.
- Construction: 4 twisted pairs of 23 AWG solid bare copper conductors. No individual or overall metallic shielding is present.
- Waterproofing Technology:
Outer Jacket:
Material: High-density Polyethylene (HDPE). This is tougher and more rigid than standard PE, offering superior crush resistance and protection against rocks, roots, and abrasion during and after burial.
- Color: Typically black.
- Properties: UV resistant (for above-ground sections), chemically resistant, and rated for a wide outdoor temperature range (e.g., -40°C to +75°C).
Performance:
Bandwidth: 250 MHz.
- Data Rate: Supports 1 Gigabit Ethernet (1000BASE-T) at 100 meters. Performance for 10 Gigabit Ethernet is not guaranteed in this UTP design for outdoor/burial use.
2. Key Advantages
Superior Water and Moisture Protection: The primary advantage. The jelly filling provides the highest level of defense against water ingress, making the cable ideal for wet locations and direct burial without conduit. It prevents short circuits and corrosion of the copper conductors.
- Excellent for Direct Burial: Specifically engineered to be buried directly in the ground. The HDPE jacket resists soil chemicals, pests, and physical pressure, while the gel fill handles any moisture that penetrates the jacket.
- Cost-Effective for Simple Environments: As a UTP cable, it is less expensive than shielded (FTP/SFTP) variants. It is the ideal, economical choice for outdoor/burial runs where significant electromagnetic interference (EMI) is not a concern (e.g., away from large motors or power lines).
- Durability: The combination of a tough HDPE jacket and solid gel filling creates a cable that is highly resilient to harsh underground conditions over the long term.
- Easier Handling than Flooded Core: Compared to fully flooded cables, jelly-filled versions are often less messy to terminate, as the gel is typically less viscous and centralized.
3. Primary Applications
This cable is the standard choice for most common, non-industrial outdoor data links that require burial, where premium EMI shielding is unnecessary.
- Direct Burial Network Links Between Buildings: The most common use. Connecting homes to detached garages, running links across yards between campus buildings, or extending networks to outbuildings.
- Landscape and Garden Lighting/Networks: For low-voltage data (and often paired with PoE) to power and control outdoor LED lighting systems, landscape audio, or garden sensors.
- Residential & Commercial Security Systems: Burying cable to connect outdoor IP cameras, access control keypads, or gate intercoms at perimeter walls, driveways, or entry points.
- Irrigation and Environmental Control Systems: Connecting controllers to valves or sensors in agricultural, golf course, or park settings.
- Underground Infrastructure for Parks and Campuses: Deploying Wi-Fi or network access in outdoor public areas where cables must be buried for safety and aesthetics.
Important Installation Notes:
No EMI Protection: This is a UTP cable. It offers no protection against electromagnetic interference. Do not use it near large motors, generators, or parallel to high-voltage power lines.
- Termination: The jelly must be cleaned from the conductor ends carefully before termination into a connector or punch-down block. Use connectors rated for solid copper conductors.
- Burial Depth: Always bury the cable at the depth recommended by local code (often 18-24 inches) and use warning tape above it to prevent future excavation damage. While it can be used in conduit, its direct-burial design often makes conduit optional.
Package
