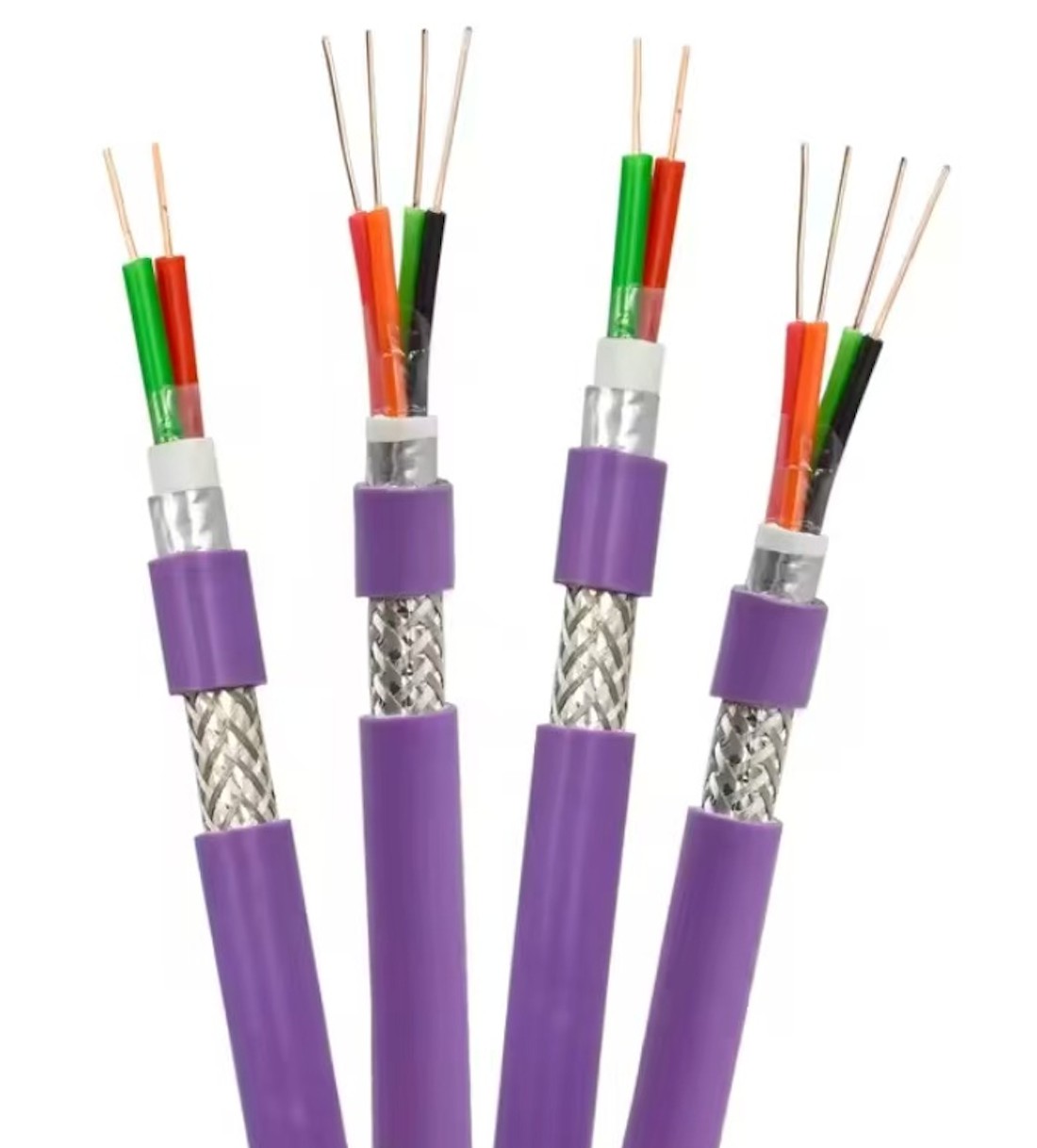

2Core 24AWG Purple Shielded Profibus 2C 0.25mm Bus Cable Flexible Data Bus Electrical Field Communication Cable
A bus cable is a specialized cable used in fieldbus networks, which are digital, serial communication systems that connect industrial field devices (sensors, actuators, drives) to a central controller (PLC). It serves as the shared data 'highway' for multi-drop networks.

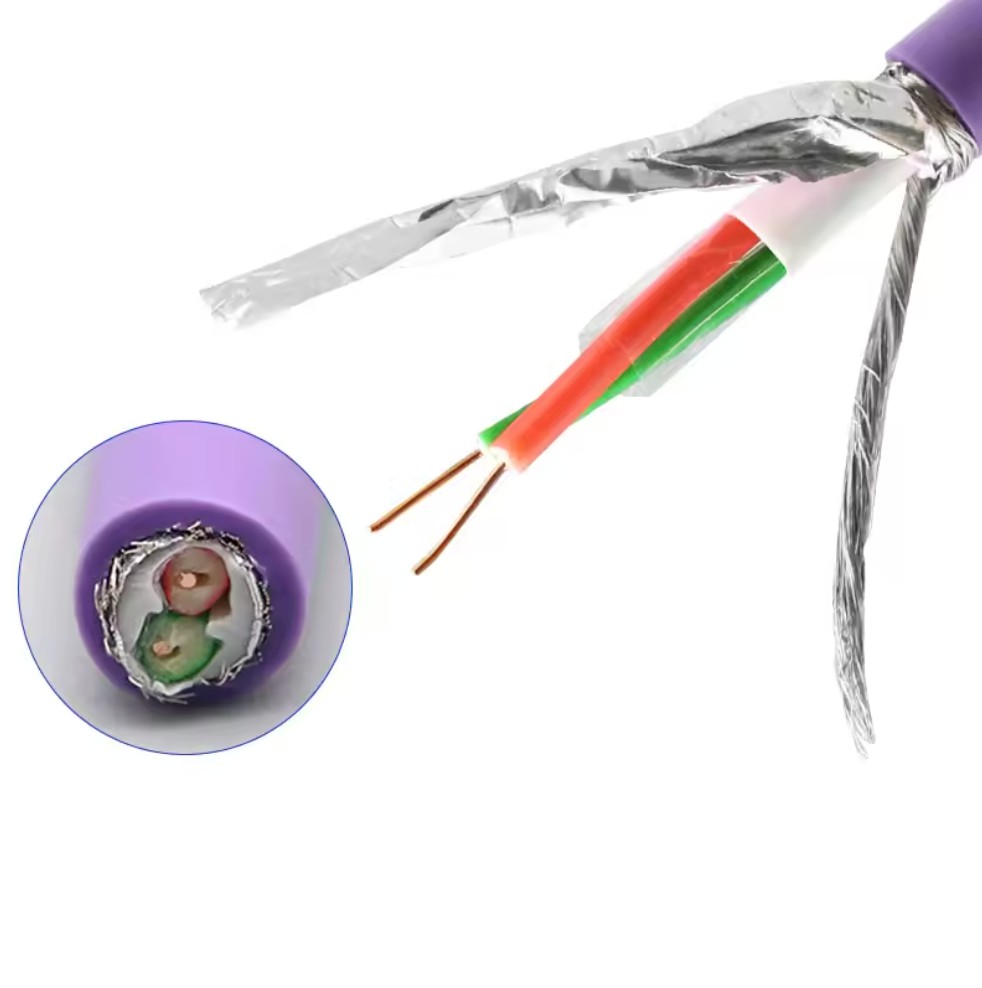

1. Core Specifications & Construction
Bus cables are defined by the specific protocol they serve. However, they have common design principles.
Conductor:
Material: High-grade, fine-stranded copper, often tinned for corrosion resistance and easier soldering/termination.
Number: Typically a twisted pair (2 conductors) for the data signal. Many include additional pairs or wires for power (e.g., 2 data + 2 power).
Insulation:
Material: High-quality PVC, PE, or PP with stable dielectric properties.
Purpose: Maintains precise conductor spacing, which is critical for maintaining the cable's characteristic impedance.
Shielding:
Essential. A combination of a foil shield (for 100% coverage) and a high-density (≥85%) braided copper shield. This provides protection against Electromagnetic Interference (EMI), which is critical in noisy industrial environments.
Jacket (Outer Sheath):
Material: Robust PUR (Polyurethane) or advanced PVC. PUR is preferred for its exceptional abrasion resistance, oil resistance, and mechanical toughness.
Color: Often follows a protocol standard (e.g., purple for PROFIBUS, orange for DeviceNet, green for CANopen).

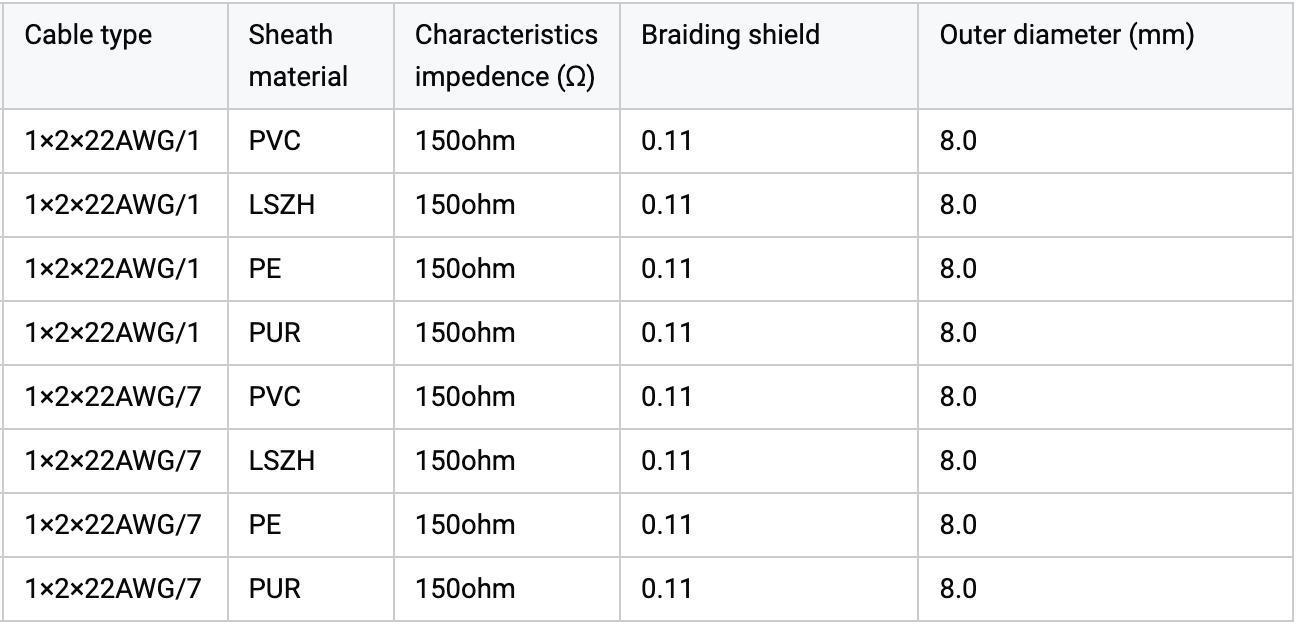

Key Electrical Specifications (Varies by Protocol):
Characteristic Impedance: The most critical parameter. Must match the transceivers on the devices.
PROFIBUS: 150 Ω
CAN / CANopen / DeviceNet: 120 Ω
MODBUS RS-485: ~120 Ω
Propagation Delay: Must be controlled for timing-sensitive networks.
Loop Resistance & Capacitance: Defined per meter, affecting maximum network length and node count.
2. Key Advantages & Benefits
Compared to traditional point-to-point wiring (each sensor gets 2-4 wires back to the PLC), bus cables offer:
Drastic Reduction in Wiring & Cost: One twisted pair replaces hundreds of individual wires, slashing material, installation, and duct space costs.
Simplified Installation & Diagnostics: Standardized connectors and cabling make installation faster. Diagnostic capabilities are built into the protocol.
High Noise Immunity: The combination of differential signaling (on the twisted pair) and high-quality shielding makes the system extremely robust against EMI from motors, drives, and relays.
Deterministic Communication: Data exchange is scheduled and predictable, which is essential for real-time control applications.
Bidirectional Data & Diagnostics: Devices can report their status, errors, and process values over the same two conductors.
Support for Power + Data: Many bus systems (e.g., PROFIBUS, AS-i, IO-Link) deliver 24V DC power to field devices over the same cable, eliminating separate power supplies.
Scalability: It is easy to add or remove devices on the network without major rewiring.
3. Primary Applications & Common Bus Systems
Bus cables are the backbone of modern factory and process automation.
Common Use Cases Across Industries:
Automotive Plants: Connecting thousands of sensors and valves on assembly lines.
Packaging Machines: Synchronizing servos, sensors, and vision systems.
Material Handling: Controlling conveyors, sorters, and palletizers.
Process Plants: Connecting valve positioners, flow meters, and analyzers in refineries or chemical plants.
Selection Consideration:
Protocol: Match the cable exactly to the network protocol (impedance is critical!).
Environment: Choose jacket material (PUR for oily/wet, PVC for general use) and appropriate IP ratings.
Installation Type: Fixed, flexible, or for continuous movement in cable carriers (requiring high-flex versions).
Length & Speed: Ensure the cable is rated for the desired network length and baud rate.
The Golden Rule: Always use the cable type certified for your specific fieldbus system. Using a generic cable or the wrong bus cable will lead to signal integrity issues, communication errors, and network downtime.
