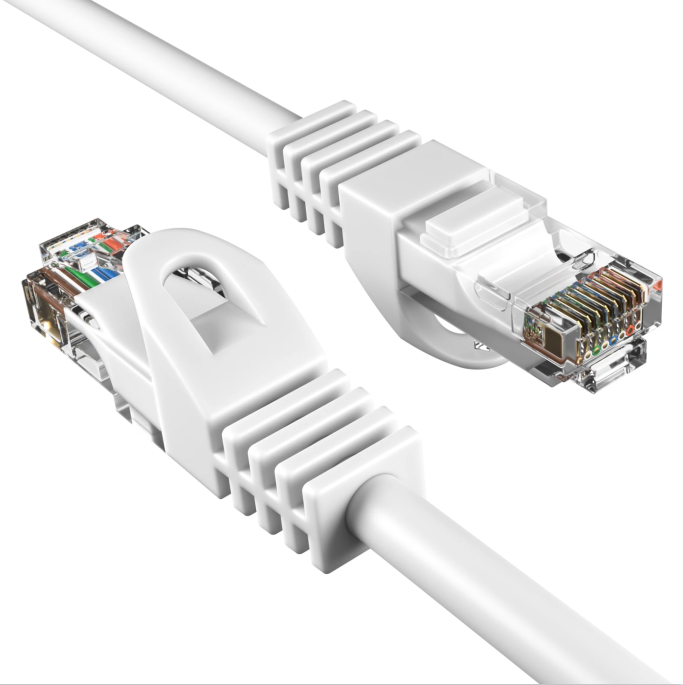

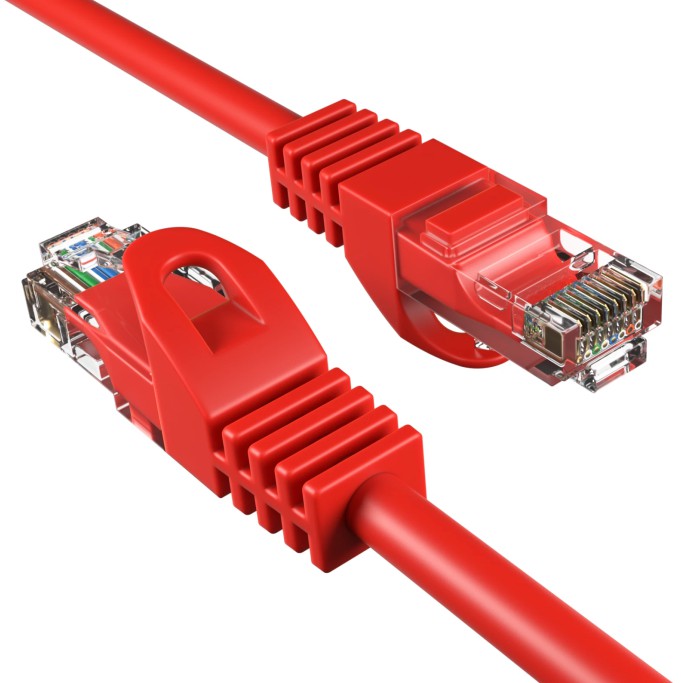

8Core Copper Twisted UTP Cat6a LSZH ROHS Network Cable RJ45
1.Conductor Specifications:
Parameter | Cat5e | Cat6 | Cat6A | Cat7 | Cat8
|
|---|
Conductor Type | Stranded (flexible) | Stranded (flexible) | Stranded (flexible) | Stranded (flexible) | Stranded (flexible)
|
Conductor Material | Pure Copper (≥99.9%) | Pure Copper (≥99.9%) | Pure Copper (≥99.9%) | Pure Copper (≥99.9%) | Pure Copper (≥99.9%) |
AWG (Stranded) | 24-26 AWG | 23-24 AWG | 22-23 AWG | 22-23 AWG | 22 AWG |
Strand Count | 7×0.16mm (7/32) | 7×0.18mm (7/36) | 19×0.12mm (19/40) | 19×0.12mm (19/40) | 19×0.12mm (19/40) |
Conductor Diameter | 0.51mm (24AWG) | 0.57mm (23AWG) | 0.64mm (22AWG) | 0.64mm (22AWG) | 0.64mm (22AWG) |
DC Resistance | ≤9.38Ω/100m | ≤7.54Ω/100m | ≤6.02Ω/100m | ≤6.02Ω/100m | ≤6.02Ω/100m |
Insulation & Pair Specifications:
Parameter | Specification |
|---|
Insulation Material | High-density Polyethylene (HDPE) or Foamed PE |
Insulation Diameter | 0.9-1.0mm (varies by category) |
Pair Twisting | Different twist rates (12-20 twists/ft) per pair to reduce crosstalk |
Pair Colors | Blue/White-Blue, Orange/White-Orange, Green/White-Green, Brown/White-Brown |
Twist Preservation | Maintained to within 13mm of termination |
Cable Construction Types:
Type | Description | Use Case |
|---|
U/UTP | Unshielded, no overall shield | Office, home, low-EMI |
F/UTP | Foil shield under jacket | Moderate EMI environments |
U/FTP | Individual foil-shielded pairs | High EMI, data centers |
S/FTP | Individual foil + overall braid | Extreme EMI, industrial |
SF/UTP | Braid + foil overall shield | Severe environments |
2. Performance Specifications (TIA/EIA Standards)
Frequency & Bandwidth:
Category | Max Frequency | Bandwidth | Standard |
|---|
Cat5e | 100 MHz | 1000 Mbps | TIA-568-C.2 |
Cat6 | 250 MHz | 10 Gbps* (37-55m) | TIA-568-C.2 |
Cat6A | 500 MHz | 10 Gbps (100m) | TIA-568-C.2 |
Cat7 | 600 MHz | 10 Gbps (100m) | ISO/IEC 11801 |
Cat7A | 1000 MHz | 40 Gbps* (50m) | ISO/IEC 11801 |
Cat8 | 2000 MHz | 40 Gbps (30m) | TIA-568-C.2-1 |
Attenuation-to-Crosstalk Ratio (ACR):
- Cat5e: ≥10.0 dB at 100 MHz
- Cat6: ≥18.2 dB at 100 MHz
- Cat6A: ≥24.2 dB at 100 MHz
Performance Requirements:
- Pull Force: Withstand ≥100N without damage
- Bend Radius: Support 25mm minimum bend radius
- Latch Protection: Prevent accidental unlatching
Physical & Mechanical Specifications
Outer Diameter (OD):
Category | UTP OD | FTP OD | Overall Shielded OD |
|---|
Cat5e | 5.3-5.9mm | 5.8-6.4mm | 6.2-7.0mm |
Cat6 | 5.8-6.6mm | 6.3-7.1mm | 6.8-7.6mm |
Cat6A | 6.5-7.5mm | 7.0-8.0mm | 7.5-8.5mm |
Cat7 | 7.0-8.0mm | 7.5-8.5mm | 8.0-9.0mm |
Environmental Specifications
1. Temperature Ratings:
Environment | Operating Temperature | Storage Temperature |
|---|
Commercial | 0°C to 60°C | -20°C to 70°C |
Industrial | -40°C to 75°C | -50°C to 85°C |
Extended | -40°C to 85°C | -55°C to 95°C |
2. Fire Safety Ratings:
Rating | Standard | Application | Smoke | Toxicity |
|---|
CM/CMG | UL 1685 | General purpose | No limit | No limit |
CMR | UL 1666 | Riser (floor-to-floor) | Limited | Limited |
CMP | UL 910 | Plenum (air spaces) | Very low | Very low |
LSZH | IEC 60754 | Data centers, transport | Low | Halogen free |
3. Chemical & Environmental Resistance:
- Water Resistance: IP67 rated options available
- UV Resistance: 500-1000 hours without degradation
- Oil Resistance: Resistant to common industrial oils
- Acid/Alkali: Resistant to mild concentrations
FAQS:
Q1: Are you a factory or trading company?
A1: We are a manufacturer.
Q2: Where is your factory located? How can I visit there?
A2:Our factory are located in jieyang city. You can fly to Shenzhen or Guangzhou international airport. And tell us your flight No. We will arrange to pick you up.
Q3: How can I get a sample to test your quality?
A3:We can provide free samples for your test and checking, you just need to bear the freight charge.
Q4:What payment method do you accept?
A4:T/T(Bank transfer), Western Union, Money Gram, Paypal, etc.
Q5: Can you put my brand name (logo) on these products?
A5: Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the logo free for bulk orders.
Q6: May I know the status of my order?
A6: Yes .The order information and photos at different production stage of your order will be sent to you and the information will be updated in time.
Q7: What’s the leading time? (How long do you need to prepare my goods?
A7: Delivery (no more than 1000pcs) will be arranged within 10-15 days after payment, and arrive you within about 1 month via sea shipping.
Q8: How will you deliver my goods to me?
A8 Your purchases will be delivered by DHL, UPS, FedEx, TNT, EMS your door. Air Cargo and Sea Cargo, Direct line, Air Mail also be accepted according to clients' request.
Q9: Can you provide us more other products to us to help us to save more shipping costs?
A9: Yes. There’re kinds of Indoor Cables, Outdoor Cables, Coaxial Cables, Telephone Cables, Fiber Optic Cables and Accessories will be the main products line of Factory.
The OEM bulk order will be accept as well.
