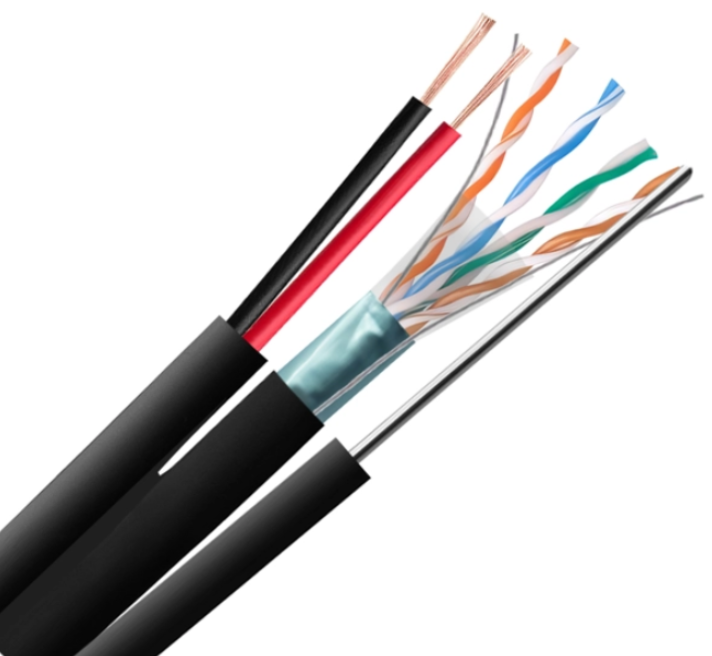

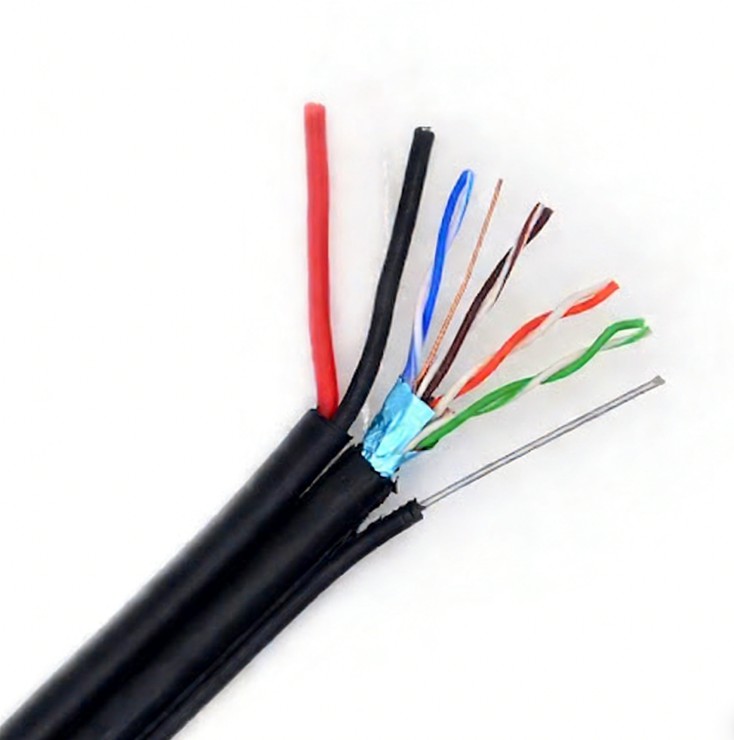

Aerial Outdoor FTP CAT5E 5E 4P+2/0.75+Messenger Network Cable
FTP CAT5E 5E 4P+2/0.75+Messenger Video over FTP Outdoor Cable
|
|
|
|
|
|
|
|
|
|
|
Construction Parameters: |
|
|
|
|
|
|
|
Description | 4 Pair Cat5E Type + 2C-0.75 With Messenger Construction |
Video and Control Pairs |
|
|
|
|
|
|
|
Inner Conductor | 0.0196'/0.50mm/24AWG Bare Copper |
Stranding | Solid |
Insulation Material | Polyethylene 0.008'/0.2mm |
Number of Conductors | 8(4 Pair) |
Drain wire | TCCS |
Shield | Aluminum/PET Foil |
Power Conductors |
|
|
|
|
|
|
|
Inner Conductor | Copper Clad Aluminum |
Stranding | 31×0.25mm |
Insulation Material | PVC 0.008'/0.25mm |
Number of Conductors | 2 |
Shield | None |
Messenger | 1.2mm Zinned Steel |
Electrical Characteristics: |
|
|
|
|
|
|
|
Video and Control Pairs |
|
|
|
|
|
|
|
Temperature Rating | -20℃ to 60℃ |
Operating Voltage | 300 V RMS |
Max.Capacitance @1 KHz | 45.9 pf/100m |
Nom.Impedance | 100 Ohms |
Nom.Velocity of Propagation | 0.66 |
DC Resistance per Cond. @ 20℃ | 26 Ohms/1M' Nom |
Power Conductors |
|
|
|
|
|
|
|
Temperature Rating | -20℃ to 60℃ |
Operating Voltage | 300 V RMS |
Max.Capacitance @1 KHz | NA |
DC Resistance per Cond. @ 20℃ |
|
Insulation Colors | Black, Red |
Overall Construction |
|
|
|
|
|
|
|
Jacket Type | UV-PE |
Jacket Color | Siamese-Black |
Nom.O.D. | 5.4mm × 5.0mm |
Mechanical Properties |
|
|
|
|
|
|
|
Max.Recommended Pull Tension | 15 KGS |
Min. Bend Radius(Install) | 86mm |
.
Technical Specifications Summary
Cable Construction:
Component | Specification | Details |
|---|
Power Conductors | 2 × 0.75 mm² | Typically 18 AWG, stranded for flexibility |
Messenger | Galvanized steel | 2.5-4.0 mm diameter, 600-1200 kg breaking strength |
Jacket | UV-resistant PE | Black, weather-resistant |
Configuration | Integrated 'figure-8' | Messenger attached via web |
Electrical Specifications:
Data Performance: Cat5e compliant (1 Gbps up to 100m)
- Shielding: Overall foil + drain wire (40-60 dB EMI protection)
- Power Capacity: 10-13A per conductor (depends on installation)
- Voltage Rating: 300V AC/DC minimum
- DC Resistance: ~25 Ω/km (power conductors)
Primary Applications
1. Outdoor IP Surveillance Systems
Streetlight-Mounted Cameras: Single cable provides data, power, and support
- Traffic Monitoring: Across intersections where separate infrastructure is impractical
- Perimeter Security: Along fences or property boundaries
- Parking Lot Coverage: Spanning between light poles
2. Intelligent Transportation Systems
Traffic Signal Interconnect: Power for controllers + data for synchronization
- Variable Message Signs: Power for illumination + data for content updates
- Vehicle Detection Systems: Sensor power and data backhaul
- License Plate Recognition: Cameras at entrance/exit points
3. Rural/Remote Connectivity
Bridge Monitoring: Sensors with power and data needs
- Agricultural Automation: Irrigation control across fields
- Pipeline Monitoring: Remote sensor networks
- Border Security: Camera systems in remote locations
4. Industrial & Utility Networks
Substation Monitoring: Equipment monitoring with 12/24V DC power
- Solar Farm Communications: Between inverters and control centers
- Water Treatment Plants: Outdoor sensor networks
- Railway Crossings: Signalization and camera systems
5. Temporary Deployments
Construction Site Monitoring: Quick-to-deploy security
- Event Management: Temporary traffic or crowd control
- Disaster Response: Emergency communications setup
- Military Field Operations: Temporary command post networks
Key Advantages
1. Installation Efficiency
Single Deployment: One pull installs data, power, and support
- Reduced Labor: 60-70% time savings vs. separate cables
- Simplified Engineering: Single span calculation vs. multiple
- Faster Deployment: Critical for time-sensitive projects
2. Mechanical & Reliability Benefits
Unified Tension Management: Messenger carries all mechanical load
- Consistent Sag Control: Predictable cable behavior
- Reduced Wind Load: Single cable presents smaller profile
- Enhanced Durability: Factory-integrated construction
3. Performance Advantages
Controlled EMI Environment: Shielding protects data from power interference
- Optimized Spacing: Factory-controlled separation minimizes crosstalk
- Consistent Quality: Factory-tested versus field assembly variables
- Grounding Integrity: Single grounding point for all components
4. Maintenance & Management
Simplified Troubleshooting: Single cable path to trace
- Reduced Failure Points: Fewer connections and splices
- Easier Inspection: One cable to examine vs. three
- Clear Documentation: Simplified 'as-built' drawings
