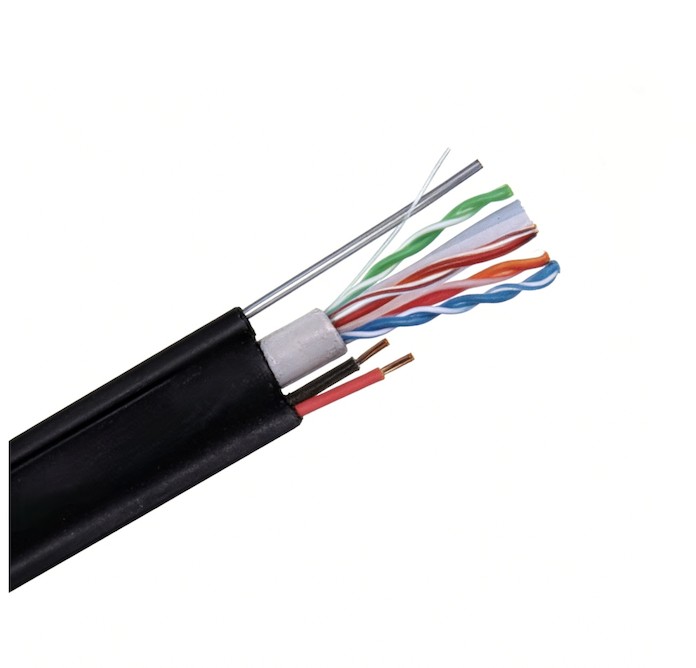

Aerial Outdoor PVC+PE Double Jacket UTP CAT6+2*0.75mm2 Power Cable With Messenger
What Is It?
This is a triple-function aerial composite cable that combines three essential services in one integrated aerial design:
- Ethernet Data: 4 twisted pairs (Cat6 specification)
- DC Power: 2 insulated power conductors
- Structural Support: Integrated steel or dielectric messenger
Also called 'aerial hybrid cable' or 'figure-8 power/data cable,' it's engineered for single-pull outdoor aerial installations requiring data, power, and physical support.
Specifications
Physical Construction
Cross-Section Layout (Typical 'Figure-8' Design):
Actual cables integrate all three in a cohesive figure-8 or flat design
Detailed Component Specs
1. Data Section (Cat6):
- Standard: ANSI/TIA-568-C.2 Cat6
- Conductors: 8 x 23 AWG solid bare copper
- Bandwidth: 250 MHz
- Shielding: Typically UTP; FTP available
- Performance: 1 Gbps at 100m, 10 Gbps at ≤55m
- Color Code: Standard T568A/B pairs
2. Power Section:
- Conductors: 2 x 16 AWG (most common) or 14 AWG copper
- Insulation: 600V THHN/THWN rated
- Colors: Red/Black (+/- DC) or Black/White (AC Hot/Neutral)
- Temperature Rating: 90°C (194°F) typical
- Current Capacity: 10A (16 AWG) to 15A (14 AWG) at 60°C
3. Messenger Section:
- Material: Galvanized steel (7-strand or 19-strand) OR Dielectric (fiberglass)
- Diameter: 3/16' (4.8mm) typical steel messenger
- Breaking Strength: 1,200-2,000 lbs
- Attachment: Integrated via 'figure-8' or web design
- Corrosion Protection: Class A galvanization (zinc coating)
4. Overall Cable:
- Outer Jacket: Black UV-resistant polyethylene (PE)
- Diameter: 0.5' to 0.75' (13-19mm)
- Weight: 0.2-0.3 lbs/ft (300-450 g/m)
- Temperature Range: -40°C to 75°C (-40°F to 167°F)
- Water Resistance: Gel-filled core for moisture blocking
- Standards: UL CMU/CMR, NEC Article 800, ANSI/ICEA S-76-474
Advantages
1. Ultimate Installation Efficiency
- Single Installation: One cable replaces three separate components
- Reduced Labor: 60-70% faster deployment vs. separate cables
- Simplified Permitting: Often covered under single aerial permit
- Fewer Attachment Points: One set of clamps instead of multiple
2. Structural & Mechanical Benefits
- Engineered Strength: Messenger rated for specific span lengths and ice loads
- Uniform Sag: Predictable catenary curve
- Vibration Resistance: Messenger absorbs wind-induced movement
- Protected Conductors: Data/power kept in fixed position relative to support
3. Electrical & Signal Performance
- Optimized Separation: Factory-designed spacing minimizes EMI
- Better Voltage Drop: Larger conductors (16/14 AWG) vs. PoE (24-26 AWG)
- Grounding Path: Steel messenger provides equipment grounding (when properly bonded)
- Lightning Dissipation: Messenger can help shunt static (when grounded)
4. Cost Savings
- Material Savings: One cable cheaper than data + power + messenger separately
- Installation Savings: Crew of 2 can install vs. 3-4 for separate components
- Hardware Reduction: Fewer clamps, ties, brackets, and insulators
- Lifespan: Designed for 20+ years outdoor life
5. Professional Appearance
- Clean Look: Single uniform cable instead of messy bundle
- Predictable Routing: Maintains consistent sag and alignment
- Easy Identification: Clearly marked for maintenance crews
Applications
1. Surveillance & Security Networks
- Municipal Surveillance: City-wide camera networks on light poles
- Perimeter Security: Long fence line coverage
- Parking Lots: Lighting pole to lighting pole
- Traffic Monitoring: Intersection cameras with pan/tilt/zoom
2. Outdoor Wireless Networks
- Wi-Fi Meshing: Access points on utility poles
- ISP Backhaul: Connecting micro-pop locations
- Public Wi-Fi: Parks, campuses, downtown areas
- Industrial Wireless: Plant-wide sensor networks
3. Smart City Infrastructure
- Intelligent Traffic Systems: Cameras, sensors, variable message signs
- Smart Lighting: Power + data for dimming/monitoring
- Environmental Monitoring: Air quality, noise, weather stations
4. Industrial & Agricultural
- Agricultural Monitoring: Field sensors, irrigation control
- Mining/Oil/Gas: Perimeter monitoring, equipment control
- Marine Facilities: Dock lighting, security, access control
- Rail/Transit: Station security, passenger information
5. Special Deployments
- Bridge Monitoring: Structural sensors and cameras
- Pipeline Security: Remote monitoring along rights-of-way
- Border Security: Long-distance surveillance
- Event Venues: Temporary installations for festivals/races
Installation Requirements
Span & Sag Specifications
Span Length | Recommended Sag | Max Tension | Pole Height |
|---|
50 ft (15m) | 0.5-1 ft (15-30cm) | 300 lbs | 20 ft minimum |
100 ft (30m) | 1-2 ft (30-60cm) | 500 lbs | 25 ft minimum |
150 ft (45m) | 2-3 ft (60-90cm) | 700 lbs | 30 ft minimum |
200 ft (60m) | 3-4 ft (90-120cm) | 1,000 lbs | 35 ft minimum |
Clearance Requirements (NEC/OSHA)
Over Roadways: Minimum 18 feet (5.5m)
- Over Pedestrian Areas: Minimum 10 feet (3m)
- From Power Lines: Minimum 12' (30cm), recommended 40' (1m)
- From Structures: Minimum 3 feet (0.9m)
Important Considerations
Electrical Code Compliance
NEC Article 800/830 Applicable Sections:
- 800.179: Composite Cable Types
- 800.100: Grounding of Cable
- 800.33: Lightning Protection
- 830.133: Installation of Network-Powered Cables
- 300.11: Securing and Supporting
Key Requirements:
Messenger must be grounded at each pole
Power limited to Class 2 or Class 3 circuits
Proper separation from power lines
Mechanical protection at building entries
Marked every 100 feet as 'COMMUNICATIONS CABLE'
Power Limitations & Calculations
Voltage | 16 AWG (10A) | 14 AWG (15A) |
|---|
12V DC | 50m (164 ft) | 80m (262 ft) |
24V DC | 100m (328 ft) | 160m (525 ft) |
48V DC | 200m (656 ft) | 300m (984 ft) |
Lightning & Surge Protection
Required Protection Points:
- Each end of cable (data and power lines)
- Building entry points
- Every pole with equipment
- Messenger to ground at each pole
Protection Specifications:
Data: Gas discharge tube or solid-state protectors
Power: MOV or TVSS devices rated for expected surge
Messenger: Bonded to grounding electrode system
Limitations & Challenges
Technical Limitations
- Fixed Ratios: Cannot upgrade one component independently
- EMI Risk: AC power can interfere with data (DC is safer)
- Distance Limits: Power delivery distance < data distance
- Current Sharing: Power limited to ~10A continuous
- Heat Buildup: Power conductors can heat entire cable bundle
Challenges
- Heavy: Difficult to handle on long spans
- Bend Radius: Minimum 10x cable diameter
- Special Tools: Required for termination
- Permitting: More complex than standard aerial cable
- Repair: Damage to one section affects all services
Future-Proofing Concerns
- Technology Changes: New data standards may require replacement
- Power Needs: Increasing device power demands
- Maintenance: Specialized technicians needed
- Vendor Lock-in: Often proprietary termination methods
Cost Analysis
Cost Comparison (Per 100 ft run):
Component | Separate Install | Composite Cable | Savings |
|---|
Cable Costs | $120 | $200 | -$80 |
Hardware | $60 | $30 | +$30 |
Labor (2 hrs) | $200 | $80 | +$120 |
Permits | $150 | $100 | +$50 |
TOTAL | $530 | $410 | $120 (23%) |
Typical Pricing:
Cable: $2.00-$4.00 per foot
Installation: $5-$10 per foot (total installed cost)
Hardware: $50-$200 per span
Permitting: $100-$500 per project
Best Practices
Planning Phase
- Site Survey: Map exact route, measure distances, identify obstacles
- Power Calculation: Calculate voltage drop for worst-case device
- Span Planning: Keep spans ≤150 feet, use mid-span supports if needed
- Permit Research: Check local utility, DOT, and municipal requirements
- Utility Markout: Call 811 before any digging for pole installation
Installation Phase
- Use Proper Equipment: Cable grips, tensioners, pulleys
- Maintain Clearance: Follow NEC/OSHA minimums
- Proper Tension: Use tension gauge, don't over-tighten
- Service Loops: Leave 10-15 feet extra at each end
- Immediate Testing: Test data and power before final tensioning
Termination Phase
- Waterproof Everything: Use gel-filled connectors, mastic tape
- Surge Protection: Install at EVERY device connection
- Proper Grounding: #6 AWG to 8-foot ground rods
- Clear Labeling: 'HYBRID CABLE - DATA + POWER'
- Documentation: Photos, GPS coordinates, as-built drawings
Maintenance Phase
- Annual Inspection: Check tension, grounding, connections
- Vegetation Control: Trim trees to maintain clearance
- Lightning Checks: Test surge protectors after storms
- Performance Testing: Annual network and power testing
- Record Updates: Maintain current documentation
When to Use This Solution
Ideal Scenarios:
✅ Long outdoor runs between poles (>100 feet)
✅ Projects with 10+ devices needing data+power
✅ Areas where trenching is impossible/expensive
✅ Time-sensitive deployments
✅ Municipal/smart city infrastructure
✅ Professional installers with aerial experience
Consider Alternatives When:
❌ Runs are under 50 feet
❌ Only 1-2 devices need connection
❌ No experienced aerial installation crew available
❌ Extreme lightning area (consider fiber + separate power)
❌ Future upgrades are anticipated soon
❌ Budget is extremely constrained
Top Brands & Manufacturers
- Nexans: Figure-8 hybrid cables
- Prysmian: Power+data aerial solutions
- Southwire: Service Drop style composite cables
- Belden: Industrial-grade hybrid cables
- Coleman Cable: MCQUAID composite series
- General Cable: EZ-Spool aerial hybrids
- Alpha Wire: Custom composite solutions
Ordering Specifications
When ordering, specify:
- Total length and number of spans
- Data: Cat6 UTP or FTP
- Power: Conductor size (16 AWG or 14 AWG)
- Messenger: Steel or dielectric
- Jacket: UV rating, temperature range
- Water blocking: Gel-filled or dry
- Pre-termination: Connectors required
- Reel size: Standard 500ft, 1000ft, 2500ft
Final Recommendations
For Municipal/ISP Projects:
- Use 14 AWG for longer power runs
- Specify steel messenger for strength
- Order factory pre-terminated for speed
- Include surge protection in spec
- Plan for 20-year lifespan
For Security Integrators:
- Use 16 AWG for most camera runs
- Consider dielectric messenger near power lines
- Stock standard lengths (250ft, 500ft)
- Train technicians on proper termination
- Keep spare connectors and protection modules
For Industrial Applications:
- Specify plenum rating if in air spaces
- Consider shielded version for EMI areas
- Use direct burial version if aerial + underground needed
- Include warning markers for high-traffic areas
- Document EVERY connection point
The Bottom Line: This cable represents the most complete aerial infrastructure solution available, offering unparalleled installation efficiency for outdoor networks requiring both data and power. While it requires careful planning, proper installation, and strict adherence to electrical codes, it delivers significant long-term value for large-scale outdoor deployments where reliability, efficiency, and professional appearance are paramount.
Package
FAQS:
Q1: Are you a factory or trading company?
A1: We are a manufacturer.
Q2: Where is your factory located? How can I visit there?
A2:Our factory are located in jieyang city. You can fly to Shenzhen or Guangzhou international airport. And tell us your flight No. We will arrange to pick you up.
Q3: How can I get a sample to test your quality?
A3:We can provide free samples for your test and checking, you just need to bear the freight charge.
Q4:What payment method do you accept?
A4:T/T(Bank transfer), Western Union, Money Gram, Paypal, etc.
Q5: Can you put my brand name (logo) on these products?
A5: Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the logo free for bulk orders.
Q6: May I know the status of my order?
A6: Yes .The order information and photos at different production stage of your order will be sent to you and the information will be updated in time.
Q7: What’s the leading time? (How long do you need to prepare my goods?
A7: Delivery (no more than 1000pcs) will be arranged within 10-15 days after payment, and arrive you within about 1 month via sea shipping.
Q8: How will you deliver my goods to me?
A8 Your purchases will be delivered by DHL, UPS, FedEx, TNT, EMS your door. Air Cargo and Sea Cargo, Direct line, Air Mail also be accepted according to clients' request.
Q9: Can you provide us more other products to us to help us to save more shipping costs?
A9: Yes. There’re kinds of Indoor Cables, Outdoor Cables, Coaxial Cables, Telephone Cables, Fiber Optic Cables and Accessories will be the main products line of Factory.
The OEM bulk order will be accept as well.
0086-755-23002989
info@hotonlink.com
hotonlink
0086-18123718803
Room 506, 5th floor No.48 Huaide South Road,Cuigang Industrial Zone 4,Fuyong Street,Baoan Shezhen China
