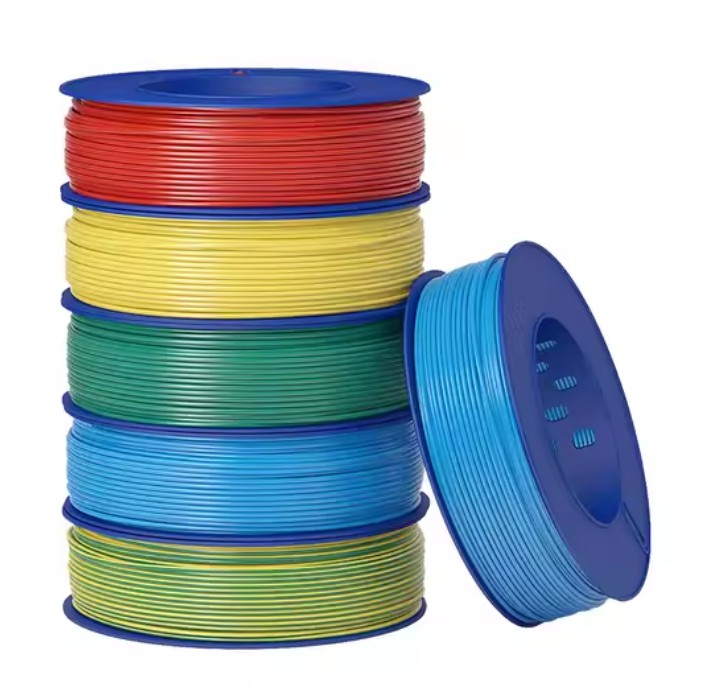

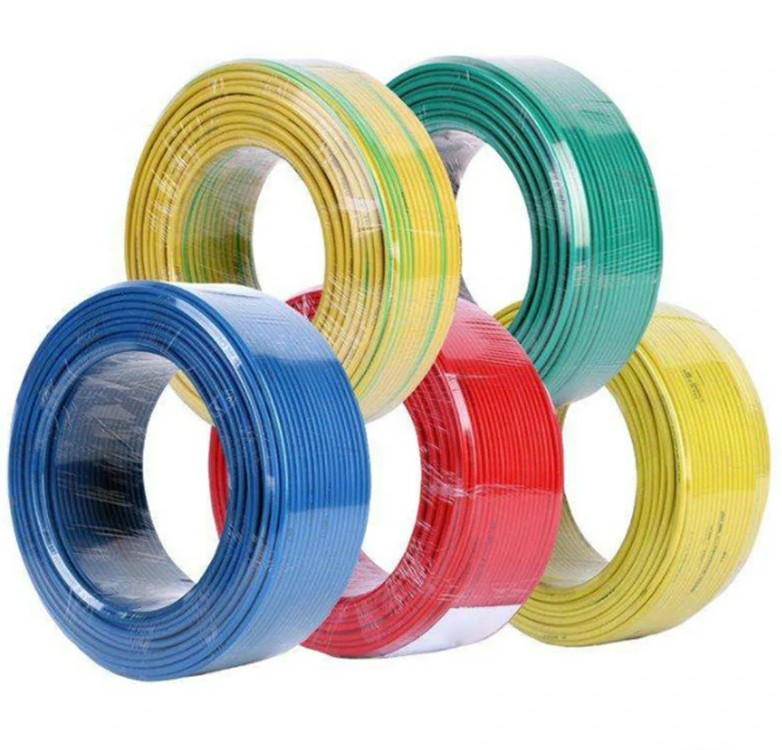

Bv Bvv Bvvb Soft Wire Cable Home House Wiring 1.5mm 2.5mm 4mm 6mm Copper Pvc Electric Wire

1. Place of Origin: China
2. Brand Name:Hoton Link
3.Conductor:Copper/CCA/CCAG
4. Minimum Order Quantity:100rolls
5. Payment Terms: L/C, T/T, Western Union
6. Supply Ability: 5000KM every month
7. Application: Surface Wiring in Residential & Commercial Buildings,Internal Wiring of Electrical Cabinets & Junction Boxes

Select the number of specifications

Please check the product information you want!

Product Detail

Home House Wiring 1.5mm 2.5mm 4mm 6mm Copper Pvc Electric Wire Bv Bvv Bvvb Soft Wire Cable

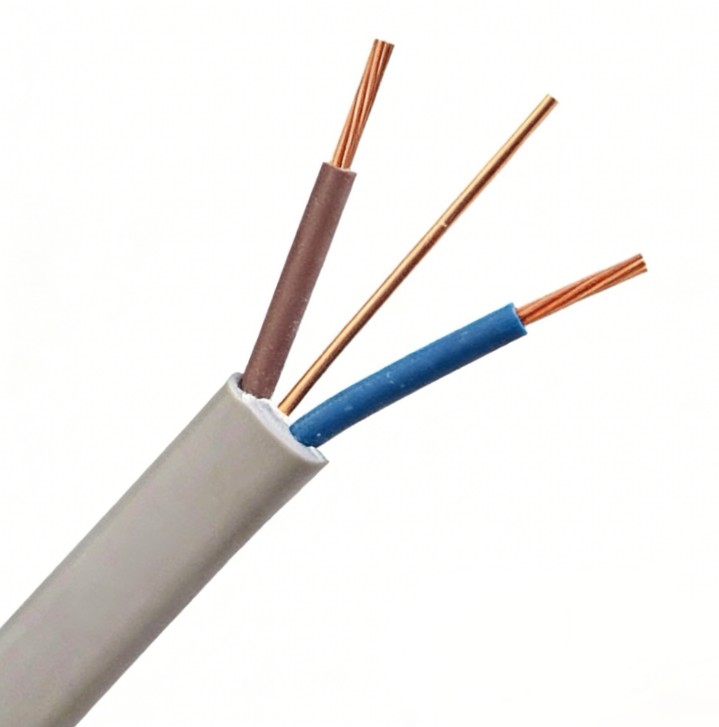

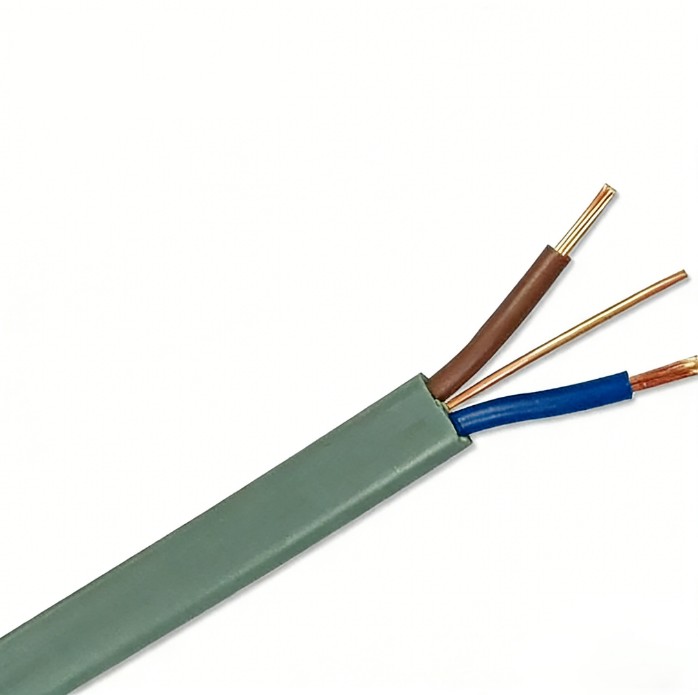

BVV/B is a flat sheathed, hard-wire cable. The designation stands for:

B - PVC Insulation
V - PVC Sheath (for each core)
V - PVC Outer Sheath
B - Flat (Bianin Chinese) structure

It is essentially a flat version of the standard BVV cable, with two or three parallel insulated cores laid side-by-side and encased in a single, flat PVC outer sheath.

Specifications

1. Conductor:

Material: Plain annealed copper.
Type: Solid Core. This is a key distinction. Unlike the flexible strands in RVV, BVV/B uses a single, solid copper wire for each core, making it a non-flexible, hard wiring cable suitable for fixed installations only.

2. Insulation & Sheath:

Individual Core Insulation: Each copper core has its own PVC insulation layer, color-coded (e.g., Red/Blue/Yellow-Green).
Outer Sheath: A single, flat PVC jacket that binds the insulated solid cores together in a parallel formation.

3. Voltage Rating:

Standard Rating: 300/500V or 450/750V. It is designed for low-voltage power distribution.

4. Core Configuration:

Almost exclusively 2-core (Live & Neutral) or 3-core (Live, Neutral & Earth).
The cores lie perfectly parallel, giving the cable its characteristic flat, ribbon-like appearance.

5. Common Cross-Sectional Areas:

Core sizes: 1.0 mm², 1.5 mm², 2.5 mm², 4.0 mm², 6.0 mm².
Most Common: 1.5mm² & 2.5mm² for final circuit wiring.

6. Standards:

Complies with Chinese national standard GB/T 5023.3 (same as BV/BVR) for PVC insulated cables.

Key Features & Advantages

Flat Profile: Its most distinctive feature. This allows for extremely neat, low-profile surface mounting against walls, skirting boards, or door/window frames. It is less obtrusive than a rounded cable.
Enhanced Mechanical Protection: The tough outer PVC sheath provides good protection against abrasion, impact, and crushing compared to single-core cables (BV), making it suitable for light-duty exposed runs.
All-in-One Fixed Wiring: Combines the required cores (2 or 3) in one flat jacket, simplifying procurement and installation for simple circuits.
Easier Fixing & Aesthetics: Can be easily and neatly secured with flat-headed cable clips or adhesive-backed cable ties. Paints over well for a discreet finish.
Cost-Effective for Simple Runs: Often more economical than running separate BV cables inside a conduit for a simple two-wire circuit.

Primary Applications

BVV/B is designed for fixed, surface-mounted wiring installations in dry, indoor locations. It is a popular choice for retrofit and renovation work.

1. Surface Wiring in Residential & Commercial Buildings:

Ideal for: Adding a new light switch, socket outlet, or lighting point where chasing walls to bury cables is not desired or possible.
Common Uses: Running power along skirting boards, door frames, or cornices to feed additional lights, fans, or low-power appliances.

2. Internal Wiring of Electrical Cabinets & Junction Boxes:

Used for neat internal connections within distribution boards, meter boxes, and control panels where space is tight and a flat layout is beneficial.

3. Fixed Connection of Large Appliances:

Can be used for the final, fixed connection from a fused connection unit (FCU) or outlet to a stationary appliance like an air conditioner, water heater, or cooker hood, provided the run is protected from physical damage.

4. Extension of Existing Circuits:

Perfect for small-scale circuit extensions in workshops, garages, or basements when installed on surfaces with appropriate clips.

Comparison with Similar Cables

Feature	BVV/B Cable (Flat)	BV / BVR Cable	RVV Cable
Conductor	Solid Core (Hard Wire)	BV: Solid. BVR: Stranded.	Finely Stranded (Very Flexible)
Structure	Flat Sheath, 2/3 parallel solid cores.	Single Core, no sheath.	Round Sheath, multiple stranded cores.
Flexibility	Low - Stiff, can be bent to shape but not flexed repeatedly.	BV: Very Low. BVR: Medium.	Very High
Primary Use	Fixed, surface-mounted power wiring.	Fixed wiring inside conduits/walls.	Movable connections & internal appliance wiring.
Protection	Good (from its sheath) for exposed runs.	None - Must be in conduit.	Good (from its sheath) for light duty.
Installation	Clipped directly to surface.	Must be inside conduit/trunking.	Clipped to surface or left loose.

Important Limitations & Safety Notes

Fixed Installation Only: Despite having a sheath, it is NOT a flexible cord. Its solid cores will break if bent repeatedly. It must be installed once and left in place.
Indoor & Dry Locations Only: The PVC sheath is not waterproof or UV resistant. It must not be used outdoors, in damp locations, or buried in plaster, masonry, or soil.
Requires Mechanical Protection: While it can be surface-mounted, it should be routed out of reach of potential impact or abrasion. In areas subject to damage, it should be run inside a mini-trunking or protective channel.
Not for High-Temp Areas: Avoid installation near significant heat sources.
Local Regulations: Always comply with national and local wiring regulations (e.g., NEC in US, IET Wiring Regs in UK). In many regions, sheathed cable like BVV/B is acceptable for surface wiring but not as a substitute for proper conduit systems in walls.

in summary, BVV/B is a practical, flat-profile sheathed cable for neat, surface-mounted power wiring in dry indoor locations. Its main advantage is its aesthetics and simplicity for retrofit fixed wiring projects, bridging the gap between concealed conduit systems and fully flexible cords.

Package and Shipment

FAQS:

Q1: Are you a factory or trading company?

A1: We are a manufacturer.

Q2: Where is your factory located? How can I visit there?

A2:Our factory are located in jieyang city. You can fly to Shenzhen or Guangzhou international airport. And tell us your flight No. We will arrange to pick you up.

Q3: How can I get a sample to test your quality?

A3:We can provide free samples for your test and checking, you just need to bear the freight charge.

Q4:What payment method do you accept?

A4:T/T(Bank transfer), Western Union, Money Gram, Paypal, etc.

Q5: Can you put my brand name (logo) on these products?

A5: Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the logo free for bulk orders.

Q6: May I know the status of my order?

A6: Yes .The order information and photos at different production stage of your order will be sent to you and the information will be updated in time.

Q7: What’s the leading time? (How long do you need to prepare my goods?

A7: Delivery (no more than 1000pcs) will be arranged within 10-15 days after payment, and arrive you within about 1 month via sea shipping.

Q8: How will you deliver my goods to me?

A8 Your purchases will be delivered by DHL, UPS, FedEx, TNT, EMS your door. Air Cargo and Sea Cargo, Direct line, Air Mail also be accepted according to clients' request.

Q9: Can you provide us more other products to us to help us to save more shipping costs?

A9: Yes. There’re kinds of Indoor Cables, Outdoor Cables, Coaxial Cables, Telephone Cables, Fiber Optic Cables and Accessories will be the main products line of Factory.

The OEM bulk order will be accept as well.
