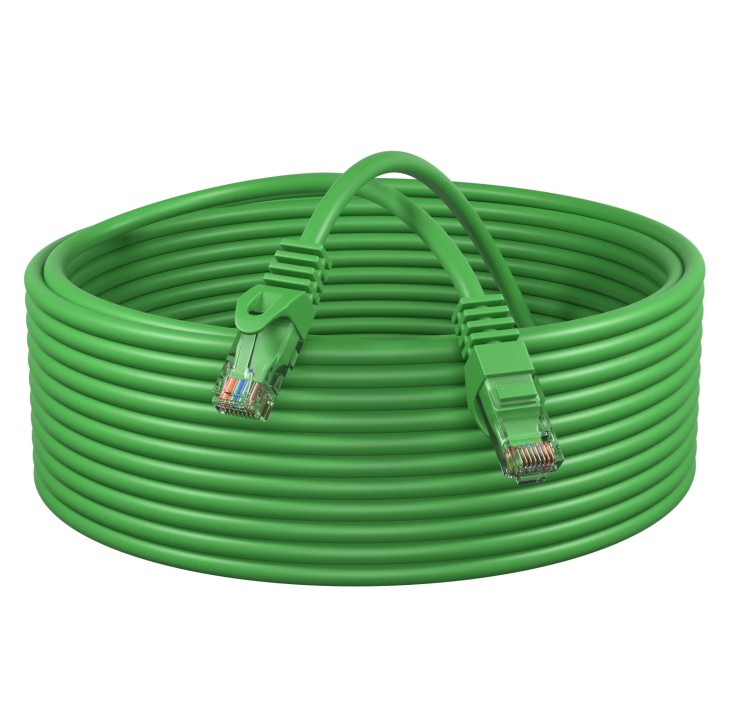

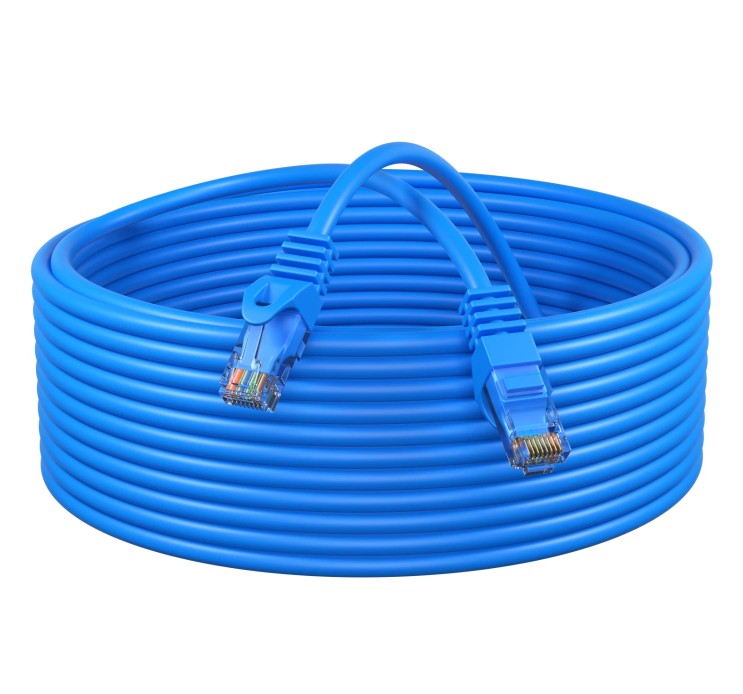

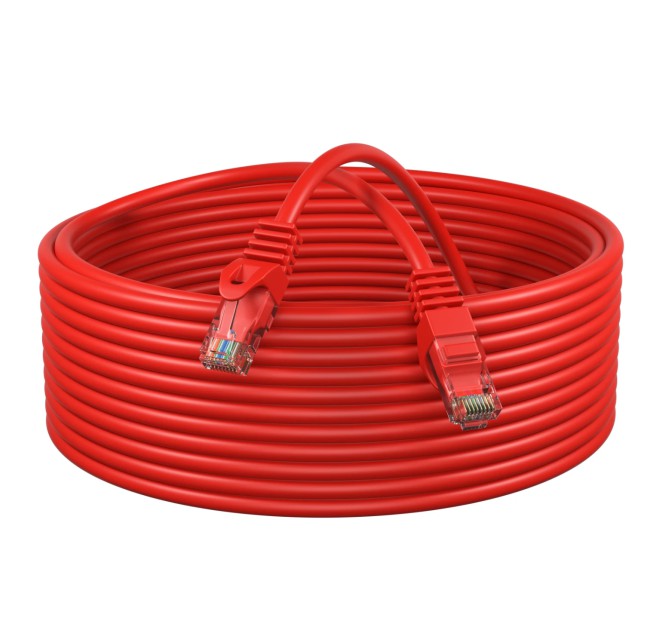

CAT5E/CAT6/ UTP FTP SFTP Stranded Copper Patch Cord Cable

1. Place of Origin: China
2. Brand Name:Hoton Link
3.Conductor Type: Copper/CCA/CCAU/TC
4. Minimum Order Quantity:50KM
5.Application:used in Data Center,Enterprise Office Network,Home Network,Industrial Control Network,Telecommunications and Communication Room

Select the number of specifications

Please check the product information you want!

Product Detail

CAT5E/CAT6/ UTP FTP SFTP Stranded Copper Patch Cord Cable

1.Conductor Specifications:

Parameter	Cat5e	Cat6	Cat6A	Cat7	Cat8
Conductor Type	Stranded (flexible)	Stranded (flexible)	Stranded (flexible)	Stranded (flexible)	Stranded (flexible)
Conductor Material	Pure Copper (≥99.9%)	Pure Copper (≥99.9%)	Pure Copper (≥99.9%)	Pure Copper (≥99.9%)	Pure Copper (≥99.9%)
AWG (Stranded)	24-26 AWG	23-24 AWG	22-23 AWG	22-23 AWG	22 AWG
Strand Count	7×0.16mm (7/32)	7×0.18mm (7/36)	19×0.12mm (19/40)	19×0.12mm (19/40)	19×0.12mm (19/40)
Conductor Diameter	0.51mm (24AWG)	0.57mm (23AWG)	0.64mm (22AWG)	0.64mm (22AWG)	0.64mm (22AWG)
DC Resistance	≤9.38Ω/100m	≤7.54Ω/100m	≤6.02Ω/100m	≤6.02Ω/100m	≤6.02Ω/100m

Insulation & Pair Specifications:

Parameter	Specification
Insulation Material	High-density Polyethylene (HDPE) or Foamed PE
Insulation Diameter	0.9-1.0mm (varies by category)
Pair Twisting	Different twist rates (12-20 twists/ft) per pair to reduce crosstalk
Pair Colors	Blue/White-Blue, Orange/White-Orange, Green/White-Green, Brown/White-Brown
Twist Preservation	Maintained to within 13mm of termination

Cable Construction Types:

Type	Description	Use Case
U/UTP	Unshielded, no overall shield	Office, home, low-EMI
F/UTP	Foil shield under jacket	Moderate EMI environments
U/FTP	Individual foil-shielded pairs	High EMI, data centers
S/FTP	Individual foil + overall braid	Extreme EMI, industrial
SF/UTP	Braid + foil overall shield	Severe environments

2. Performance Specifications (TIA/EIA Standards)

Frequency & Bandwidth:

Category	Max Frequency	Bandwidth	Standard
Cat5e	100 MHz	1000 Mbps	TIA-568-C.2
Cat6	250 MHz	10 Gbps* (37-55m)	TIA-568-C.2
Cat6A	500 MHz	10 Gbps (100m)	TIA-568-C.2
Cat7	600 MHz	10 Gbps (100m)	ISO/IEC 11801
Cat7A	1000 MHz	40 Gbps* (50m)	ISO/IEC 11801
Cat8	2000 MHz	40 Gbps (30m)	TIA-568-C.2-1

Attenuation-to-Crosstalk Ratio (ACR):

Cat5e: ≥10.0 dB at 100 MHz
Cat6: ≥18.2 dB at 100 MHz
Cat6A: ≥24.2 dB at 100 MHz

Performance Requirements:

Pull Force: Withstand ≥100N without damage
Bend Radius: Support 25mm minimum bend radius
Latch Protection: Prevent accidental unlatching

Physical & Mechanical Specifications

Outer Diameter (OD):

Category	UTP OD	FTP OD	Overall Shielded OD
Cat5e	5.3-5.9mm	5.8-6.4mm	6.2-7.0mm
Cat6	5.8-6.6mm	6.3-7.1mm	6.8-7.6mm
Cat6A	6.5-7.5mm	7.0-8.0mm	7.5-8.5mm
Cat7	7.0-8.0mm	7.5-8.5mm	8.0-9.0mm

Environmental Specifications

1. Temperature Ratings:

Environment	Operating Temperature	Storage Temperature
Commercial	0°C to 60°C	-20°C to 70°C
Industrial	-40°C to 75°C	-50°C to 85°C
Extended	-40°C to 85°C	-55°C to 95°C

2. Fire Safety Ratings:

Rating	Standard	Application	Smoke	Toxicity
CM/CMG	UL 1685	General purpose	No limit	No limit
CMR	UL 1666	Riser (floor-to-floor)	Limited	Limited
CMP	UL 910	Plenum (air spaces)	Very low	Very low
LSZH	IEC 60754	Data centers, transport	Low	Halogen free

3. Chemical & Environmental Resistance:

Water Resistance: IP67 rated options available
UV Resistance: 500-1000 hours without degradation
Oil Resistance: Resistant to common industrial oils
Acid/Alkali: Resistant to mild concentrations
