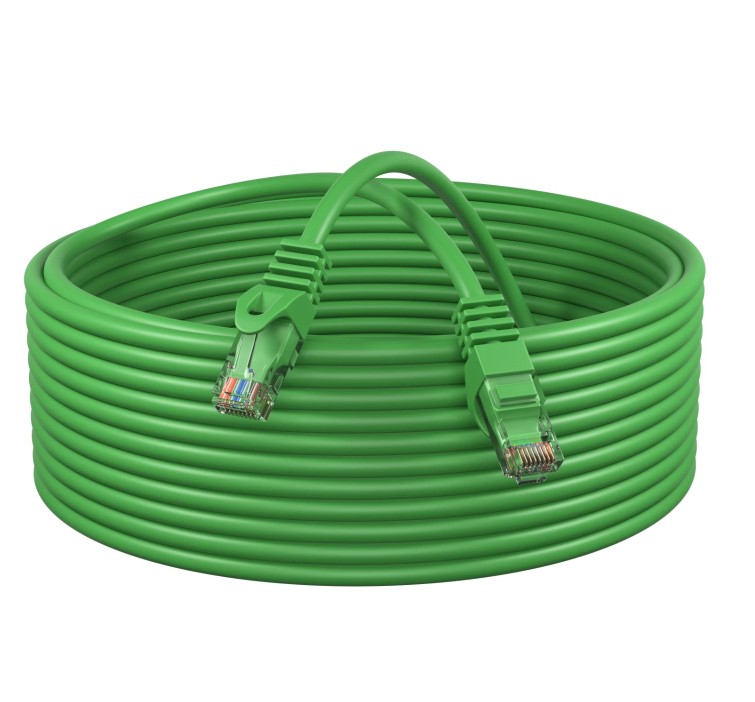

CAT6 UTP Patch Cables Unshielded Patch Cable RJ45 Patch Cord 1m

1. Place of Origin: China
2. Brand Name:Hoton Link
3.Conductor Type: Copper/CCA/CCAU/TC
4. Minimum Order Quantity:50KM
5.Application:used in Data Center,Enterprise Office Network,Home Network,Industrial Control Network,Telecommunications and Communication Room

Select the number of specifications

Please check the product information you want!

Product Detail

CAT6 UTP Patch Cables Unshielded Patch Cable RJ45 Patch Cord 1m

1.Conductor Specifications:

Parameter	Cat5e	Cat6	Cat6A	Cat7	Cat8
Conductor Type	Stranded (flexible)	Stranded (flexible)	Stranded (flexible)	Stranded (flexible)	Stranded (flexible)
Conductor Material	Pure Copper (≥99.9%)	Pure Copper (≥99.9%)	Pure Copper (≥99.9%)	Pure Copper (≥99.9%)	Pure Copper (≥99.9%)
AWG (Stranded)	24-26 AWG	23-24 AWG	22-23 AWG	22-23 AWG	22 AWG
Strand Count	7×0.16mm (7/32)	7×0.18mm (7/36)	19×0.12mm (19/40)	19×0.12mm (19/40)	19×0.12mm (19/40)
Conductor Diameter	0.51mm (24AWG)	0.57mm (23AWG)	0.64mm (22AWG)	0.64mm (22AWG)	0.64mm (22AWG)
DC Resistance	≤9.38Ω/100m	≤7.54Ω/100m	≤6.02Ω/100m	≤6.02Ω/100m	≤6.02Ω/100m

Insulation & Pair Specifications:

Parameter	Specification
Insulation Material	High-density Polyethylene (HDPE) or Foamed PE
Insulation Diameter	0.9-1.0mm (varies by category)
Pair Twisting	Different twist rates (12-20 twists/ft) per pair to reduce crosstalk
Pair Colors	Blue/White-Blue, Orange/White-Orange, Green/White-Green, Brown/White-Brown
Twist Preservation	Maintained to within 13mm of termination

Cable Construction Types:

Type	Description	Use Case
U/UTP	Unshielded, no overall shield	Office, home, low-EMI
F/UTP	Foil shield under jacket	Moderate EMI environments
U/FTP	Individual foil-shielded pairs	High EMI, data centers
S/FTP	Individual foil + overall braid	Extreme EMI, industrial
SF/UTP	Braid + foil overall shield	Severe environments

2. Performance Specifications (TIA/EIA Standards)

Frequency & Bandwidth:

Category	Max Frequency	Bandwidth	Standard
Cat5e	100 MHz	1000 Mbps	TIA-568-C.2
Cat6	250 MHz	10 Gbps* (37-55m)	TIA-568-C.2
Cat6A	500 MHz	10 Gbps (100m)	TIA-568-C.2
Cat7	600 MHz	10 Gbps (100m)	ISO/IEC 11801
Cat7A	1000 MHz	40 Gbps* (50m)	ISO/IEC 11801
Cat8	2000 MHz	40 Gbps (30m)	TIA-568-C.2-1

Attenuation-to-Crosstalk Ratio (ACR):

Cat5e: ≥10.0 dB at 100 MHz
Cat6: ≥18.2 dB at 100 MHz
Cat6A: ≥24.2 dB at 100 MHz

Performance Requirements:

Pull Force: Withstand ≥100N without damage
Bend Radius: Support 25mm minimum bend radius
Latch Protection: Prevent accidental unlatching

Physical & Mechanical Specifications

Outer Diameter (OD):

Category	UTP OD	FTP OD	Overall Shielded OD
Cat5e	5.3-5.9mm	5.8-6.4mm	6.2-7.0mm
Cat6	5.8-6.6mm	6.3-7.1mm	6.8-7.6mm
Cat6A	6.5-7.5mm	7.0-8.0mm	7.5-8.5mm
Cat7	7.0-8.0mm	7.5-8.5mm	8.0-9.0mm

Environmental Specifications

1. Temperature Ratings:

Environment	Operating Temperature	Storage Temperature
Commercial	0°C to 60°C	-20°C to 70°C
Industrial	-40°C to 75°C	-50°C to 85°C
Extended	-40°C to 85°C	-55°C to 95°C

2. Fire Safety Ratings:

Rating	Standard	Application	Smoke	Toxicity
CM/CMG	UL 1685	General purpose	No limit	No limit
CMR	UL 1666	Riser (floor-to-floor)	Limited	Limited
CMP	UL 910	Plenum (air spaces)	Very low	Very low
LSZH	IEC 60754	Data centers, transport	Low	Halogen free

3. Chemical & Environmental Resistance:

Water Resistance: IP67 rated options available
UV Resistance: 500-1000 hours without degradation
Oil Resistance: Resistant to common industrial oils
Acid/Alkali: Resistant to mild concentrations

No comment
