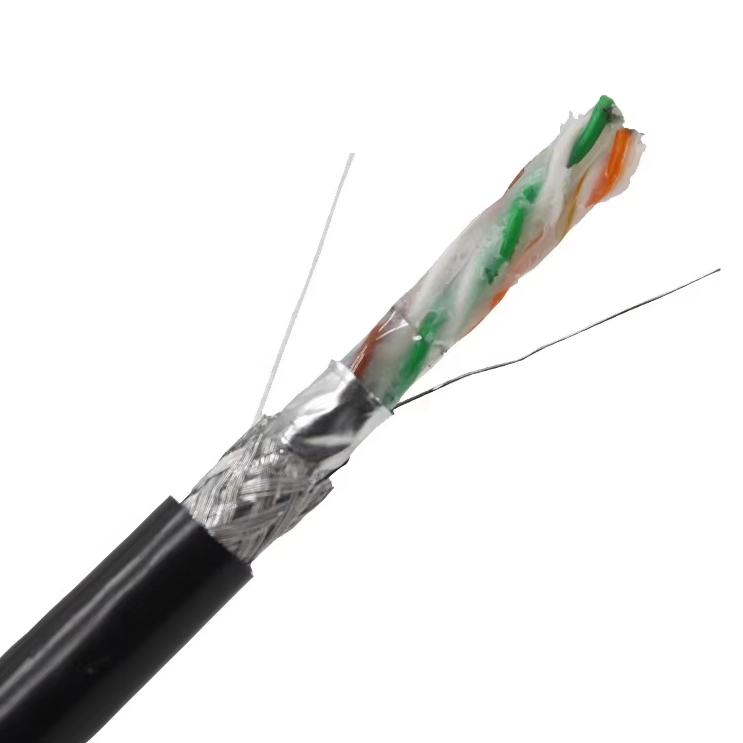

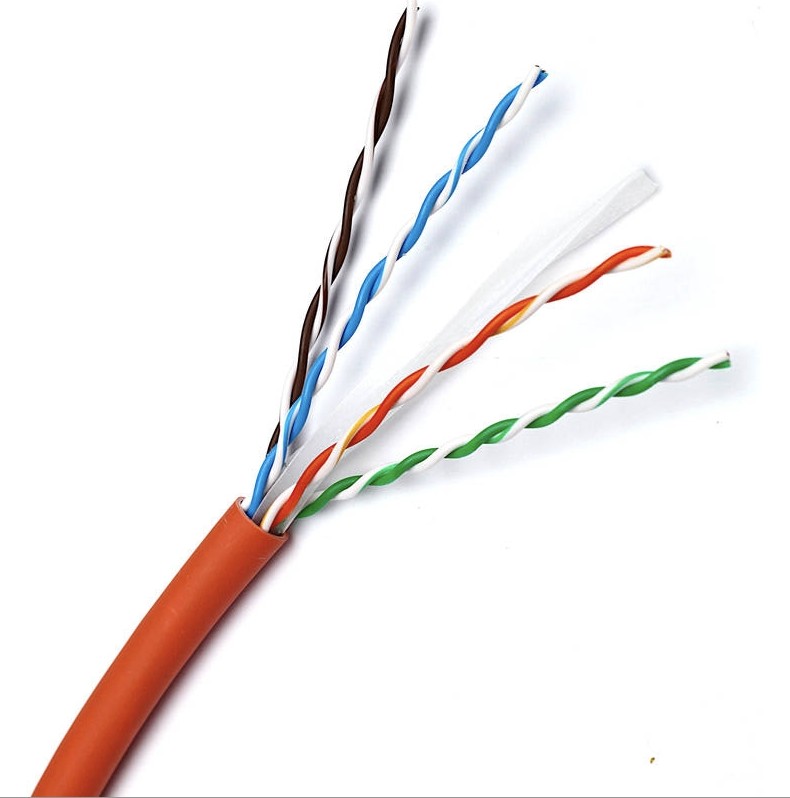

External Gel Filled SFTP Cat5e Jelly Filled Single or Double Jacket Network Cable
Construction & Layered Design
Multi-Layer Protection Architecture:
- Conductors: 4 pairs of 24 AWG solid bare copper
- Insulation: High-density polyethylene (HDPE), color-coded per TIA-568
- Pair Shielding: Individual aluminum-polyester foil over each pair + drain wire
- Overall Shielding: Tinned copper braid (85-95% coverage)
- Gel Filling: Hydrophobic compound filling all interstitial spaces
- Inner Jacket: Optional bonded polyethylene layer
- Outer Jacket: Double-layer UV-resistant PE with carbon black stabilizer
- Optional Armor: Corrugated steel tape (available in some variants)
Gel Filling System:
- Type: Petroleum-based hydrophobic compound
- Fill Percentage: 60-80% of core void space
- Viscosity: Thixotropic (flows under pressure, gels at rest)
- Operating Temperature: -40°C to +70°C
- Non-Migrating: Formulated to resist flowing over time
- Compatibility: Non-reactive with copper, insulation, and jacket materials
Technical Specifications
Electrical Performance:
Parameter | Specification | Test Standard |
|---|
Category | 5e Enhanced | TIA-568-C.2 |
Frequency Range | 1-100 MHz | - |
Impedance | 100Ω ±15% @ 100 MHz | IEC 61156-5 |
Attenuation | ≤21.3 dB/100m @ 100 MHz | Maximum |
NEXT (Near-End Crosstalk) | ≥32.3 dB @ 100 MHz | Minimum |
PS-NEXT | ≥29.3 dB @ 100 MHz | Minimum |
Return Loss | ≥20.1 dB @ 100 MHz | Minimum |
Propagation Delay | ≤548 ns/100m | Maximum |
Delay Skew | ≤45 ns/100m | Maximum |
Shielding Effectiveness | ≥65 dB @ 30-1000 MHz | MIL-STD-285 |
Shielding Performance:
- Overall Shielding: Braided copper (85-95% coverage)
- Pair Shielding: Individual foil shields
- Transfer Impedance: <10 mΩ/m @ 100 MHz
- Surface Transfer Impedance: <20 mΩ/m @ 100 MHz
- Capacitive Unbalance: <250 pF/100m pair-to-shield
Mechanical & Environmental:
Parameter | Specification | Notes |
|---|
Cable Diameter | 8.0-9.5 mm | Larger than standard SFTP |
Weight | 80-100 kg/km | Approximate |
Bend Radius | 10× OD (installed) | Minimum |
Tensile Strength | ≥600 N | During installation |
Crush Resistance | ≥2000 N/100mm | IEC 61156-5 |
Impact Resistance | ≥5 Joules | 1m drop on concrete |
Jacket Thickness | 1.2-1.6 mm | Double layer typically |
Temperature Range | -40°C to +70°C (operating) | -20°C to +50°C (install) |
Environmental Protection:
- Water Immersion: IP68 rating (continuous submersion)
- Moisture Ingress: <1% weight gain after 30 days @ 1m depth
- Hydrostatic Pressure: Withstands 1 MPa (10 bar) for 1 hour
- UV Resistance: 5000+ hours Xenon arc test (no cracking)
- Chemical Resistance: Resists oils, acids, alkalis (pH 3-11)
- Abrasion Resistance: 1000+ cycles, 1kg load, 60 RPM
Gel Properties:
- Dielectric Constant: 2.2-2.5 @ 1 MHz
- Volume Resistivity: >10¹⁵ Ω·cm
- Vapor Transmission: <0.1 g/m²/day @ 38°C, 90% RH
- Flash Point: >200°C
- Toxicity: Non-toxic, RoHS compliant
Key Advantages
1. Ultimate Environmental Protection:
- Complete Moisture Barrier: Gel filling prevents water ingress even with jacket damage
- Corrosion Prevention: Copper conductors fully encapsulated
- Hydrostatic Pressure Resistance: Suitable for deep burial and submerged applications
- Freeze-Thaw Stability: Gel remains flexible at -40°C
2. Superior EMI/RFI Immunity:
- Dual Shielding: Foil + braid provides 65+ dB attenuation
- Grounding Integrity: Multiple drain paths ensure reliable grounding
- Alien Crosstalk Elimination: Individual pair shielding prevents external interference
- EMI Sealing: Gel provides additional dielectric barrier
3. Mechanical Durability:
- Crush Resistance: 2× stronger than standard outdoor cables
- Abrasion Resistance: Double jacket withstands rough installation
- Rodent Protection: Gel deters gnawing, optional armor available
- Tensile Strength: Supports longer pulls and vertical runs
4. Long-Term Reliability:
- Service Life: 25+ years in harsh environments
- Performance Stability: Minimal aging effect on electrical properties
- Maintenance-Free: No drying out or re-gel required
- Warranty: Typically 15-20 years manufacturer warranty
5. Installation Flexibility:
- Multiple Installation Methods: Direct burial, conduit, underwater, aerial
- Temperature Tolerance: Installable in extreme conditions
- Compatibility: Works with standard SFTP connectors and hardware
- Recovery: Can be removed and reinstalled if needed
Applications
Extreme Environment Installations:
1. Marine & Coastal:
- Port Facilities: Crane controls, container tracking
- Offshore Platforms: Monitoring and control systems
- Ship-to-Shore Communications: Ferry terminals, marinas
- Coastal Surveillance: Salt spray and high humidity areas
2. Industrial Processing:
- Chemical Plants: Corrosive atmosphere protection
- Wastewater Treatment: Submerged sensors and controls
- Food Processing: Washdown areas with high humidity
- Mining Operations: Underground and open-pit applications
3. Transportation Infrastructure:
- Tunnel Systems: Lighting, ventilation, and traffic control
- Bridge Monitoring: Structural health sensors
- Railway Underpasses: Flood-prone areas
- Airfield Lighting: Runway and taxiway systems
4. Utility & Energy:
- Substation Communications: High EMI environments
- Solar Farm Networks: Underground between arrays
- Wind Turbine Interconnect: Tower base to control
- Pipeline Monitoring: Buried along pipeline routes
5. Government & Military:
- Border Security: Harsh climate surveillance
- Military Bases: EMI-hardened communications
- Emergency Services: Disaster-resistant networks
- Secure Facilities: TEMPEST-protected installations
Specific Use Cases:
Application | Environmental Challenges | Why This Cable? |
|---|
Wastewater Plant | Constant moisture, chemical exposure, rodents | Gel prevents corrosion, dual shield handles motor EMI |
Offshore Wind Farm | Salt water, high winds, lightning strikes | Waterproof, EMI protection from generators |
Mountain Tunnel | Water seepage, freeze-thaw, vehicle emissions | Handles hydrostatic pressure, temperature extremes |
Chemical Storage | Corrosive vapors, safety showers, drainage | Chemical-resistant jacket, sealed construction |
