External UTP CAT6 Double Jacket Cable With 2*0.75mm2DC Power Electric Cable

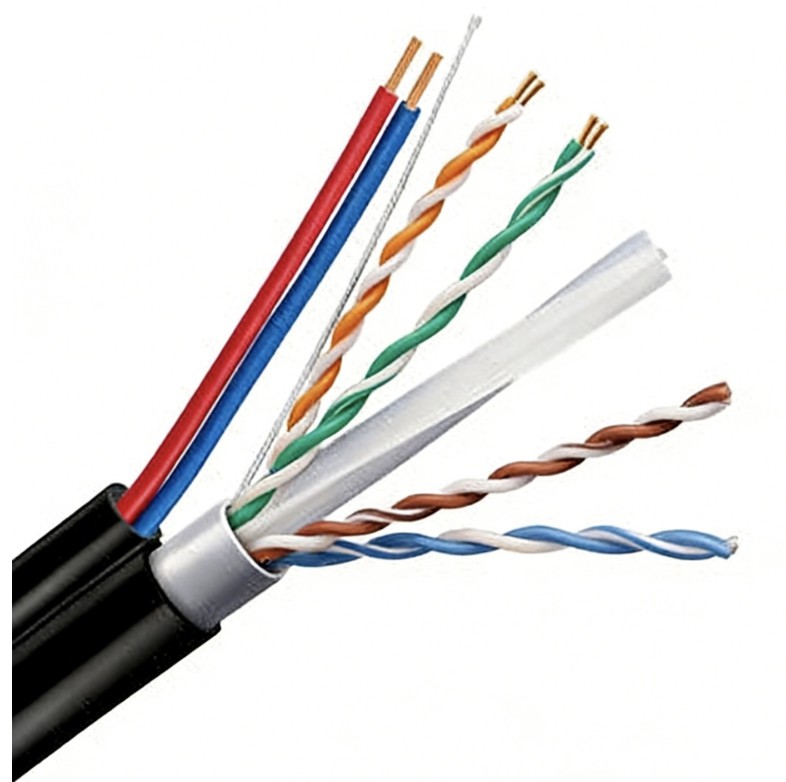

This is a hybrid composite cable that combines:
- 4 twisted pairs (8 conductors) for Ethernet data transmission (Cat6 standard)
- 2 additional insulated conductors for DC power delivery
All within a single integrated jacket, also called Power over Ethernet (PoE) extension cable or data/power hybrid cable.
Specifications
Electrical Specifications
Data Component (Cat6):
Category: Cat6 (250 MHz bandwidth)
- Conductors: 8 x 23-24 AWG solid bare copper
- Performance: 1 Gbps at 100m, 10 Gbps at ≤55m
- Shielding: Typically UTP (unshielded) or sometimes FTP (foiled)
Power Component:
Conductors: 2 x 16-18 AWG solid copper
- Voltage Rating: Usually 300V or 600V
- Insulation: Thicker insulation on power wires (often different colors)
- Power Capacity: 5-20A depending on gauge and local regulations
- Maximum Voltage: Typically 48V DC for PoE applications, up to 300V for AC
Physical Construction
Cable Diameter: ~0.35' to 0.5' (9-13mm) - thicker than standard Cat6
- Jacket: Usually UV-resistant PVC or polyethylene for outdoor use
- Color Coding:
- Separation: Power conductors are positioned apart from data pairs to minimize interference
- Ripcord: Often includes for easy termination
Types Available
Indoor Rated (CM/CMR): For in-wall/conduit installation
- Outdoor Rated (CMX/CMU): UV-resistant, often gel-filled for moisture
- Direct Burial: With flooding compound and armored tape
- Plenum Rated (CMP): For air-handling spaces (rare, expensive)
Advantages
1. Installation Efficiency
- Single Run Installation: One cable pull instead of two
- Reduced Labor Costs: 30-50% faster installation
- Cleaner Appearance: Single cable is neater than separate data/power runs
- Simplified Planning: One pathway/raceway needed instead of two
2. Cost Effectiveness
- Lower Material Costs: One cable cheaper than two separate cables
- Less Conduit: Smaller raceway requirements
- Reduced Hardware: Fewer clips, ties, and supports needed
3. Performance Benefits
- Optimized Layout: Factory-controlled spacing minimizes EMI between power/data
- Predictable Performance: Engineered to meet both data and power specifications
- Voltage Drop Reduction: Larger power conductors (16-18 AWG) vs standard PoE (24-26 AWG)
4. Reliability & Safety
- Strain Relief: Power and data share strain relief at terminations
- Proper Insulation: Power conductors have appropriate insulation for voltage
- Code Compliance: Often UL/ETL listed as a complete assembly
Applications
1. IP Camera & Surveillance Systems
- Outdoor Security Cameras: Single cable for data and 12/24V DC power
- PTZ Cameras: Higher power requirements (up to 30W+)
- Thermal Cameras: Often need more power than standard PoE provides
2. Wireless Network Deployment
- Outdoor Wi-Fi Access Points: Especially 802.11ax/Wi-Fi 6/7 with high power needs
- Point-to-Point Wireless Bridges: For remote locations
- Small Cell/5G Nodes: Distributed antenna systems
3. Access Control & Security
- Electronic Door Locks: Power-hungry electric strikes
- Intercom Systems: Video door phones
- Gate/Barrier Operators: Where Ethernet control is needed
4. Digital Signage & Displays
- Digital Menu Boards: In restaurants, retail
- Wayfinding Kiosks: In airports, hospitals
- Advertising Displays: Bus stops, building exteriors
5. Industrial/Commercial IoT
- Building Automation: Sensors, controllers
- LED Lighting Control: Smart lighting with data connectivity
- Parking Systems: License plate readers, payment kiosks
6. Specialized Applications
- Marine/RV: For compact installations
- Temporary Events: Trade shows, festivals
- Retrofit Projects: Where running new conduit is difficult
Connection & Termination
Termination Options
Method 1: Dedicated Connectors
- Specialized Plugs: 10-pin connectors (8 data + 2 power)
- Custom Jacks: Wall plates with separate data/power ports
- Proprietary Systems: Manufacturer-specific solutions
Method 2: Separate Termination (Most Common)
- Data End: Terminate to standard RJ45
- Power End: Use separate screw terminals or DC plug
- Splitter Box: Use a junction box to separate functions
Method 3: PoE Extender Method
- Use 2-pair for data + 2-pair for power (non-standard, not recommended for Cat6)
Important Considerations & Limitations
1. Electrical Code Compliance
- NEC Class 2 vs Class 1: Most are Class 2 limited power (≤100VA)
- Power Limitations: Typically 48V DC, ≤60W per cable
- Separation Requirements: Some jurisdictions require data/power separation
- Plenum Spaces: Special plenum-rated versions needed for air-handling spaces
2. Performance Limitations
- EMI/RFI Concerns: AC power can interfere with data if not properly designed
- Voltage Drop: Calculate for long runs (>50m)
- Power Capacity: Limited by conductor size (16-18 AWG = 5-10A max)
- Distance: Power delivery distance limited by voltage drop, not data distance
3. Installation Challenges
- Termination Complexity: More difficult than standard Cat6
- Special Tools Needed: May require different strippers/connectors
- Bend Radius: Larger minimum bend radius (typically 8x diameter)
- Pulling Tension: Higher than standard Cat6
4. Compatibility Issues
- Standard PoE Switches: Cannot use - need separate power supply
- Equipment Interfaces: Most devices have separate data/power ports
- Testing Equipment: Standard cable testers won't test power conductors
- Future Upgrades: Difficult to upgrade one component without the other
Safety Warnings
- Never connect AC mains power to these cables unless explicitly rated for it
- Always fuse the power conductors appropriately
- Ground the power supply properly
- Use GFCI protection for outdoor installations
- Never run near high-voltage cables
- Verify local electrical codes before installation
- Label clearly as containing both data and power
When to Use vs. Standard PoE
Scenario | Composite Cable | Standard PoE | Separate Cables |
|---|
High Power (>30W) | ✅ Best choice | ❌ Limited to PoE+ (30W) | ✅ Good option |
Long Distance (>80m) | ✅ Better voltage drop | ⚠️ Voltage drop issues | ✅ Best option |
Simple Installation | ✅ Single pull | ✅ Single cable | ❌ Two pulls needed |
Future Flexibility | ❌ Locked together | ✅ Can upgrade independently | ✅ Most flexible |
Equipment Compatibility | ❌ Special termination | ✅ Universal compatibility | ✅ Universal |
Cost Sensitivity | ✅ Medium cost | ✅ Lowest cost | ❌ Highest cost |
Recommended Best Practices
- Plan Power First: Calculate voltage drop for the entire run
- Use Proper Connectors: Don't improvise with electrical tape
- Test Separately: Test data with certifier, test power with multimeter
- Document Everything: Label both ends with voltage/current info
- Use Surge Protection: Both data and power lines for outdoor runs
- Consider Future Needs: Will you need more power or data later?
- Buy Quality: Cheap versions may have inadequate separation/shielding
Top Brands & Products
- Axis Communications: Q-Series composite cables
- Ubiquiti: ToughCable Pro with power conductors
- Belden: DataTwist 3000 with power option
- Coleman Cable: MCQUAID series
- Alpha Wire: 6900 series composite cables
- Monoprice: Value-priced options
Price Range
- Indoor: $0.50-$1.50 per foot
- Outdoor/Direct Burial: $1.00-$3.00 per foot
- Plenum Rated: $3.00-$6.00 per foot
Final Recommendation
Use Cat6 with integrated power when:
- Installing IP cameras with high power requirements
- Deploying outdoor Wi-Fi access points
- Running cables in difficult pathways where multiple pulls are problematic
- You need to minimize installation time and labor costs
- Power requirements exceed standard PoE (802.3at/bt) limits
Consider alternatives when:
- Future flexibility is a priority
- Using standard PoE-enabled equipment
- Local electrical codes are restrictive
- You lack experience with proper termination techniques
- Budget is extremely tight (separate cables may be cheaper)
The Bottom Line: Composite data/power cable is a specialized solution that offers significant installation advantages for specific applications, particularly surveillance and wireless deployments, but requires careful planning and proper installation to ensure both network performance and electrical safety.
