GJBFJVH Indoor Large Fibre Count Mixed Branch with CSM Fiber Optic Cable

GJBFJVH Indoor Large Fibre Count Mixed Branch with CSM Fiber Optic Cable

1. Place of Origin: China
2. Brand Name:Hoton Link
3.Categories:Cabling in Buildings
4. Minimum Order Quantity:100KM
5. Delivery time:5-25 Days
6.Payment Terms: 30%TT as deposit,70%Balance before shipping.
6. Delivery time:5-25 Days

GJBFJVH Indoor Large Fibre Count Mixed Branch with CSM Fiber Optic Cable

Select the number of specifications

Please check the product information you want!

Product Detail


GJBFJVH

Indoor Large Fibre Count Mixed Branch with CSM Fiber Optic

Cable for Cabling in Buildings


Introduction:

Optical cables for vertical wiring in buildings, which is a major component of the drop segment in FTTx networks,refer to the drop cables going from ducts in buildings into rooms. Vertical wiring is mainly applied to high-storey buildings, super high-storey buildings, buildings with high-density subscribers and large information processing centers such as data centers.
The large fibre count mixed branchoptical cable uses 6F optical cables（made of 900μm tight buffered fibre and aramid yarns) as optical sub-units. Sub-units are stranded around a non-metallic central strength member to form a cable core. Then a PVC sheath is extruded on the core.Other sheath materials are available on request.


Fatures:

  • High tensile strength due tp stranded structure and non metallic central strength member

  • High fiber density,large capacity and compact structure

  • All dielectric design,applicable to lightning prone areas

  • Anti-corrosion, water blocking, flame-retardant and environment-friendly


Product Series:

GJJA: 0.9mm Tight buffer

GJFJH: Duplex Tight buffer Fibers with Aramid yarns

GJFJBV: Flat Duplex Tight buffer Fibers with Aramid yarns

GJPFJV: Multi-core Tigh buffer Bundle with Aramid yarns

GJBFV-I: Multi-core Branch with CSM

GJBFJV-Il: Multi-core Branch without CSM

GJBFVH: Large Fibre Count Mixed Branch with CSM

GJPFH: Micro-tube Breakout with CSM

GJPFXJH: Breakout Tight Buffer fibers with FRP Strength

GJPFWQH: Micro-tube Breakout with FRP Strength

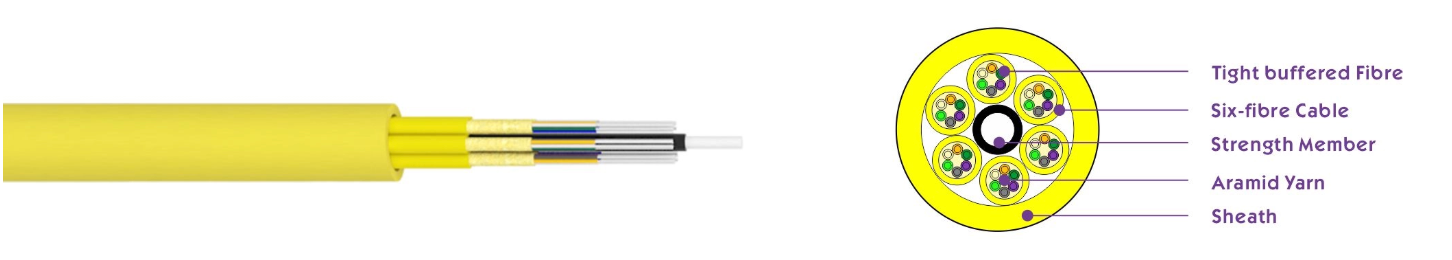

Cross Section:

Technical Characteristics:

GJBFJVH -36Xn:

· Diameter: 15.6 mm

· Weight: 320 kg/km

· Tension (Long/Short): 400/1320 N

· Crush Resistance (Long/Short): 300/1000 N/100mm

· Bending Radius (Dynamic/Static): 680/340 mm


GJBFJVH -48Xn:

· Diameter: 17.6 mm

· Weight: 340 kg/km

· Tension (Long/Short): 400/1320 N

· Crush Resistance (Long/Short): 300/1000 N/100mm

· Bending Radius (Dynamic/Static): 680/340 mm


GJBFJVH -64Xn:

· Diameter: 22 mm

· Weight: 360 kg/km

· Tension (Long/Short): 400/1320 N

· Crush Resistance (Long/Short): 300/1000 N/100mm

· Bending Radius (Dynamic/Static): 680/340 mm


GJBFJVH -72Xn:

· Diameter: 22.5 mm

· Weight: 650 kg/km

· Tension (Long/Short): 400/1320 N

· Crush Resistance (Long/Short): 300/1000 N/100mm

· Bending Radius (Dynamic/Static): 680/340 mm


GJBFJVH -96Xn:

· Diameter: 25.5 mm

· Weight: 680 kg/km

· Tension (Long/Short): 400/1320 N

· Crush Resistance (Long/Short): 300/1000 N/100mm

· Bending Radius (Dynamic/Static): 680/340 mm


Delivery Length:

Standard length:2000m;Other length availabe
