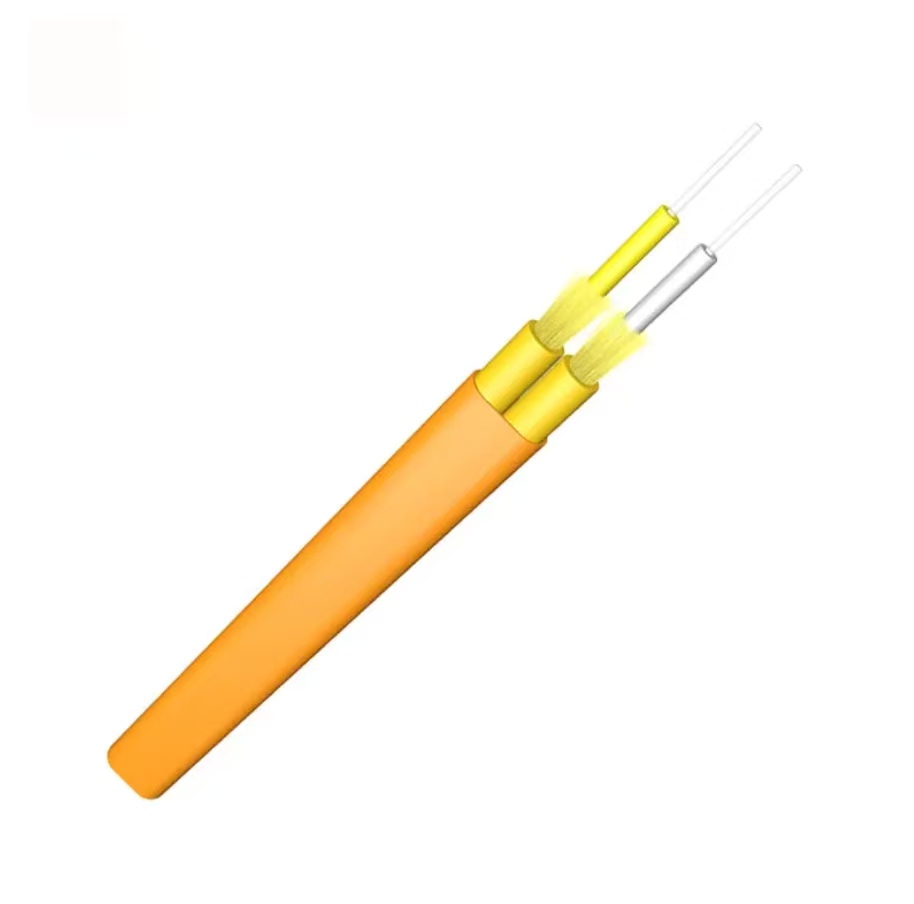

GJFJBV Indoor Flat Duplex Tight buffer Fibers with Aramid yarns Fiber Optic Cable

GJFJBV Indoor Flat Duplex Tight buffer Fibers with Aramid yarns Fiber Optic Cable

1. Place of Origin: China
2. Brand Name:Hoton Link
3.Categories:Cabling in Buildings
4. Minimum Order Quantity:100KM
5. Delivery time:5-25 Days
6.Payment Terms: 30%TT as deposit,70%Balance before shipping.
6. Delivery time:5-25 Days

GJFJBV Indoor Flat Duplex Tight buffer Fibers with Aramid yarns Fiber Optic Cable

Select the number of specifications

Please check the product information you want!

Product Detail

GJFJBV  Indoor Flat Duplex Tight buffer Fibers with Aramid yarns Fiber Optic Cable for Cabling in Buildings


Introduction:


The optical cables for vertical wiring in buildings are integral to the drop segment of FTTx networks. These cables are commonly used to connect ducts in buildings to rooms and are critical in high-storey buildings, super high-storey buildings, buildings with high-density subscribers, and large data centers. The duplex flat optical cable uses two 900μm or 600μm tight-buffered fibers, which serve as the optical transmission medium. These fibers are covered with aramid yarns for strength and protection. The cable also features a PVC inner sheath and a flat PVC outer sheath. Alternative sheath materials can be requested as per requirements.


Features:

Tight buffered fibers provide excellent strippability.

Flame-retardant performance ensures safety in various environments.

Aramid yarns contribute to the cable's excellent tensile strength.

Compact arrangement of fibers due to the flat structure, saving space in installation.

Anti-corrosion, water-blocking, flame-retardant, and environment-friendly materials are used throughout.


Product Series:

GJJA: 0.9mm Tight buffer

GJFJH: Duplex Tight buffer Fibers with Aramid yarns

GJFJBV: Flat Duplex Tight buffer Fibers with Aramid yarns

GJPFJV: Multi-core Tight buffer Bundle with Aramid yarns

GJBFV-I: Multi-core Branch with CSM

GJBFJV-II: Multi-core Branch without CSM

GJBFVH: Large Fiber Count Mixed Branch with CSM

GJPFH: Micro-tube Breakout with CSM

GJPFXJH: Breakout Tight Buffer fibers with FRP Strength

GJPFWQH: Micro-tube Breakout with FRP Strength

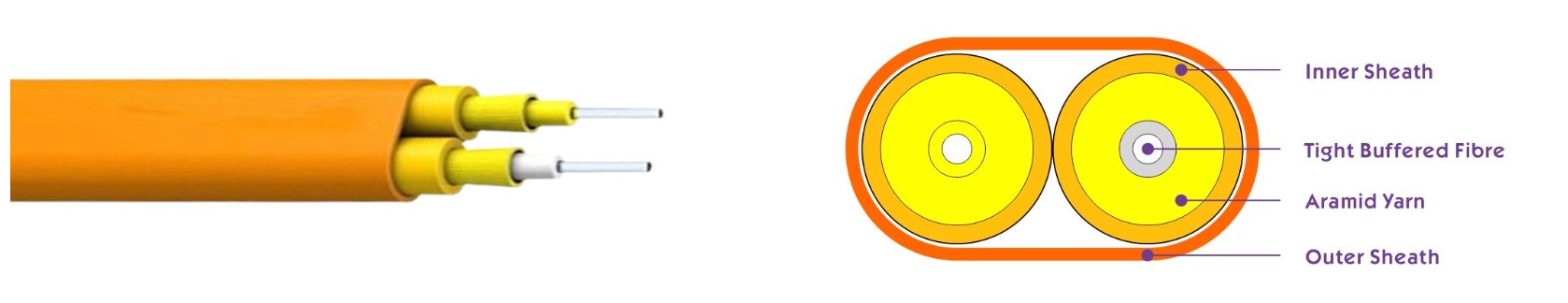

Cross Section:

Technical Characteristics:


GJFJBV-2Xn (3.0x5.4 mm):

  • Weight: 13.8 kg/km
  • Tensile Strength: 100 N (long term), 200 N (short term)
  • Crush Resistance: 100 N/100mm (long term), 500 N/100mm (short term)
  • Bending Radius: 60 mm (dynamic), 30 mm (static)



GJFJBV-2Xn (3.8x7.0 mm):

  • Weight: 20 kg/km
  • Tensile Strength: 100 N (long term), 200 N (short term)
  • Crush Resistance: 100 N/100mm (long term), 500 N/100mm (short term)
  • Bending Radius: 80 mm (dynamic), 40 mm (static)

Note:The provided specifications serve as a normative reference, and the outer diameter can be adjusted according to your budget and requirements. Feel free to contact us for further customization.


Delivery Length:

Standard Length: 2000 meters

Other Lengths: Available upon request


No comment

Product Detail

GJFJBV  Indoor Flat Duplex Tight buffer Fibers with Aramid yarns Fiber Optic Cable for Cabling in Buildings


Introduction:


The optical cables for vertical wiring in buildings are integral to the drop segment of FTTx networks. These cables are commonly used to connect ducts in buildings to rooms and are critical in high-storey buildings, super high-storey buildings, buildings with high-density subscribers, and large data centers. The duplex flat optical cable uses two 900μm or 600μm tight-buffered fibers, which serve as the optical transmission medium. These fibers are covered with aramid yarns for strength and protection. The cable also features a PVC inner sheath and a flat PVC outer sheath. Alternative sheath materials can be requested as per requirements.


Features:

Tight buffered fibers provide excellent strippability.

Flame-retardant performance ensures safety in various environments.

Aramid yarns contribute to the cable's excellent tensile strength.

Compact arrangement of fibers due to the flat structure, saving space in installation.

Anti-corrosion, water-blocking, flame-retardant, and environment-friendly materials are used throughout.


Product Series:

GJJA: 0.9mm Tight buffer

GJFJH: Duplex Tight buffer Fibers with Aramid yarns

GJFJBV: Flat Duplex Tight buffer Fibers with Aramid yarns

GJPFJV: Multi-core Tight buffer Bundle with Aramid yarns

GJBFV-I: Multi-core Branch with CSM

GJBFJV-II: Multi-core Branch without CSM

GJBFVH: Large Fiber Count Mixed Branch with CSM

GJPFH: Micro-tube Breakout with CSM

GJPFXJH: Breakout Tight Buffer fibers with FRP Strength

GJPFWQH: Micro-tube Breakout with FRP Strength


Cross Section:

Technical Characteristics:


GJFJBV-2Xn (3.0x5.4 mm):

  • Weight: 13.8 kg/km
  • Tensile Strength: 100 N (long term), 200 N (short term)
  • Crush Resistance: 100 N/100mm (long term), 500 N/100mm (short term)
  • Bending Radius: 60 mm (dynamic), 30 mm (static)



GJFJBV-2Xn (3.8x7.0 mm):

  • Weight: 20 kg/km
  • Tensile Strength: 100 N (long term), 200 N (short term)
  • Crush Resistance: 100 N/100mm (long term), 500 N/100mm (short term)
  • Bending Radius: 80 mm (dynamic), 40 mm (static)

Note:The provided specifications serve as a normative reference, and the outer diameter can be adjusted according to your budget and requirements. Feel free to contact us for further customization.


Delivery Length:

Standard Length: 2000 meters

Other Lengths: Available upon request
