GJPFWQH Indoor Micro-tube Breakout with FRP Strength Fiber Optic Cable

GJPFWQH Indoor Micro-tube Breakout with FRP Strength Fiber Optic Cable

1. Place of Origin: China
2. Brand Name:Hoton Link
3.Categories:Cabling in Buildings
4. Minimum Order Quantity:100KM
5. Delivery time:5-25 Days
6.Payment Terms: 30%TT as deposit,70%Balance before shipping.
6. Delivery time:5-25 Days

GJPFWQH Indoor Micro-tube Breakout with FRP Strength Fiber Optic Cable

Select the number of specifications

Please check the product information you want!

Product Detail

GJPFWQH

Indoor Micro-tube Breakout with FRP Strength Fiber Optic Cable for Cabling in Buildings

Introduction:

Optical cables for vertical wiring in buildings, which is a major component of the drop segment in FTTx networks,refer to the drop cables going from ducts in buildings into rooms. Vertical wiring is mainly applied to high-storey buildings, super high-storey buildings, buildings with high-density subscribers and large information processing centers such as data centers.
The indoor micro-tube breakout optical cable uses micro-tube(made of optical fibres and special material) as optical sub-units. Sub-units are housed in theLSZH sheath with a special cross section. Two FRPs are placed in parallel as the strength member.An external mark of the sheath indicates the direction of opening.



























Features:

Accurate process controlensuring good mechanical and temperature performances
Good structure design, easy for branching and splicing
Small ize and light weight, easy for installation
LSZH sheath ensuring good flame-retardant performance
Especially applicable to vertical wiring in buildings



























Product Series:

GJJA

0.9mm Tight buffer

GJFJH

Duplex Tight buffer Fibers with Aramid yarns

GJFJBV

Flat Duplex Tight buffer Fibers with Aramid yarns

GJPFJV

Multi-core Tigh buffer Bundle with Aramid yarns

GJBFV-I

Multi-core Branch with CSM

GJBFJV-Il

Multi-core Branch without CSM

GJBFVH

Large Fibre Count Mixed Branch with CSM

GJPFH

Micro-tube Breakout with CSM

GJPFXJH

Breakout Tight Buffer fibers with FRP Strength

GJPFWQH

Micro-tube Breakout with FRP Strength

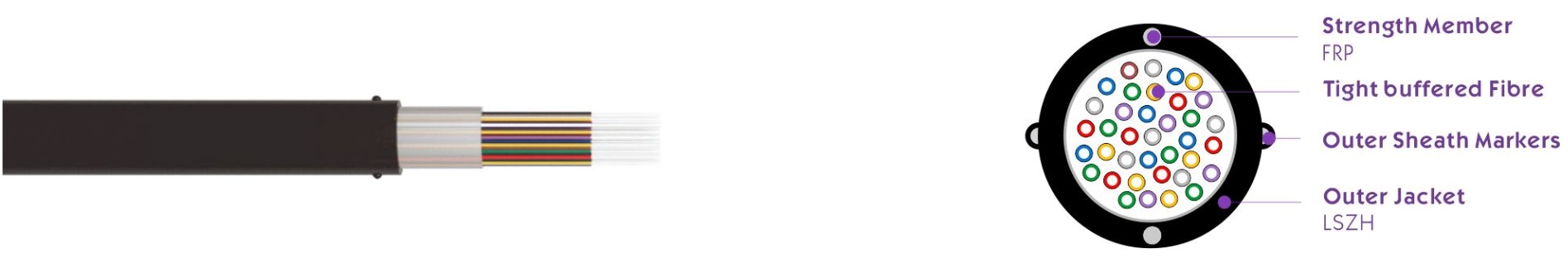

Cross Section:



























Technical Characteristics:

Type

Diameter
mm

Weight
(kg/km)

Tension(N)
Long/short

Crush Resistance
Long/short
(N/100mm)

Bending Radius
Dynamic/static
mm

GJPFWQH -12-36Xn

8.5

60

200/500

300/1000

20D/10D

GJPFWQH -48-96Xn

13.5

138

200/500

300/1000

20D/10D

  Note: This specification provides a normative reference. Adjustable outer diameter to suit your budget.Contact us ASAP.


Delivery Length:

 Standard length:2000m;Other length availabe

No comment

Product Detail

GJPFWQH

Indoor Micro-tube Breakout with FRP Strength Fiber Optic Cable for Cabling in Buildings

Introduction:

Optical cables for vertical wiring in buildings, which is a major component of the drop segment in FTTx networks,refer to the drop cables going from ducts in buildings into rooms. Vertical wiring is mainly applied to high-storey buildings, super high-storey buildings, buildings with high-density subscribers and large information processing centers such as data centers.
The indoor micro-tube breakout optical cable uses micro-tube(made of optical fibres and special material) as optical sub-units. Sub-units are housed in theLSZH sheath with a special cross section. Two FRPs are placed in parallel as the strength member.An external mark of the sheath indicates the direction of opening.



























Features:

Accurate process controlensuring good mechanical and temperature performances
Good structure design, easy for branching and splicing
Small ize and light weight, easy for installation
LSZH sheath ensuring good flame-retardant performance
Especially applicable to vertical wiring in buildings



























Product Series:

GJJA

0.9mm Tight buffer

GJFJH

Duplex Tight buffer Fibers with Aramid yarns

GJFJBV

Flat Duplex Tight buffer Fibers with Aramid yarns

GJPFJV

Multi-core Tigh buffer Bundle with Aramid yarns

GJBFV-I

Multi-core Branch with CSM

GJBFJV-Il

Multi-core Branch without CSM

GJBFVH

Large Fibre Count Mixed Branch with CSM

GJPFH

Micro-tube Breakout with CSM

GJPFXJH

Breakout Tight Buffer fibers with FRP Strength

GJPFWQH

Micro-tube Breakout with FRP Strength


Cross Section:



























Technical Characteristics:

Type

Diameter
mm

Weight
(kg/km)

Tension(N)
Long/short

Crush Resistance
Long/short
(N/100mm)

Bending Radius
Dynamic/static
mm

GJPFWQH -12-36Xn

8.5

60

200/500

300/1000

20D/10D

GJPFWQH -48-96Xn

13.5

138

200/500

300/1000

20D/10D

  Note: This specification provides a normative reference. Adjustable outer diameter to suit your budget.Contact us ASAP.


Delivery Length:

 Standard length:2000m;Other length availabe
