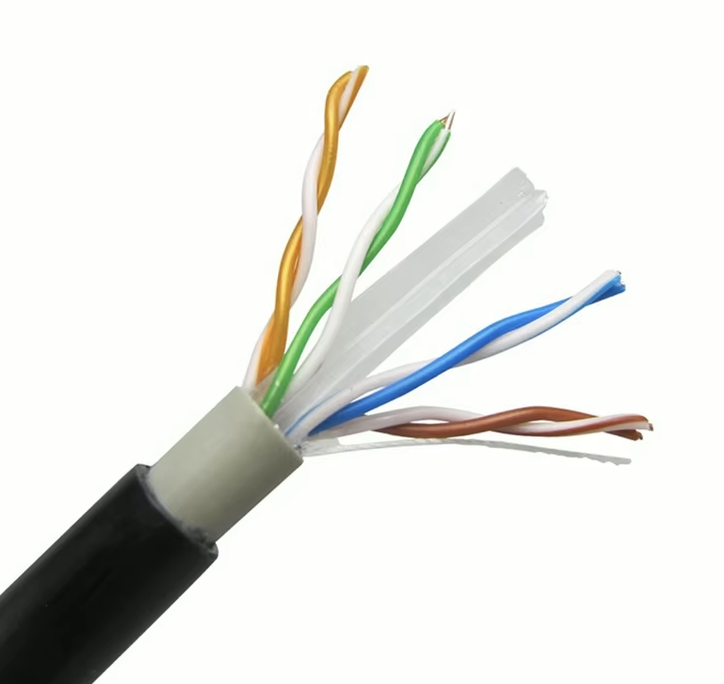

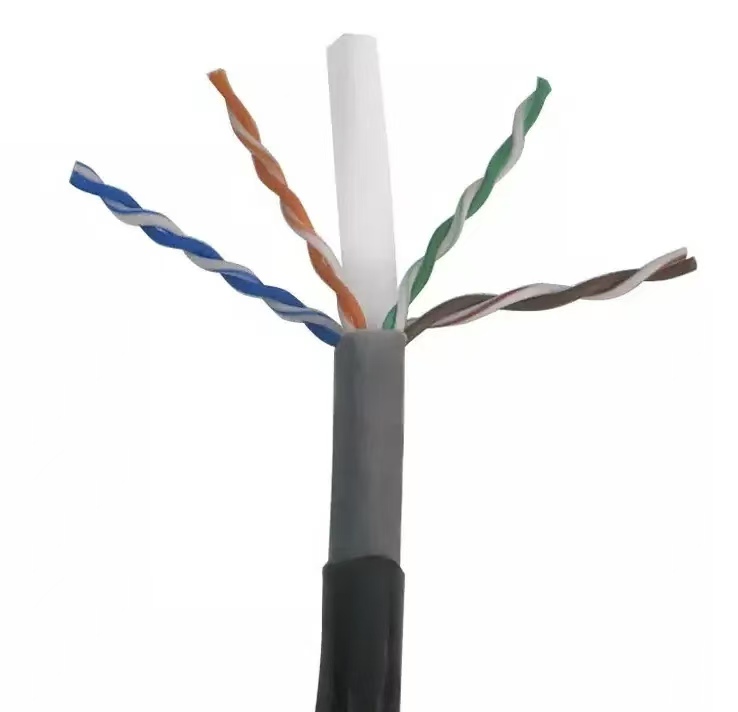

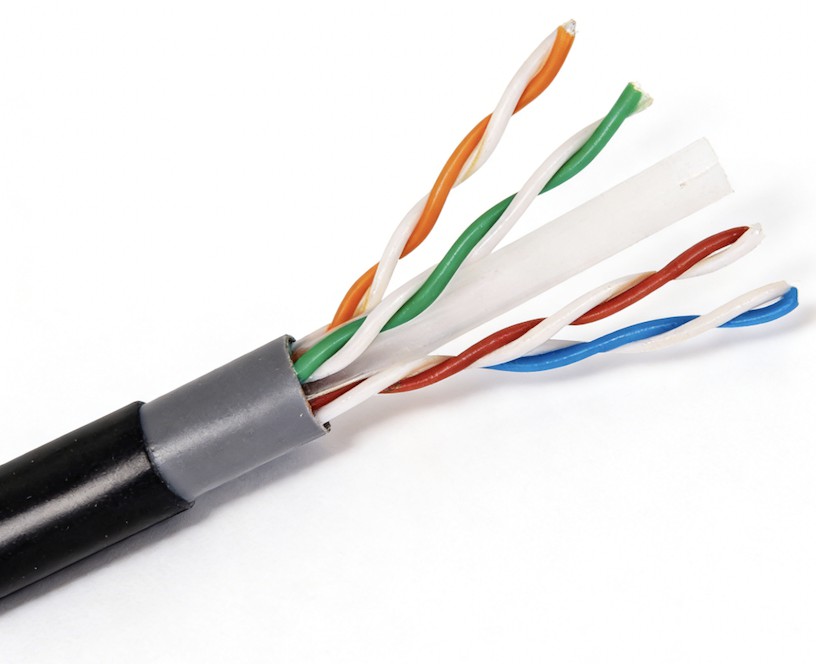

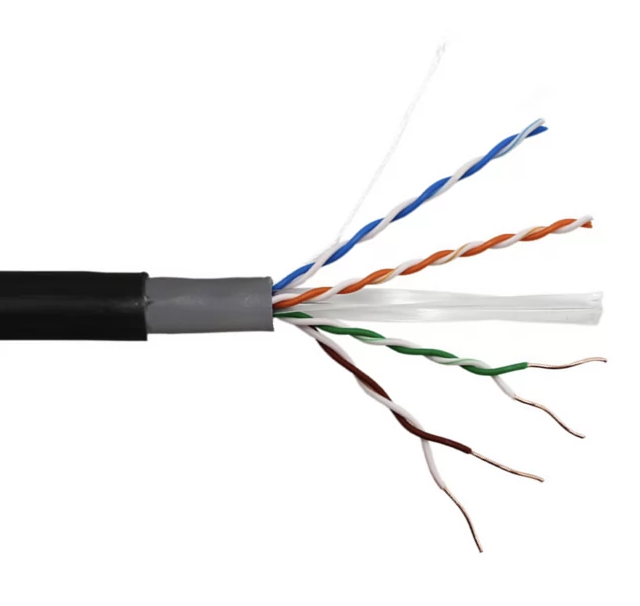

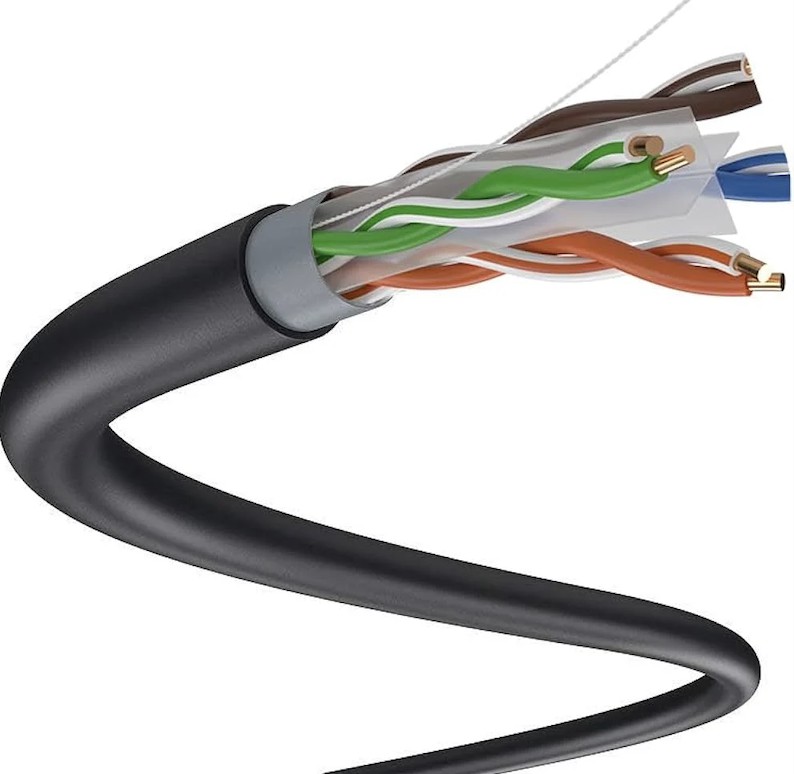

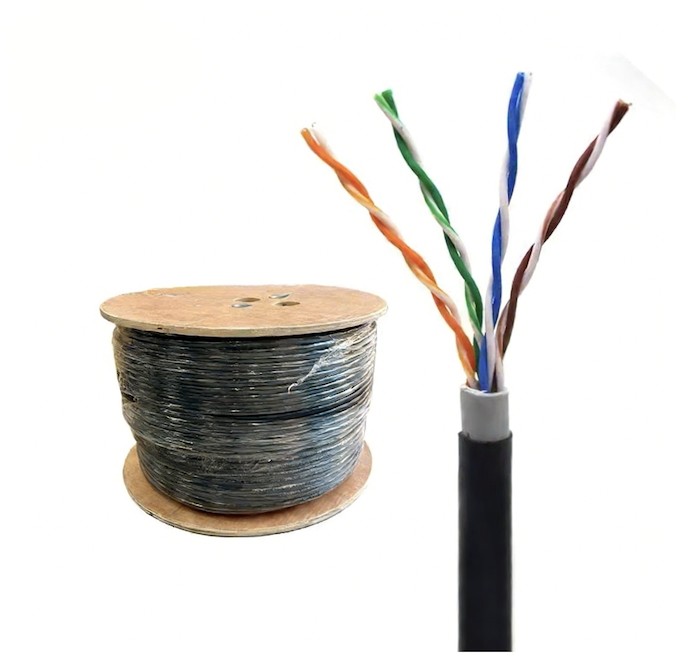

High Speed Cat6 UTP Outdoor PVC+PE Double Jacket Lan Cable 23AWG Twisted Pair 1000FT Waterproof Cable
Specification: What Makes it 'Outdoor'
Outdoor Cat6 cable is engineered to withstand harsh environmental conditions that standard indoor cable cannot. The key specifications revolve around its physical construction and electrical performance.
1. Core Construction & Performance (Same as Indoor Cat6):
Category: Cat6 (ANSI/TIA-568-C.2 standard).
Bandwidth: Supports frequencies up to 250 MHz.
Data Rate: Certified for 1 Gigabit Ethernet (1 Gbps) up to 100 meters and often supports 10 Gigabit Ethernet (10 Gbps) at shorter runs (up to 55 meters) in ideal conditions.
Conductors: 4 twisted pairs (8 conductors) of 23 AWG solid bare copper (for long runs) or stranded copper (for patch cables). Solid copper is standard for outdoor burial/riser runs.
Impedance: 100 ohms ±15Ω.

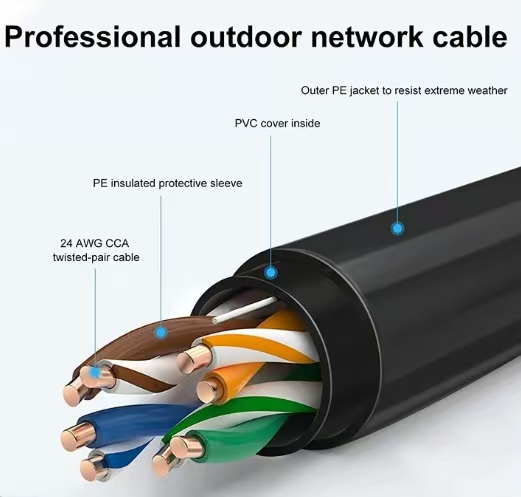

2. Distinctive Outdoor Physical Build:
Jacket Material: The most critical difference. Uses Polyethylene (PE) or Linear Low-Density Polyethylene (LLDPE) instead of standard PVC. PE is much more resistant to UV radiation from sunlight, moisture, and temperature extremes.
- Water Blocking: Often includes a flooded or gel-filled core or a water-blocking tape under the jacket to prevent water ingress along the conductor pairs, which can cause signal loss and corrosion.
- Temperature Rating: A much wider operating temperature range, typically -40°C to 75°C (-40°F to 167°F).
- UV Rating: Explicitly rated for UV Resistance to prevent jacket cracking and degradation from direct sunlight.
- Rodent Protection: Some heavy-duty outdoor cables include a metal armored tape or a jacket treated with a bitter compound to resist rodent chewing.
Common Types:
Direct Burial: Has additional armor (like a corrugated steel tape) and heavy-duty flooding for cables laid directly in the ground without conduit.
Aerial: Includes a messenger wire (a steel or dielectric support strand) for attaching the cable between poles or buildings.
Standards to Look For:
UL Codes: Look for markings like CMX (for limited outdoor exposure) or the more robust CMU/CMR (for outdoor/riser) and CMR for vertical runs in outdoor conduits.
Advantages
Environmental Durability: The primary advantage. Resists moisture, sunlight, temperature swings, and physical abrasion far better than indoor cable.
Long-Term Reliability: Designed for a long service life (often 10+ years) in exposed conditions, reducing maintenance and replacement costs.
Versatility in Installation: Can be run aerially, in conduit, or directly buried, offering flexible deployment options for challenging landscapes.
Performance Integrity: The water-blocking and robust jacket ensure the electrical performance (NEXT, FEXT, attenuation) remains within Cat6 specs despite external conditions.
Cost-Effectiveness for Outdoor Runs: Often more economical than running conduit for indoor cable or using fiber optic cable for shorter outdoor links, while still providing high-speed connectivity.
Applications
Outdoor Cat6 UTP is the standard choice for connecting buildings and devices across exteriors where fiber is not required.
1. Inter-Building Connectivity (LAN Extension):
Connecting a main office to a detached warehouse, garage apartment, or guard shack.
Linking Wi-Fi access points across a campus, park, or sports facility.
2. Surveillance & Security Systems:
Connecting IP security cameras mounted on building exteriors, poles, or fences back to a Network Video Recorder (NVR).
Wiring for outdoor access control systems (card readers, intercoms).
3. Perimeter & Landscape Networking:
Networking for outdoor lighting control, digital signage, or informational kiosks in parks, resorts, or campuses.
Connections for irrigation controllers or environmental sensors in agricultural or landscaping settings.
4. Residential / Smart Home:
Connecting a house to a detached garage, workshop, or pool house.
Wiring for outdoor Wi-Fi points, smart landscape lighting, or backyard entertainment systems.
5. Temporary Installations:
Providing network connectivity for outdoor events, festivals, or construction sites.
Important Considerations & Limitations
Lightning & Power Surges: For any cable running between buildings, you must use grounded Ethernet surge protectors or fiber optic converters. Copper cable can carry lethal surges between buildings with separate grounds. For runs over 100 meters or between buildings with separate power feeds, fiber optic cable is strongly recommended as it is immune to EMI and surge risks.
Distance: The 100-meter (328 ft) channel limit (including patch cables) still applies. Plan your distances carefully.
EMI Susceptibility: As UTP (Unshielded Twisted Pair), it has no foil shield. Avoid parallel runs with high-voltage power lines. For areas with high EMI, Outdoor Shielded (F/UTP or SF/UTP) Cat6 is available.
Local Codes: Always check and adhere to local electrical and building codes for low-voltage cable burial depth, aerial mounting, and conduit requirements.
In summary, Outdoor Cat6 UTP is a durable, high-performance copper cabling solution designed to extend a network's reach into harsh external environments, making it ideal for security, connectivity, and IoT applications between and around buildings.
