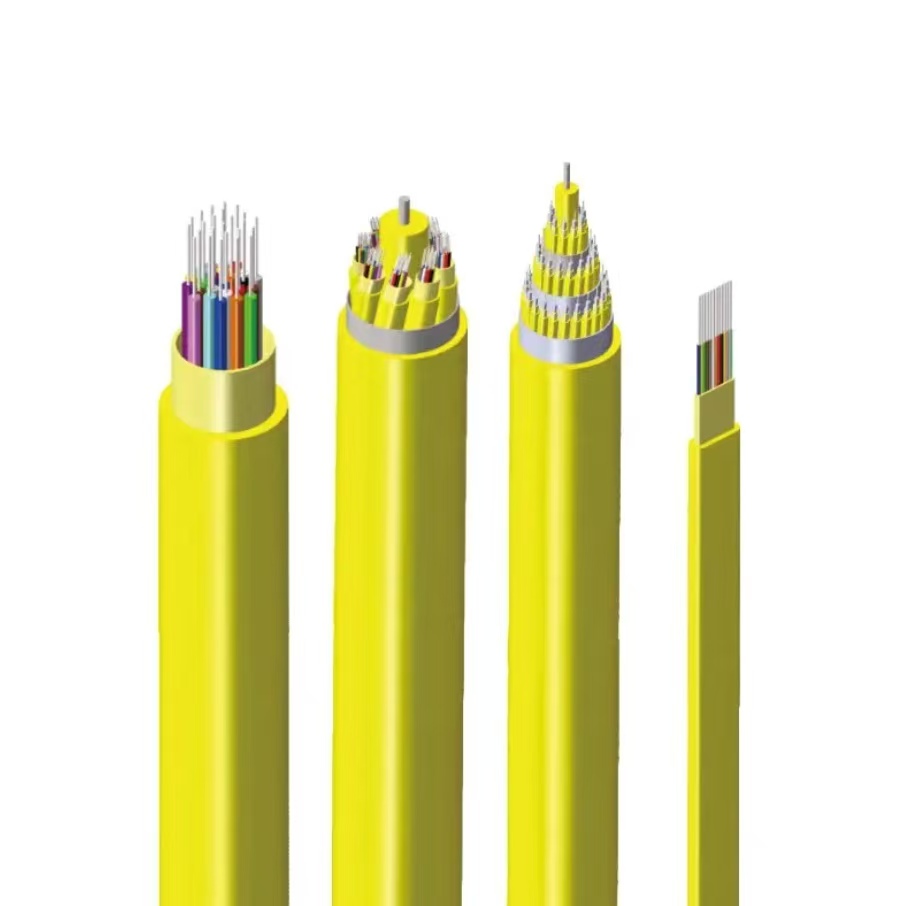

Indoor Multi-fiber Optical Distribution Cables | Tight-buffered, Mini, Breakout & Ribbon
The Core of High-Density Optical Cabling in Modern Networks
The indoor applications for fiber optics in data centers, FTTH networks, smart buildings, and industrial automation systems are trending high-density, multi-core, and flexible deployment. Zion Communication specializes in providing the complete portfolio of Indoor Multi-fiber Optical Distribution Cables, and these include, among others:
- Tight-buffered Indoor Distribution Cable
- Mini/Micro Indoor Distribution Fiber Cables
- Breakout Indoor Cables
- Ribbon Indoor Fiber Cable
Such cables are the basic components of backbone optical cabling, inter-device patching, systems with MPO pre-terminated connectors, and networks with modular fiber distribution.
Indoor Multi-fiber Optical Distribution Cable Selection Table
Product Name | Fiber Type | Core Count | Fiber Structure | Strength Member |
Standard Indoor Tight-buffered Cable | G.657.A2 | 2–24 cores | 900μm Tight Buffered | Aramid Yarn (Kevlar) |
Mini Indoor Distribution Cable | G.657.A2 | 2–24 cores | 600μm Tight Buffered | Aramid Yarn |
Breakout Indoor Cable | G.657.A2 | 2–24 cores | Individually jacketed (2.0mm or 3.0mm) | Multiple Aramid + Sub-jackets |
Ribbon Indoor Cable | G.657.A2 | 12–144 cores | 12-core or 24-core ribbon structure | Aramid Yarn + Central Member |
Product Name | Jacket Material | Jacket Color | Application Description |
Standard Indoor Tight-buffered Cable | LSZH | Orange | General indoor backbone cabling / Patch panel interconnection |
Mini Indoor Distribution Cable | LSZH | Orange | High-density cabling / Micro MTP pre-terminated systems |
Breakout Indoor Cable | LSZH | Orange | Direct LC/SC termination, ideal for patching or equipment runs |
Ribbon Indoor Cable | LSZH | Orange | High-capacity splicing, suitable for MPO/MTP trunk cabling |
Product Types & Important Characteristics

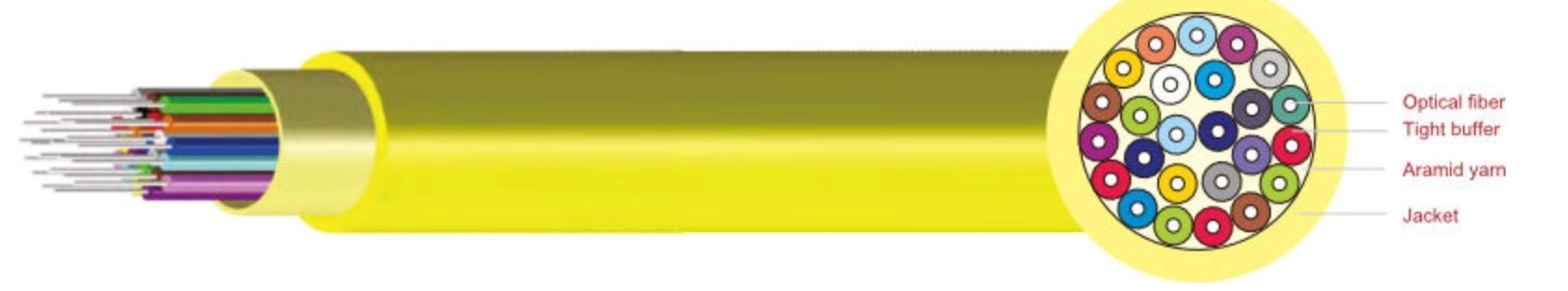

1️⃣ Tight-buffered Indoor Distribution Cable
- 900μm tight-buffered fibers for excellent fiber protection
- Compact size together with superb bending and torque performance.
- Available for configuration in 4/6/8/12/24 cores;
- Easily strippable, terminate-able, and installable;
Applications:
- Building backbone cabling.
- Indoor riser cables for MTP arrayed waveguides;
- Intermediate levels cabling.

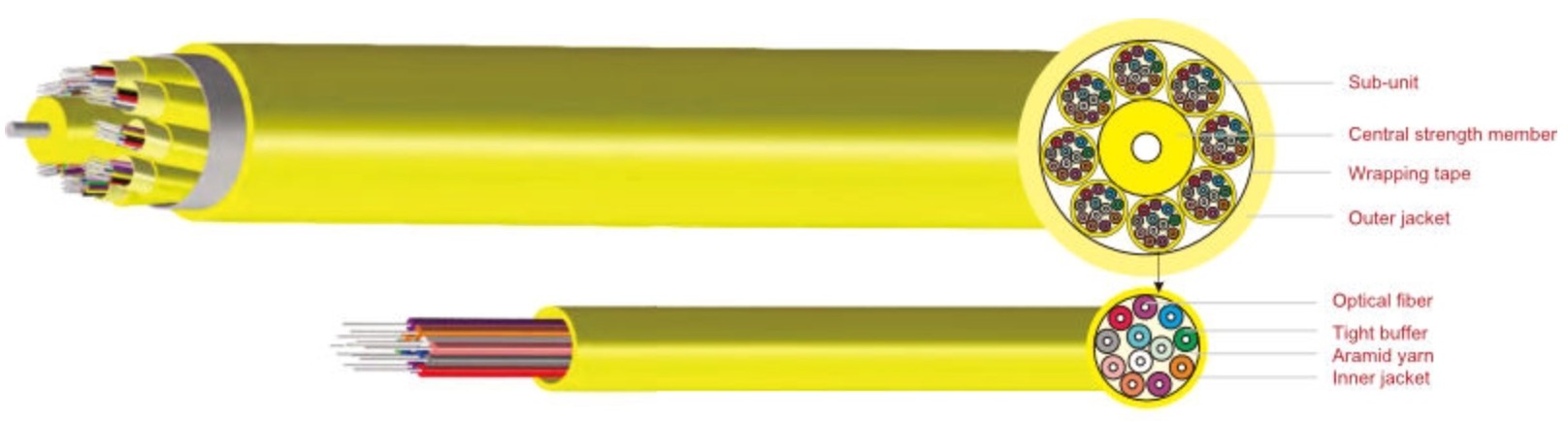

2️⃣ Mini / Micro Indoor Distribution Cable
- Uses 250μm bare fibers or 600μm buffered fibers;
- Diameter (smaller), weight (lighter), flexibility (more);
- Perfectly fits MTP/MPO pre-connectorized systems.
- Suitable for rather narrow passages (ducts or mostly used raceways);
Applications:
- High-density data center cabling.
- Modular connectivity systems.
- Fiber aggregation and splitting nodes.

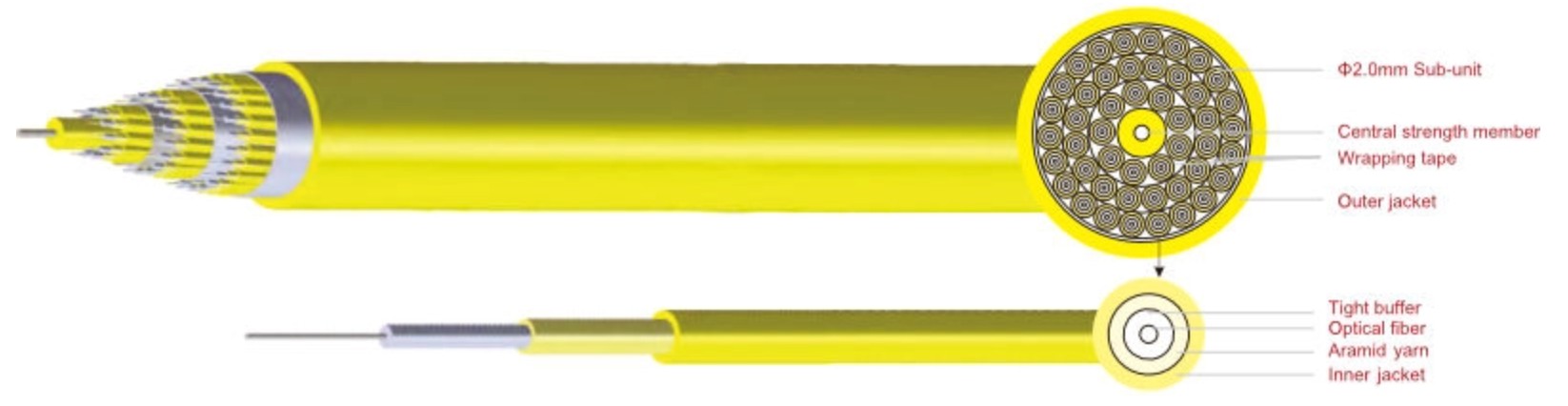

3️⃣ Breakout Indoor Cable
- Single fiber having jacket (2.0mm or 3.0mm) cassette fusing;
- Directly connected with standard SC/LC connectors;
- Hong Kong is a place of tension and easy to fan out.
- No requirement for exterior fan-out bundles or pigtails.
Applications:
- Point-to-point links between devices.
- Inter-floor cabling inside buildings.
- MPO/MTP transfer of multi-core fiber.

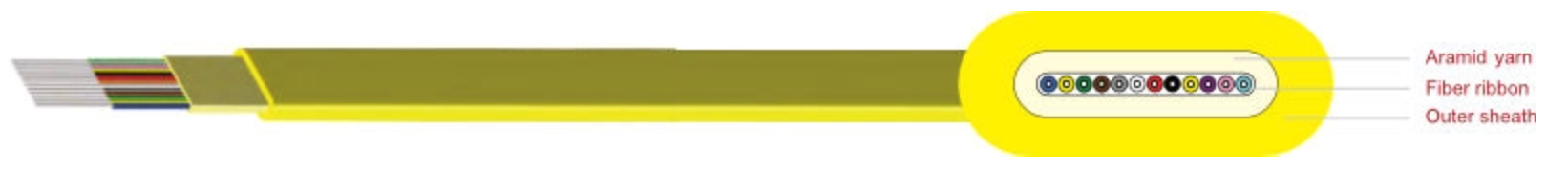

4️⃣ Ribbon Indoor Fiber Cable
- The ribbon contains an alignment of 12 or 24 fibers in parallel layout.
- MPSJ solution designated for mass ribbon fan-out with ribbon splice joiners.
- However, that is not all – it also increased the installation speed, even for the most high-core-count cases that needed to be served.
- Agrees with the MPO/MTP interconnect systems.
Applications:
- High-speed backbone cabling in a large building having more floors.
- Optical path connecting core switches and the transmission process.
- Ribbon-based MPO/MTP webpage structured cabling;
Customization & Packaging Options
- Core Configuration: 4-144 fiber count options, including all the default types.
- Jacket Colors: Dark Red, Olive Green, Brown, Gray, Orange (customized);
- Printing, Branding: Special laser printing, logo customization, and meter marking.
- Packaging options include wooden reels, plastic spools, and coil-packed options.
- Connector Termination (Optional): MPO, SC, LC, FC – as per command.
Why Choose Hoton Link ?
Advantages | Description |
Complete Product Line | Full range from bare fibers to patch cord level indoor cables |
High-Quality Fiber | Sourced from Corning, YOFC, Fujikura, and other OEM leaders |
Fast Delivery | Standard stock products available; custom orders delivered within 7-15 days |
International Compliance | All products meet RoHS, REACH, ISO9001 standards |
Engineering Support | Comprehensive selection, customization, installation support, and sample testing |
