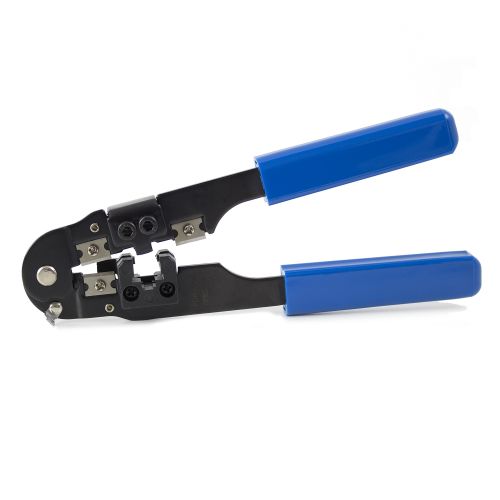

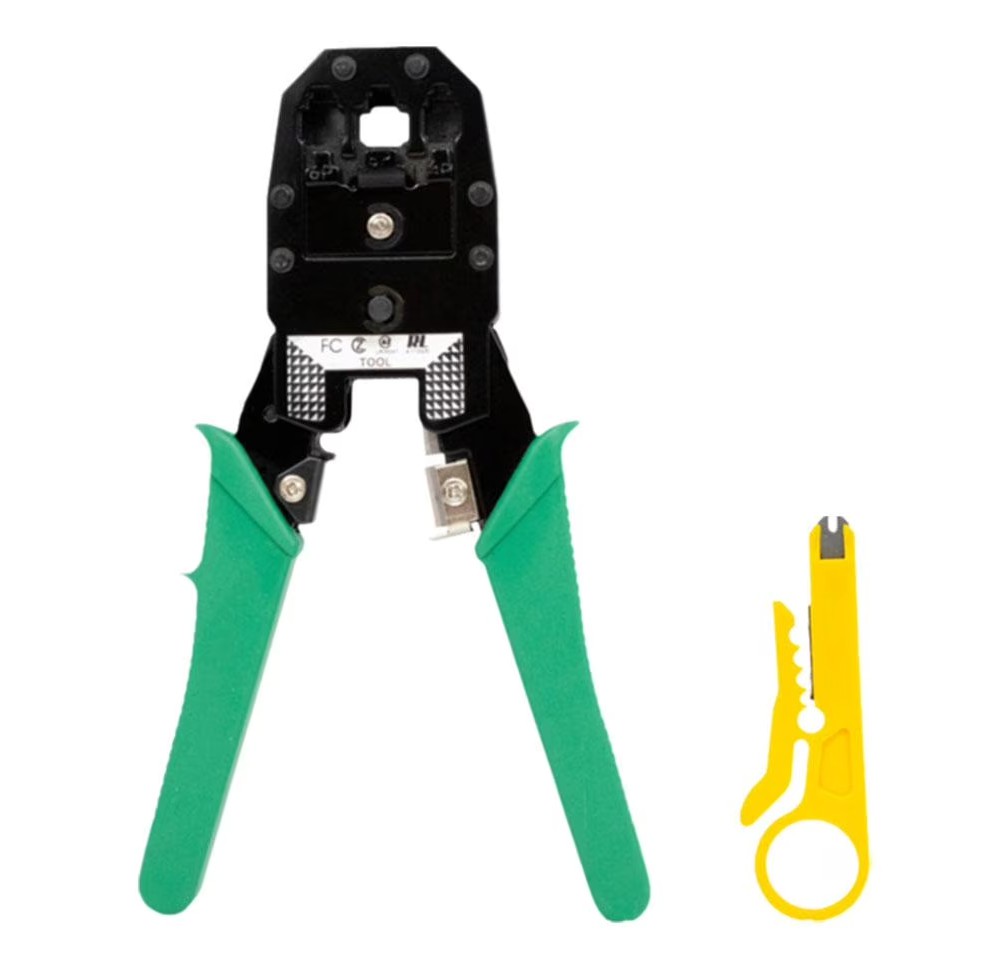

Modular Network Connector Crimp Tool Pliers For RJ45 8P8C, Cuts, Crimps
Modular Network Connector Crimp Tool
A crimp tool is a specialized handheld tool used to permanently attach a modular connector (like an RJ45 plug) to the end of a twisted-pair or coaxial cable. It applies precise pressure to secure the connector's contacts onto the cable's conductors.
Specification
Crimp Dies: The core component. The die is a hardened steel cavity shaped to match the connector type. Tools have interchangeable dies or a fixed multi-purpose die for common connectors like RJ45 (8P8C), RJ11 (6P4C/6P2C), and sometimes RJ12.
Ratchet Mechanism: Most professional tools feature a fully ratcheting mechanism. Once engaged, it must complete the full crimp cycle before reopening, ensuring consistent, complete, and correct pressure is applied every time. The ratchet is often adjustable for crimp force.
Blade Features:
Crimp Blades: Press the connector's metal contacts through the insulation of each individual wire.
Cutting Blade: Trims the 8 wires flush with the front of the connector after insertion.
Shear/Cutter: Located at the tool's base for cleanly cutting the cable jacket and trimming wires to length.
Handles: Ergonomic, cushioned grips. High-leverage designs reduce hand strain.
Construction: Forged steel or high-strength alloy for durability. A quality tool is heavy-duty to withstand thousands of crimps.
Connector Compatibility: Clearly labeled for specific plug types. An RJ45 crimp die is sized for 8P8C plugs and is designed for either stranded or solid conductor plugs (some tools accommodate both).
Optional Features: Built-in cable stripper, wire cutter, screwdriver, or a reversible die cartridge.
Advantage
Professional Termination Quality: Enables the creation of reliable, gas-tight connections that match or exceed factory-made cable performance when done correctly.
Consistency and Reliability: The ratcheting mechanism ensures every crimp is completed with the correct, repeatable pressure, minimizing human error and defective terminations.
On-Demand Custom Cables: Allows technicians to make patch cords, cross-connects, or replacement cables of exact required lengths on-site, reducing waste, clutter, and inventory of pre-made cables.
Cost and Time Efficiency: Saves significant time and money in installations and repairs compared to ordering custom-length cables. One tool can service an entire site.
Versatility: A single tool with multiple dies or a multi-purpose head can terminate various connectors (RJ45, RJ11, RJ12), making it a versatile part of a network technician's kit.
Application
Field Installation & Termination: Used by network installers to terminate the ends of patch cables and sometimes horizontal cables with RJ45 plugs in telecom rooms or at workstations.
Network Maintenance & Repair: Essential for repairing damaged cable ends, re-terminating connectors, or replacing failed patch cords quickly on-site.
Custom Cable Fabrication: Creating specialized cables for specific needs, such as crossover cables, short console cables for networking equipment, or cables with unique pinouts for proprietary systems.
Structured Cabling Projects: A fundamental tool for any low-voltage technician during the build-out or expansion of office, data center, or residential network infrastructure.
Telecommunications & Security Installations: Used for terminating cables for telephone, CCTV, access control, and other low-voltage systems that use modular connectors.
Critical Note: The crimp tool must be matched to the connector type and conductor type (stranded vs. solid). Using the wrong die or tool will result in a poor connection and network failure. A quality crimp tool is a primary indicator of a professional installation.
