Outdoor CAT5E FTP CU/CCA Single PE Jacket Network Cable Ethernet Cable 305m/box

1. Place of Origin: China
2. Brand Name:Hoton Link
3.Conductor:Copper/CCA/CCAG
4. Minimum Order Quantity:100rolls
5. Payment Terms: L/C, T/T, Western Union
6. Supply Ability: 5000boxes every month
7.Application: Security & Surveillance,Network Infrastructure,Outdoor Wi-Fi Access Points, Industrial/Building Automation

Select the number of specifications

Please check the product information you want!

Product Detail

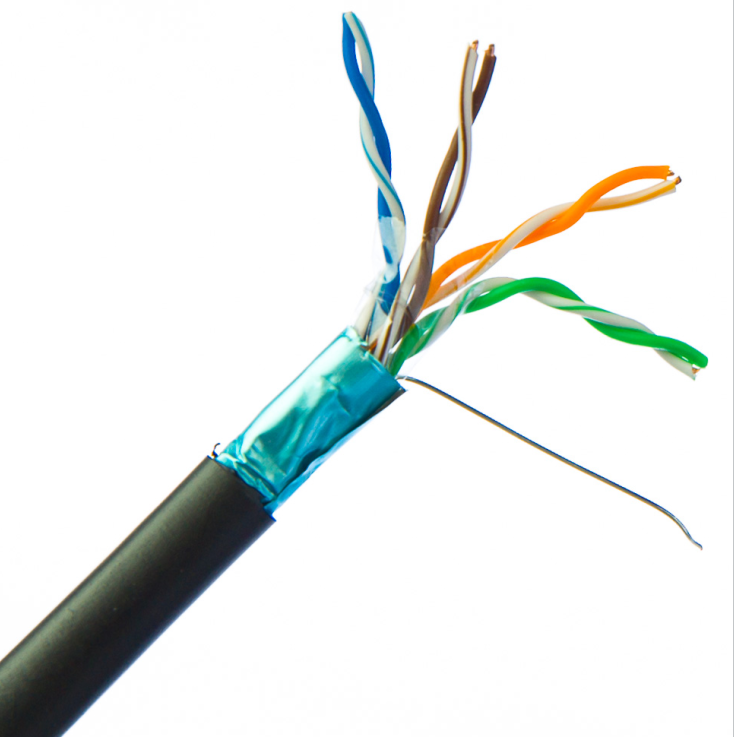

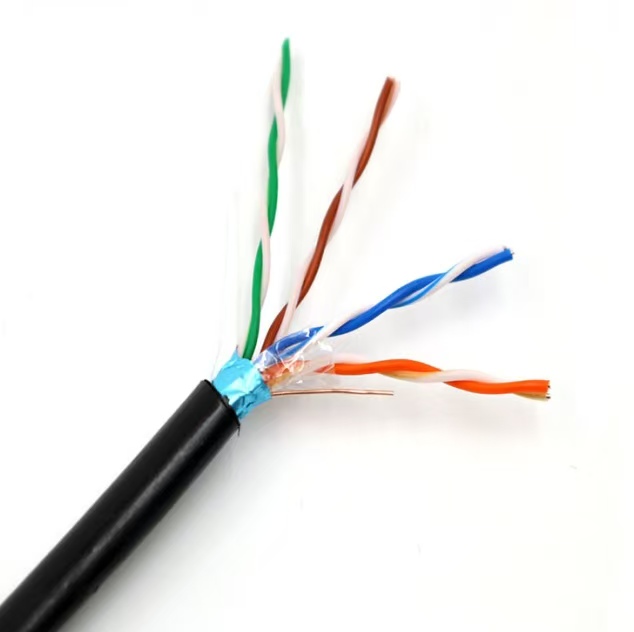

Outdoor CAT5E FTP CU/CCA Single PE Jacket Network Cable Ethernet Cable 305m/box

FTP (Foiled Twisted Pair) Cat5e is a shielded outdoor cable designed for environments with electromagnetic interference (EMI) where UTP performance might degrade. The foil shield provides protection against external noise while maintaining Cat5e performance standards.

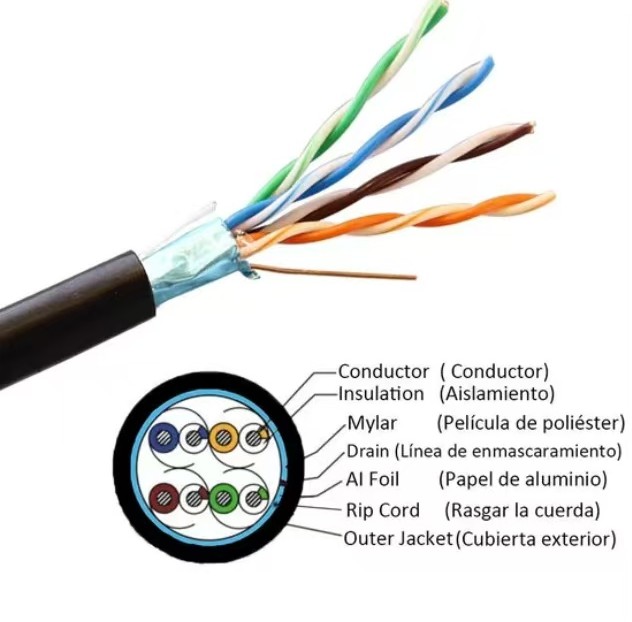

Construction & Specifications

Layered Construction:

Conductors: 4 pairs of 24 AWG solid bare copper
Insulation: High-density polyethylene (HDPE), color-coded per TIA-568
Twisting: Differential twist rates (3-5 twists/inch, pair-dependent)
Pair Shield: Individual aluminum/polyester foil (optional, in some designs)
Overall Shield: Aluminum foil tape with draining wire
Jacket: Black UV-resistant polyethylene (PE) or low-density polyethylene (LDPE)
Optional: Flooded core for wet environments

Shielding Details:

Shield Type: Overall foil (100% coverage) + optional individual pair foils
Drain Wire: 24-26 AWG tinned copper drain wire for grounding
Shield Effectiveness: Typically 40-60 dB at 30-100 MHz
Capacitance: Slightly higher than UTP (approx. 5% increase)

Technical Data & Performance

Electrical Specifications:

Parameter	Value	Condition/Standard
Category	5e Enhanced	TIA-568-C.2
Impedance	100Ω ±15%	1-100 MHz
Propagation Velocity	0.65c (typical)	NVP ~65%
DC Resistance	≤9.38Ω/100m	Per conductor
Mutual Capacitance	≤5.6 nF/100m	@ 1 kHz
Shield Resistance	≤7.5Ω/km	Drain wire
Shield Transfer Impedance	≤100 mΩ/m @ 100 MHz	Characteristic

Transmission Performance (Worst Case):

Frequency	Attenuation	NEXT	PS-NEXT	ACR-F	Return Loss
1 MHz	2.0 dB	65.3 dB	62.3 dB	63.3 dB	20.0 dB
10 MHz	6.3 dB	49.3 dB	46.3 dB	43.0 dB	25.0 dB
100 MHz	21.3 dB	32.3 dB	29.3 dB	11.0 dB	16.0 dB

Mechanical & Environmental:

Parameter	Specification	Notes
Temperature Range	-40°C to +75°C	Operation
Bend Radius	8× OD (installed)	4× OD (once installed)
Tensile Strength	≥200 N	During installation
Crush Resistance	≥1000 N/100mm	Per IEC 61156
Jacket Thickness	0.9-1.2 mm	Typical
Cable Diameter	6.2-6.8 mm	With shield
Weight	45-55 kg/km	Approximately

Environmental Ratings:

UV Resistance: 3000+ hours UV exposure (per UL 1581)
Water Resistance: May include gel fill (optional)
Flame Rating: CMX (outdoor) or CMR (riser) available
Temperature Cycling: Stable from -40°C to +75°C

Key Advantages

1. EMI/RFI Protection:

40-60 dB noise rejection (compared to 20-30 dB for UTP)
Reduced crosstalk between cables in bundled installations
Better performance near power lines (minimum 30cm separation vs 60cm for UTP)

2. Data Integrity:

Lower bit error rates in noisy environments
More stable performance over temperature variations
Reduced alien crosstalk in multi-cable installations

3. Security Enhancement:

Reduced electromagnetic emissions (TEMPEST considerations)
Harder to tap/intercept compared to UTP
Better ground fault tolerance

4. Installation Benefits:

Can run closer to power sources than UTP
Suitable for mixed cable trays (with proper separation)
Longer potential runs in high-noise areas

Applications

Primary Use Cases:

1. Industrial Environments:

Factory automation (PLCs, motor controls, sensors)
Manufacturing floors with variable frequency drives
Power generation facilities (near generators/transformers)
Process control systems in chemical plants

2. Transportation Infrastructure:

Traffic signal interconnect (near high-voltage systems)
Railway/transit communications (electrified rail areas)
Tunnel communication systems
Airport ramp/tarmac networks

3. Commercial/Utility:

Elevator communication lines
HVAC control systems near motors
Lighting control networks with dimmers
Parking garage security (near fluorescent lighting)

4. Specialized Outdoor:

Marina/boatyard networks (near marine electronics)
Amateur radio station interconnects
Broadcast facility cabling (TV/radio stations)
Medical facility outdoor links (near imaging equipment)

Specific Installation Examples:

Environment	Interference Source	Benefit of FTP
Streetlight Poles	Ballasts, HID lighting	Prevents flickering video
Cell Tower Sites	RF transmitters	Cleaner backhaul links
Industrial Parks	Welding equipment	Stable process control
Public Transit	Electric motors, pantographs	Reliable CCTV feeds

Installation Considerations

Cable Handling:

Maintain shield integrity – avoid kinks or cuts in foil
Proper bend radius – minimum 8× diameter during pull
Avoid stretching – can separate foil from drain wire
Use proper pulling grips – don't pull on drain wire

Termination Procedures:

Use shielded RJ45 connectors with metal shells
Ensure drain wire contact with connector shell
Keep untwisted pairs ≤13mm (0.5 inch)
Use shielded patch panels with ground lugs
Test shield continuity after termination

Comparison with Other Outdoor Cat5e Types

Feature	FTP	UTP	STP (Braided)
Shielding	Foil overall	None	Braid + foil
EMI Protection	Good	Poor	Excellent
Flexibility	Good	Excellent	Fair
Diameter	Medium	Smallest	Largest
Cost	$$	$	$$$
Grounding Complexity	Moderate	None	High
Best For	Moderate EMI	General use	High EMI

Limitations & Considerations

Grounding Complexity: Improper grounding creates antenna effect
Bend Sensitivity: Foil can crack with tight bends
Termination Time: 30-50% longer than UTP termination
Cost Premium: 40-60% more than equivalent UTP
Not for All Environments: Overkill in low-noise areas
Compatibility Issues: Some equipment sensitive to ground differences
Maintenance: Harder to repair shield damage in field

Standards Compliance

TIA-568-C.2: Category 5e shielded requirements
ISO/IEC 11801: Class D balanced cabling
EN 50173: European cabling standard
IEC 61156-5: Multicore symmetrical cables
UL 444: Communications cable safety
RoHS/REACH: Material compliance

Performance in PoE Applications

Power over Ethernet Compatibility:

802.3af (PoE): Fully compatible
802.3at (PoE+): Compatible, monitor temperature
802.3bt (4PPoE): Compatible with heat management

Thermal Considerations:

Higher thermal resistance than UTP (foil adds layer)
Monitor bundle temperatures in PoE applications
Derating may apply in high-density PoE installations
Typically 10-15% lower current capacity vs equivalent UTP

Best Practices Summary

Assess need first – don't use FTP unless EMI is confirmed
Test EMI levels before installation if possible
Ground properly – single-point grounding is critical
Use compatible components – shielded throughout channel
Document grounding scheme for future maintenance
Consider future expansion – shielded pathways needed

Cost-Benefit Analysis

When to Choose Outdoor FTP Cat5e:

✅ EMI levels > 1V/m in critical frequency ranges
✅ Running parallel to power > 30 minutes exposure
✅ Near industrial equipment (motors, welders, RF)
✅ Data integrity critical (surveillance, control systems)
✅ Security-sensitive applications

When Standard UTP Suffices:

❌ Residential applications (generally)
❌ Office environments away from equipment
❌ Short runs (<15m) even in moderate EMI
❌ Budget-constrained projects without proven EMI issues

Outdoor FTP Cat5e provides essential EMI protection for applications where environmental noise would degrade UTP performance. While more expensive and complex to install than UTP, it ensures reliable data transmission in challenging electromagnetic environments when properly specified, installed, and grounded.
