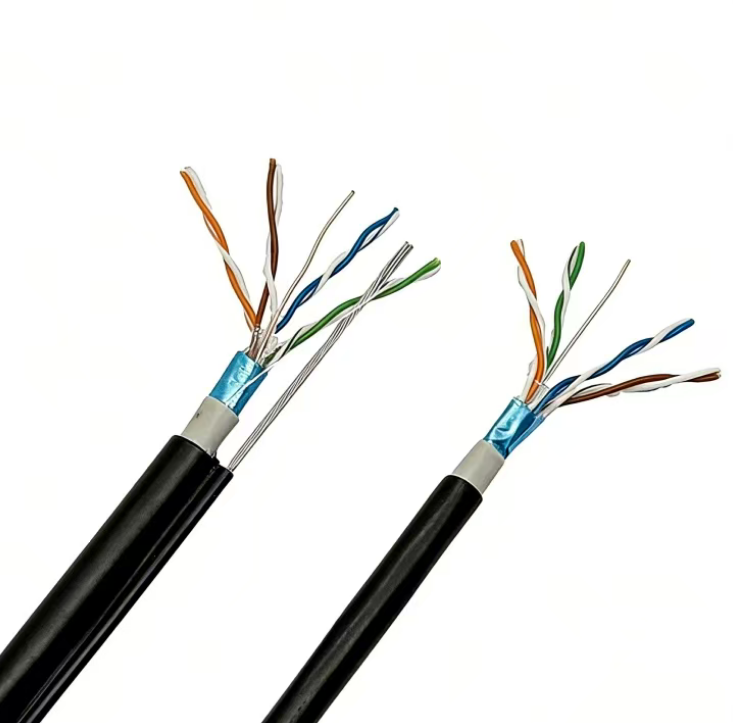

Outdoor FTP CAT5E External PVC+PE Double Jacket with Messenger Data Cable
Outdoor Cat5e FTP with Messenger cables are designed for aerial installations where the cable must be suspended between poles or structures. The integrated steel messenger provides mechanical support, eliminating the need for separate support wires while maintaining EMI protection through foil shielding.
Construction & Specifications

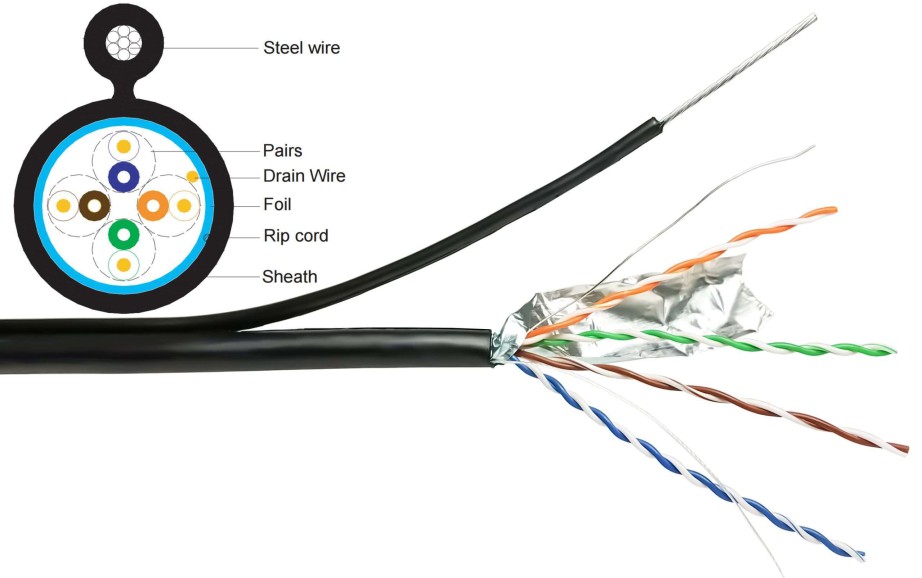

Cable Structure:
- Messenger Wire: Galvanized steel (typically 7-strand) or high-strength alloy
- Data Cable: Foil-shielded Cat5e (FTP) cable
- Attachment: Web or yoke connecting messenger to cable body
- Overall Design: Self-supporting 'figure-8' configuration
Detailed Construction:
Technical Data & Performance
Mechanical Specifications:
Parameter | Specification | Notes |
|---|
Cable Diameter | 8.5-11.5 mm | Including messenger |
Weight | 60-90 kg/km | Varies with messenger size |
Messenger Diameter | 2.5-4.0 mm | Typically 3.0 mm |
Breaking Strength | 600-2000 kg | Depends on application |
Maximum Tension | 20-30% of breaking strength | Installation working load |
Recommended Sag | 1-2% of span | For 50m span at 20°C |
Bend Radius | 10× cable diameter | Minimum during installation |
Electrical Specifications (Data Component):
Parameter | Value | Standard |
|---|
Category | 5e Enhanced | TIA-568-C.2 |
Impedance | 100Ω ±15% | 1-100 MHz |
Attenuation | ≤21.3 dB/100m @ 100 MHz | Maximum |
NEXT | ≥32.3 dB @ 100 MHz | Minimum |
Shielding Effectiveness | ≥40 dB @ 30-100 MHz | Typical |
DC Loop Resistance | ≤0.188 Ω/m | Per pair |
Propagation Delay | ≤548 ns/100m | Maximum |
Operating Voltage | 30V RMS | Data pairs |
Environmental Specifications:
Parameter | Specification |
|---|
Temperature Range | -40°C to +65°C (operating) |
Installation Temperature | -10°C to +50°C |
UV Resistance | 3000+ hours (per UL 1581) |
Wind Load | Up to 150 km/h (properly installed) |
Ice Load | 6-12 mm radial ice (depends on region) |
Flame Rating | CMX (outdoor) |
Span & Installation Specifications:
Messenger Size | Maximum Span | Recommended Span | Tension |
|---|
2.5 mm | 30-40 meters | 25 meters | 50-70 kg |
3.0 mm | 50-60 meters | 40 meters | 80-120 kg |
3.5 mm | 70-80 meters | 60 meters | 120-180 kg |
4.0 mm | 90-100 meters | 75 meters | 150-250 kg |
Key Advantages
1. Installation Benefits:
- Single-cable deployment - no separate messenger required
- Reduced labor costs - faster installation than separate components
- Cleaner appearance - single integrated cable
- Consistent sag control - predictable performance
2. Mechanical Advantages:
- High tensile strength - supports own weight plus environmental loads
- Ice/wind resistance - engineered for outdoor exposure
- Long span capability - up to 100m between supports
- Durability - withstands years of aerial exposure
3. Performance Benefits:
- EMI protection - foil shield reduces interference from power lines
- Consistent electrical performance - stable in varying weather
- Grounding capability - messenger can provide additional ground
- Moisture resistance - optional flooded core available
Applications
Primary Use Cases:
1. Telecommunications Infrastructure:
- ISP last-mile connections (building-to-building)
- Campus network backbones between buildings
- Rural broadband deployments along utility poles
- Temporary event networks (festivals, fairs)
2. Security & Surveillance:
- Perimeter security cameras along fences
- Parking lot surveillance across large areas
- Traffic monitoring at intersections
- Industrial site security across facilities
3. Municipal & Government:
- Traffic signal interconnect between intersections
- Public safety networks (police, fire departments)
- Streetlight control systems
- Public Wi-Fi mesh networks
4. Industrial Applications:
- Railway/transit communications
- Mining operations above-ground links
- Port and harbor communications
- Airfield perimeter security
Specific Installation Scenarios:
Application | Typical Span | Messenger Size | Additional Requirements |
|---|
Residential CCTV | 15-25m | 2.5-3.0mm | Minimal ice load |
Urban traffic cameras | 30-45m | 3.0-3.5mm | High wind resistance |
Rural broadband | 50-75m | 3.5-4.0mm | Moderate ice load |
Industrial perimeter | 40-60m | 3.0-3.5mm | Chemical resistance |
Hardware Requirements:
- Dead-ends: Strand-vise or preformed grips
- Suspension: D-rings or cable hooks with rollers
- Tensioning: Turnbuckles or come-alongs
- Support: Utility poles, buildings, or specialized structures
- Grounding: Messenger grounding kits at each end
Installation Steps:
- Site Survey: Measure spans, identify attachment points
- Hardware Installation: Mount supports, dead-ends
- Cable Pulling: Use cable grips, avoid messenger kinking
- Tensioning: Apply calculated tension (use dynamometer)
- Sag Setting: Adjust to design specifications
- Termination: Separate cable from messenger, ground messenger
- Testing: Continuity, shield integrity, performance verification
Special Considerations:
- Clearance Requirements: Minimum 5.5m over roadways, 3.5m over sidewalks
- Proximity to Power: Maintain 30cm minimum from power lines
- Tree Clearance: 1.2m minimum from tree branches
- Expansion/Contraction: Allow for temperature changes (0.02% length/°C)
Comparison with Other Aerial Solutions
Feature | FTP with Messenger | Separate Cable + Messenger | ADSS Cable |
|---|
Installation Time | Fastest | Slow | Moderate |
Cost | Moderate | Lower (material) | Highest |
EMI Protection | Good (FTP) | Depends on cable | Varies |
Span Capacity | 100m max | 150m+ | 200m+ |
Maintenance | Simple | More complex | Specialized |
Best For | Medium spans, EMI areas | Long spans, custom routing | Very long spans, high voltage areas |
Limitations & Considerations
Technical Limitations:
- Span Limit: Typically 100m maximum (economics, not strength)
- Messenger Fatigue: Vibration can cause failure at attachment points
- Temperature Effects: Significant sag change with temperature
- Ice Accumulation: Can dramatically increase load
- UV Degradation: Jacket life typically 10-15 years outdoor
Practical Considerations:
- Right-of-Way: Permits often required for pole attachments
- Utility Coordination: Must coordinate with power/telecom companies
- Bird Damage: May require bird deterrents in some areas
- Aesthetic Concerns: May not be suitable for historic districts
- Future Access: Difficult to add cables later
Cost Factors:
- Material: $0.80-$1.50 per foot (depending on specifications)
- Installation: $2-$4 per foot (including hardware, labor)
- Permits: $50-$500 per pole attachment (jurisdiction dependent)
- Engineering: May require structural calculations for long spans
Standards & Compliance
Industry Standards:
- ANSI/TIA-568-C.2: Category 5e requirements
- ANSI/NEMA WC 66: ICEA S-104-696 for outdoor cables
- UL 854: Service-Entrance Cables
- IEEE 525: Guide for Design and Installation of Cable Systems
- National Electrical Safety Code (NESC): Clearance requirements
Regional Requirements:
- North America: NEC Article 800, NESC Section 23
- Europe: EN 50174, CENELEC standards
- Australia/New Zealand: AS/NZS 3080, 3000
Maintenance & Inspection
Regular Inspection Schedule:
- Visual: Every 6 months (sag, damage, hardware)
- Detailed: Annually (tension measurement, corrosion check)
- After Storms: Immediate inspection for damage
Common Issues & Solutions:
- Excessive Sag: Retension (cold weather) or shorten span
- Corrosion: Replace hardware, apply anti-corrosion coating
- Vibration Damage: Install dampers or change suspension method
- Animal Damage: Add guards or deterrents
- UV Damage: Replace if jacket cracking exceeds 25%
Specialized Variants
1. Dielectric Messenger:
- Non-conductive fiberglass rod
- For areas near high-voltage lines
- Lighter weight, no grounding required
- Lower strength (shorter spans)
2. Self-Supporting (Figure-8):
- Integral web design
- Easier separation at ends
- Consistent mechanical properties
3. Separable Messenger:
- Yoke-attached messenger
- Can replace messenger independently
- Higher cost, more complex installation
4. Armored Version:
- Additional steel tape armor
- For high rodent areas
- Significantly heavier and stiffer
Best Practices Summary
- Proper Engineering: Calculate loads, sags, and tensions for each span
- Quality Hardware: Use corrosion-resistant fittings (stainless steel, hot-dip galvanized)
- Regular Inspection: Establish maintenance schedule from installation
- Documentation: Record tensions, sags, and installation conditions
- Safety First: Follow all safety regulations for aerial work
- Environmental Consideration: Account for local conditions (ice, wind, temperature extremes)
Outdoor Cat5e FTP with messenger cable provides an optimal solution for aerial network deployments requiring EMI protection and structural support. Its integrated design reduces installation complexity while providing reliable performance in challenging outdoor environments when properly engineered and installed according to industry standards.
