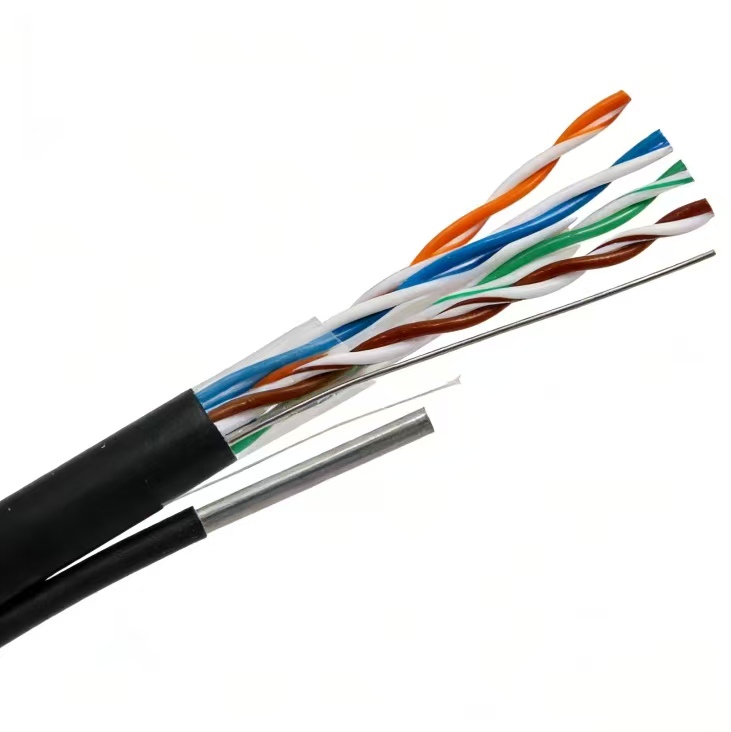

Outdoor Messenger Cat5e UTP Network Cable External Single PE Jacket 1000ft/box

1. Place of Origin: China
2. Brand Name:Hoton Link
3.Conductor:Copper/CCA/CCAG
4. Minimum Order Quantity:100rolls
5. Payment Terms: L/C, T/T, Western Union
6. Supply Ability: 5000boxes every month
7.Application:Security Systems,Network Infrastructure,Outdoor Wi-Fi Access Points,Home Networking

Select the number of specifications

Please check the product information you want!

Product Detail

Outdoor Messenger Cat5e UTP Network Cable External Single PE Jacket 1000ft/box

Specifications & Technical Data

Core Specifications:

Category: 5e (Enhanced Category 5)
Standard Compliance: ANSI/TIA-568-C.2, ISO/IEC 11801
Bandwidth: 100 MHz
Data Rate: Up to 1000 Mbps (1 Gigabit Ethernet) at 100m
Conductors: 4 twisted pairs (8 total conductors)
Wire Gauge: Typically 24 AWG solid copper (most common)

Outdoor-Specific Construction:

Jacket Material: Black UV-resistant polyethylene (PE) or linear low-density polyethylene (LLDPE)
Water Resistance: Gel-filled or flooded core (blocks moisture ingress)
Temperature Range: -40°C to +60°C (typically wider than indoor)
Direct Burial Rating: Optional armored version with additional metal tape/braid
Sunlight Resistance: UV-stabilized jacket prevents degradation
Grounding: May include a grounding wire (for shielded versions)

Performance Characteristics:

Attenuation: ≤21.3 dB/100m @ 100 MHz
NEXT (Near-End Crosstalk): ≥30.1 dB/100m @ 100 MHz
Return Loss: ≥20.1 dB @ 100 MHz

Key Advantages vs. Indoor Cat5e

Weather Resistance: Withstands rain, snow, UV exposure, and temperature extremes
Moisture Protection: Gel filling prevents water damage and conductor corrosion
Durability: Tougher jacket resists abrasion, animal/rodent damage, and environmental stress
Longevity: UV-resistant compounds prevent jacket cracking and degradation
Installation Flexibility: Suitable for aerial (pole-to-pole), direct burial, or conduit installations
Chemical Resistance: Resists oils, solvents, and other environmental contaminants

Applications

Typical Use Cases:

Security Systems: Outdoor IP cameras, access control systems
Network Infrastructure: Connecting buildings (Campus Area Networks)
Outdoor Wi-Fi Access Points: Backhaul connections for outdoor wireless
Industrial Environments: Factory floors, parking lots, warehouse exteriors
Temporary Events: Festivals, outdoor venues, construction sites
Agricultural: Farm monitoring systems, equipment connectivity
Home Networking: Between house and detached garage/workshop
Municipal Networks: Traffic cameras, public Wi-Fi, smart city infrastructure

Installation Considerations:

Direct Burial: Typically requires 24+ inches depth, warning tape above
Aerial Installation: Needs messenger wire or self-supporting construction
Conduit Use: Recommended where rodents are prevalent or extra protection needed
Lightning Protection: Use grounded surge protectors at building entry points
Termination: Requires proper weatherproof junction boxes/enclosures

Comparison with Other Options

Feature	Outdoor Cat5e	Outdoor Cat6	Fiber Optic
Max Distance	100m (328 ft)	100m (328 ft)	Kilometers
Bandwidth	100 MHz	250 MHz	Much higher
EMI Resistance	Moderate	Moderate	Excellent
Cost	Low	Medium	Higher
PoE Support	Yes (up to 15.4W)	Yes (up to 30W)	With converters

Limitations to Consider

Distance: 100-meter limit includes patch cables at both ends
EMI Vulnerability: Still susceptible to interference (use shielded if near high-voltage)
Speed Limitation: Not suitable for 10Gbps applications
Installation Labor: Direct burial requires trenching
Not for Long Distances: Beyond 100m requires switches or fiber

Best Practices

Use weatherproof connectors and enclosures
Include service loops for future repairs
Test entire run after installation (not just cable)
Follow local electrical codes for grounding/bonding
Label both ends clearly for future maintenance

Outdoor Cat5e remains a cost-effective solution for moderate-speed outdoor networking where fiber is cost-prohibitive, particularly for PoE applications like security cameras where both power and data are required over a single cable.

Package

FAQS:

Q1: Are you a factory or trading company?

A1: We are a manufacturer.

Q2: Where is your factory located? How can I visit there?

A2:Our factory are located in jieyang city. You can fly to Shenzhen or Guangzhou international airport. And tell us your flight No. We will arrange to pick you up.

Q3: How can I get a sample to test your quality?

A3:We can provide free samples for your test and checking, you just need to bear the freight charge.

Q4:What payment method do you accept?

A4:T/T(Bank transfer), Western Union, Money Gram, Paypal, etc.

Q5: Can you put my brand name (logo) on these products?

A5: Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the logo free for bulk orders.

Q6: May I know the status of my order?

A6: Yes .The order information and photos at different production stage of your order will be sent to you and the information will be updated in time.

Q7: What’s the leading time? (How long do you need to prepare my goods?

A7: Delivery (no more than 1000pcs) will be arranged within 10-15 days after payment, and arrive you within about 1 month via sea shipping.

Q8: How will you deliver my goods to me?

A8 Your purchases will be delivered by DHL, UPS, FedEx, TNT, EMS your door. Air Cargo and Sea Cargo, Direct line, Air Mail also be accepted according to clients' request.

Q9: Can you provide us more other products to us to help us to save more shipping costs?

A9: Yes. There’re kinds of Indoor Cables, Outdoor Cables, Coaxial Cables, Telephone Cables, Fiber Optic Cables and Accessories will be the main products line of Factory.

The OEM bulk order will be accept as well.
