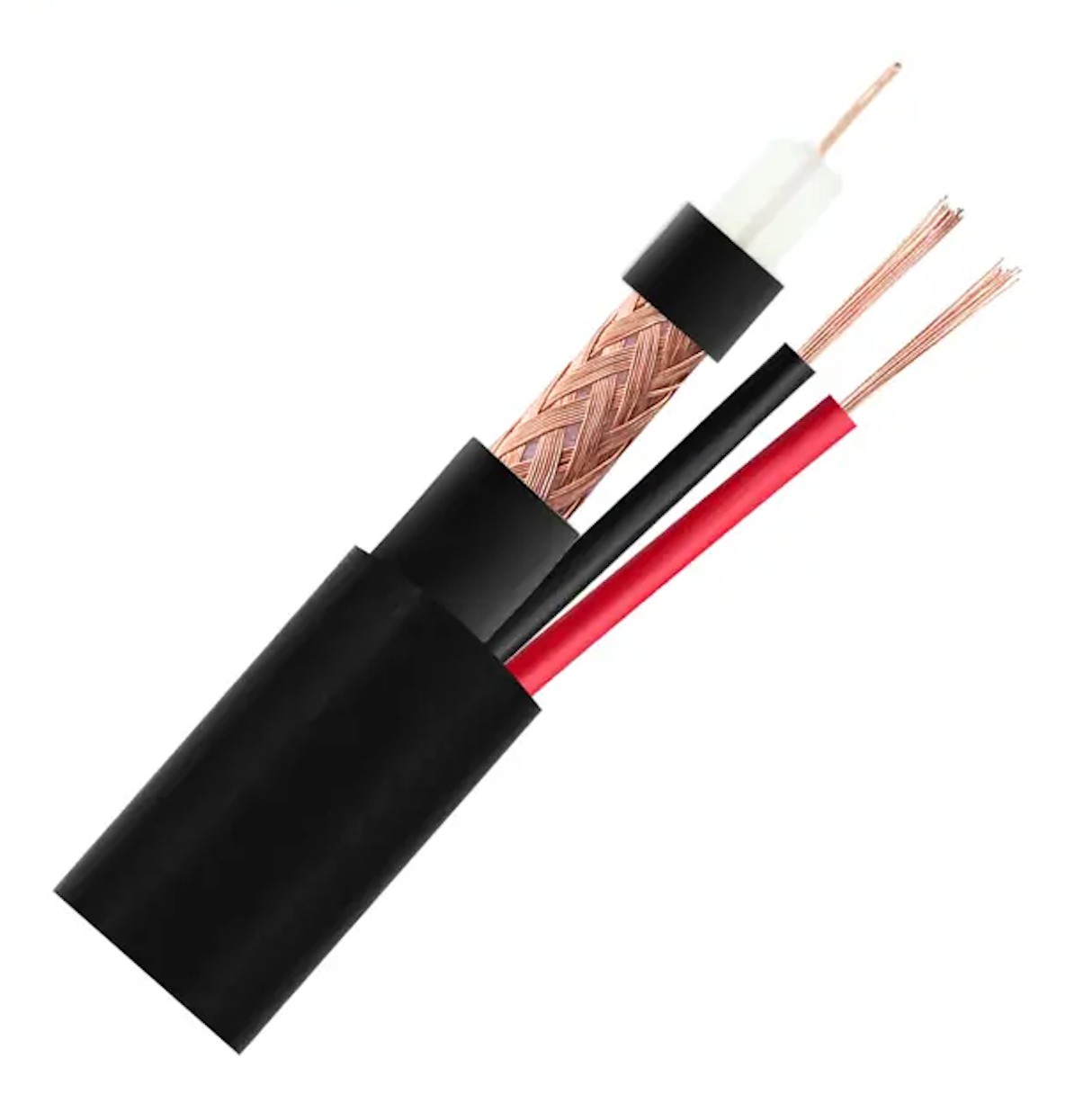

Outdoor RG59 B/U 2C 0.75 power cable CCTV Surveillance Cable

1. Place of Origin: China
2. Brand Name:Hoton Link
3.Conductor Type: Copper/CCA/CCS/CCAU
4. Minimum Order Quantity:50KM
5.Application:long-distance (over 200 meters) video transmission, high-bandwidth digital signal transmission

Select the number of specifications

Please check the product information you want!

Product Detail

Outdoor RG59 B/U 2C 0.75 power cable CCTV Surveillance Cable

Construction Parameters:
Inner Conductor	0.58mm Bare Copper
Dielectric	0.144'/3.66±0.05mm Solid Polyethylene
Shield	0.12mm CCA-Braid(95%)
Jacket	0.236'/6.00±0.1mm PVC/PE/LSZH
Power Wire Conductor	2x(17*0.25mmBC )
Power wire Diameter of insulation	2.0mmPVC(Red,Black)
Jacket	9.6mmUV-PE
Messenger	1.3mmSteel
Application	For Use in Longer CCTV Run Lengths
Electrical Characteristics:
Inner Conductor Resistance	The Max. at 20℃ shall be < 65.26 Ohms/KM
Inner Conductor Resistance	The Max. at 20℃ shall be < 65.26 Ohms/KM
Capacitance	67±2 pF/m
Impedance	75 ± 3 Ω
Return loss	between 5 and 1000MHz: > 22dB
Velocity of Propagation	0.66
Sparker Test (VAC)	3

Mechanical and Envrionmental Properties
Cable bend radius	10 times the cable diameter
Operating Temp Range	-20 ℃ to 60℃ / -40 ℃ to 75℃
Cable diamensions	9.6×2.5mm

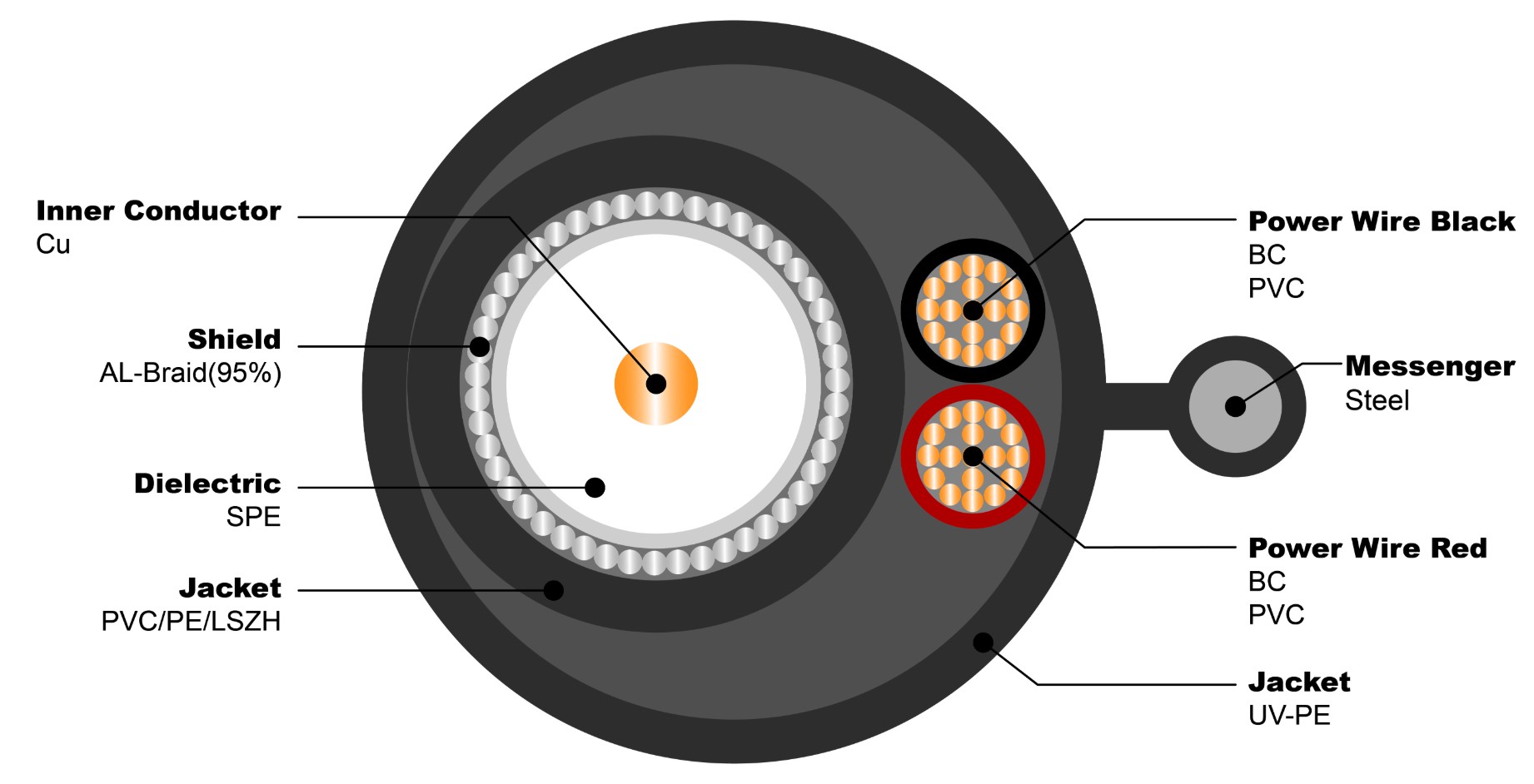

Cross Section
















Attenuation(20℃):
Frequency (MHZ)	Max Attenuation(dB/100ft)	Max Attenuation (dB/100m)
1	0.64	1.96
10	1.18	3.61
50	2.58	7.87
100	3.66	11.15
200	5.27	16.07
400	7.53	22.97
700	10.44	31.83
900	11.93	36.40
1000	12.89	39.30

No comment

Product Detail

Outdoor RG59 B/U 2C 0.75 power cable CCTV Surveillance Cable

Construction Parameters:
Inner Conductor	0.58mm Bare Copper
Dielectric	0.144'/3.66±0.05mm Solid Polyethylene
Shield	0.12mm CCA-Braid(95%)
Jacket	0.236'/6.00±0.1mm PVC/PE/LSZH
Power Wire Conductor	2x(17*0.25mmBC )
Power wire Diameter of insulation	2.0mmPVC(Red,Black)
Jacket	9.6mmUV-PE
Messenger	1.3mmSteel
Application	For Use in Longer CCTV Run Lengths
Electrical Characteristics:
Inner Conductor Resistance	The Max. at 20℃ shall be < 65.26 Ohms/KM
Inner Conductor Resistance	The Max. at 20℃ shall be < 65.26 Ohms/KM
Capacitance	67±2 pF/m
Impedance	75 ± 3 Ω
Return loss	between 5 and 1000MHz: > 22dB
Velocity of Propagation	0.66
Sparker Test (VAC)	3

Mechanical and Envrionmental Properties
Cable bend radius	10 times the cable diameter
Operating Temp Range	-20 ℃ to 60℃ / -40 ℃ to 75℃
Cable diamensions	9.6×2.5mm

Cross Section
















Attenuation(20℃):
Frequency (MHZ)	Max Attenuation(dB/100ft)	Max Attenuation (dB/100m)
1	0.64	1.96
10	1.18	3.61
50	2.58	7.87
100	3.66	11.15
200	5.27	16.07
400	7.53	22.97
700	10.44	31.83
900	11.93	36.40
1000	12.89	39.30
