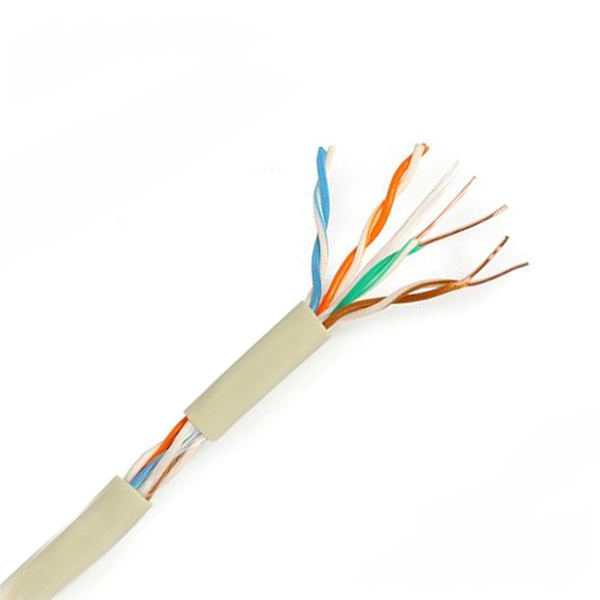

Cat5e UTP 4Pair CU/CCA Network Cable
Cat5e UTP 4Pair CU/CCA Network Cable
Cat5e UTP 4Pair CU/CCA Network Cable
Cat5e UTP 4Pair CU/CCA Network Cable

Cat5e UTP 4Pair CU/CCA Network Cable

1. Place of Origin: China
2. Brand Name:Hoton Link
3.Conductor:Copper/CCA/CCAG
4. Minimum Order Quantity:100rolls
5. Payment Terms: L/C, T/T, Western Union
6. Supply Ability: 5000boxes every month

Cat5e UTP 4Pair CU/CCA Network Cable

Select the number of specifications

CAT5E UTP 0.4/0.45/0.5mm CU/CCA/CCAG

33x33x19

Please check the product information you want!
Specifications select
Download Annex

Product Detail


Factory customized high-speed Cat5e UTP 4pair CU/CCA Network cable with high quality

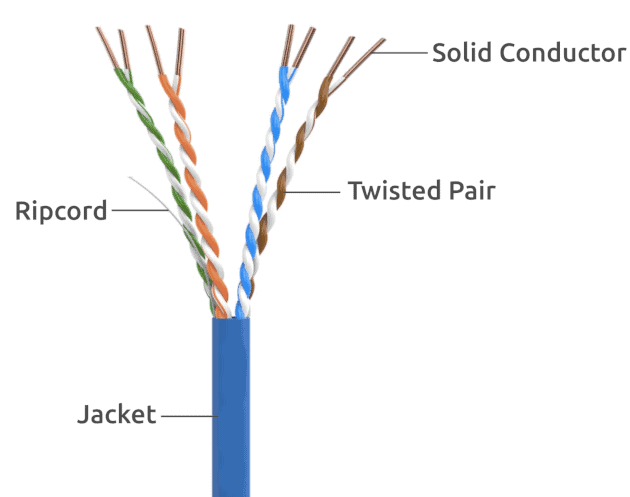

Material Instruction

1.CCA or 24AWG pure copper.

2.Eco-friendly,pollution-free and new materials selected.Promise new material only.
3.Insulation: Solid HDPE;
4.Eco-friendly PVC/LSZH Jacket , high-temperature resistance,long working life.


Appliacation
1. Exceeds ANSI/TIA-568B. 2 and ISO 11801 2nd Edition Class E Category 5e channel standards.
2. Exceed requirements of ANSI/TIA-568B. 2 and IEC 61156-5 Category 5e Component standards;
3. Meets requirements of IEEE 802.3af and IEEE 802.3at for PoE applications.
4. Foil shield reduces ingress of EMI interference to ensure cable performance at high frequency levels.
5. Length cable marking enable easy identification of remaining cable which reduces installation time and cable scrap.
6. Color Availability: Additional cable colors available.


Electronic Characteristics

Impedance: 100± 15(ohms).
Rated Temperture: 75º C
DC Resistance unbalance(%): Max2.5
DC Resistance 20º C: 8.4(Ohms/100m)
Pair-to-Ground Capacitance Unbalance: 330(Pf/100m)
Transfer Impendance: Max 10 mohms/m@100MHz.
Installation Resistance: >5000MΩ *KM
Dielectric strength: DC 2500V 2S


Transmission Performance




Package

FAQ

Q1. Are you a factory or trading company?

A: We are a manufacturer.


Q2. What kind of products can your company supply?
A: We specialize in supplying lan cable,coaxial cable,telephone cable,speaker cable, patch cable fiber optical cable,power cable,etc.

Q3. What's ur MOQ?
A: The MOQ of coaxial cable is 30 KM,lan cable is 300 boxes OR we can negotiate.

Q4. What's your delivery time?
A: Our delivery time is about 10-15 working days after conforming the deposit, it is based on the order quantity.

Q5. What's your payment terms?
A: Normally,we accept T/T in advance, as for other payment term,it's negotiable.

Q6. What's your trade term ?
A: We can accept FOB, CIF, CFR, EXW term.

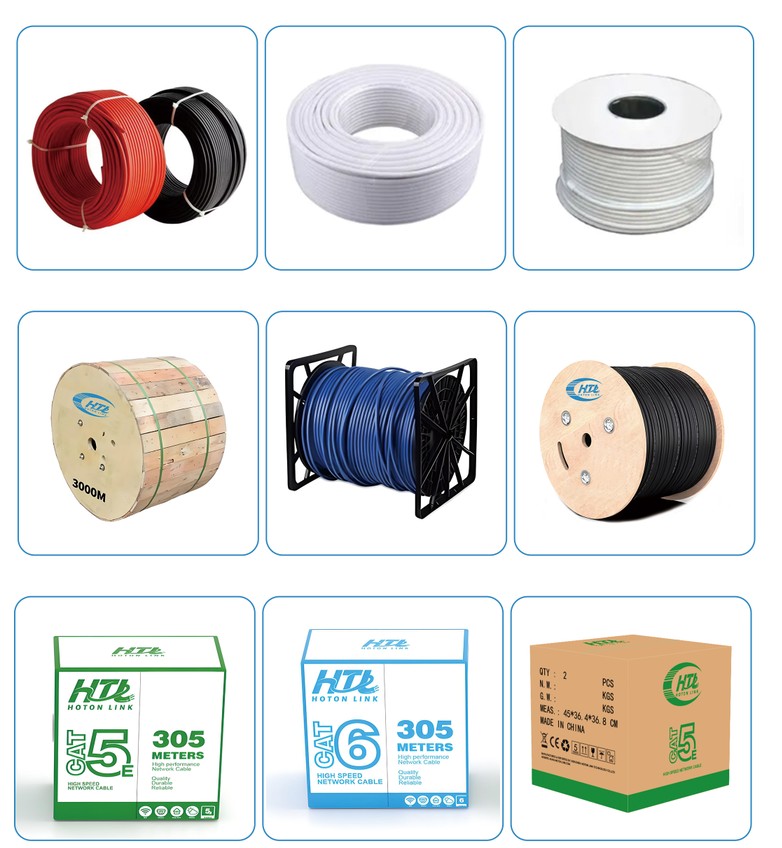

Q7. What's your conventional packing ?
A: 100m/plastic or wooden drum,305m/wooden drum, 500m/wooden drum or woven bag.
However, we can according to your demand.

No comment

Product Detail


Factory customized high-speed Cat5e UTP 4pair CU/CCA Network cable with high quality



Material Instruction

1.CCA or 24AWG pure copper.

2.Eco-friendly,pollution-free and new materials selected.Promise new material only.
3.Insulation: Solid HDPE;
4.Eco-friendly PVC/LSZH Jacket , high-temperature resistance,long working life.


Appliacation
1. Exceeds ANSI/TIA-568B. 2 and ISO 11801 2nd Edition Class E Category 5e channel standards.
2. Exceed requirements of ANSI/TIA-568B. 2 and IEC 61156-5 Category 5e Component standards;
3. Meets requirements of IEEE 802.3af and IEEE 802.3at for PoE applications.
4. Foil shield reduces ingress of EMI interference to ensure cable performance at high frequency levels.
5. Length cable marking enable easy identification of remaining cable which reduces installation time and cable scrap.
6. Color Availability: Additional cable colors available.


Electronic Characteristics

Impedance: 100± 15(ohms).
Rated Temperture: 75º C
DC Resistance unbalance(%): Max2.5
DC Resistance 20º C: 8.4(Ohms/100m)
Pair-to-Ground Capacitance Unbalance: 330(Pf/100m)
Transfer Impendance: Max 10 mohms/m@100MHz.
Installation Resistance: >5000MΩ *KM
Dielectric strength: DC 2500V 2S


Transmission Performance




Package

FAQ

Q1. Are you a factory or trading company?

A: We are a manufacturer.


Q2. What kind of products can your company supply?
A: We specialize in supplying lan cable,coaxial cable,telephone cable,speaker cable, patch cable fiber optical cable,power cable,etc.

Q3. What's ur MOQ?
A: The MOQ of coaxial cable is 30 KM,lan cable is 300 boxes OR we can negotiate.

Q4. What's your delivery time?
A: Our delivery time is about 10-15 working days after conforming the deposit, it is based on the order quantity.

Q5. What's your payment terms?
A: Normally,we accept T/T in advance, as for other payment term,it's negotiable.

Q6. What's your trade term ?
A: We can accept FOB, CIF, CFR, EXW term.

Q7. What's your conventional packing ?
A: 100m/plastic or wooden drum,305m/wooden drum, 500m/wooden drum or woven bag.
However, we can according to your demand.
