SFTP CAT7 Copper Cable 10G 1000Mhz Ethernet Lan Cable

Name: SFTP CAT7 Copper Cable 10G 1000Mhz Ethernet Lan Cable
Rating: 4.5 (89 reviews)

1. Place of Origin: China
2. Brand Name:Hoton Link
3.Conductor:Copper/CCA/CCAG
4. Minimum Order Quantity:100rolls
5. Payment Terms: L/C, T/T, Western Union
6. Supply Ability: 5000boxes every month

Select the number of specifications

44*44*23cm

48*45.5*46cm

Please check the product information you want!

Specifications select

Download Annex

Product Detail

Factory Direct Cat7 LAN Cable 305m 1000ft SFTP Network Cable PVC Jacket Pure Copper

Product Description

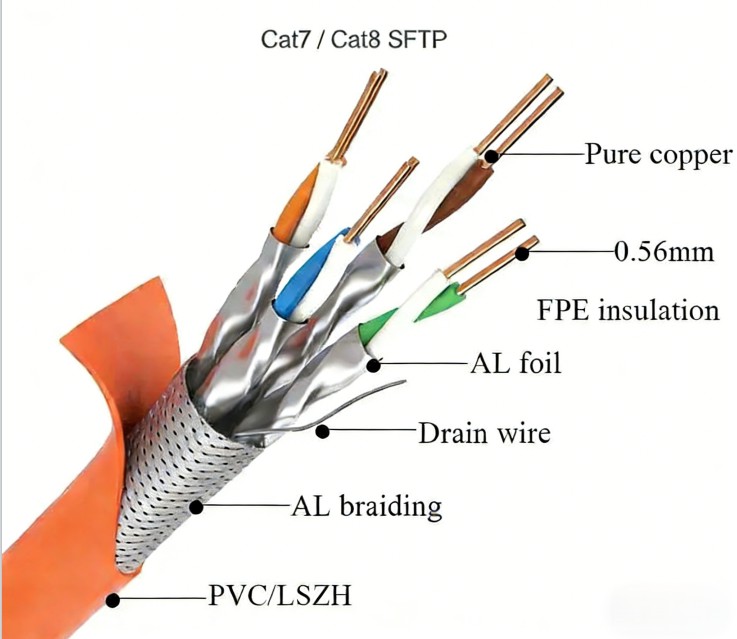

Category	SFTP CAT7			Jacket Physical Properties	Before Aging Tensile Strength(Mpa)≥13.5 Elongation(%)≥150
Test Standard	ISO/IEC 11801,TIA/EIA 568B.2 IEC61156-5
Conductor	Material	Solid Bare Copper			Aging Period(°Chrs) 100°C24h*7d
	Nom.O.D.	0.585±0.003mm			After Aging Tensile Strength(MPa) ≥12.5 Elongatio n(%) ≥125
Insulation	Material	Skin-foam-Skin PE
	Nom.O.D.	1.40±0.05mm			Cold bend(-20±2°C*4h) No visible cracks
Shield	Al Foil 100%	Braid 30%	Tinned copper braid or Al braid	Electrical Characteristics (20°C)	Impedance(Ω) 100±15
Jacket	Thickness	0.65±0.05mm			Delay Shew(ns/100m) ≤45
	External O.D.	7.4±0.2mm			NVP 69%
	Material	LSZH			Capacitance(nf/100m) ≤5.6
	Color	According to Requires			DC Resistance(Ω/100m) ≤9.5
Rip-cord	Yes	Drain Wire	Tinned copper		DC Resistance Unbalance(%) ≤2.0
Packing	305meters or 500m/Wooden Reel/Carton
