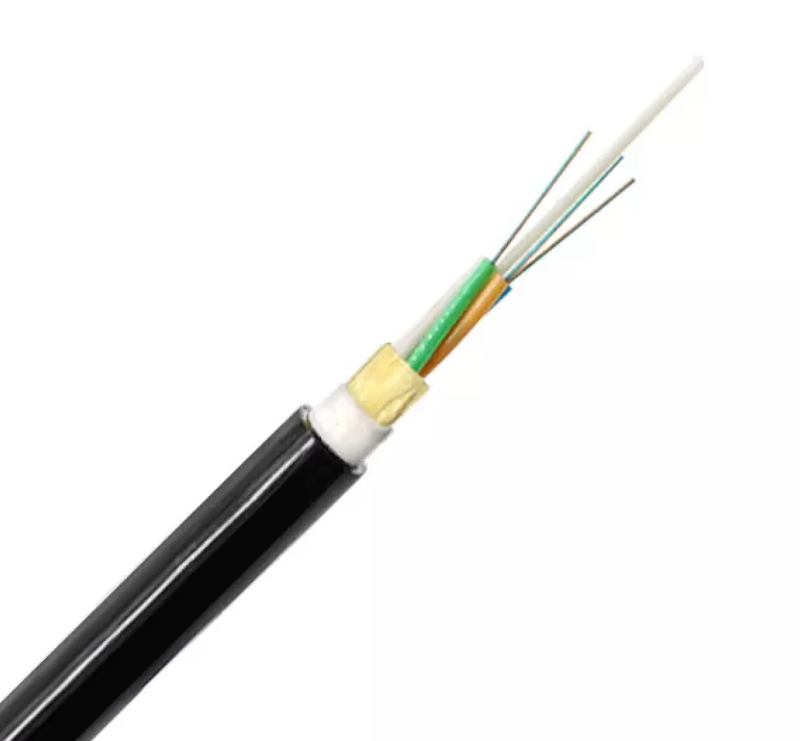

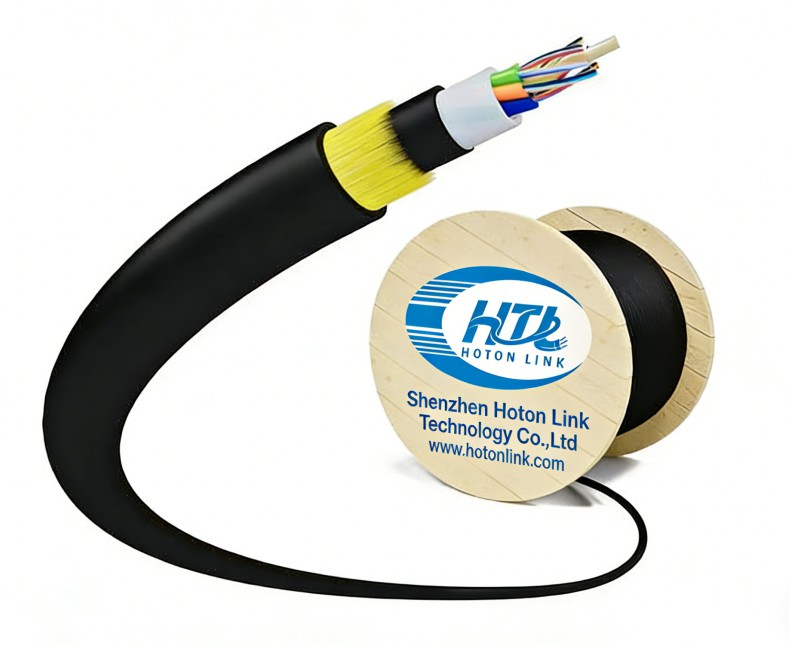

ADSS Fiber Optical Cable 80m 100m 120m Span 2-288Core
The Advantages of ADSS:
All-Dielectric Design: Contains no metal, making it non-conductive and immune to electromagnetic interference (EMI). This allows safe installation in high-voltage environments, such as alongside power lines (up to 500kV), without grounding requirements or the risk of electrical shock to technicians

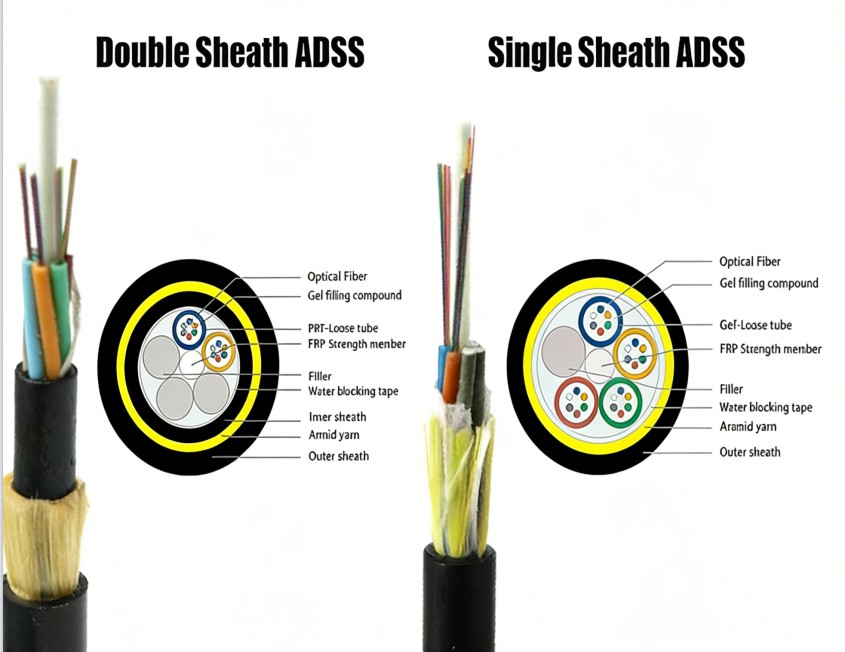

Self-Supporting Structure: Engineered to support its own weight and external loads (wind, ice, etc.) over long spans using internal reinforcement like aramid yarn, eliminating the need for a separate messenger wire or lashing hardware.
Cost-Effective Installation: The single-pass installation process is faster and requires less labor and hardware compared to traditional strand-and-lash methods, often resulting in lower total project costs. Installation can typically be done without shutting down power to existing lines.
Durability & Weather Resistance: The single-pass installation process is faster and requires less labor and hardware compared to traditional strand-and-lash methods, often resulting in lower total project costs. Installation can typically be done without shutting down power to existing lines.
Lightweight & Flexible: The non-metallic, lightweight nature of the cable reduces the load on existing power poles and towers, extending their lifespan and allowing for easier handling and installation in difficult terrains.
Long Spans: High tensile strength allows for installation over long distances between support structures (spans can range from 50m to over 1000m depending on design), which reduces the number of poles needed.
Scalability & Reliability: Supports high fiber counts (up to 144+ cores) and offers reliable signal transmission with low attenuation, ensuring a future-proof network backbone with minimal maintenance requirements.
The Application of ADSS:
- 1. Power Utility Networks: ADSS is the standard for high-voltage transmission lines (up to 500kV) because it contains no metal, making it immune to electromagnetic interference (EMI) and safe for 'live-line' installation without power outages.
- 2. Smart Grid Infrastructure: It facilitates real-time data flow between substations, smart meters, and control centers to monitor energy usage and detect faults instantly.
- 3. 5G Network Backhaul: In 2026, ADSS is widely deployed to connect 5G small cells and towers, especially in rural or hard-to-reach areas where underground trenching is too expensive.
- 4. Smart City Systems: Used for city-wide surveillance, intelligent traffic management, and connecting IoT sensors to central urban hubs.
- 5. Renewable Energy Sites: Essential for monitoring wind farms and solar arrays, where cables must withstand high altitudes and harsh weather while providing secure data links.
Mechanical Performance Parameters
Item | Technical Index | Test Standard |
|---|
Short-term Tensile Strength | 10%~100% RTS (Rated Tensile Strength) | Sustained 1 minute, no additional fiber loss |
Rated Tensile Strength (RTS) | 15~200 kN | Customized by span & wind speed; larger span needs higher RTS |
Ultimate Tensile Strength (UTS) | ≥1.5×RTS | Maximum tension before cable breakage |
Impact Resistance | 1.5kg weight, 1m height impact, no fiber damage | Attenuation change ≤0.1dB after impact |
Bending Resistance | Bent 10 times (radius=15×cable diameter) | No cracks, additional attenuation ≤0.1dB |
Vibration Resistance | 10~50Hz, 0.75mm amplitude, 2-hour vibration | No additional fiber loss |

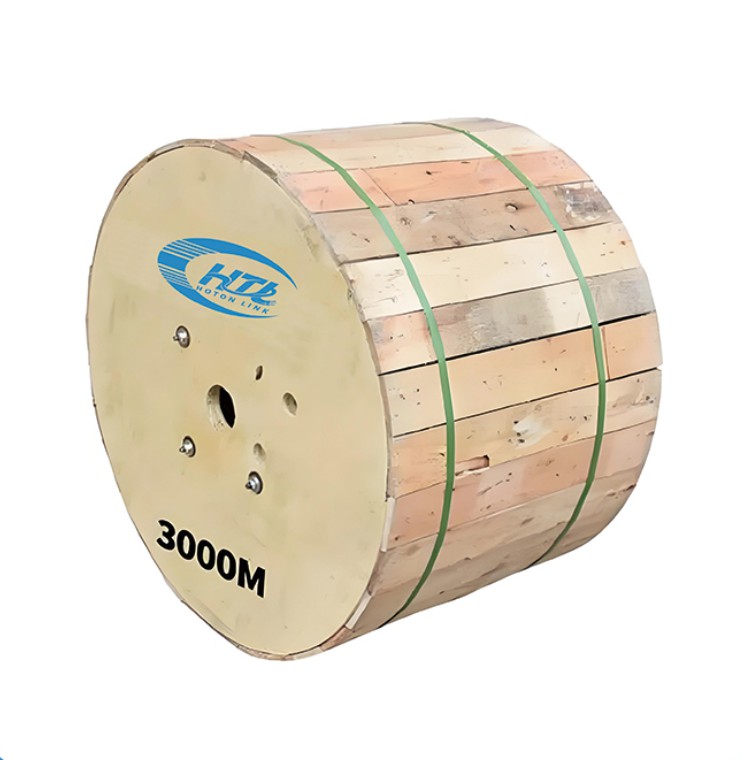

Package & Shipment
FAQS:
Q1: Are you a factory or trading company?
A1: We are a manufacturer.
Q2: Where is your factory located? How can I visit there?
A2:Our factory are located in jieyang city. You can fly to Shenzhen or Guangzhou international airport. And tell us your flight No. We will arrange to pick you up.
Q3: How can I get a sample to test your quality?
A3:We can provide free samples for your test and checking, you just need to bear the freight charge.
Q4:What payment method do you accept?
A4:T/T(Bank transfer), Western Union, Money Gram, Paypal, etc.
Q5: Can you put my brand name (logo) on these products?
A5: Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the logo free for bulk orders.
Q6: May I know the status of my order?
A6: Yes .The order information and photos at different production stage of your order will be sent to you and the information will be updated in time.
Q7: What’s the leading time? (How long do you need to prepare my goods?
A7: Delivery (no more than 1000pcs) will be arranged within 10-15 days after payment, and arrive you within about 1 month via sea shipping.
Q8: How will you deliver my goods to me?
A8 Your purchases will be delivered by DHL, UPS, FedEx, TNT, EMS your door. Air Cargo and Sea Cargo, Direct line, Air Mail also be accepted according to clients' request.
Q9: Can you provide us more other products to us to help us to save more shipping costs?
A9: Yes. There’re kinds of Indoor Cables, Outdoor Cables, Coaxial Cables, Telephone Cables, Fiber Optic Cables and Accessories will be the main products line of Factory.
The OEM bulk order will be accept as well.
