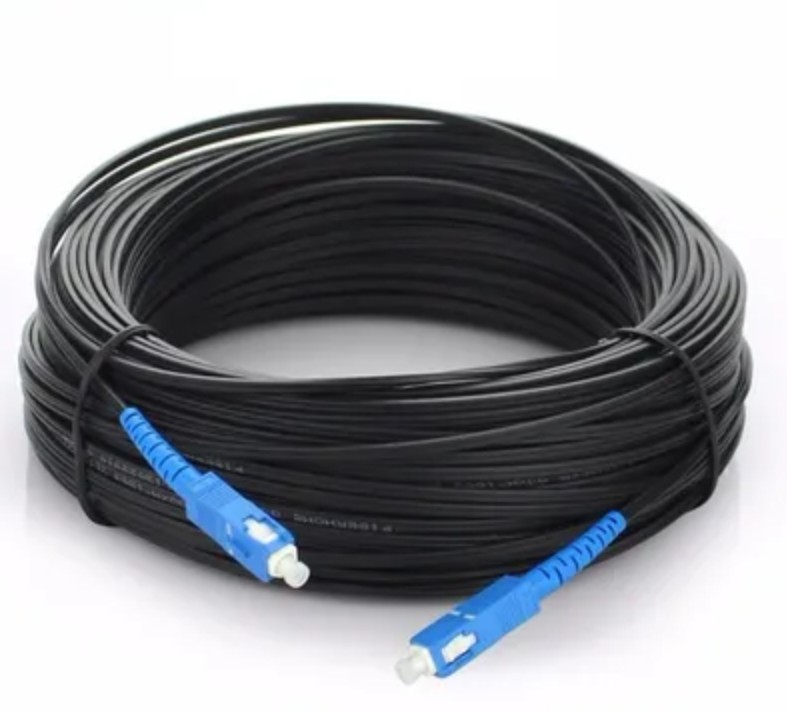

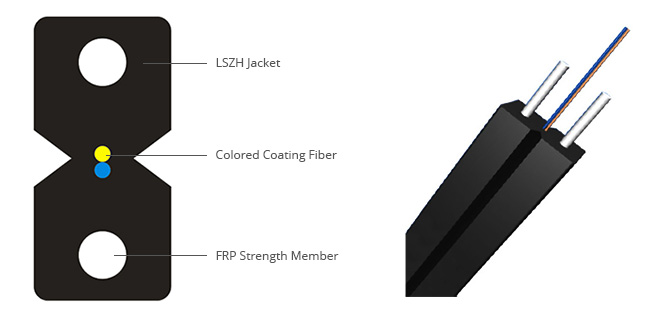

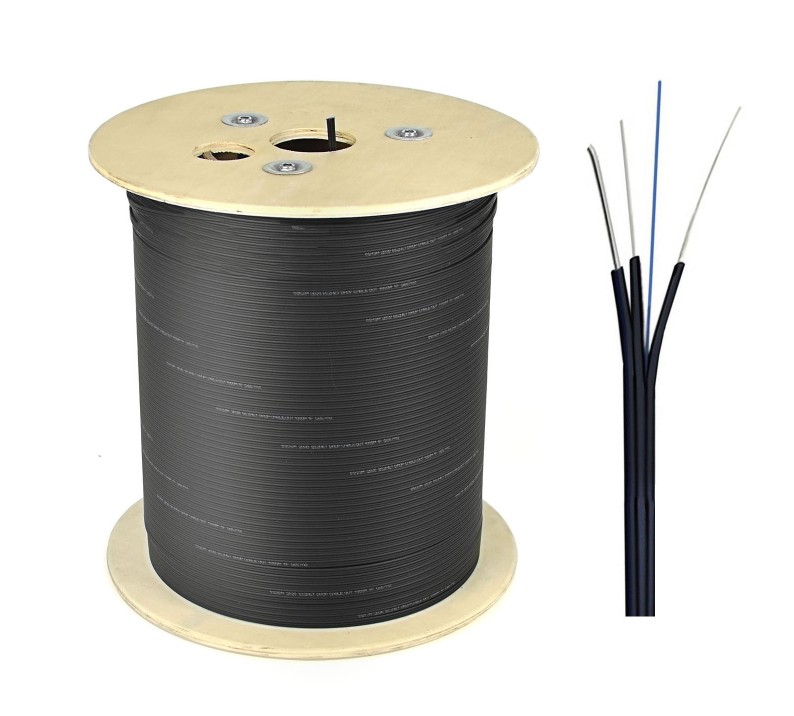

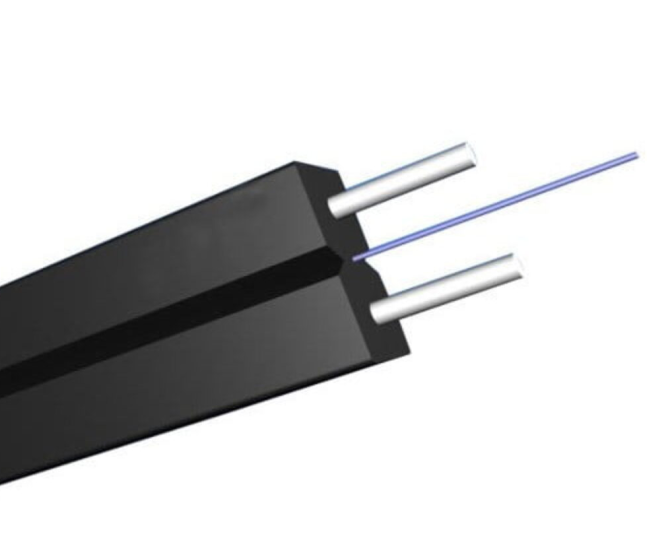

FTTH Indoor Drop Cable Covered Wire Cable 1-4Core
Indoor FTTH Drop Cable Main Advantages
Indoor FTTH (Fiber-to-the-Home) drop cables are specifically engineered for the final, in-premises segment of the network. Their design prioritizes safety, installation convenience, and aesthetics for residential and business environments. Here are their key advantages:
Core Advantages:
Fire Safety & Low Toxicity (Most Critical Advantage)
- Utilizes LSZH (Low Smoke Zero Halogen) or flame-retardant materials for the sheath. This is a mandatory safety requirement for indoor cabling.
- Minimizes Hazard: In case of fire, it produces very little smoke and no toxic/corrosive halogen gases, protecting occupants and equipment.
Small Diameter & Light Weight
- Extremely compact design (typically Ø2mm or Ø3mm). This allows for:
- Discreet Aesthetics: Can be easily hidden along baseboards, in corners, or under carpets without being obtrusive.
- Easy Routing: Can be pulled through existing, crowded conduits or cable ducts alongside other wires.
- High Flexibility & Excellent Bend Performance
- Designed with a soft, flexible jacket and often feature bend-insensitive fibers (e.g., G.657.A1/A2).
- Easy Installation: Can be routed around tight corners, door frames, and furniture with ease.
- Prevents Signal Loss: Maintains performance even when bent around sharp edges, which is common in home installations.
Plug-and-Play Installation
- Typically supplied as pre-connectorized factory-terminated patch cords (with SC, LC, or other connectors).
- Saves Time & Cost: Eliminates the need for field splicing or polishing, enabling quick and foolproof connection between the wall outlet and the Optical Network Terminal (ONT).
Durable for Indoor Handling
- The tight-buffered or 900µm tight buffer construction provides robust protection for the fiber against handling, crushing, and bending during and after installation within a building.
Aesthetic and Customizable
- Commonly available in neutral colors (white, beige) to blend with wall and trim colors.
- Clean and simple appearance suitable for living and working spaces.
Comparison with Outdoor Drop Cables:
Feature | Indoor FTTH Drop Cable | Outdoor FTTH Drop Cable
|
|---|
Sheath Material | LSZH / Flame-Retardant (for safety) | PE (Polyethylene) (for weather/UV resistance)
|
Fire Safety | Mandatory - Meets indoor fire codes | Not Compliant for indoor use
|
Environmental | Not for prolonged sun/water exposure | UV, Moisture, and Temperature resistant
|
Strength | Flexible, for gentle handling | Often has strengthening members (Kevlar, FRP)
|
Primary Use | Inside buildings (ONT to outlet) | Outside buildings (pole to building entry) |
Indoor FTTH Drop Cable Application
Indoor Fiber-to-the-Home (FTTH) drop cables, also known as indoor optical fiber cables or simplex/duplex cables, are designed for the final, in-building segment that connects the user's terminal (ONT - Optical Network Terminal) to the network access point. Their applications are defined by aesthetics, safety, and practicality for residential and business interiors.
Here are the primary application scenarios:
1. Terminal Connection (Most Common)
- ONT to Wall Outlet: Connecting the Optical Network Terminal (ONT) installed inside the home (usually in the living room, closet, or garage) to the fiber optic wall outlet (also known as the fiber access terminal or socket).
- Direct Connection: In some installations, the cable runs directly from the building entry point to the ONT without a wall outlet.
2. In-Home/Office Routing
- Along Baseboards or Moldings: The small diameter (often 2mm or 3mm) and excellent flexibility allow the cable to be neatly routed along skirting boards, door frames, or corners, minimizing visual impact.
- Through Pre-Installed Conduits or Ducts: Can be easily pulled through in-wall conduits, PVC pipes, or cable ducts that were installed during building construction or renovation.
- Under Carpets or Floors: Its slim and flexible design makes it suitable for running under carpets (edge tucking) or raised floors.
- Surface-Mounted with Clips: Often secured to walls or ceilings using small, adhesive cable clips for a tidy appearance.
3. Specific Use Cases & Locations
- Apartments & Multi-Dwelling Units (MDUs): From the building's main distribution point (usually in the corridor or utility closet) to each individual apartment's ONT.
- Home Offices / Study Rooms: Providing a direct, high-speed connection to the home office workstation.
- Living Room / Entertainment Center: Connecting the ONT to the home router and then to smart TVs, gaming consoles, and media servers.
- Wall-Mounted ONTs: For ONTs designed to be wall-mounted, a short drop cable is used to connect the ONT port to the wall outlet just below it.
4. Transition from Outdoor to Indoor
- This is a critical application point. The outdoor drop cable (e.g., a self-supporting or armored cable) is terminated at the building entry point.
Application Advantages Utilized:
- Fire Safety Compliance: Indoor drop cables use LSZH (Low Smoke Zero Halogen) or other flame-retardant sheaths, meeting safety standards (e.g., OFNR/OFNP ratings in some regions) for indoor premises wiring.
- Aesthetics: Available in white, beige, or other colors to blend with interior décor. Their small size is minimally intrusive.
- Flexibility & Easy Handling: Designed for simple deployment by technicians or even end-users for final hookup, without requiring special tools.
- Direct Connectorization: Typically come pre-connectorized with standard connectors (like SC or LC), enabling plug-and-play installation.
