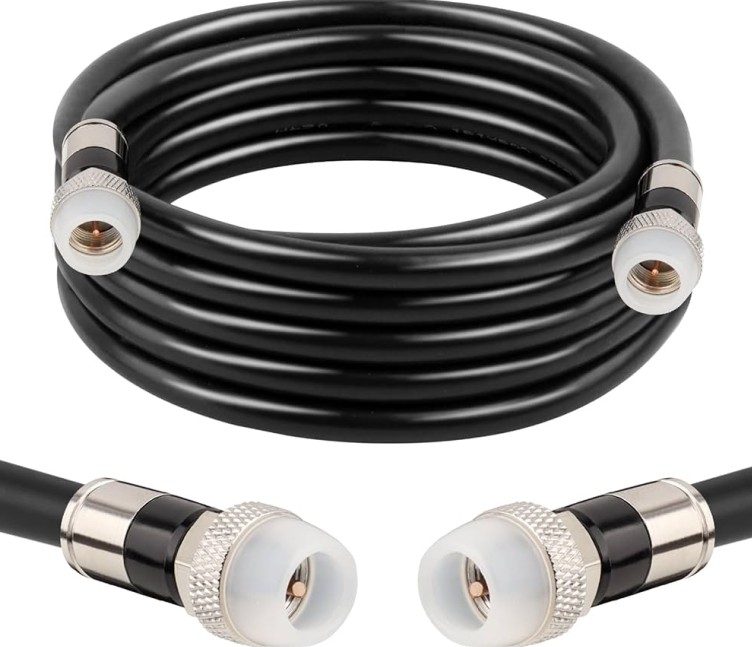

75Ohm RG6 Coaxial Cable Foam PE Insulation for Satellite and CCTV Installation
RG6 Coaxial Cable Advantage
RG6 coaxial cable is a widely used 75-ohm impedance cable in audio-visual transmission and broadband communication, renowned for its outstanding performance in high-frequency signal transmission. Its advantages are comprehensively reflected in structural design, signal performance, environmental adaptability, and application versatility, making it the preferred choice for modern digital signal transmission scenarios.
1. Excellent High-Frequency Performance and Low Signal Attenuation
RG6 cables are designed to support high-frequency signal transmission, with a standard frequency range of up to 1 GHz, and high-end models capable of reaching 2.2 GHz to 3.0 GHz . This enables it to perfectly handle high-definition (HD) and 4K video signals, satellite TV broadcasts, and high-speed broadband internet data transmission without noticeable signal degradation. Compared to similar cables like RG59 and SYV-75-5, RG6 has significantly lower attenuation: at 100 MHz, its attenuation is only about 6.5 dB/100m, far lower than RG59's ~8 dB/100m and SYV-75-5's ~4.8 dB/100m (at lower frequencies) . This low attenuation allows signal transmission over longer distances, typically 400-500 meters, and even up to 800 meters with high-quality connectors, making it suitable for medium and long-distance transmission needs .
2. Enhanced Shielding to Resist Interference
The multi-layer shielding structure of RG6 cables effectively eliminates electromagnetic interference (EMI) and radio frequency interference (RFI). Standard RG6 adopts a dual-shield design: bonded aluminum foil for blocking capacitive coupling interference and tinned copper braid for shielding electromagnetic noise . High-performance variants such as RG6 Quad Shield further add double braiding and composite shielding layers, achieving nearly 100% shielding coverage . This structure prevents signal ingress and crosstalk, ensuring distortion-free images and stable data transmission even in harsh interference environments such as near high-voltage lines, industrial machinery, or dense building wiring . In contrast, RG59 usually only has a single braid shield, and SYV-75-5 has a single-layer shield, making their anti-interference capabilities far inferior to RG6 .
3. Robust Structural Design for Durability

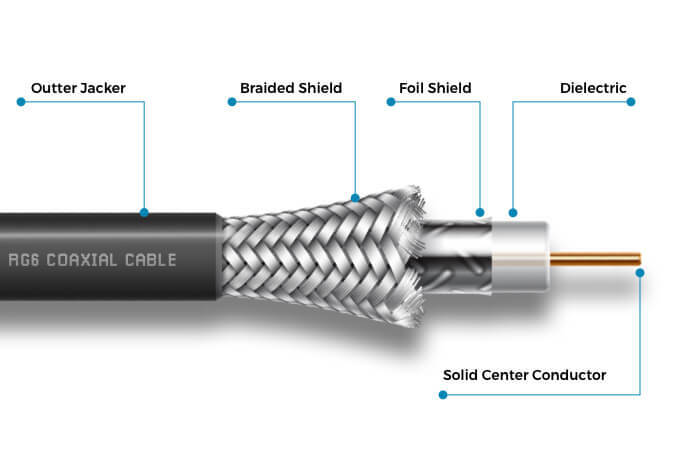

RG6 cables feature a sturdy construction that balances tensile strength and flexibility. The center conductor is typically 18 AWG solid copper or copper-clad steel (CCS): solid copper ensures optimal conductivity and minimal signal loss, while copper-clad steel combines copper's conductivity with steel's tensile strength, suitable for outdoor aerial installations . The dielectric layer uses precision-spaced gas-injected foam polyethylene, maintaining stable 75-ohm impedance to minimize micro-reflections and data bit errors . The outer jacket is made of PVC, PE, or LSZH (low smoke zero halogen) material, providing protection against moisture, UV radiation, and mechanical damage . Some outdoor models are equipped with galvanized steel messengers to relieve span stress, preserving electrical integrity and extending service life . Additionally, the dielectric layer can be stripped clean from the conductor without scraping, simplifying installation .
4. Versatile Applications and Broad Compatibility

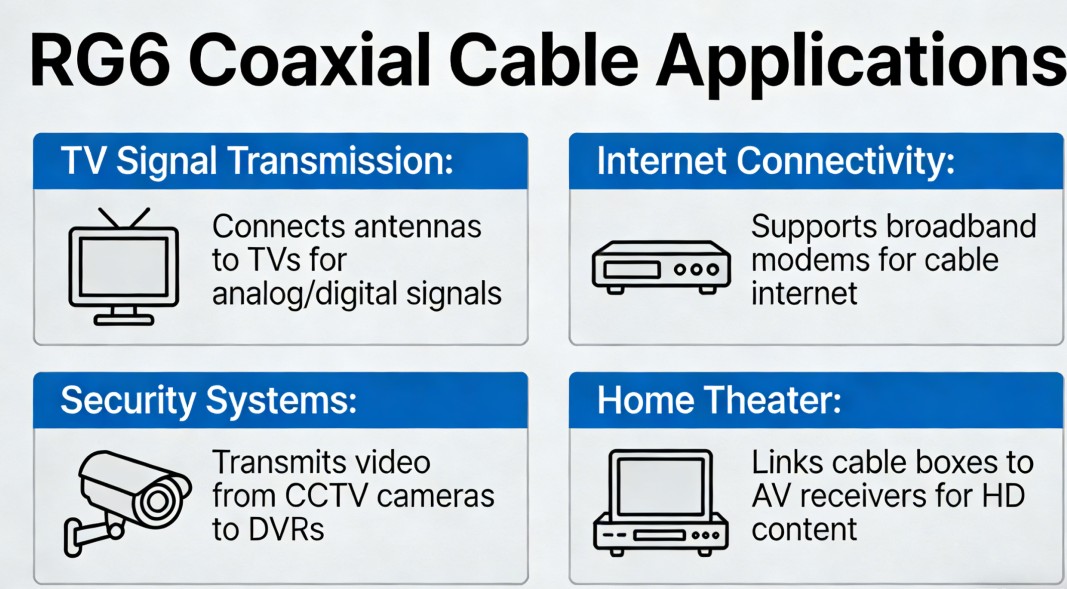

RG6's performance advantages make it applicable to a wide range of scenarios, covering residential, commercial, and industrial fields. It is the core cable for cable TV (CATV) networks, satellite TV installations, and cable modem broadband access, supporting DOCSIS standards for fast upstream and downstream data transmission . In security monitoring, it is ideal for HD-SDI and long-distance CCTV systems, maintaining clear video feeds over 300 feet (far exceeding RG59's 150-foot limit) . It also works in home theaters, broadcast studios, and commercial building integrated systems, enabling the transmission of aerial digital video signals at high bit rates . RG6 is compatible with F-type connectors (including 24K gold-plated variants for corrosion resistance) and various adapters, ensuring seamless connection with TVs, routers, satellite receivers, and monitoring devices .
5. Cost-Effective High-Performance Solution
RG6 offers an excellent balance of performance and cost. While it is slightly more expensive than RG59 and SYV-75-5, its superior signal quality, longer transmission distance, and durability reduce long-term maintenance and replacement costs . For high-frequency and long-distance transmission scenarios, RG6 avoids the need for additional signal amplifiers (which introduce noise), further optimizing overall system costs . Major manufacturers conduct 100% sweep testing on RG6 cables up to 2200 MHz to ensure consistent quality across the entire reel, providing reliable performance at competitive prices .
RG6 Coaxial Cable Technical Data
Package and Shipment
FAQS:
Q1: Are you a factory or trading company?
A1: We are a manufacturer.
Q2: Where is your factory located? How can I visit there?
A2:Our factory are located in jieyang city. You can fly to Shenzhen or Guangzhou international airport. And tell us your flight No. We will arrange to pick you up.
Q3: How can I get a sample to test your quality?
A3:We can provide free samples for your test and checking, you just need to bear the freight charge.
Q4:What payment method do you accept?
A4:T/T(Bank transfer), Western Union, Money Gram, Paypal, etc.
Q5: Can you put my brand name (logo) on these products?
A5: Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the logo free for bulk orders.
Q6: May I know the status of my order?
A6: Yes .The order information and photos at different production stage of your order will be sent to you and the information will be updated in time.
Q7: What’s the leading time? (How long do you need to prepare my goods?
A7: Delivery (no more than 1000pcs) will be arranged within 10-15 days after payment, and arrive you within about 1 month via sea shipping.
Q8: How will you deliver my goods to me?
A8 Your purchases will be delivered by DHL, UPS, FedEx, TNT, EMS your door. Air Cargo and Sea Cargo, Direct line, Air Mail also be accepted according to clients' request.
Q9: Can you provide us more other products to us to help us to save more shipping costs?
A9: Yes. There’re kinds of Indoor Cables, Outdoor Cables, Coaxial Cables, Telephone Cables, Fiber Optic Cables and Accessories will be the main products line of Factory.
The OEM bulk order will be accept as well.
