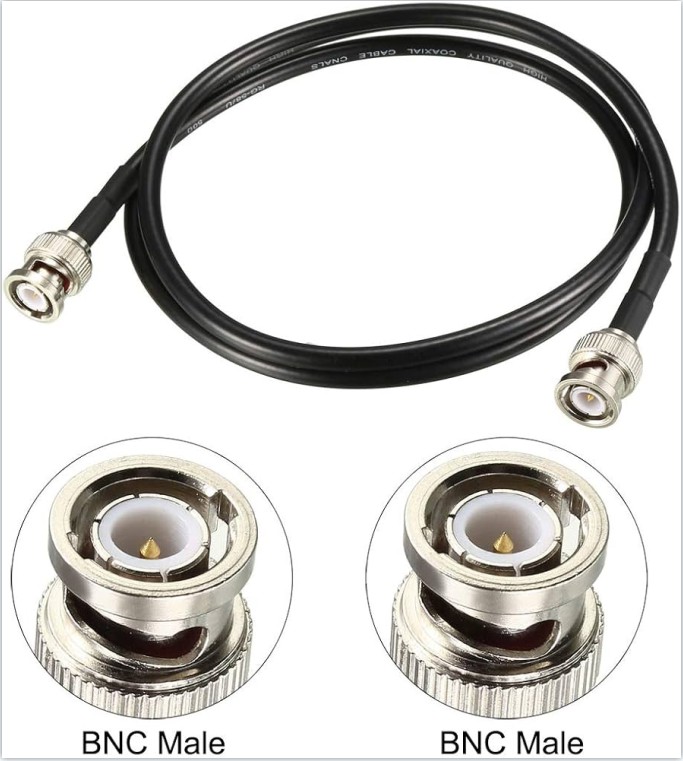

50ohm RG58 Coaxial Cable CCTV Video Cables

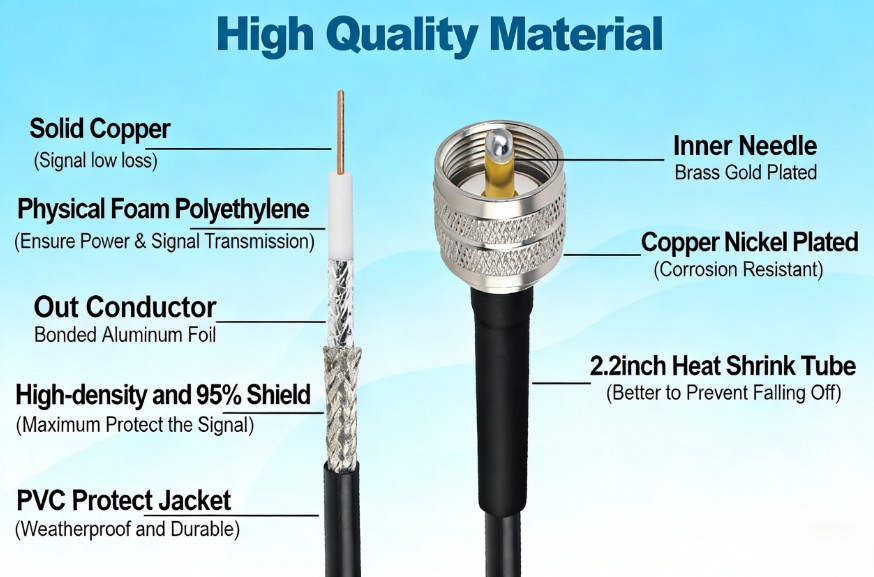

Construction & Dimensional Parameters
Parameter | Value | Description |

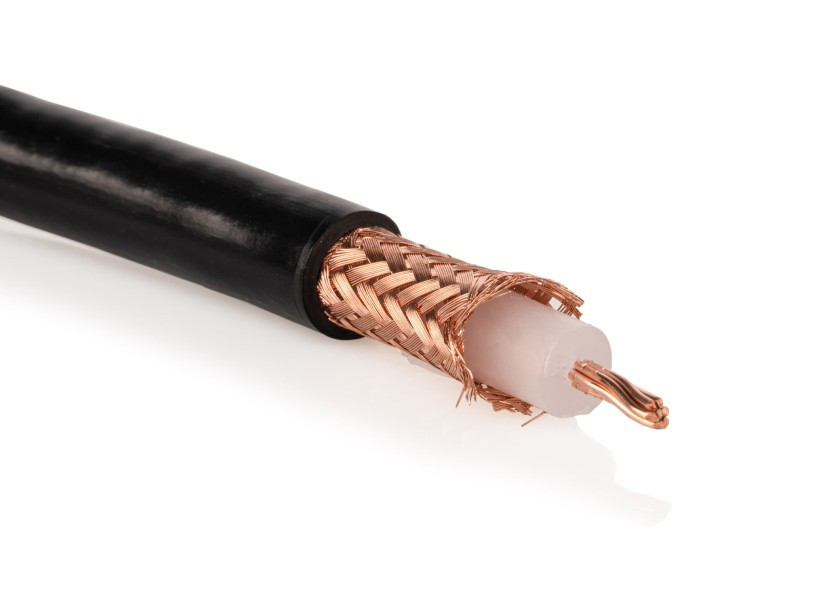

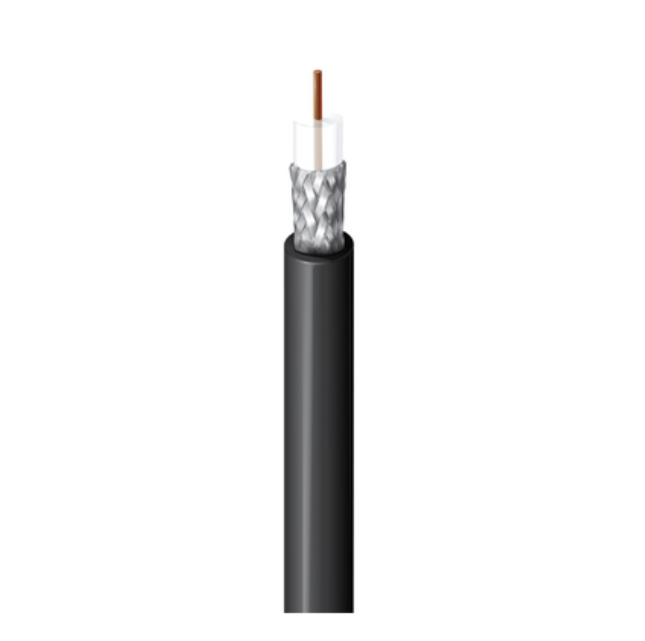

Inner Conductor | 19×0.18 mm stranded tinned copper (TC) | Stranded strucre for flexibility; tinned for corrosion resistance |
Conductor Diameter | 0.9 mm | Nominal diameter of the inner conductor |
Dielectric Material | Solid/foamed polyethylene (PE) | Low dielectric constant for stable impedance |
Insulation Diameter | 2.95 mm | Nominal diameter of the dielectric layer |
Shielding | Tinned copper braid (85-96% coverage) | Single braid; 85-90% for standard, up to 96% for high-shield versions |
Shield Diameter | 3.5 mm | Diameter over the shielding layer |
Outer Sheath | Black PVC | Wear-resistant, corrosion-resistant; some models are cold-resistant (-40℃) |
Overall Diameter | 4.95-5.0 mm | Nominal outer diameter of the cable |
Weight | Approx. 0.037 kg/m (3.7 kg/100m) | Lightweight for easy installation |
Minimum Bending Radius | 25-37.5 mm | Flexible routing in narrow spaces |
Electrical Performance
Parameter | Value | Remarks |
Characteristic Impedance | 50 Ω (±2-3 Ω) | Standard for RF equipment matching |
Capacitance | 93.5-101 pF/m (30.8 pf/ft) | Core-to-shield capacitance; affects signal stability |
Inductance | 0.253-0.262 µH/m | Nominal inductance of the cable |
Velocity of Propagation (VP) | 66% ±3% | Speed relative to the speed of light |
Delay | Approx. 5.05 ns/m | Signal propagation delay |
DC Resistance (Inner Conductor, 20℃) | 32.8-39 Ω/km | Depends on conductor stranding |
DC Resistance (Shield, 20℃) | 13.5-15 Ω/km | Depends on braid coverage |
Insulation Resistance | ≥1×10⁸ MΩ·m | Ensures insulation reliability |
Operating Frequency Range | DC to 5.0 GHz (practical up to 2.4-3 GHz) | Attenuation increases with frequency |
Max. Operating Voltage | 2.5 kV RMS (sea level); up to 5 kV DC (peak) | Depends on model and standard |
Environmental & Mechanical Ratings
Parameter | Value | Description |
Operating Temperature | -40℃ to 80℃ (some models up to 85℃) | Wide temperature adaptability |
Storage Temperature | -40℃ to 85℃ | Compatible with harsh storage conditions |
Max. Pull Tension | Approx. 42 lbs (19 kg) | Mechanical strength limit |
Flame Retardancy | IEC 60332-1-2 (optional) | Available for indoor applications |
Compliance | MIL-DTL-17, RoHS | Military and environmental standards |
