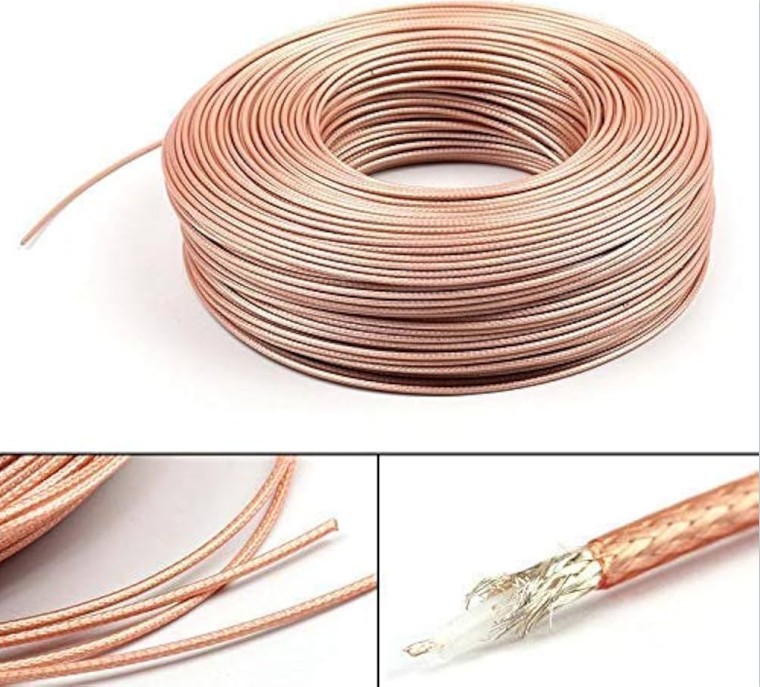

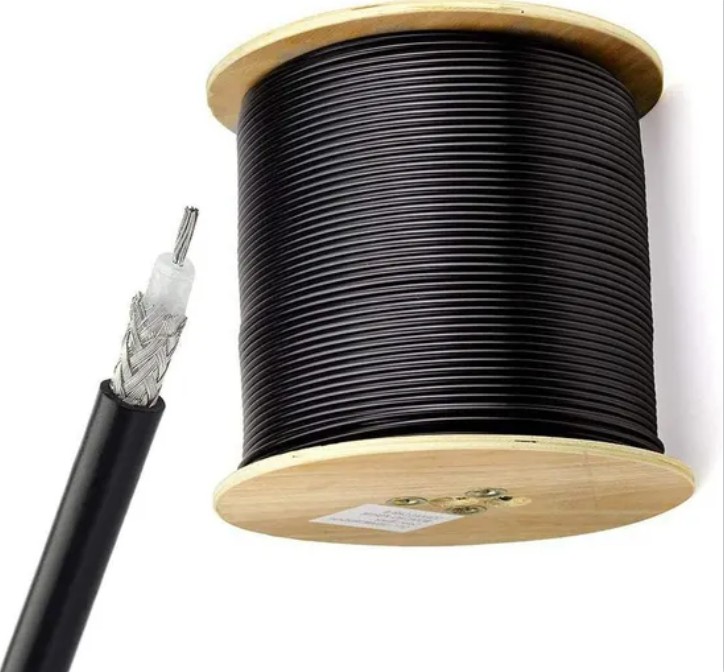

75ohm RG179 Copper/CCS RF Low Loss Dish Antenna Adapter Cable
RG179 is a 75Ω miniature precision coaxial cable optimized for high-frequency, space-constrained video/RF applications, with core advantages of ultra-slim size, low loss, wide temperature range, robust shielding, and reliable impedance matching, ideal for broadcast, test, and aerospace scenarios.
RG179 Advantage
- Ultra-compact & lightweight for tight spaces
- Outer diameter ~2.54 mm, 12–15% slimmer than RG174/RG59, fits camera rigs, broadcast trucks, and embedded systems where larger cables obstruct airflow or weight matters.
- Lightweight (≈7.25 lbs/1000 ft for Belden 179DT) reduces load in mobile setups like OB vans and drones.
- Low loss & high-frequency performance
- 75Ω impedance with solid PTFE/FHDPE dielectric ensures stable return loss (min 21 dB typical) and minimal reflection, supporting up to 3 GHz for HD/3G/12G-SDI video.
- Lower attenuation vs. RG174 at high frequencies: ~33 dB/100m @100 MHz, ~150 dB/100m @1 GHz (varies by build), preserving signal fidelity in precision links.
- Wide temperature & chemical resilience
- FEP jacket variants operate from -55°C to +200°C (industrial grade -70°C to +200°C), suitable for aerospace, outdoor broadcast, and high-heat environments.
- PTFE/FEP insulation resists solvents, acids, and moisture; FEP jacket adds chemical and abrasion resistance for harsh conditions.
- Robust shielding & EMI immunity
- Silver-plated copper braid (93% coverage typical) provides ≥41 dB shielding at 1 GHz, reducing cross-talk and EMI for sensitive video/RF signals.
- Foil + braid options (e.g., Duobond Foil) boost screening effectiveness for studio patching and test environments.
- Flexible & easy installation
- Stranded silver-plated copper-clad steel conductor enables small bending radius (5× OD unloaded, 10× OD loaded), routing around gear without signal degradation.
- Compatible with BNC, SMA, MCX, MMCX, etc., supporting quick termination for custom setups.
- Cost-efficient precision
- Better performance than RG59/RG6 at lower cost vs. semi-rigid alternatives, ideal for high-volume broadcast and test applications.
- RoHS-compliant variants available for eco-friendly commercial use.
Key Application Fit
- Broadcast: 3G/6G/12G-SDI camera-to-monitor/recorder links, studio patch bays, and OB van wiring.
- Test & measurement: RF signal routing in benchtop setups and ATE systems requiring low loss.
- Aerospace & defense: Navigation/communication systems in extreme temperatures, lightweight avionics wiring.
- Consumer/pro AV: High-end home theater, security cameras, and IoT devices needing compact 75Ω links.
Typical Application
Broadcast & Professional Video Systems (Core Application)
This is the most dominant application area for RG179, leveraging its 75Ω impedance matching and low-loss performance for high-speed video signals.
- On-Camera & Studio Wiring
- Connects cameras, monitors, recorders, and switchers for 3G/6G/12G-SDI signals, delivering uncompressed 4K/8K video with zero latency or signal distortion.
- Its ultra-slim OD (2.54 mm) avoids cable clutter on camera rigs and studio consoles, ensuring smooth operation of equipment.
- OB Van & Field Production
- Used for internal wiring of outside broadcast vehicles, supporting mobile live broadcast setups. The FEP jacket’s wide temperature range (-55°C to +200°C) adapts to outdoor extreme weather (e.g., cold mountain areas or high-temperature desert shooting).
- Enables flexible routing in the limited space of OB vans, reducing weight load compared to thicker cables like RG59.
- Studio Patch Bays
- Serves as patch cables for audio-video signal switching in broadcast studios. The silver-plated copper braid shielding (92–94% coverage) minimizes cross-talk between dense cable arrays, ensuring clean signal transmission.
2. Test & Measurement Equipment
RG179’s stable impedance and low attenuation make it ideal for precision RF signal testing scenarios.
- Benchtop RF Test Rigs
- Connects signal generators, spectrum analyzers, oscilloscopes, and DUTs (devices under test) for high-frequency signal routing (up to 3 GHz).
- Its small bending radius allows easy integration into compact test fixtures without affecting signal integrity.
- ATE (Automatic Test Equipment) Systems
- Used for internal wiring of automated test systems in electronics manufacturing, supporting batch testing of consumer electronics (e.g., smart TVs, set-top boxes) with 75Ω video interfaces.
- RoHS-compliant variants meet the environmental requirements of industrial production lines.
3. Aerospace & Defense Electronics
The cable’s rugged environmental resistance makes it suitable for harsh working conditions in aerospace and defense fields.
- Avionics Systems
- Used for wiring navigation, communication, and radar subsystems in aircraft, drones, and satellites. The wide temperature tolerance ensures stable performance in high-altitude low-temperature environments or near-engine high-heat areas.
- Lightweight design reduces the overall weight of avionics equipment, improving fuel efficiency or flight time for drones.
- Military Portable Devices
- Connects RF modules in handheld radios, field test instruments, and surveillance equipment, with shielding effectiveness (≥41 dB at 1 GHz) resisting electromagnetic interference in battlefield environments.
4. Professional AV & Consumer Electronics
High-End Home Theaters
- Serves as a connection cable for projectors, AV receivers, and 4K Blu-ray players, supporting high-bandwidth video signals and delivering cinema-level audio-visual effects. Its slim size hides easily in wall gaps or cable ducts for a neat installatio.
- Security & Surveillance Systems
- Connects HD IP cameras, DVRs, and monitors in compact surveillance setups (e.g., elevator cameras, small retail stores). The moisture-resistant FEP jacket adapts to indoor and semi-outdoor installation environments.
- IoT & Embedded Devices
- Used for internal RF/video wiring of compact IoT devices (e.g., smart home hubs, wireless video sensors) where space is limited, ensuring reliable short-distance signal transmission.
5. Medical Equipment
- Applied in portable medical imaging devices (e.g., handheld ultrasound scanners, endoscopes) for high-frequency signal transmission. The cable’s flexibility and small size facilitate the miniaturization of medical equipment, and its biocompatible jacket variants are available for in-vitro diagnostic devices.Application Selection Key Points
- Length Limit: For 12G-SDI signals, the maximum transmission distance is ≤10 m; for 3G-SDI signals, it can reach 30 m (varies by manufacturer and connector quality).
- Connector Matching: Preferred connectors include BNC (bayonet type, stable for video), MCX/MMCX (miniature, for embedded devices), and SMA (for RF test scenarios).
- Environment Adaptation: Choose FEP jacket variants for outdoor/extreme temperature use; standard PVC jacket variants are sufficient for indoor/studio use.
