RG316 Cable Advantages
RG316 is a high-performance 50-ohm coaxial cable widely recognized in the fields of RF communication, precision testing, and harsh environment applications. Its advantages stem from scientific structural design, high-quality material selection, and excellent comprehensive performance, making it a preferred choice for professionals. Below is a detailed breakdown of its core advantages:
Superior Signal Integrity with Low Loss

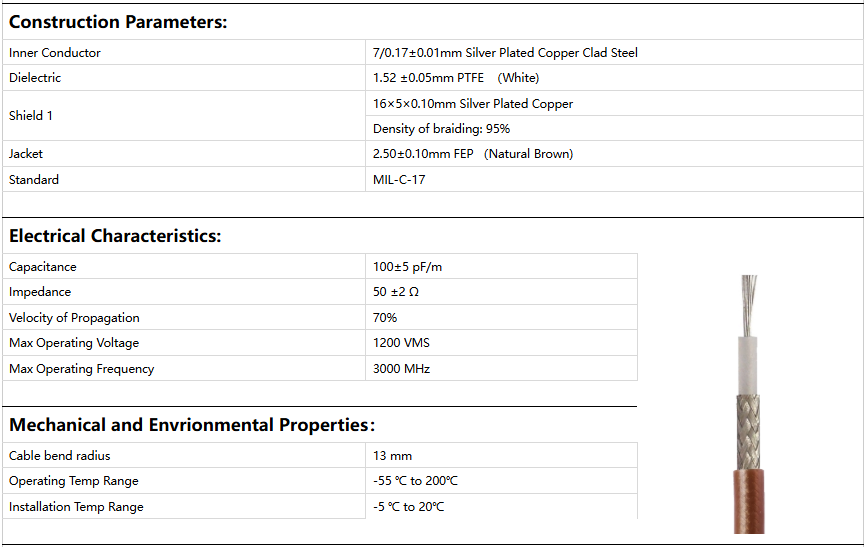

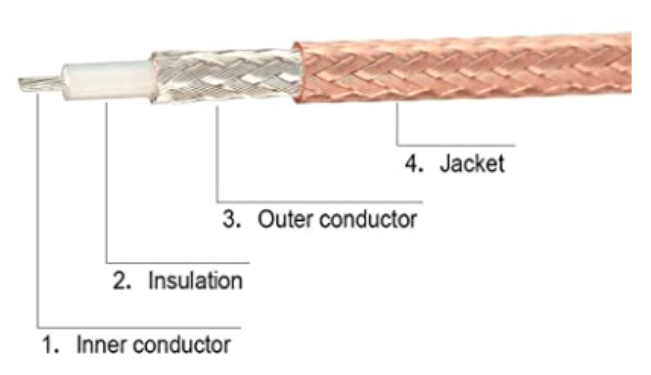

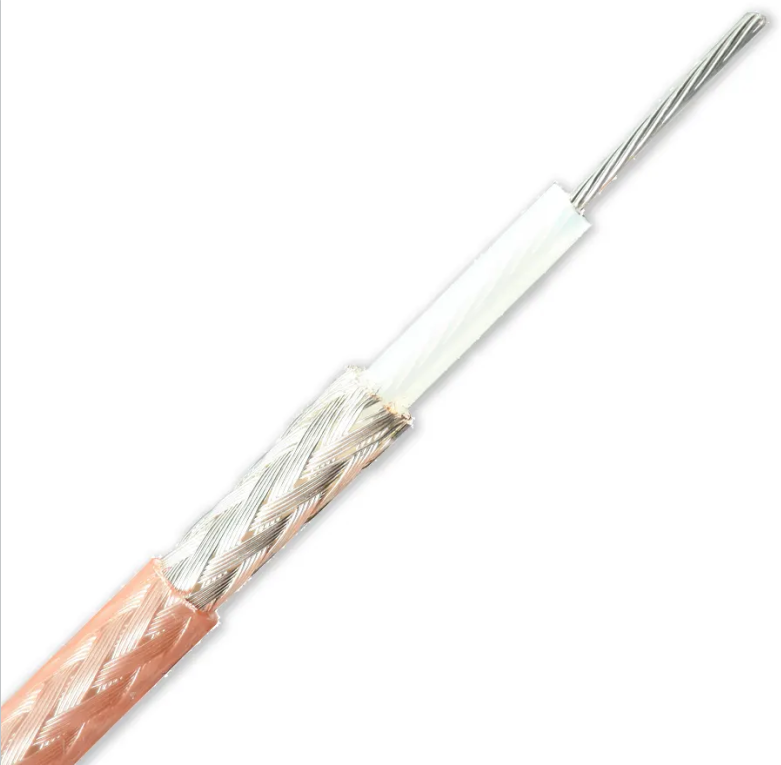

As a standard 50-ohm coaxial cable, RG316 is optimized for the balance between power capacity and signal loss, which is the golden impedance value for most RF systems . Its internal structure is meticulously designed: the inner conductor adopts silver-plated copper-clad steel, which combines the high conductivity of silver plating with the mechanical strength of steel, effectively reducing signal attenuation . The insulation layer uses Teflon (PTFE) or FEP material, which has a low dielectric constant and stable performance, ensuring fast signal propagation speed and minimal dielectric loss .
In practical tests, RG316 maintains excellent performance in high-frequency bands up to 6GHz. For example, in the 2.4GHz band, its standing wave ratio (VSWR) is stably below 1.2, and the return loss is lower than -20dB, ensuring clean, non-distorted signal transmission . Compared with similar thin coaxial cables (such as RG174), RG316 has lower attenuation due to its optimized conductor size and shielding structure, making it more suitable for scenarios requiring high signal fidelity .
Excellent Anti-Interference and Shielding Capability
RG316 adopts a multi-layer shielding structure, usually combining aluminum foil and high-density tinned or silver-plated copper braid, with a shielding coverage rate exceeding 95% . This structure can effectively block external electromagnetic interference (EMI) and radio frequency interference (RFI), preventing signal distortion caused by external electrical sources. At the same time, it can also reduce the leakage of internal signals, ensuring the security and stability of the communication system.
The gold-plated contacts and brass connector body further enhance the shielding effect and reduce insertion loss, making the cable assembly perform stably in complex electromagnetic environments such as industrial workshops, outdoor base stations, and laboratory test benches .
Wide Temperature Adaptability and Environmental Durability
Thanks to the use of high-performance materials such as PTFE and FEP, RG316 has an extremely wide operating temperature range. It can work stably in environments from -60℃ to 200℃ for a long time, and even withstand short-term high temperatures above 300℃ . This makes it suitable for both low-temperature scenarios such as high-altitude meteorological detection and high-temperature working conditions such as industrial furnaces and equipment internal connections .
In addition, the outer sheath has excellent corrosion resistance, UV resistance, and water resistance, and is not easy to age, crack, or degrade even in harsh outdoor environments such as wind, rain, and strong sunlight. Its three-year aging rate is less than 5%, which significantly reduces the cost of later maintenance and replacement . It also complies with MIL-DTL-17 military specifications, ensuring reliable performance in extreme conditions such as military equipment and aerospace applications .
High Flexibility and Easy Installation
RG316 has a small outer diameter of only about 1.8mm, and its stranded center conductor and flexible insulation layer make it highly flexible with a small bending radius . This allows it to be easily routed in confined spaces, complex equipment interiors, or narrow installation gaps, such as the internal connections of drones, PCB high-frequency interconnections, and antenna routing in compact enclosures . Whether it is a straight or right-angle connector configuration, it can adapt to various installation angles, greatly improving the convenience of construction and reducing labor costs .
Strong Versatility and Wide Application Scope
RG316's excellent comprehensive performance enables it to be applied in a wide range of fields. It is commonly used in GPS systems, wireless communication infrastructure, RFID, test and measurement equipment, amateur radio (HAM), FPV drone image transmission, and IoT device connections . It is also suitable for direct burial, radio frequency transmission, and military equipment, meeting the high-performance and stability requirements of different scenarios .

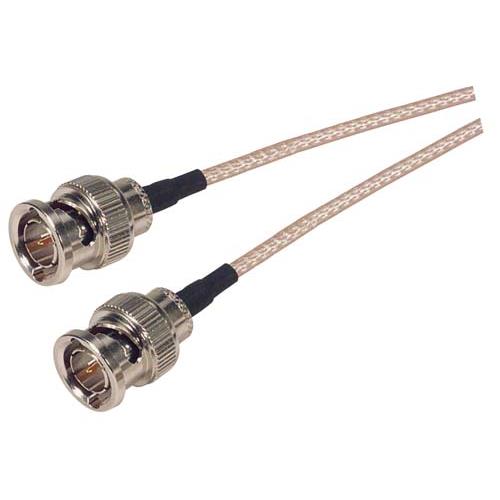

In addition, RG316 supports a variety of connector types, including SMA, SMB, SMC, and MCX, with crimp or threaded connection methods, and can be customized in lengths from 50mm to 10 feet to meet the specific needs of different projects . Its cost-effectiveness is also prominent—for example, it can solve the signal weakness problem of smart cameras at a low cost, saving a lot of wiring and equipment replacement costs .
Reliable Mechanical Performance
The silver-plated copper-clad steel inner conductor not only ensures electrical performance but also has high tensile strength and wear resistance, making the cable not easy to break or damage during installation and use . The crimp-type connector termination method enhances the firmness of the connection, enabling it to withstand repeated plugging and vibration, ensuring long-term stable operation in mobile equipment or vibration environments . Its lightweight design also reduces the burden on equipment, making it suitable for weight-sensitive applications such as aerospace and drones .
RG316 Cable Applications
RG316 is a 50-ohm high-performance coaxial cable, featuring low signal loss, high flexibility, wide temperature adaptability, and excellent anti-interference capability. Its scientific structural design—integrating a silver-plated copper-clad steel inner conductor, PTFE/FEP insulation, and a high-coverage shielding layer—enables it to meet the rigorous requirements of various high-frequency, precision, and harsh-environment scenarios. Below is a detailed breakdown of its typical applications across industries, with a focus on how its core properties match practical usage needs.
RF Communication & Wireless Infrastructure
As a core transmission component in RF systems, RG316 is widely adopted in wireless communication networks and terminal devices, thanks to its low attenuation and compact size. It is a key part of GPS positioning systems, where its minimal signal loss ensures accurate satellite signal reception even in the confined interiors of vehicles, drones, or portable devices. In WiFi (2.4GHz/5.8GHz), Bluetooth, and LoRa wireless modules, RG316 serves as the high-frequency interconnection between PCBs and antennas, laying a stable foundation for data transmission in IoT devices, smart sensors, and wireless bridges.
Its small diameter (about 2.59mm) and high flexibility also make it ideal for RFID systems and wireless base stations, where it acts as jumper cable assemblies and antenna feed lines. It can be easily routed in crowded base station cabinets, while the FEP jacket enhances durability in both indoor and outdoor settings. For amateur radio (HAM) setups, RG316 strikes a perfect balance between signal integrity and installability, supporting reliable short-to-medium-range communication.
Test & Measurement Equipment
Precision testing scenarios demand cables with minimal signal distortion, and RG316’s low insertion loss and stable standing wave ratio (VSWR below 1.3 at 5.8GHz) make it an ideal choice for laboratory and industrial testing. It is commonly used to connect signal generators, spectrum analyzers, network analyzers, and other test instruments to Devices Under Test (DUTs), ensuring accurate measurement of high-frequency signals up to 6GHz in optimized configurations.
When paired with precision connectors (SMA, SMB, SMC, MCX), RG316 cable assemblies maintain consistent performance, which is critical for RF circuit debugging, wireless module performance testing, and electronic component validation. Its flexibility further facilitates convenient routing on complex test benches, adapting seamlessly to both straight and right-angle connector configurations without compromising signal quality.
Aerospace & Military Equipment
Compliant with MIL-DTL-17 military specifications, RG316 excels in extreme environments, making it a staple in aerospace and military applications. It is used for internal high-frequency interconnections in aircraft and satellite communication systems, withstanding temperature fluctuations from -55℃ to 200℃, as well as vibration, radiation, and chemical corrosion—all of which are common in aerospace scenarios.
In military communication devices, its multi-layer shielding (95% coverage silver-plated copper braid) effectively blocks electromagnetic interference (EMI) and prevents signal leakage, ensuring secure and reliable data transmission on the battlefield. Additionally, its lightweight and compact design reduces the burden on portable military radios and radar systems, without sacrificing performance in critical operations.
Consumer Electronics & DIY Projects
RG316’s small size and high flexibility make it well-suited for compact consumer electronics and hobbyist projects. In FPV (First-Person View) drones, it functions as the image transmission line, delivering clear 2.4GHz/5.8GHz signals between the drone and remote controller—even during frequent bending and movement during flight. While it is occasionally used in high-end audio equipment and TV signal transmission, its primary consumer application lies in wireless device modifications, such as WiFi antenna extensions and Bluetooth module debugging.
For electronic DIY enthusiasts and makers, RG316 cable assemblies (e.g., SMA double male connectors) are essential for building wireless relay systems, LoRa communication links, and ZigBee sensor networks. Compared to standard cables, it can improve communication distance by up to 20%, making it a cost-effective upgrade for hobbyist projects.
Industrial & Special Environments
In industrial settings, RG316’s wide temperature adaptability and durable FEP jacket make it suitable for high-temperature, confined-space, and outdoor applications. It is used for internal connections in industrial furnaces, automated control systems, and smart factory sensors, resisting UV radiation, water, and corrosion—even in harsh outdoor conditions with wind, rain, and strong sunlight.
It also supports direct burial and radio frequency transmission in industrial communication networks, providing stable links for remote monitoring and equipment control. Whether in chemical plants with corrosive atmospheres or cold storage facilities with sub-zero temperatures, RG316 maintains long-term reliable operation with minimal maintenance, reducing overall operational costs.
Summary of Application Advantages
RG316’s cross-industry versatility stems from its ability to balance performance and adaptability. Its low loss and anti-interference capabilities cater to high-frequency precision scenarios, while its flexibility and compact size enable deployment in confined spaces. Coupled with durable FEP/PTFE materials and military-grade specifications, it reliably serves RF transmission, testing, and communication needs across diverse environments—from consumer electronics to aerospace systems.

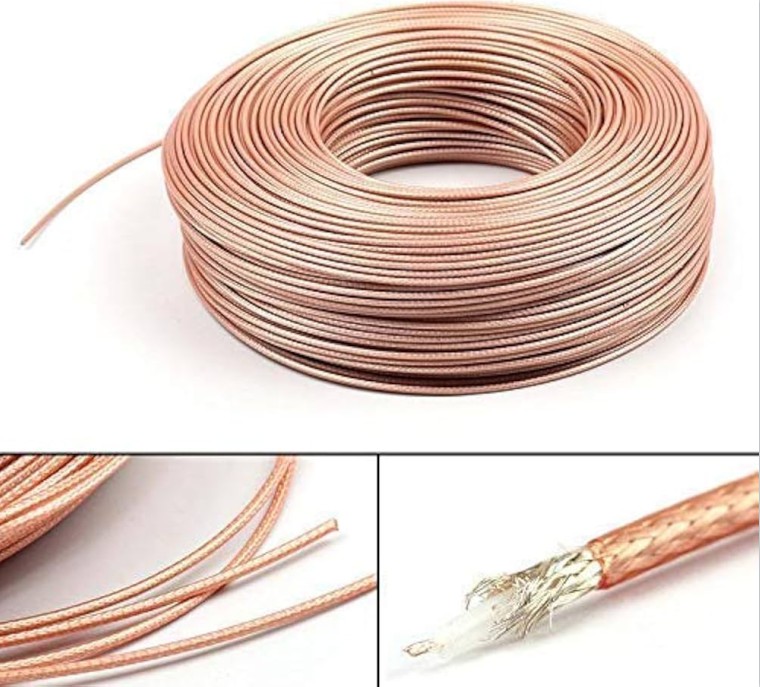

Package and Shipment
