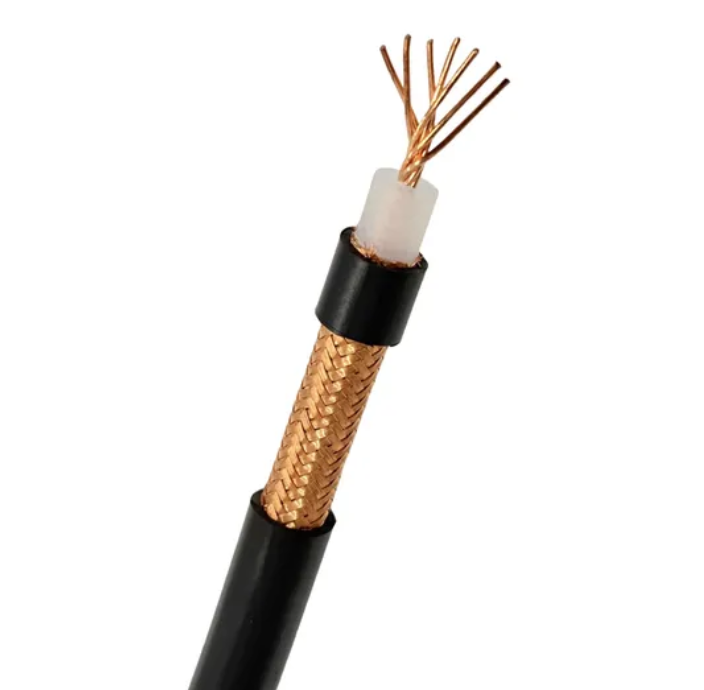

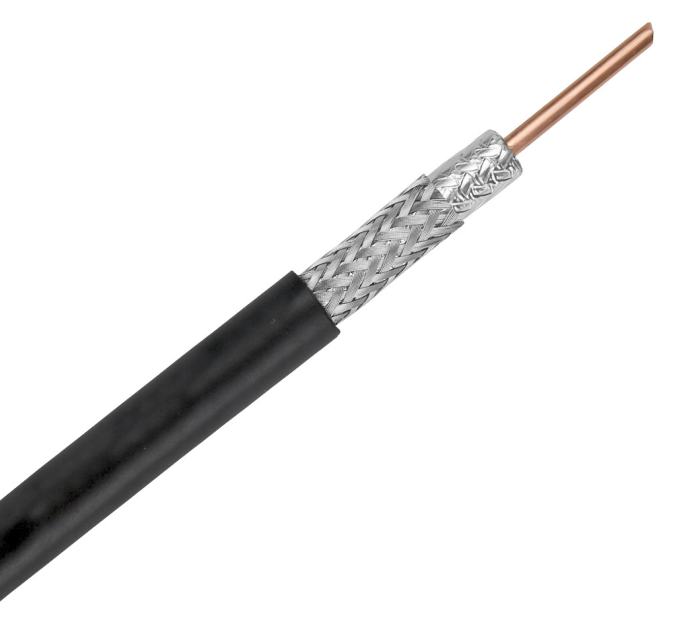

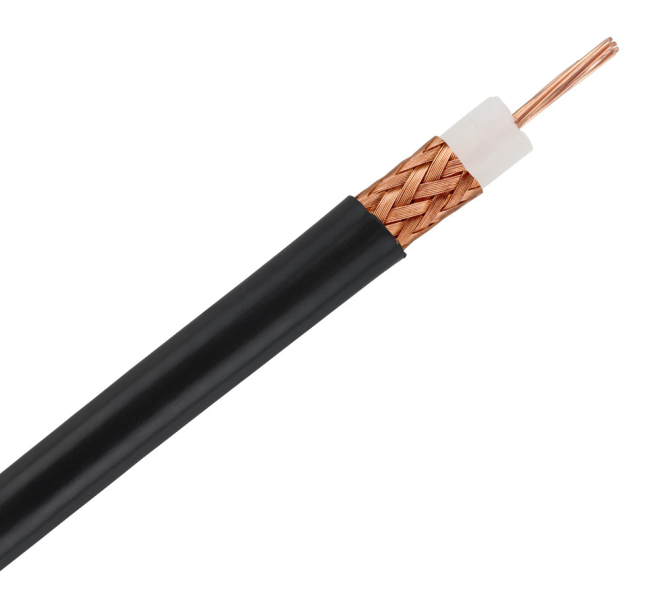

50ohm Copper/CCS RG8 CCTV RF Cable Coaxial Cable
RG8 Coaxial Cable Technical Data
RG8 is a classic, thick-diameter coaxial cable primarily used in RF (Radio Frequency) applications where low signal loss over longer distances is required. It's a staple in amateur radio, commercial two-way radio,
and older Ethernet networks.
1. Quick-Reference Snapshot
Parameter | Typical RG8/U Specification |
|---|
Impedance | 50 Ohms (some variants are 52 or 53 Ohms) |
Center Conductor | Solid or Stranded Copper (AWG 10-11) |
Dielectric | Solid Polyethylene (PE) |
Shield | Braided Copper (95% coverage common) |
Outer Diameter | ~10.3 mm (0.405 in) |
Velocity of Propagation (VP) | 66% (0.66) |
Capacitance | ~96 pF/m (29.5 pF/ft) |
Max. Operating Voltage | ~4000 V RMS |
Attenuation @ 100 MHz | ~1.1 dB/30m (3.6 dB/100 ft) |
Attenuation @ 400 MHz | ~2.5 dB/30m (8.2 dB/100 ft) |
2. Detailed Electrical Specifications
A. Core Signal Parameters
Characteristic Impedance: 50 Ω. This is the standard for most RF equipment (radios, antennas, test gear), distinguishing it from the 75 Ω standard of RG6/RG59 used for video.
Capacitance: Approximately 29.5 pF per foot (96.8 pF/m).
- Velocity of Propagation (VP): 66% (or a Velocity Factor of 0.66). This means an electrical signal travels at 66% the speed of light in a vacuum. This is critical for calculating the physical length of cables used for antenna matching (e.g., λ/2 or λ/4 wave stubs).
- Inductance: ~0.254 μH/ft.
B. Attenuation (Signal Loss per 100 feet / 30.5 meters)
This is the most critical performance metric. Attenuation increases with frequency.
Frequency (MHz)
| Typical Loss (dB/100 ft) | Typical Loss (dB/30m) |
|---|
10 | 0.6 dB | 0.2 dB |
50 | 1.5 dB | 0.5 dB |
100 | 2.1 - 2.4 dB | 0.7 - 0.8 dB |
146 (2m Band) | 2.6 dB | 0.85 dB |
440 (70cm Band) | 4.8 dB | 1.6 dB |
900 | 7.2 dB | 2.4 dB |
C. Power Handling
Peak Power: Can handle 1 kW to 2+ kW at HF frequencies (e.g., 30 MHz), depending on SWR and installation.
- Average Power: Typically rated for 200-300 Watts continuous at HF.
- Voltage Rating: High voltage rating (~4000V) makes it suitable for high-power RF amplifiers.
3. Physical & Mechanical Specifications

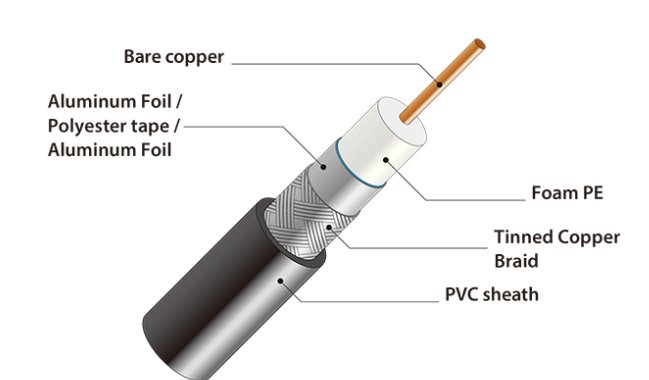

A. Internal Construction (Layer by Layer)
Center Conductor: Solid or 7-strand copper-clad steel (CCS). Solid copper has slightly less loss; CCS provides more tensile strength. Size is usually AWG 10 (2.59mm).
Dielectric (Insulator): Solid Polyethylene (PE). This gives the cable its rigidity. Foam PE versions (RG8X, RG8U-type) exist for better flexibility and slightly lower loss.
- Shielding:
Inner Shield: Braid of tinned copper wires. Standard versions use a single braid (often 95% coverage). Premium versions (RG8/U 'Super') may use a double braid or braid+foil for >100 dB shielding effectiveness.
- Outer Jacket: Thick PVC or PE. Black is standard. Outdoor versions are UV-resistant and may be labeled 'Polyethylene Jacket.' Direct burial versions have a flooded dielectric and extra armor.
B. Physical Dimensions
- Overall Diameter: ~10.3 mm (0.405 inches).
- Weight: ~110 kg/km (approx. 74 lbs/1000 ft).
- Minimum Bend Radius: ~2 inches (50mm) during installation. A tighter bend will kink the cable and permanently degrade performance.
- Flexibility: Low. It is a stiff, bulky cable not suited for tight spaces or frequent flexing.
4. Common Variants & Comparisons
Cable Type | Diameter | Key Feature | Attenuation @100MHz | Typical Use |
|---|
RG8/U | ~10.3mm | Standard, solid PE dielectric, single braid. | ~2.1 dB/100ft | General HF/VHF base stations. |
RG8X ('Mini 8') | ~6.2mm | Foam PE dielectric, more flexible. Higher loss. | ~2.8 dB/100ft | Mobile installations, shorter HF runs. |
RG213/U | ~10.3mm | Double braided shield, Mil-spec version of RG8. Lower loss, better shield. | ~1.9 dB/100ft | Critical commercial/amateur links. |
LMR-400 | ~10.3mm | Modern alternative. Foam PE, 100% foil + braid. Much lower loss. | ~1.2 dB/100ft | Replaces RG8 for superior performance. |
9913 | ~10.3mm | Low-loss, air-spaced dielectric. Very low loss, but fragile and moisture-sensitive. | ~0.7 dB/100ft | High-performance |
5. Primary Applications
Amateur (Ham) Radio: Connecting base station transceivers to antennas, especially for HF, VHF, and UHF bands. Common for runs from the shack to a tower.
- Commercial Two-Way Radio: For land mobile, marine, and public safety base stations.
- RF Broadcast: Low-power FM broadcast antenna feedlines.
- Antenna Feedlines: For large discone, log-periodic, or Yagi antennas.
- Legacy Networks: Was used as thick Ethernet (10BASE5) backbone cable.
6. Advantages and Disadvantages
Advantages | Disadvantages |
|---|
Low Loss at HF/VHF: Good performance for its class, especially with quality braid. | High Loss at UHF+: Loss becomes prohibitive above 500 MHz for long runs. |
High Power Handling: Can handle legal limit amateur power with ease. | Bulky and Stiff: Difficult to route, requires large-radius bends. |
Durable & Robust: Good mechanical protection with thick jacket.
| Heavy: Significant weight stresses antenna masts and supports. |
Widely Available & Familiar: Easy to find connectors (N-type, UHF/PL-259). | Outperformed by Modern Cables: Cables like LMR-400 offer ~40% lower loss in the same diameter. |
Cost-Effective: Generally less expensive than premium low-loss cables. | Solid Dielectric: Higher loss than foam/air dielectric cables (higher velocity factor). |
