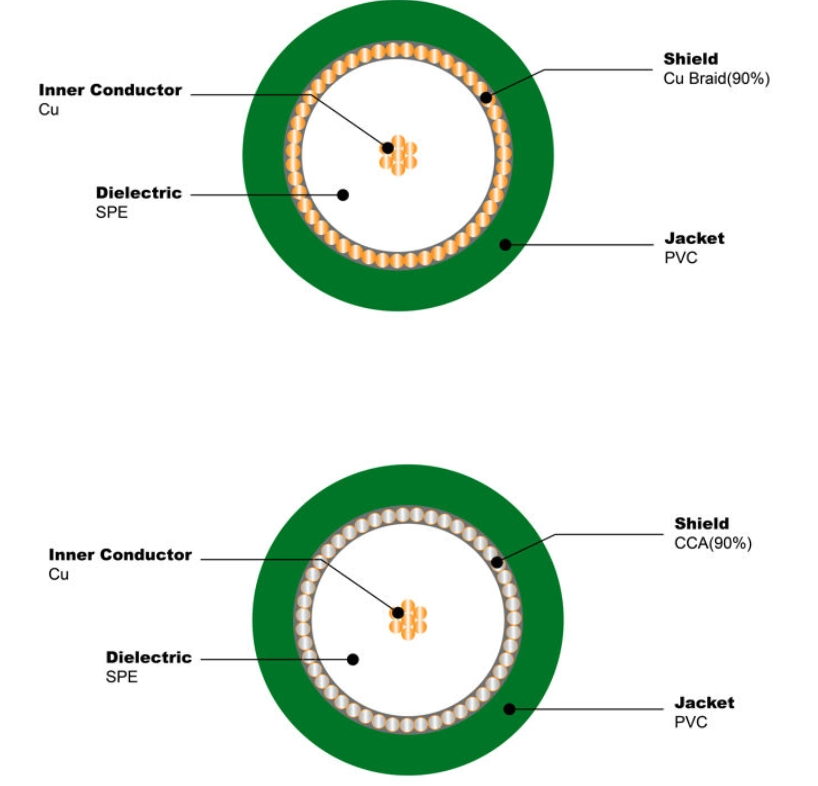

75ohm Stranded Copper/TC KX6 KX8 Solid PE Coaxial Cable
KX6 KX8 Difference
The KX series cables are engineered for broadband and high-frequency applications (up to 3 GHz and beyond) with a focus on low attenuation (signal loss) and high shielding effectiveness. They typically feature:
Foam polyethylene dielectric for lower loss than solid PE.
- High-performance shielding (often multiple layers of foil and high-density braid).
- A 75-ohm impedance standard for video and broadband.
Head-to-Head Comparison: KX6 vs. KX8
Feature | KX6 (Premium RG6 Equivalent) | KX8 (Premium RG11 Equivalent) | Key Difference |
|---|
Primary Analogy | The high-performance sports sedan. | The heavy-duty, long-haul truck. | Size & Capability |
Diameter | ~0.275 in (6.9 mm) | ~0.412 in (10.5 mm) | KX8 is significantly thicker. |
Center Conductor | 18 AWG Copper-Clad Steel (CCS) | 14 AWG Copper-Clad Steel (CCS) | KX8 uses a much thicker center wire. |
Attenuation (Signal Loss) @ 1 GHz | ~6.5 dB / 100 ft (typical) | ~4.0 dB / 100 ft (typical) | KX8 has ~40% less loss. This is the most critical difference. |
Frequency Range | Up to 3 GHz | Up to 3 GHz | Both support high frequencies. |
Shielding | Typically Dual/Tri-Shield (Foil + Braid) | Typically Quad-Shield (2xFoil + 2xBraid) | KX8 often has superior shielding for noisy environments. |
Bend Radius | More flexible (~2 in / 5 cm) | Less flexible (~3 in / 7.5 cm) | KX6 is easier to install in tight spaces. |
Weight | Lighter | Heavier | KX8 adds more weight and tension on supports. |
Typical Jacket | PVC, UV-resistant for outdoor use | PVC, often with superior weatherization | KX8 is built for more demanding outdoor/aerial use. |
Detailed Breakdown of Differences
1. Attenuation (Signal Loss) – The #1 Factor
This is the core reason to choose one over the other.
- KX6: At 1 GHz, you lose about 6.5 dB of signal every 100 feet. For a 150 ft run, that's nearly 10 dB of loss.
- KX8: At 1 GHz, you lose only about 4.0 dB per 100 feet. For the same 150 ft run, that's only 6 dB of loss.
- Impact: KX8 can carry a signal much farther before it becomes too weak to be usable. This is vital for long cable runs from a street tap to a distant home, or in large buildings.
2. Physical Size & Installation
- KX6: Similar in size and feel to standard RG6. It uses standard F-connectors and fits in most RG6 compression or crimp tools. Much easier to pull through walls and conduits.
- KX8: Similar in size and stiffness to RG11. It requires RG11-sized F-connectors and a separate tool. Its thickness and stiffness make it more challenging to install, especially in retrofit situations.
3. Power Handling & Voltage Drop (for Systems with PoE/MoCA)
- KX6: The 18 AWG center conductor has higher DC resistance.
- KX8: The thick 14 AWG center conductor has much lower DC resistance.
- Impact: For systems that send power over the cable (like MoCA networks or some powered antennas), KX8 will experience less voltage drop over distance, delivering more usable power to the device.
Specific Advantages of KX6 Coaxial Cable
KX6 is the premium RG6-class cable, offering the best balance of performance and practicality for most installations.
Advantage
| Technical Reason | Practical Benefit |
|---|
1. Optimal Balance of Performance & Size | Uses an 18 AWG conductor with efficient foam dielectric. | Provides significantly lower loss than standard RG6 while maintaining similar flexibility and ease of installation. |
2. Excellent Shielding in a Standard Size | Often uses a tri-shield (foil/braid/foil) or high-density braid design. |
Maximizes interference rejection in congested RF environments (apartment buildings, urban areas) without requiring special connectors or tools. |
3. Broad Application Versatility | Meets or exceeds specs for CATV, satellite, OTA antenna, and broadband. |
A single, superior cable type can be used for all residential and light commercial video/data drops, simplifying inventory. |
4. Ease of Installation | Standard RG6 outer diameter (~6.9 mm). |
Compatible with standard RG6 compression F-connectors, stripping tools, and wall plates. Easier to pull through conduits and walls than thicker cables. |
5. Cost-Effective for Most Runs | Offers a major performance upgrade over basic RG6 at a moderate price premium over it. |
The best value-for-money upgrade for runs under 150 feet, where the superior performance of KX8 is not strictly necessary.
|
Best For: In-wall residential wiring, set-top box connections, antenna leads and cable modem drops where runs are typically under 150ft and future-proofing for multi-gigabit services is desired.
Decision Summary: Choosing the Advantage You Need
Choose KX6 for its advantages in: | Choose KX8 for its advantages in: |
|---|
✅ Cost-to-performance ratio for standard-length runs . | ✅ Minimizing signal loss over very long distances. |
✅ Ease of installation (familiar size, standard tools). | ✅ Ensuring power delivery over long runs to amplifiers. |
✅ Versatility for 95% of residential AV/IT projects. | ✅ Maximum shielding in electrically noisy environments. |
✅ Future-proofing a typical home network. | ✅ Building infrastructure backbone (the 'main artery'). |
✅ Reducing loss compared to bargain RG6. | ✅ Applications where cable replacement is impossible. |
Final Recommendation:
-----Think of KX6 as the premium workhorse—it solves interference problems and supports modern services for most installations.
-----Think of KX8 as the specialist solution—it solves the fundamental physics problem of distance and loss, making the impossible run possible.
Pro Tip: Always check the specific manufacturer's attenuation charts. The real advantage lies in the numbers: compare the dB loss per 100 ft at 1000 MHz for the cables you're considering. The lower the number, the stronger your signal will be at the endpoint.
