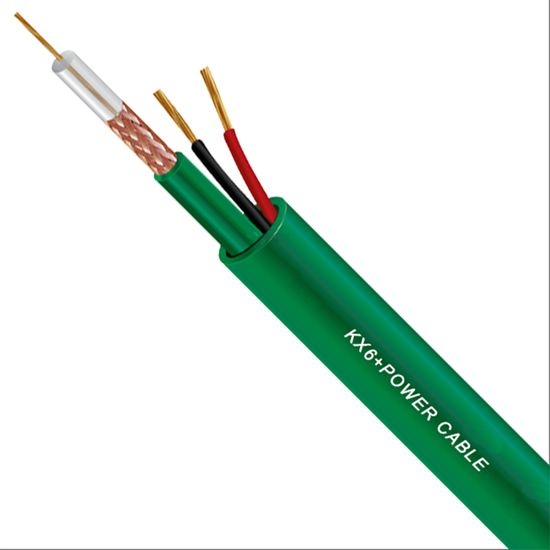

KX6 2C ×0.75 Power Cable, Figure 8 Siamese Coaxial Cable

Name: KX6 2C ×0.75 Power Cable, Figure 8 Siamese Coaxial Cable
Rating: 5 (97 reviews)

1. Place of Origin: China
2. Brand Name:Hoton Link
3.Conductor Type: Copper/CCA/CCS/CCAU
4. Minimum Order Quantity:50KM
5.Application:long-distance (over 200 meters) video transmission, high-bandwidth digital signal transmission

Select the number of specifications

Please check the product information you want!

Download Annex

Product Detail

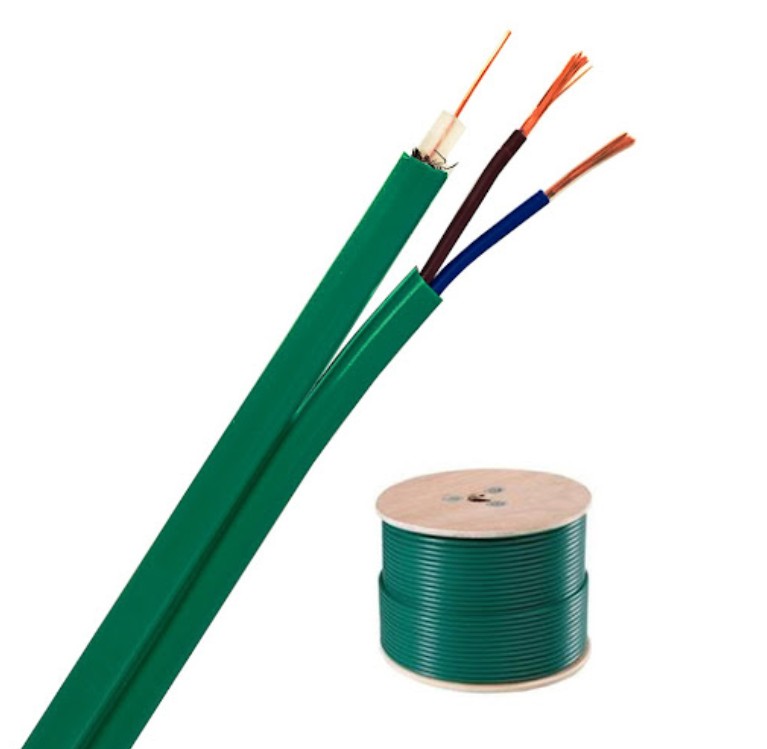

KX6 2C ×0.75 Power Cable, Figure 8 Siamese Coaxial Cable

KX6+2×0.75 PVC - Figure 8

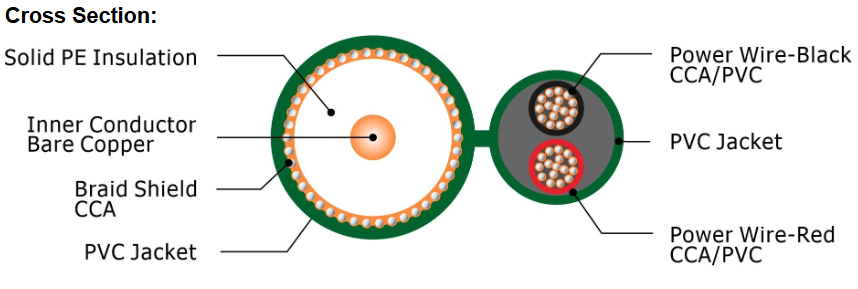

Construction Parameters:
Inner Conductor:	7 × 0.20mm Bare Copper
Insulation:	3.70mm SPE
Shield:	128 x 0.12mm CCA (95%)
Jacket:	6.00mm PVC Green
Power Wire Conductor:	2 x 24/0.20mm = 0.75mm² CCA
Power Wire Insulation:	2.00mm PVC in Red & Black
Power Wire Jacket:	5.00mm PVC Green

Electrical Characteristics:
Inner Conductor Resistance	87.5Ω/KM at 20℃

Capacitance	67 ±3 pF/m
Impedance	75 ± 3 Ω
Return Loss	between 5 and 1000MHz: > 22dB
Velocity of Propagation	0.85
Sparker Test (VAC)	4

Mechanical and Envrionmental Properties:
Cable Bend Radius	10 times the cable diameter
Operating Temperature Range	-20 ℃ to +60℃

Attenuation (20℃):
Frequency (MHZ)		Max Attenuation (dB/100m)
10		5.00
50		8.10
100		13.00
200		18.50
400		22.50
850		34.50
950		37.50
1000		45.00

Package and Shipment

FAQS:

Q1: Are you a factory or trading company?

A1: We are a manufacturer.

Q2: Where is your factory located? How can I visit there?

A2:Our factory are located in jieyang city. You can fly to Shenzhen or Guangzhou international airport. And tell us your flight No. We will arrange to pick you up.

Q3: How can I get a sample to test your quality?

A3:We can provide free samples for your test and checking, you just need to bear the freight charge.

Q4:What payment method do you accept?

A4:T/T(Bank transfer), Western Union, Money Gram, Paypal, etc.

Q5: Can you put my brand name (logo) on these products?

A5: Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the logo free for bulk orders.

Q6: May I know the status of my order?

A6: Yes .The order information and photos at different production stage of your order will be sent to you and the information will be updated in time.

Q7: What’s the leading time? (How long do you need to prepare my goods?

A7: Delivery (no more than 1000pcs) will be arranged within 10-15 days after payment, and arrive you within about 1 month via sea shipping.

Q8: How will you deliver my goods to me?

A8 Your purchases will be delivered by DHL, UPS, FedEx, TNT, EMS your door. Air Cargo and Sea Cargo, Direct line, Air Mail also be accepted according to clients' request.

Q9: Can you provide us more other products to us to help us to save more shipping costs?

A9: Yes. There’re kinds of Indoor Cables, Outdoor Cables, Coaxial Cables, Telephone Cables, Fiber Optic Cables and Accessories will be the main products line of Factory.

The OEM bulk order will be accept as well.
