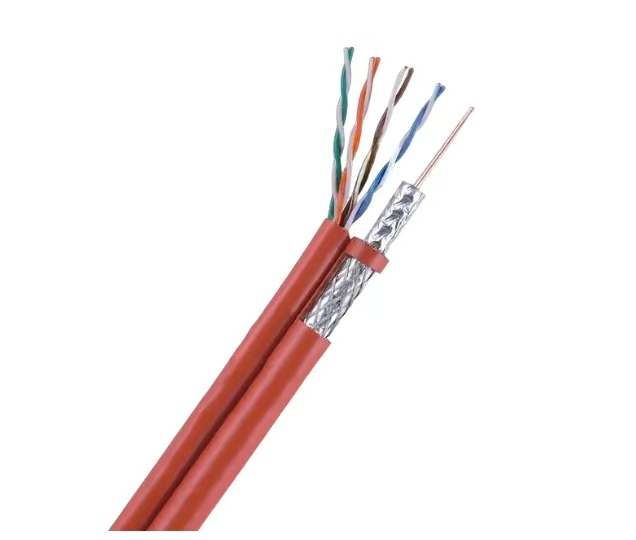

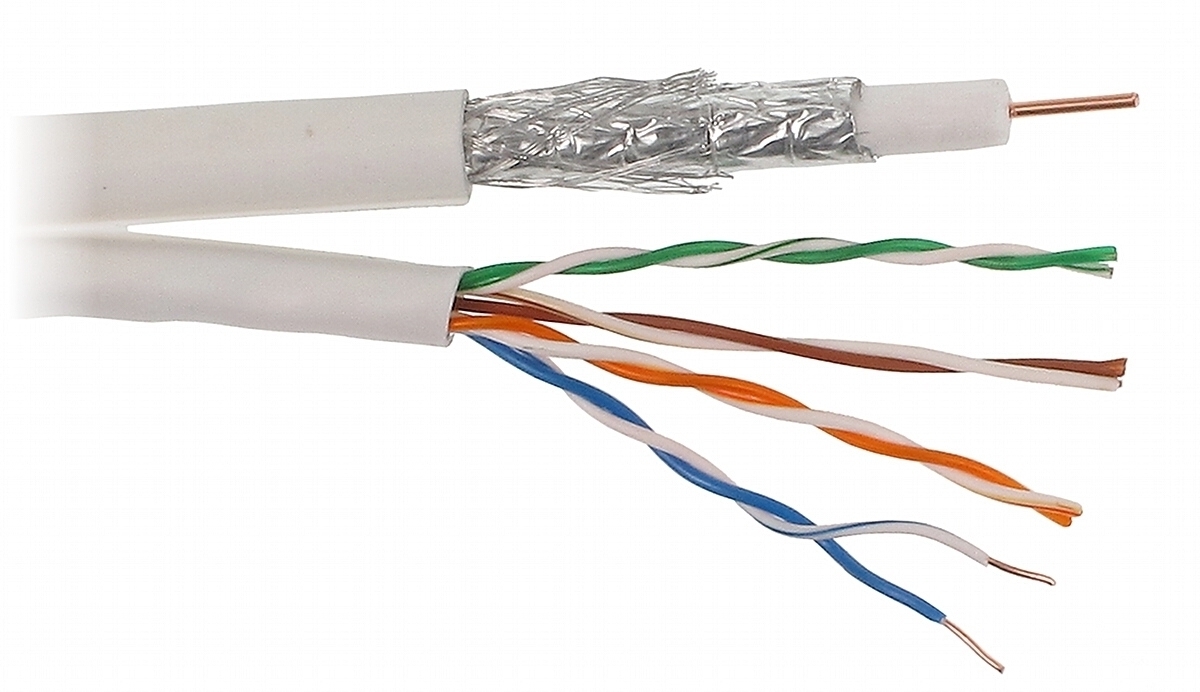

Coaxial RG59+CAT5e,RG6+CAT5e network cable Combo Composite Hybrid Cable
Composite coaxial cables and LAN cables in one single outer Jacket.
Easily convennient to installation.
High quality 2 standard/Tri/Quad shield RG6 coaxial cable with 2 LAN cables CAT5e.
Apply for multi use in CATV & LAN network system, high performance, easy for installation, quality warranty.
1.CAT5e Construction:
Conductor: Solid bare copper / AWG24
Conductor Dia(mm): 0.50
Insulation: PE
Average thickness ( +/-0.03mm): 0.25mm
Min point thickness: 0.22mm
Insulation Dia ( +/-0.03mm): 1.00mm
Jacket: PVC or LSZH
Average thickness: 0.5
Min point thickness: 0.46
Outer Dia( +/-1.0mm) 5.1
Rip cord: YES
Core color:
Pair 1: Blue - white/blue
Pair 2: Orange - white/orange
Pair 3: Green - white/orange
Pair 4: Brown - white/brown
2. Electrical Performance (At 100MHz)
1.0-100.0MHz Impendance(ohms) 100+/-15
1.0-100.0MHz Impendance delay screw(ns/100m) <45
Pair to Ground Capacitance Unbalance (PF/100m) 330Max
Conductor DC resistance 20%(ohms/km) <93.8
Resistance Unbalance(%): 5
Spark Test 850 V AC
Dielectric Strength 2500 V DC / 3 seconds
Insulation Resistance Test Min. 150 MΩ /Km
Conductor Resistance Max. 9.38Ω /100m at 20
Resistance Unbalance Max. 5%
Capacitance Unbalance Max. 330 pF/100m
Mutual Capacitance Max. 5600 pF/100m
RG6 coaxial cable
1) Construction
Center Conductor: 1.02+0.01mm Solid Copper/Copper Clad Steel
Dielectric: 4.57+/-0.05mm Foam PE
Shield: Optional Bonded or unbonded Aluminum Foil or double Aluminum foil
Braid Coverage: 40 - 95% Al-Mg or copper or CCA wires
Jacket: 6.9+0.05mm PVC
Jelly/APD: Per Customers' Special Requirement
2) Characteristics
Sparker Test: 4000VAC
Impedance: 75+3 Ohm
Capacitance: 54+3pF/m
Velocity of Propagation: 85%
Return Loss: 20dB min (5-2300MHz)
3) Composite available
1.2*RG6+2*CAT5e UTP or CAT6
2.2*RG6 TRI shield + 2*CAT5e UTP or CAT6
3.2*RG6 quad shield + 2*CAT5e UTP or CAT6
4.4*RG6 (different color, can be in standard shield, Tri shield or Quad super Shield)
5.5 Cat5e UTP...
Package: 500ft, 1000ft wooden drum, and then pallet，more option available upon your requirements.
