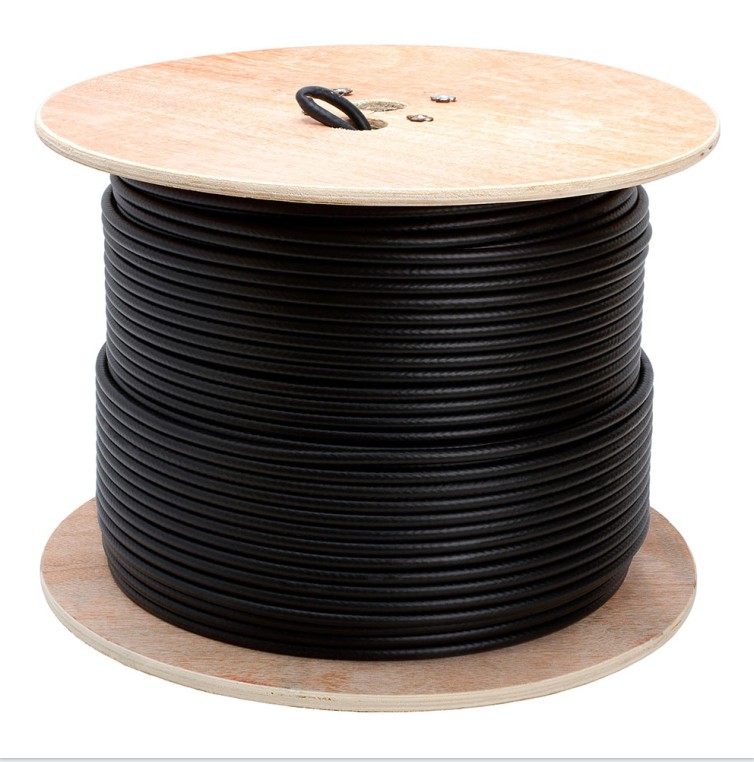

75ohm RG6 Quad - Shield Coaxial Cable for Video Antenna & Satellite TV Applications
RG6 Quad Shield Coaxial Cable: Technical Data
RG6 Quad Shield is a premium version of standard RG6 coaxial cable featuring enhanced shielding for superior signal protection in challenging electromagnetic environments. Here's a comprehensive technical breakdown.
Quick-Reference Technical Specifications
Parameter | RG6 Quad Shield Specification |
|---|
Impedance | 75 ohms (±3 ohms) |
Center Conductor | 18 AWG Copper-Clad Steel (CCS) or Solid Copper |
Dielectric | Foam Polyethylene (PE) |
Shielding | Quad Shield: Aluminum Foil + Braid + Foil + Braid |
Shielding Effectiveness | >100 dB (typically 105-110 dB) |
Outer Diameter | 0.275' (6.9 mm) |
Velocity of Propagation | 82-85% |
Capacitance | 17-20 pF/ft (56-66 pF/m) |
Max. Operating Voltage | 1,500-3,000 V RMS |
Temperature Range | -40°C to +80°C |
1. Electrical Specifications
Attenuation (Signal Loss per 100 ft / 30.5 m)
Lower values indicate better performance.
Frequency | Typical Attenuation | Notes |
|---|
5 MHz | 0.5-0.7 dB | VHF Low Band |
50 MHz | 1.2-1.5 dB | FM Radio, VHF TV |
100 MHz | 1.7-2.0 dB |
|
200 MHz | 2.5-3.0 dB |
|
400 MHz | 3.8-4.5 dB |
|
550 MHz | 4.5-5.5 dB | Traditional Cable TV |
750 MHz | 5.5-6.5 dB |
|
900 MHz | 6.2-7.5 dB |
|
1000 MHz | 6.7-8.0 dB | DOCSIS 3.0 |
1218 MHz | 7.8-9.5 dB | MoCA 2.5 Extended |
1794 MHz | 10.5-12.5 dB | DOCSIS 4.0, MoCA 2.5 |
Frequency Response
Usable Frequency Range: 0-3,000 MHz
- Optimal Range: 5-1794 MHz (Standard broadband applications)
- Return Loss: >20 dB (typical) across operating range
Velocity Factor & Delay
- Velocity of Propagation: 82-85% (0.82-0.85)
- Delay: 1.18-1.22 ns/ft (3.87-4.00 ns/m)
- Wavelength at 100 MHz: 8.0 ft (2.44 m) in cable

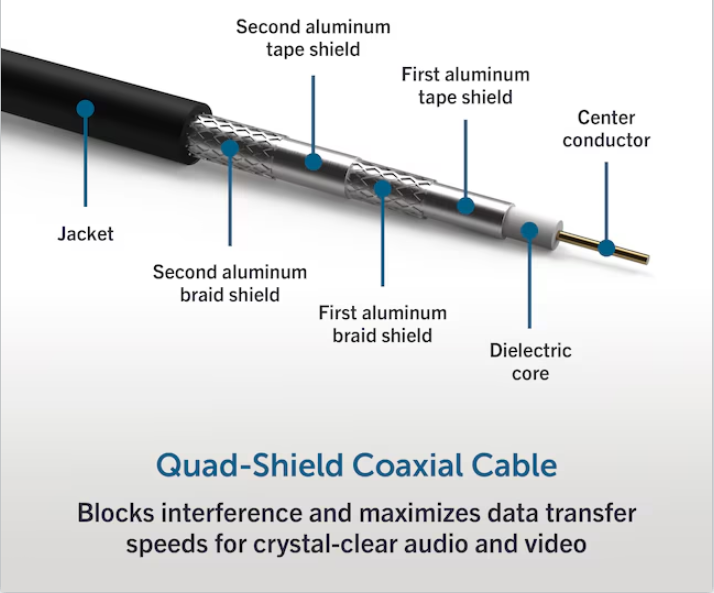

2. Physical Construction (Layer by Layer)
Standard Quad Shield Construction:
Center Conductor:
Material: Copper-Clad Steel (CCS) or Solid Copper
Diameter: 18 AWG (1.024 mm)
DC Resistance: 6.4 Ω/1000 ft (CCS), 6.0 Ω/1000 ft (Copper)
Dielectric:
Material: Foam Polyethylene (PE)
Dielectric Constant (εᵣ): 1.45-1.55
Diameter: 0.185' (4.7 mm)
Type: Closed-cell foam for moisture resistance
First Shield (Inner):
Type: Aluminum-Polyester Laminate (100% coverage)
Thickness: 0.0005' aluminum + 0.00035' polyester
Function: Primary barrier against high-frequency interference
Second Shield:
Type: 60-80% Aluminum Braid
Braid Angle: 45-55°
Wire Count: 16-24 AWG aluminum wires
Function: Structural support and medium-frequency shielding
Third Shield:
- Type: Aluminum-Polyester Laminate (100% coverage)
- Function: Additional high-frequency protection
Fourth Shield (Outer):
- Type: 60-80% Aluminum Braid
- Braid Angle: 45-55°
- Function: Primary low-frequency shielding, mechanical protection
Jacket:
- Material: PVC (Indoor) or UV-resistant PE (Outdoor)
- Thickness: 0.025-0.035' (0.64-0.89 mm)
- Color: Typically black; may be white, gray, or other colors
- Markings: Printed with manufacturer, type, and compliance info
3. Shielding Performance Metrics
Shielding Effectiveness Comparison:
Shield Type | Effectiveness | Attenuation of External Signals |
|---|
Single Shield | 60-80 dB | Good |
Dual Shield | 80-95 dB | Better |
Tri-Shield | 95-105 dB | Excellent |
Quad Shield | 105-110+ dB | Exceptional |
Shielding Performance by Frequency:
- LF (1-10 MHz): 90-100 dB rejection
- MF (10-100 MHz): 100-105 dB rejection
- HF (100-1000 MHz): 105-110 dB rejection
- UHF (1-3 GHz): 100-105 dB rejection
4. Mechanical & Environmental Specifications
Physical Properties:
- Overall Diameter: 0.270-0.280' (6.86-7.11 mm)
- Weight: 30-40 lbs/1000 ft (45-60 kg/km)
- Minimum Bend Radius:
- Maximum Pull Tension: 50-70 lbs (22-32 kg)
- Crush Resistance: 100-150 lbs/inch width
Environmental Ratings:
- Operating Temperature: -40°C to +80°C
- Storage Temperature: -50°C to +85°C
- Flame Rating: CM/CMG (Riser), CMP (Plenum) versions available
- UV Resistance: 1000+ hours (UV-rated versions)
- Water Resistance: Moisture-resistant (flooded dielectric available)
- Direct Burial Rating: Available with flooded dielectric and armor
5. Connector Compatibility & Installation
Connector Types:
- Standard: Compression F-connectors (RG6 type)
- Crimp: Requires RG6 hex crimp connectors
- Screw-on: Compatible with most screw-on F-connectors
- Adapter Compatibility: BNC, RCA, F81, etc.
Installation Notes:
- Strip Dimensions:
- Tool Requirements:
6. Performance Comparison: Quad Shield vs. Dual Shield
Parameter | RG6 Dual Shield | RG6 Quad Shield | Improvement |
|---|
Shielding Effectiveness | 80-95 dB | 105-110+ dB | 20-25% better |
Signal Leakage | Moderate | Minimal | Critical for MDU |
EMI/RFI Rejection | Good | Excellent | 10-15 dB better |
Moisture Protection | Standard | Enhanced (additional layers) | Better |
Durability | Good | Excellent | More crush resistant |
Price | $ | $$ | 20-40% more |
7. Applications & Use Cases
Primary Applications:
- Digital Cable TV (DOCSIS 3.0/3.1/4.0)
- Satellite TV (DISH, DirecTV)
- Broadband Internet (Cable modems)
- MoCA Networks (Home networking)
- HDTV Antenna Distribution
- CCTV/Security Systems
- Professional A/V Installations
Where Quad Shield is Recommended:
- High-Interference Environments: Apartments, urban areas, near broadcast towers
- Multiple Signal Sources: Homes with cable, satellite, OTA, and MoCA
- Long Cable Runs: >100 ft installations
- Critical Applications: Medical, broadcast, government
- MoCA Networks: Where signal containment is critical
- MDUs/Apartments: Preventing signal leakage between units
