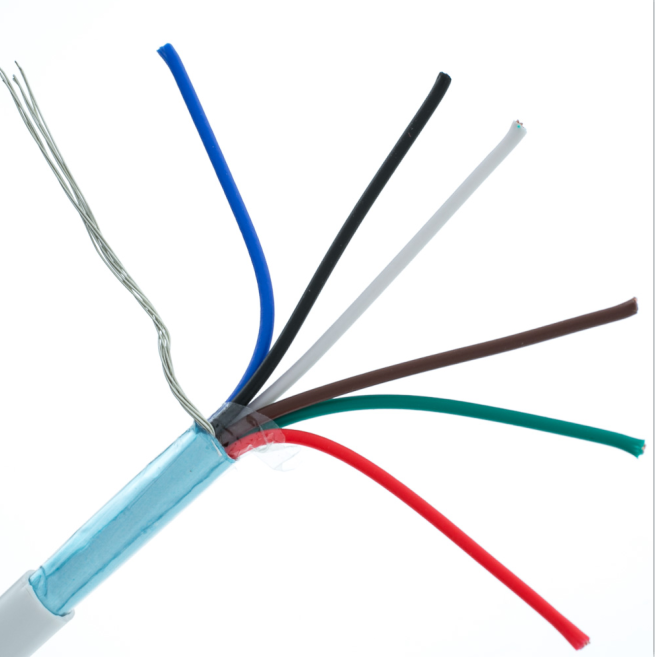

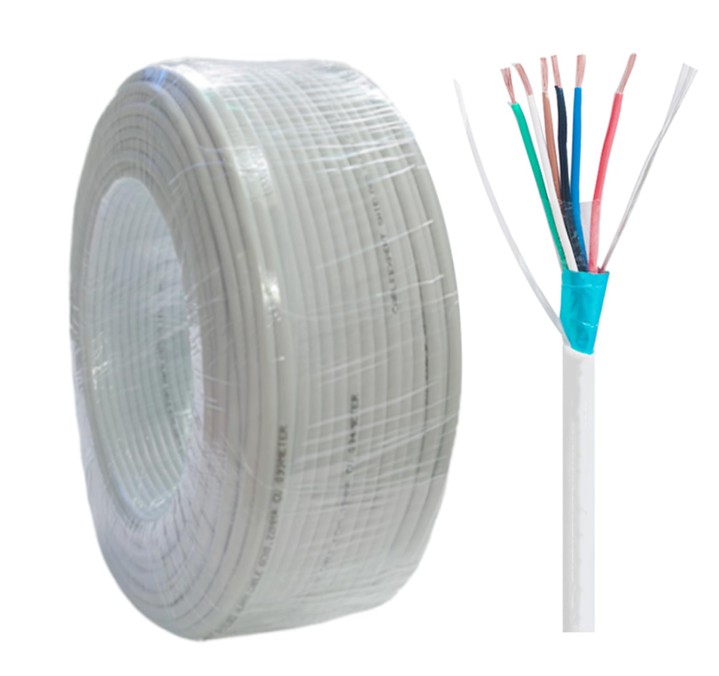

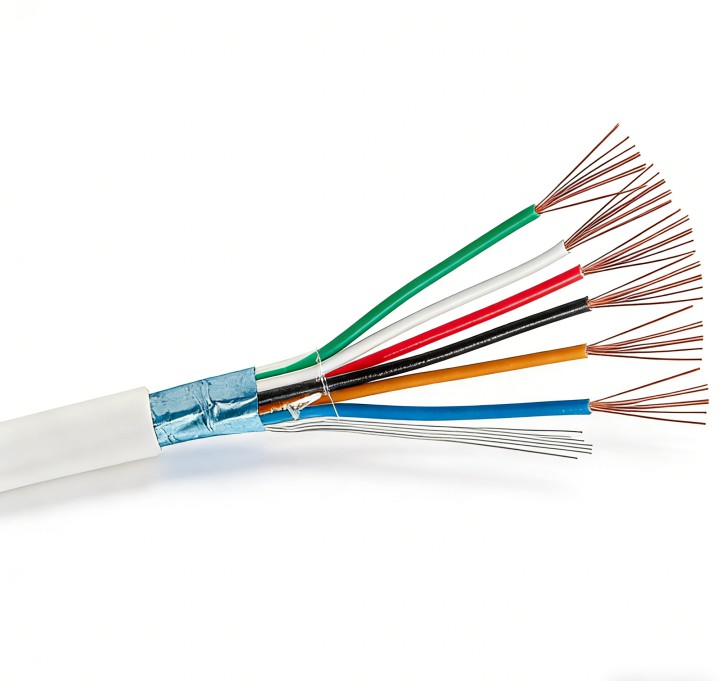

6 Core FTP Alarm Cable for Security System
Specification
1)Conductor: (2-8cores are available)
Bare Copper/CCA Stranded or Solid Conductor
Flexible section in 0.8sqmm,1.0mm 1.5mm,ect
2)Insulation:
PVC flame retardant/PE
3)Drain wire: (Options)
In Stranded or Solid Bare Copper,CCA,CCS
4)Shielding: (Options)
Aluminum/Polyester Foil Coverage
5)Outer Jacket:
General PVC,PVC flame retardant,LSZH Sheath,Polyethylene Sheath
6)Color
Red White gray,ect
Stranded Wire
| Item No. | Decription | Conductor
Spec. | Insulatioon | Jacket | Packing |
Nom.Thick
(mm) | Nom.Diam
(mm) | Nom.Thick
(mm) | Nom.Diam.
(mm) |
| ALARM | TC/BC/CCA/TCCA
Screened
Unscreened
Rip cord or No
Drain wire or No | 2*7*0.2 | 0.22 | 1.05 | 0.45 | 3.1 | Box
Coil
Drum
Paper reel
Plastic reel
Wooden reel |
| 4*7*0.2 | 0.22 | 1.05 | 0.45 | 3.4 |
| 6*7*0.2 | 0.22 | 1.05 | 0.5 | 4.1 |
| 8*7*0.2 | 0.22 | 1.05 | 0.5 | 4.5 |
| 10*7*0.2 | 0.22 | 1.05 | 0.6 | 5.1 |
| 12*7*0.2 | 0.22 | 1.05 | 0.6 | 5.5 |
| 14*7*0.2 | 0.22 | 1.05 | 0.7 | 6.1 |
| 16*7*0.2 | 0.22 | 1.05 | 0.7 | 6.4 |
| 20*7*0.2 | 0.22 | 1.05 | 0.8 | 7.2 |
Solid Wire
Description | Conductor Spec. | Insulation | Jacket | Packing |
Nom.Thick.(mm) | Nom.Diam(mm) | Nom.Thick.(mm) | Nom.Diam.(mm) |
Fire Alarm Cable | 2*1.0 | 0.6 | 2.4 | 1.0 | 6.8 | Box Coil Drum Paper reel Plastic reel Wooden reel |
2*1.5 | 0.7 | 2.8 | 0.8 | 7.2 |
2*2.5 | 0.8 | 3.4 | 1.0 | 9 |
4*0.5 | 0.4 | 1.6 | 1.2 | 6.2 |
4*1.0 | 0.6 | 2..4 | 0.8 | 7.4 |
4*1.5 | 0.7 | 2.8 | 0.8 | 8.3 |
4*2.5 | 0.8 | 3.4 | 1.1 | 10.3 |
Application: These cables are designed for installation signal alarm and alarm systems.They allow the connection of contacts,detectors and sensors,infr-red as well asmicrowave or mixed technoiogy to the switchboard.
Choose FTP Alarm Cable When:
- EMI/RFI is present in the installation environment
- Signal integrity is critical for system operation
- Life safety systems require maximum reliability
- Long cable runs traverse noisy areas
- Analog signals must be protected
- Specifications or codes require shielded cable
- Future expansion might introduce interference sources
- Insurance requirements mandate shielded installations
Avoid FTP When:
- Environment is electromagnetically clean
- Budget is extremely constrained
- Installers lack experience with shielded systems
- Only digital on/off signals are used over short distances
- Temporary installation with minimal reliability requirements
Final Recommendation: For most commercial and industrial alarm installations, FTP provides excellent value—offering substantial EMI protection at a reasonable cost premium over UTP. Always conduct a site survey to assess interference levels before specifying cable types. When in doubt, opt for FTP—the added cost is minimal compared to potential system failures or false alarms.

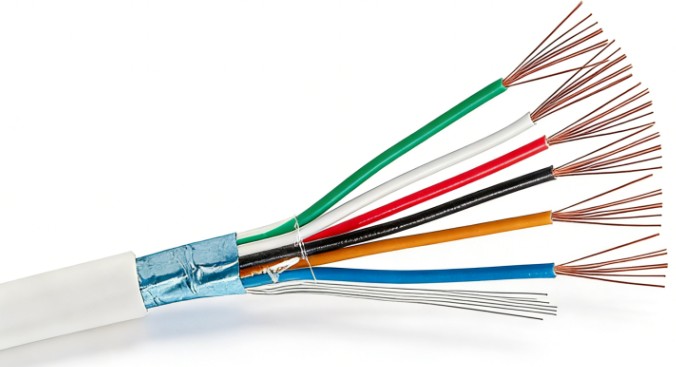

FTP (Foil Twisted Pair) alarm cable is a shielded twisted-pair cable designed with foil shielding to resist electromagnetic interference (EMI) and radio frequency interference (RFI). Its core advantage lies in stable signal transmission in complex environments, making it ideal for security alarm systems. Below are its key application scenarios and related details:
1.Intrusion Alarm Systems
2. Fire Alarm Systems
3. Video Intercom & Access Control Alarm Integration
4. Industrial Site Alarm Systems
5. Commercial & Public Facility Security
6. Long-Distance Alarm Signal Transmission
