4Core Copper Shielded Fire Alarm Cable LSZH PVC

Name: 4Core Copper Shielded Fire Alarm Cable LSZH PVC
Rating: 4.6 (85 reviews)

1. Place of Origin: China
2. Brand Name:Hoton Link
3.Conductor Type: Copper/CCA/CCAU/TC
4. Minimum Order Quantity:50KM
5.Application:Burglar & Intrusion Alarm Systems,Access Control & Door Security Systems

Select the number of specifications

Please check the product information you want!

Download Annex

Product Detail

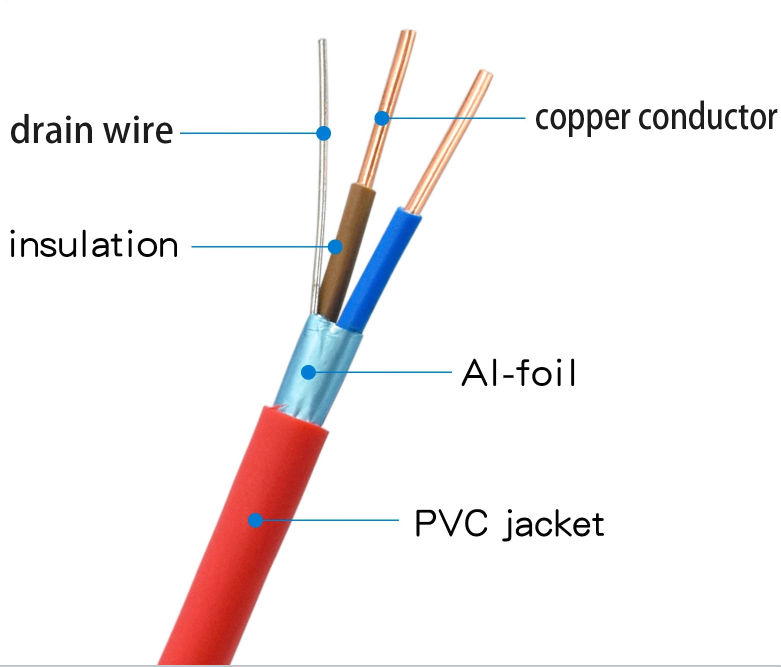

4Core Copper/Tinned Copper/CCA Shielded Fire Alarm Cable LSZH PVC

Alarm Cable/Control Cable

- Conductor Material: CU/CCA
- Insulation Material: PVC
- Insulation Diameter: 1mm/1.5mm
- Drian Wire Material: N/A
- Jacket Material: PVC
- Signal Shield: Al/Polyester Foil; Coverage>100%.
- Double Fully Shield: Al/Polyester Foil + Tinned Copper Braid

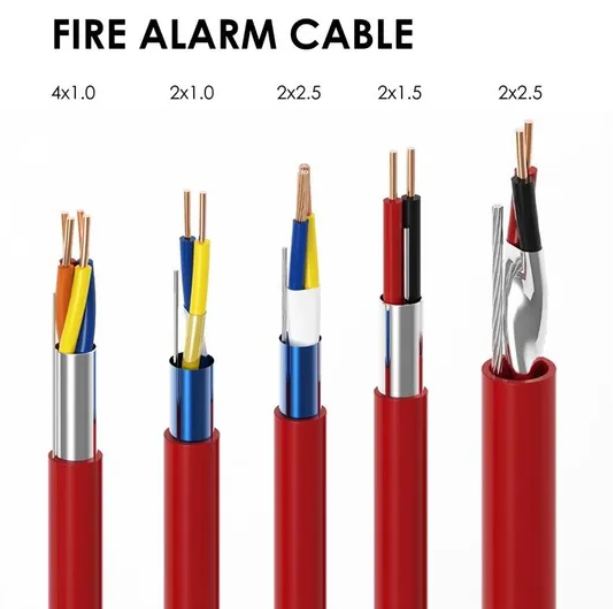

Fire Cable/Fire Alarm Cable

- Conductor Material: CU
- Insulation Material: PVC
- Insulation Diameter: 1.8mm/2.15mm/2.40mm/2.80mm
- Drian Wire Material: 0.5mm CU
- Jacket Material: PVC
- Signal Shield: Al/Polyester Foil; Coverage>100%

Alarm Cable/Control Cable

Cable Size	Specification	Overall Diameter
2x0.22mm²	2x7/0.20	3.0mm
4x0.22mm²	4x7/0.20	3.5mm
6x0.22mm²	6x7/0.20	4.1mm
8x0.22mm²	8x7/0.20	4.5mm
10x0.22mm²	10x7/0.20	5.2mm
12x0.22mm²	12x7/0.20	5.6mm
14x0.22mm²	14x7/0.20	5.8mm
20x0.22mm²	20x7/0.20	6.8mm
2x0.50mm²	2x16/0.20	4.5mm
4x0.50mm²	4x16/0.20	5.2mm
6x0.50mm²	6x16/0.20	6.0mm
8x0.50mm²	8x16/0.20	6.8mm
10x0.50mm²	10x16/0.20	7.6mm
12x0.50mm²	12x16/0.20	8.0mm

Fire Cable/Fire Alarm Cable

Cable Size	Specification	Overall Diameter
2x0.5mm²	2x0.8mm	4.80mm
2x2x0.5mm²	4x0.8mm	6.00mm
2x1.0mm²	2x1.15mm	5.30mm
2x2x1.0mm²	4x1.15mm	6.60mm
2x1.5mm²	2x1.40mm	5.90mm
2x2x1.5mm²	4x1.40mm	7.20mm
2x2.5mm²	2x1.80mm	6.80mm
2x2x2.5mm²	4x1.80mm	8.00mm

Packing:

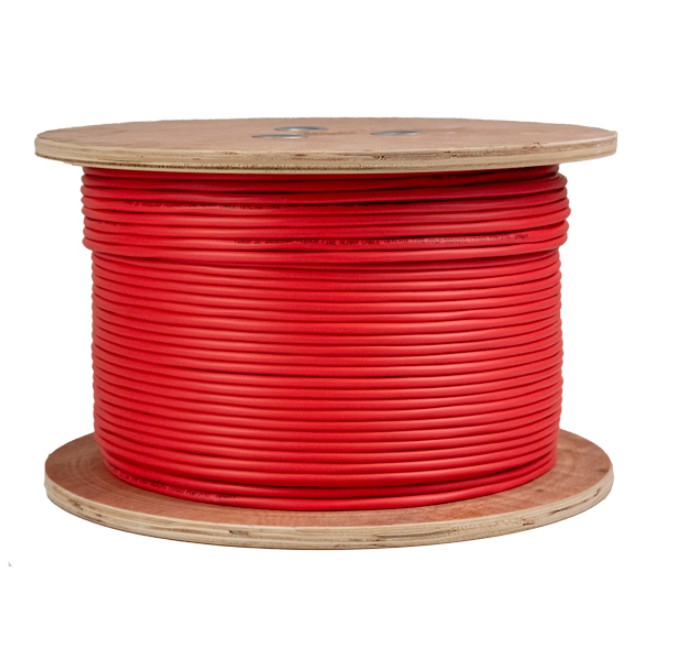

1)Packing Lengths: 100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll.

2) Inner packing:Roll, Wooden reel, plastic reel, and paper reel.

3) Outer packing: Carton box, pull out box, pallet available.

4) Other packing available according to client's request.

Package and Shipment

FAQS:

Q1: Are you a factory or trading company?

A1: We are a manufacturer.

Q2: Where is your factory located? How can I visit there?

A2:Our factory are located in jieyang city. You can fly to Shenzhen or Guangzhou international airport. And tell us your flight No. We will arrange to pick you up.

Q3: How can I get a sample to test your quality?

A3:We can provide free samples for your test and checking, you just need to bear the freight charge.

Q4:What payment method do you accept?

A4:T/T(Bank transfer), Western Union, Money Gram, Paypal, etc.

Q5: Can you put my brand name (logo) on these products?

A5: Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the logo free for bulk orders.

Q6: May I know the status of my order?

A6: Yes .The order information and photos at different production stage of your order will be sent to you and the information will be updated in time.

Q7: What’s the leading time? (How long do you need to prepare my goods?

A7: Delivery (no more than 1000pcs) will be arranged within 10-15 days after payment, and arrive you within about 1 month via sea shipping.

Q8: How will you deliver my goods to me?

A8 Your purchases will be delivered by DHL, UPS, FedEx, TNT, EMS your door. Air Cargo and Sea Cargo, Direct line, Air Mail also be accepted according to clients' request.

Q9: Can you provide us more other products to us to help us to save more shipping costs?

A9: Yes. There’re kinds of Indoor Cables, Outdoor Cables, Coaxial Cables, Telephone Cables, Fiber Optic Cables and Accessories will be the main products line of Factory.

The OEM bulk order will be accept as well.
