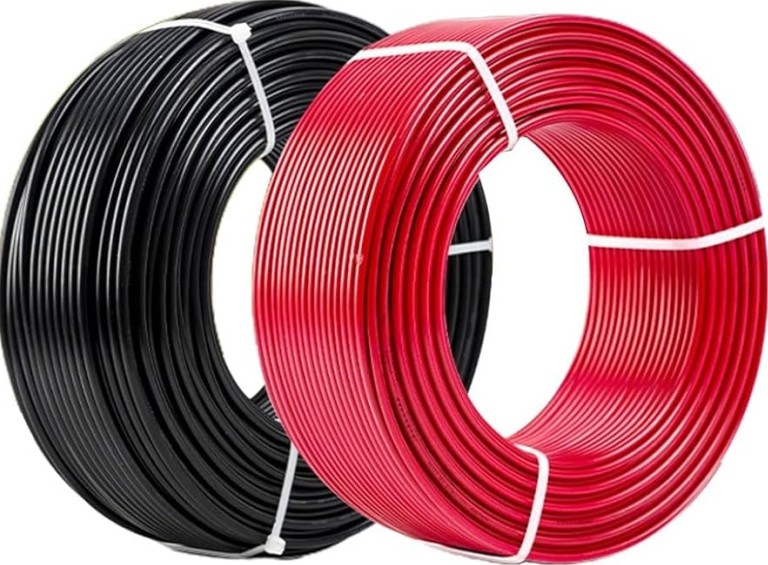

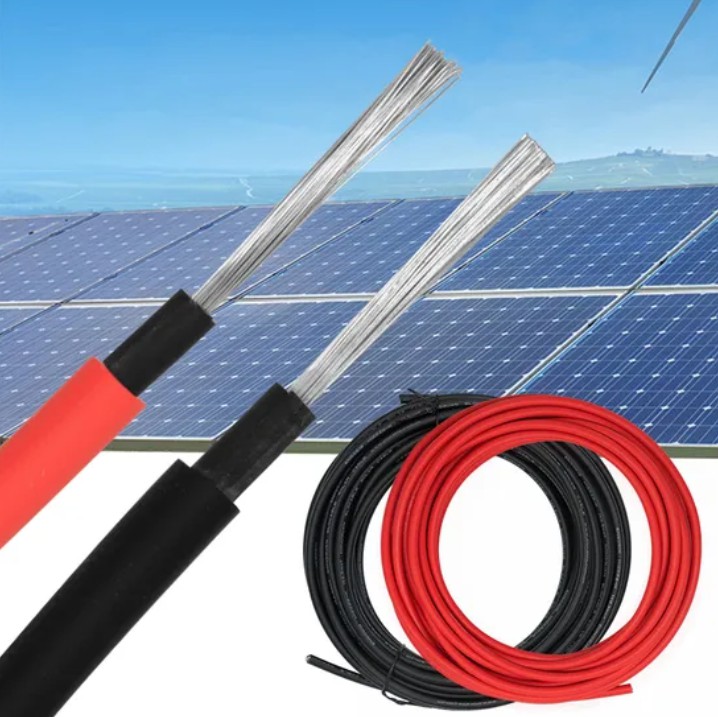

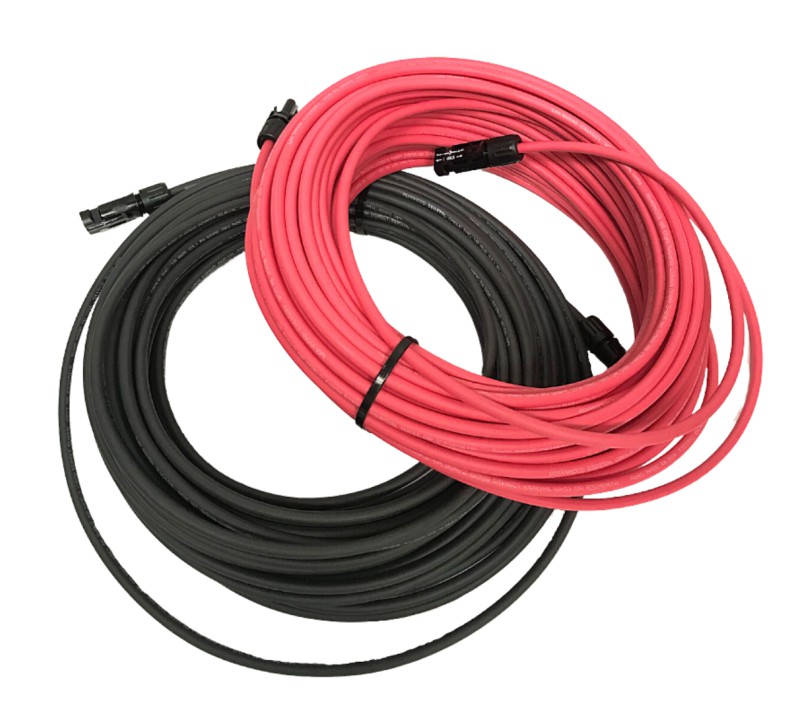

Solar PV Cable Wire 2.5mm 4mm 6mm 10mm 16mm Red Black XLPE Insulation Photovoltaic Solar Cables

Name: Solar PV Cable Wire 2.5mm 4mm 6mm 10mm 16mm Red Black XLPE Insulation Photovoltaic Solar Cables
Rating: 4.6 (93 reviews)

1. Place of Origin: China
2. Brand Name:Hoton Link
3.Conductor Type: Copper/CCA/CCS/CCAU
4. Minimum Order Quantity:50KM
5.Application:PV Panel Interconnection,DC Combiner Box Connections,Inverter & Charge Controller Linkage,Grid-Tied System AC Side Connections

Select the number of specifications

Please check the product information you want!

Download Annex

Product Detail

Solar PV Cable Wire 2.5mm 4mm 6mm 10mm 16mm Red Black XLPE Insulation Photovoltaic Solar Cables

Product Description

Single core solar cable

Cross section (mm2)	Conductor Construction	Outer (mm)	Resistance Max.	Current Carring Capacity
1*1.5	30/0.25	4.90	13.30	30
1*2.5	50/0.25	5.45	7.89	41
1*4	56/0.3	6.10	4.75	50
1*6	84/0.3	7.20	3.39	70
1*10	142/0.3	9.00	1.95	98
1*16	228/0.3	10.20	1.24	132
1*25	361/0.3	12.00	0.795	176
1*35	525/0.3	13.8	0.565	218
1*50	720/0.3	14.8	0.393	280
1*70	988/0.3	16.9	0.277	350
1*95	1349/0.3	18.7	0.21	410
1*120	1691/0.3	20.7	0.164	480

Twin/Dual core solar cable

Cross section (mm2)	Conductor Construction	Outer (mm)	Resistance Max.	Current Carring Capacity
2 x 1.5	30/0.25	8.3 ± 0.2	13.30	30
2 x 2.5	50/0.25	9.2 ± 0.2	7.98	41
2 x 4	56/0.3	12.0 ± 0.2	4.75	50
2 x 6	84/0.3	13.5 ± 0.2	3.39	70
2 x 10	142/0.3	17.6 ± 0.2	1.95	98
2 x 16	228/0.3	19.8 ± 0.2	1.24	132

Common Solar Cable Applications

1. Module-to-Module Interconnections:

Cable: 4mm² or 6mm² PV1-F
Length: Typically 0.5-1.5m

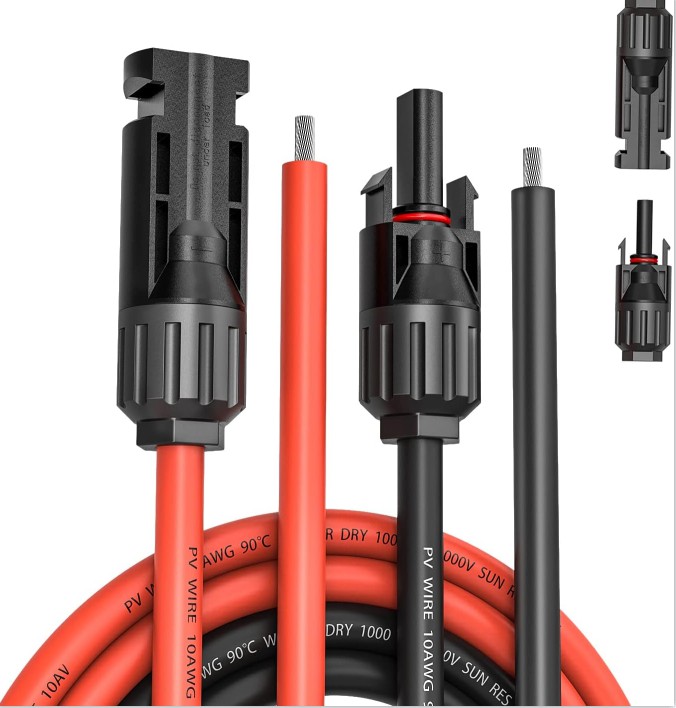

Connectors: MC4 or manufacturer-specific
Installation: Factory-installed or field-installed

2. String Wiring:

Cable: 6mm² or 10mm² PV1-F
Length: Varies with array design
Routing: Along rails, in cable trays, or conduit
Combination: Series connections within strings

3. DC Combiner to Inverter:

Cable: 10mm² to 50mm² depending on current
Installation: Conduit or direct burial
Protection: DC disconnects, overcurrent protection
Distance: Can be 100+ meters in large systems

4. Ground Mount Systems:

Special Considerations: Direct burial cables, rodent protection
Temperature: Higher ambient ground temperatures
Moisture: Water-resistant cables essential
UV Exposure: Full sunlight on above-ground portions

5. Building-Integrated PV (BIPV):

Aesthetics: Colored or concealed cables
Fire Rating: Enhanced flame retardancy
Temperature: Higher operating temperatures
Installation: Integrated with building materials

Package and Shipment

FAQS:

Q1: Are you a factory or trading company?

A1: We are a manufacturer.

Q2: Where is your factory located? How can I visit there?

A2:Our factory are located in jieyang city. You can fly to Shenzhen or Guangzhou international airport. And tell us your flight No. We will arrange to pick you up.

Q3: How can I get a sample to test your quality?

A3:We can provide free samples for your test and checking, you just need to bear the freight charge.

Q4:What payment method do you accept?

A4:T/T(Bank transfer), Western Union, Money Gram, Paypal, etc.

Q5: Can you put my brand name (logo) on these products?

A5: Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the logo free for bulk orders.

Q6: May I know the status of my order?

A6: Yes .The order information and photos at different production stage of your order will be sent to you and the information will be updated in time.

Q7: What’s the leading time? (How long do you need to prepare my goods?

A7: Delivery (no more than 1000pcs) will be arranged within 10-15 days after payment, and arrive you within about 1 month via sea shipping.

Q8: How will you deliver my goods to me?

A8 Your purchases will be delivered by DHL, UPS, FedEx, TNT, EMS your door. Air Cargo and Sea Cargo, Direct line, Air Mail also be accepted according to clients' request.

Q9: Can you provide us more other products to us to help us to save more shipping costs?

A9: Yes. There’re kinds of Indoor Cables, Outdoor Cables, Coaxial Cables, Telephone Cables, Fiber Optic Cables and Accessories will be the main products line of Factory.

The OEM bulk order will be accept as well.
