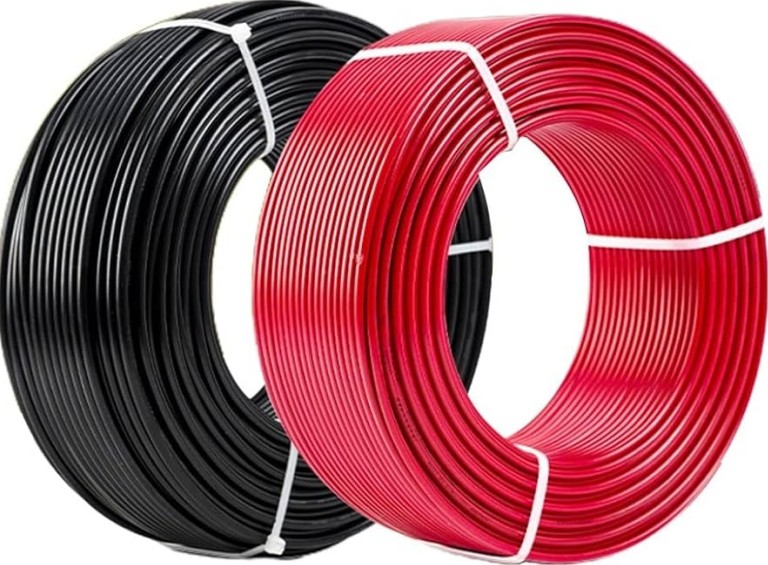

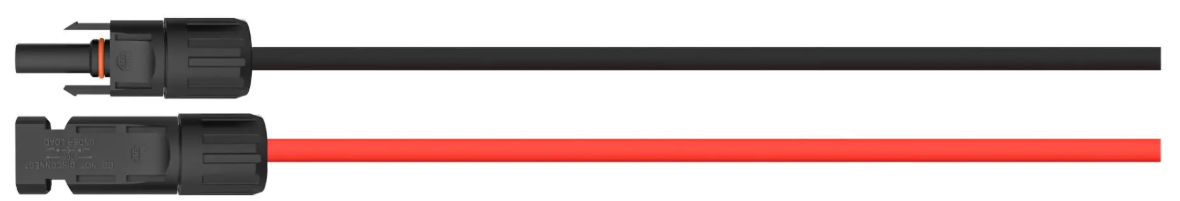

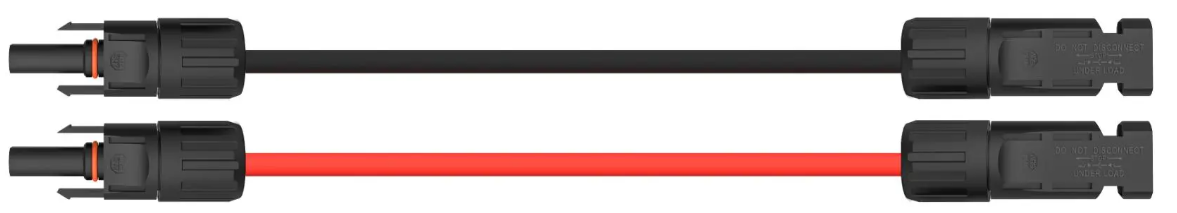

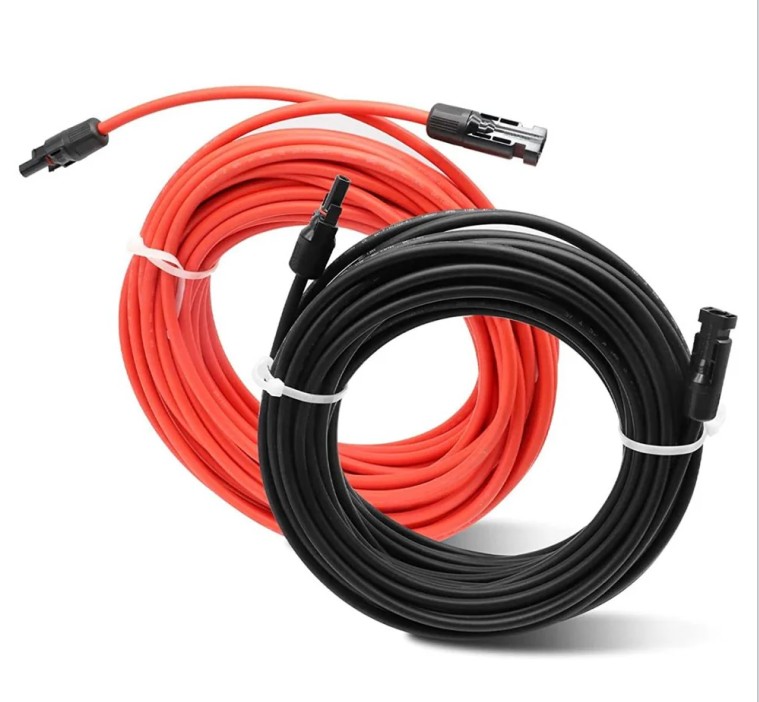

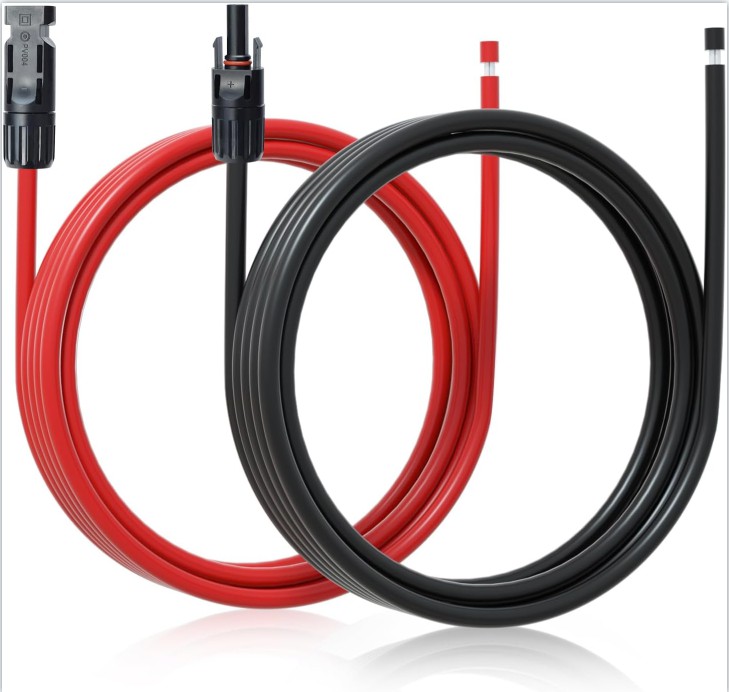

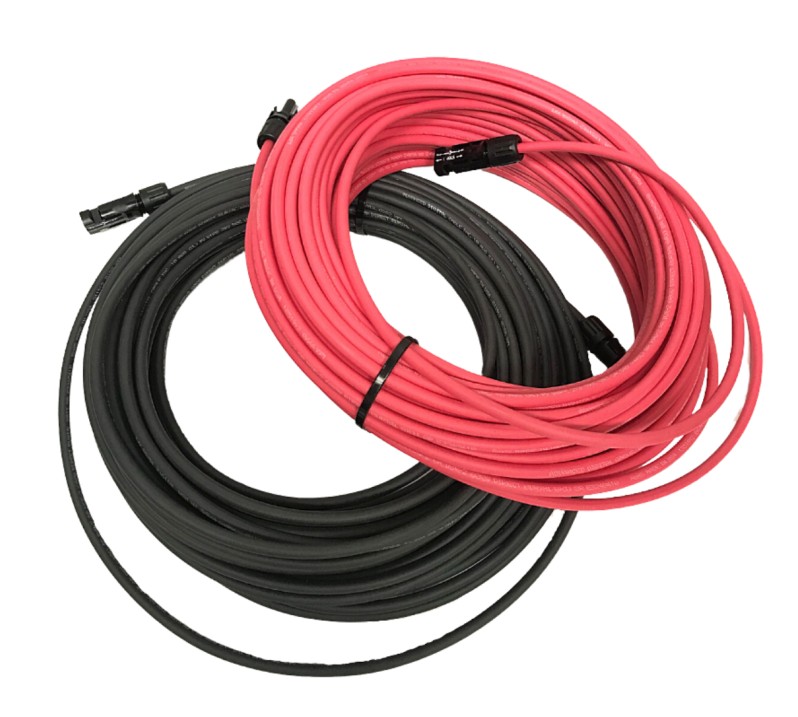

Single or Double Ends Solar Extension Cable with Connector for Photovoltaic Systems 1000V 1500V
Product Features

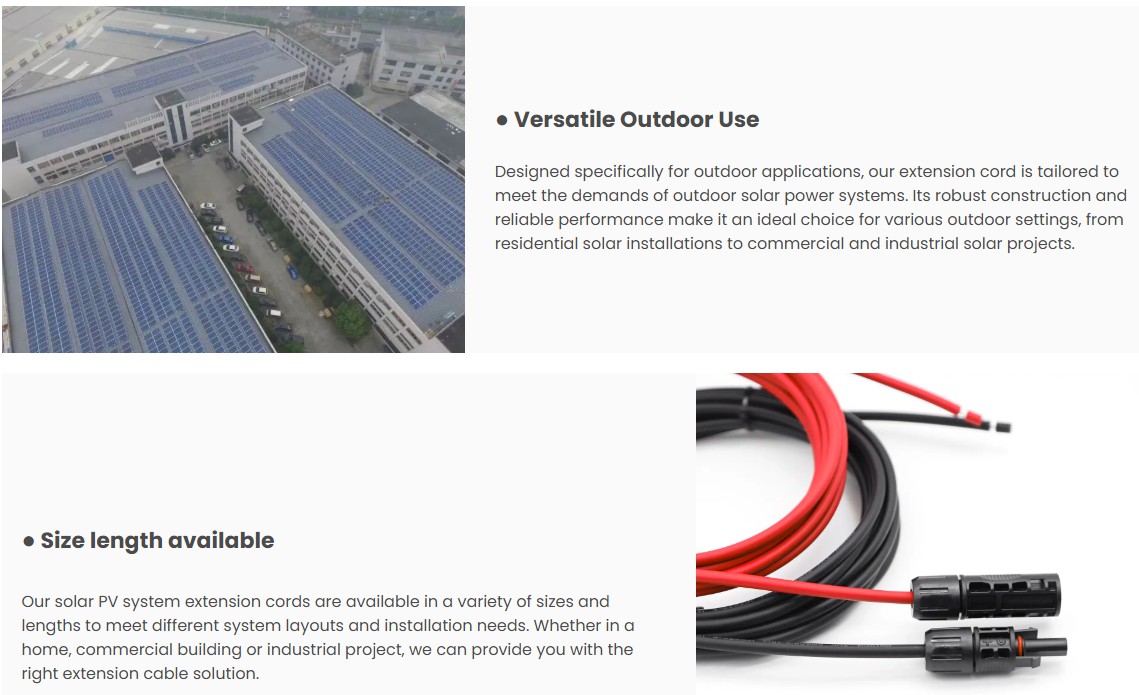

This extension cable is specially designed to connect various equipment and components in the solar photovoltaic power generation system to ensure the efficient operation and reliability of the system. Making it ideal for residential and commercial solar installations, it is often used for solar panel-end DC output or to extend the connection to the solar panel-end output.
Our solar photovoltaic system extension wires are made of high-quality materials with excellent durability and weather resistance, and can operate stably in a variety of harsh environments. Waterproof, dustproof, high temperature resistance, very suitable for outdoor use, can withstand the test of natural conditions such as sun and rain. We have high quality connectors, the shell is made of PC EXL9330C material, tinned copper core, flame retardant, high and low temperature resistance, UV resistance, corrosion resistance, can quickly and effectively connect the solar panel to the power generation system, easy installation, quality assurance, long service life.
Product Features
| STANDARD BASIS IEC 62852:2014, etc |
| Match wire specifications | 2.5mm²，4mm²，6mm²，10mm² |
| Rated voltage | DC 1000V/1500V |
| Rated current | 30A/60A |
| Connector type | PV004/PV005 |

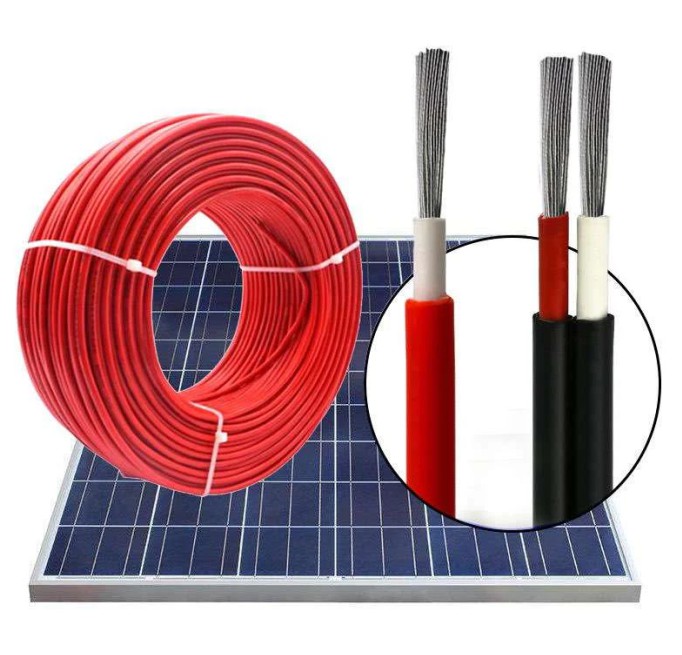

| Photovoltaic cable type | H1Z2Z2-K/PV1-F/62930 IEC 131/PV -(WD)YJYJ |
| Photovoltaic cable color | Upon customer's request |
| Degree of protection | IP65/IP68 |
| Ambient temperature range | -40℃~+85℃ |
| Upper temperature limit | 100℃ |
| Connector contact resistance | ≤0.5mΩ |
| Withstand voltage test | 6.0KV/8.0KV，1min |
| Flame class | UL94-V0 |
| compatibility | Compatible with MC4 connectors |
| Salt spray test | Degree of severity 6 |
| Damp heat test | No damage occurred which could impair normal use |
| Assemblability | Insertion force ≤50N, withdrawal force ≥50N |
| Connector pulling force | ≥200N |
| Warranty period | Twenty-five years |
| Length | Customized according to customer requirements |
| Packing quantity | According to customer requirements |
