RVVP Stranded Copper Core Multi-core Shielded Flexible PVC Insulated Building Use Cable

1. Place of Origin: China
2. Brand Name:Hoton Link
3.Conductor:Copper/CCA/CCAG
4. Minimum Order Quantity:100rolls
5. Payment Terms: L/C, T/T, Western Union
6. Supply Ability: 5000KM every month
7. Application: Instrumentation & Control Systems,Professional Audio & Broadcast Equipment,Computer & Network Peripherals,Security & Surveillance Systems

Select the number of specifications

Please check the product information you want!

Product Detail

RVVP Stranded Copper Core Multi-core Shielded Flexible PVC Insulated Building Use Cable

RVVP stands for:

R - Flexible Cord
V - PVC Insulation
V - PVC Sheath
P - Shielded (Pfor 'braided shield' in Chinese standards)

It is a flexible, multi-core, PVC insulated and sheathed cable with an overall braided shield. This shielding is its defining and most critical feature.

The Primary Advantage: Electromagnetic Shielding

The core advantage of RVVP over standard RVV is its braided copper shield (typically tinned copper). This shield provides:

Superior Protection Against Electromagnetic Interference (EMI):
Blocks external interference from entering the cable (e.g., from motors, transformers, radio transmitters), protecting sensitive signals.
Contains internal signals, preventing them from radiating out and interfering with nearby equipment.
This ensures signal integrity, clarity, and accuracy for data and communication circuits.
Enhanced Mechanical Durability: The braided shield adds an extra layer of physical protection against minor cuts, abrasion, and pinch points.
Grounding/Fault Protection: The shield can be grounded, providing a path for stray currents and helping to protect against electrical noise and, in some configurations, offering a basic level of fault protection.

Specifications

1. Conductor:

Material: Plain or tinned annealed copper.
Type: Finely stranded (Class 5/6), highly flexible.

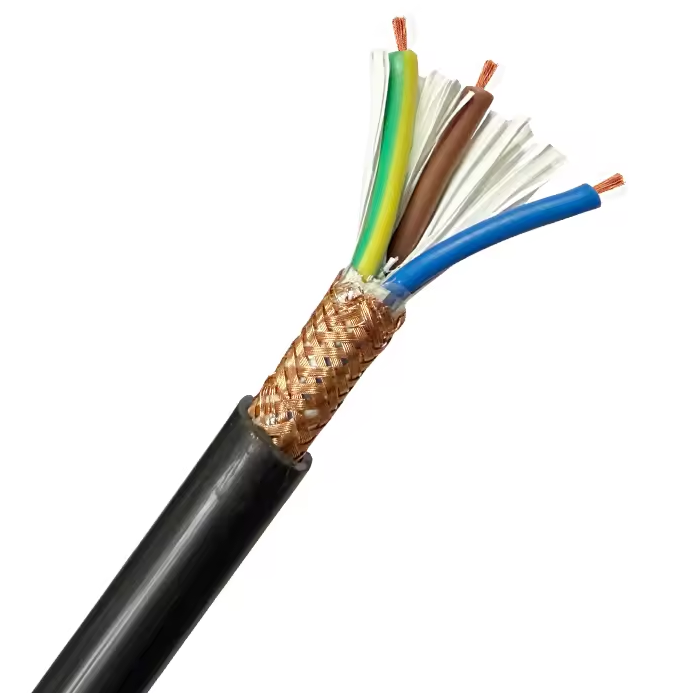

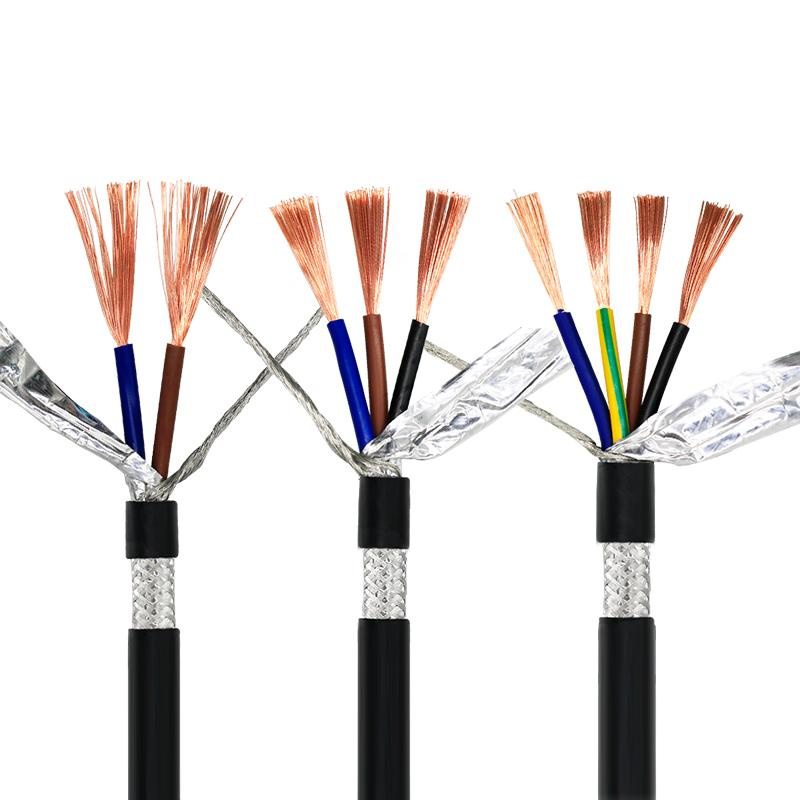

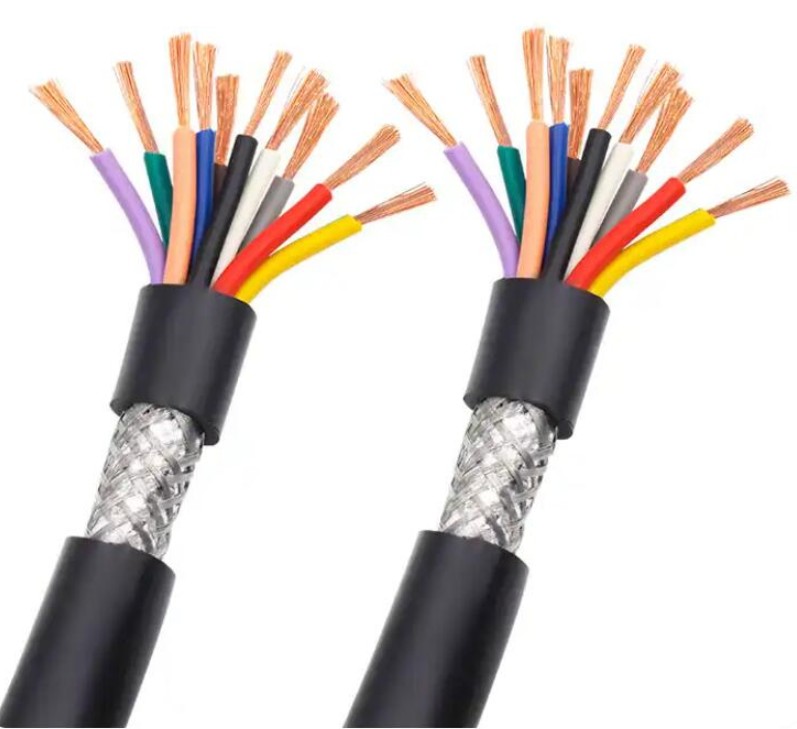

2. Construction (Layers from inside out):

Core(s): Multiple insulated conductors (PVC insulation, color-coded).
Filling/Binder: Optional non-hygroscopic filler to maintain a round shape.
Inner Sheath: A thin PVC layer binding the cores (not always present in all constructions).
Shield: A braided mesh of tinned copper wires (the 'P'). Coverage is typically ≥80%.
Outer Sheath: Final PVC jacket for overall protection. Color is often black or grey.

3. Voltage Rating:

Common Ratings: 300/300V, 300/500V.
It is a control/signal/instrumentation cable, not a primary power transmission cable.

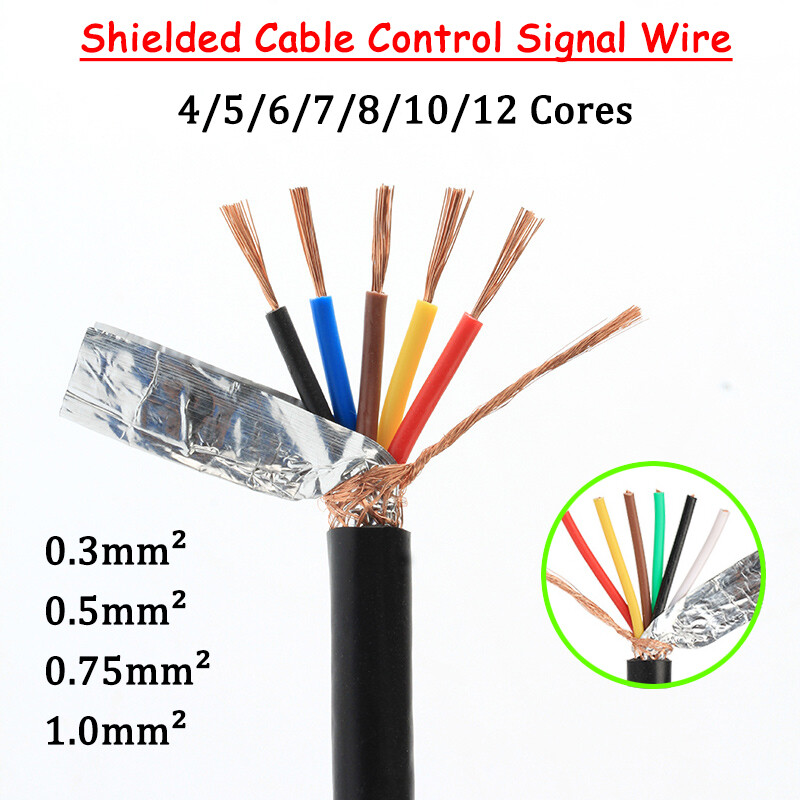

4. Core Configuration:

Available from 2 cores up to 24+ cores, with common sizes being 2, 3, 4, 5, 6, 8, 10, 12, and 16 cores.
Core sizes typically range from 0.5 mm² to 2.5 mm².

5. Temperature Rating:

Operating Temperature: Usually -15°C to +70°C.

6. Standards:

Complies with Chinese standards (e.g., JB/T 8734.5).
Functionally equivalent to shielded flexible cables in international standards, such as H05VVC4V5-K (European harmonized).

Primary Applications

RVVP is used wherever flexible connections are needed in environments with significant electromagnetic interference (EMI) or where signal purity is critical.

1. Instrumentation & Control Systems:

#1 Application. Connecting sensors (temperature, pressure, flow), transmitters, actuators, and PLCs (Programmable Logic Controllers) in industrial automation and process control. Essential in factories, plants, and machinery.

2. Professional Audio & Broadcast Equipment:

Wiring for microphones, mixing consoles, stage equipment, and intercom systems to prevent hum, buzz, and radio frequency interference (RFI).

3. Computer & Network Peripherals:

Used for older or specialized serial communication (RS-232, RS-485), printer cables, and some control networks where shielding is required to prevent data errors.

4. Security & Surveillance Systems:

For high-quality analog CCTV video transmission over coaxial alternatives, or for connecting control panels, keypads, and sensors in advanced security/alarm systems prone to interference.

5. Medical & Laboratory Equipment:

Internal wiring and external connections for sensitive diagnostic and measurement devices where signal accuracy is paramount.

Comparison: RVVP vs. RVV vs. RVSP

Feature	RVVP Cable (Shielded)	RVV Cable (Unshielded)	RVSP Cable (Individually Shielded Pair)
Shielding	Overall Braided Shield around all cores.	No Shield.	Individual Foil Shield around each pairof cores + optional overall shield.
Primary Use	Flexible connections in noisy EMI environments.Gener al purpose shielding.	Flexible power/signal links in clean, low-noise environments (appliances, basic control).	Critical data/communication (e.g., analog audio, balanced digital) where cros s-talk between pairs must be prevented.
Noise Rejection	Excellent at blocking external EMI/RFI.	Very poor.	Superior. Blocks both external EMI and internal cross-talk between pairs.
Flexibility	Good (shield adds some stiffness).	Excellent.	Reduced (foil shields are less flexible).
Cost	Higher.	Lowest.	Highest.

Critical Installation & Safety Notes

Proper Grounding is Mandatory: The shield must be properly grounded (earthed) at one end (typically the control panel/source end) to be effective. An ungrounded shield can act as an antenna, making interference worse. Avoid grounding at both ends to prevent ground loop currents.
Not a Power Cable: It is designed for control, signal, and instrumentation circuits. Do not use it as a main power cable for high-current appliances.
Flexible, but Not for Continuous Motion: While flexible, it is not designed for continuous flexing in cable carrier applications. For that, use a specially designed 'continuous flex' cable.
Indoor & Protected Use: The PVC sheath is for indoor or protected outdoor use (e.g., in conduit). For direct burial or harsh environments, an armored variant (e.g., RVVBP) is required.
Termination: Requires connectors designed for shielded cables (e.g., metal-shell D-sub, circular connectors) to maintain shield continuity to the equipment chassis.

In summary, choose RVVP cable when you need a flexible connection for sensitive electronic signals that must be protected from electromagnetic interference in industrial, professional audio, or precision control environments. Its value is entirely in its ability to ensure clean, reliable signal transmission where standard cables would fail.

Package and Shipment

FAQS:

Q1: Are you a factory or trading company?

A1: We are a manufacturer.

Q2: Where is your factory located? How can I visit there?

A2:Our factory are located in jieyang city. You can fly to Shenzhen or Guangzhou international airport. And tell us your flight No. We will arrange to pick you up.

Q3: How can I get a sample to test your quality?

A3:We can provide free samples for your test and checking, you just need to bear the freight charge.

Q4:What payment method do you accept?

A4:T/T(Bank transfer), Western Union, Money Gram, Paypal, etc.

Q5: Can you put my brand name (logo) on these products?

A5: Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the logo free for bulk orders.

Q6: May I know the status of my order?

A6: Yes .The order information and photos at different production stage of your order will be sent to you and the information will be updated in time.

Q7: What’s the leading time? (How long do you need to prepare my goods?

A7: Delivery (no more than 1000pcs) will be arranged within 10-15 days after payment, and arrive you within about 1 month via sea shipping.

Q8: How will you deliver my goods to me?

A8 Your purchases will be delivered by DHL, UPS, FedEx, TNT, EMS your door. Air Cargo and Sea Cargo, Direct line, Air Mail also be accepted according to clients' request.

Q9: Can you provide us more other products to us to help us to save more shipping costs?

A9: Yes. There’re kinds of Indoor Cables, Outdoor Cables, Coaxial Cables, Telephone Cables, Fiber Optic Cables and Accessories will be the main products line of Factory.

The OEM bulk order will be accept as well.
