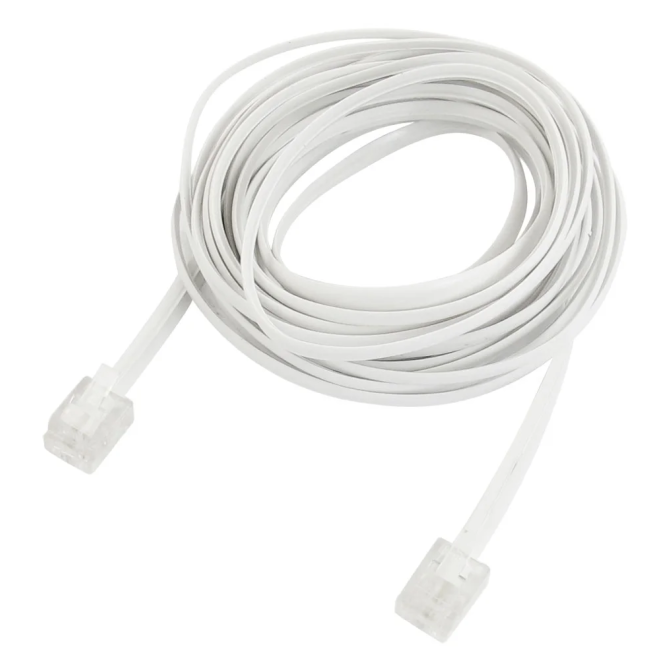

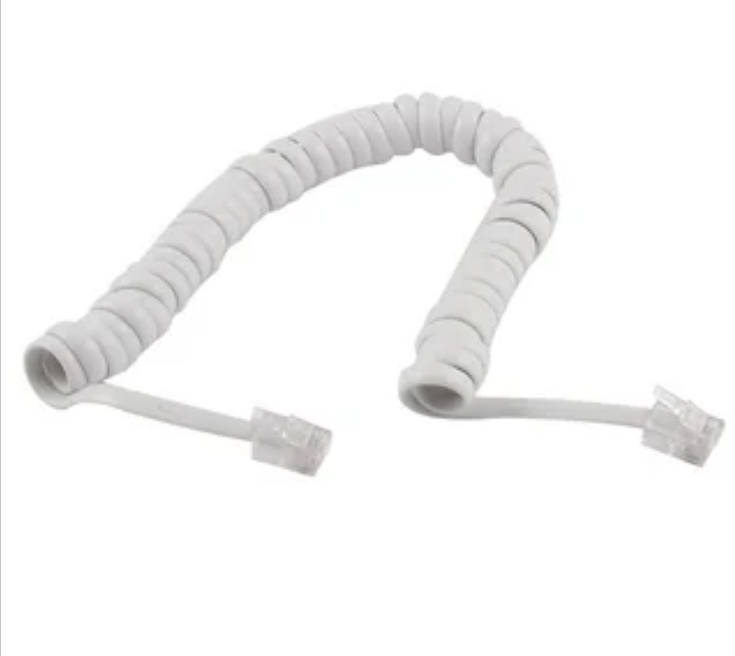

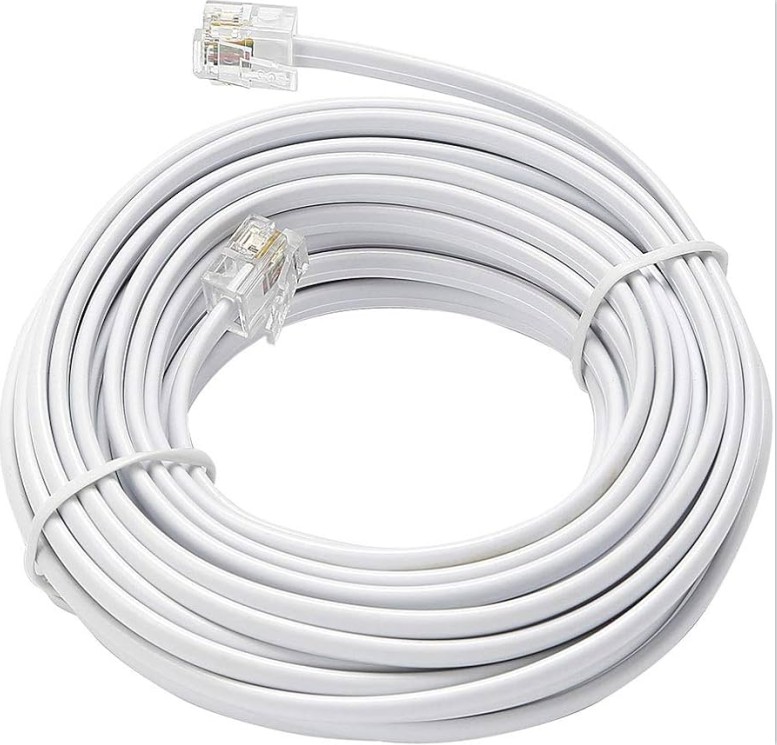

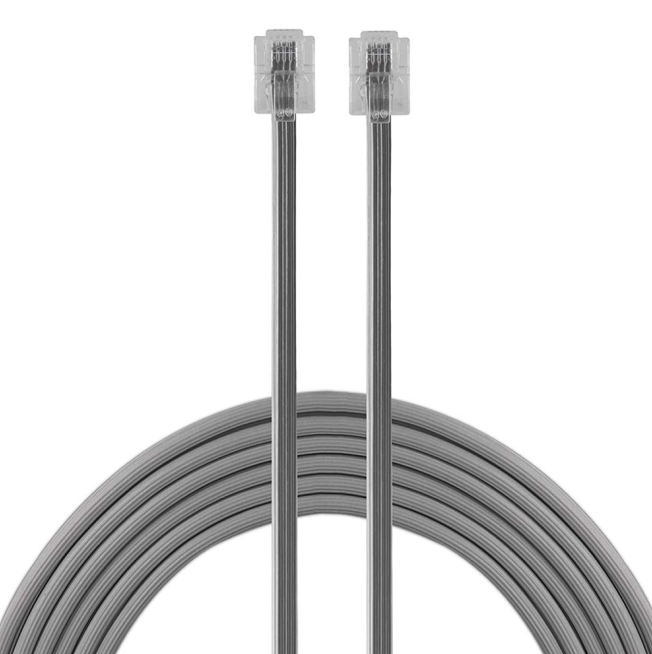

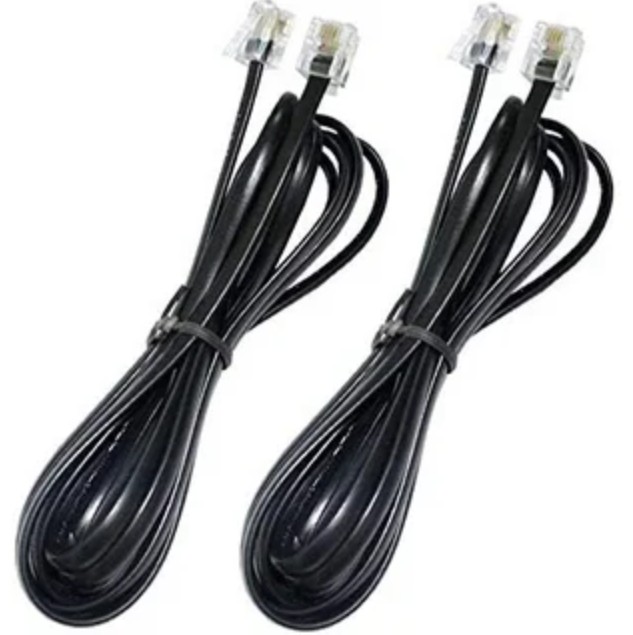

Round Flat 2Pair Telephone Cable 6P4C RJ11 6P6C RJ12 Cable
Construction
- Conductor: 24 AWG Solid Bare Copper
- Pairs: 4 Pairs
- Insulation: HDPE
- Colors: Blue, White/Blue; Orange, White/Orange
- Rip Cord: Cotton
- Out Jacket: 4.0±0.2 mm
Application
- Suitable for structured premises cabling;
- Transmission of digital & analog voice & data signals;
- Especially suitable for all Class FA applications;
- ISDN, Ethernet 10 Base-T, Fast Ethernet 100Base-T,
- Gigabit Ethernet 1000Base-T,10G Base-T. (IEEE 802.3);
- Token Ring 4/16Mbit/s,TP-PMD/TP/DDI 125Mbit/s,
- ATM 155Mbits/s.(IEEE 802.5).
Standard
- IEC / ISO 61156-5 ;
- ISO / IEC 11801;
- ANSI / TIA568C.2
Order Information
PVC / CMX / CM / CMR / CMP / LSZH / LDPE
Electrical Characteristics
- Impedance: 1 - 250MHz 100±15 Ohms
- Insulation Resistance: ＞5000MΩ*KM
- Dielectric strength: DC 2500V 2S
- Max.Conductor DC Resistance 20℃: 9.5 Ohms/100m
- Res. unbalance (%): Max. 2.5
- Pair to Ground Capacitance Unbalance: 330 pF/100m
- Transfer Impendance: Max 10 mOhms/m @100Mhz
- Installation temp.: 0 - 50℃
- Operation temp.: -20 - 75℃
Performance Characteristics
Frequency | RL (Min.) | Insertion
Loss | Propagation | Delay Skew | NEXT
(Min.) | PSNEXT
(Min.) | ELNEXT
(Min.) | PSELNEXT
(Min.) |
(Max.) | Delay (Max.) | (Max.) |
MHz | dB | dB/100m | ns/100m | ns/100m | dB | dB | dB/100m | dB/100m |
1 | 20.0 | 2.2 | 570.0 | 45.0 | 65.0 | 62.0 | 61.0 | 61.0 |
4 | 23.0 | 4.2 | 552.0 | 45.0 | 56.0 | 53.0 | 48.0 | 48.0 |
10 | 25.0 | 6.5 | 545.0 | 45.0 | 50.0 | 47.0 | 41.0 | 41.0 |
16 | 25.0 | 8.4 | 543.0 | 45.0 | 47.0 | 44.0 | 36.0 | 36.0 |
20 | 25.0 | 9.3 | 542.0 | 45.0 | 45.0 | 42.0 | 34.0 | 34.0 |
31.25 | 23.6 | 11.6 | 540.0 | 45.0 | 42.0 | 39.0 | 31.0 | 31.0 |
62.5 | 21.5 | 17.0 | 539.0 | 45.0 | 38.0 | 35.0 | 25.0 | 25.0 |
100 | 20.1 | 22.0 | 538.0 | 45.0 | 35.0 | 32.0 | 21.0 | 21.0 |
Order Information
- Marking: HTL U/UTP CAT 3 2 Pairs XXX (or Per customer's request)
- Inner Package: 305m/Spool,305m/Reel (or Per customer's request)
- Outer Package: Color Box, Pallet (or Per customer's request)
- Delivery time: Normally 25 days after receiving the deposit.
- Brand: Hoton Link (HTL)OR OEM
Package
FAQS:
Q1: Are you a factory or trading company?
A1: We are a manufacturer.
Q2: Where is your factory located? How can I visit there?
A2:Our factory are located in jieyang city. You can fly to Shenzhen or Guangzhou international airport. And tell us your flight No. We will arrange to pick you up.
Q3: How can I get a sample to test your quality?
A3:We can provide free samples for your test and checking, you just need to bear the freight charge.
Q4:What payment method do you accept?
A4:T/T(Bank transfer), Western Union, Money Gram, Paypal, etc.
Q5: Can you put my brand name (logo) on these products?
A5: Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the logo free for bulk orders.
Q6: May I know the status of my order?
A6: Yes .The order information and photos at different production stage of your order will be sent to you and the information will be updated in time.
Q7: What’s the leading time? (How long do you need to prepare my goods?
A7: Delivery (no more than 1000pcs) will be arranged within 10-15 days after payment, and arrive you within about 1 month via sea shipping.
Q8: How will you deliver my goods to me?
A8 Your purchases will be delivered by DHL, UPS, FedEx, TNT, EMS your door. Air Cargo and Sea Cargo, Direct line, Air Mail also be accepted according to clients' request.
Q9: Can you provide us more other products to us to help us to save more shipping costs?
A9: Yes. There’re kinds of Indoor Cables, Outdoor Cables, Coaxial Cables, Telephone Cables, Fiber Optic Cables and Accessories will be the main products line of Factory.
The OEM bulk order will be accept as well.
