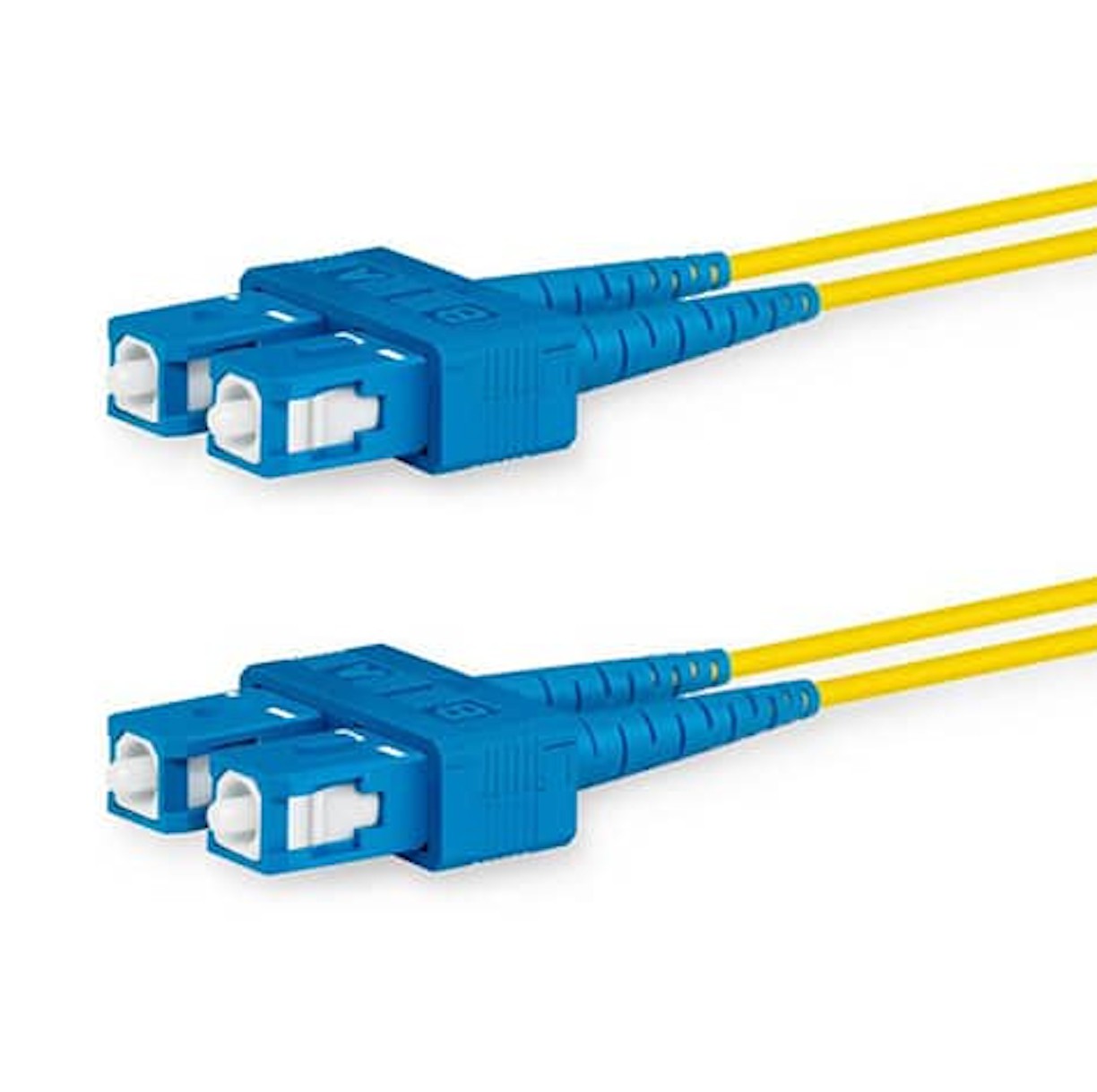

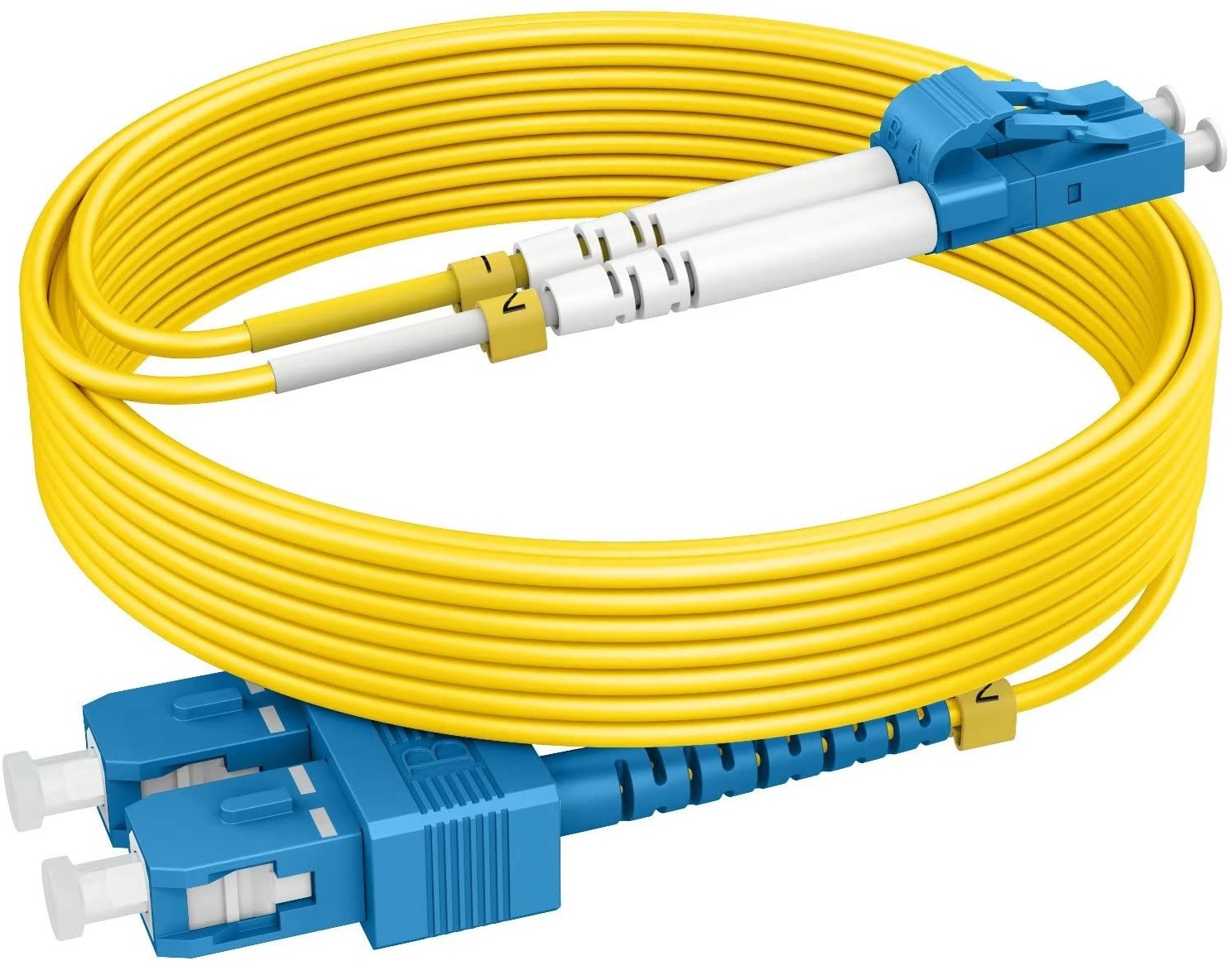

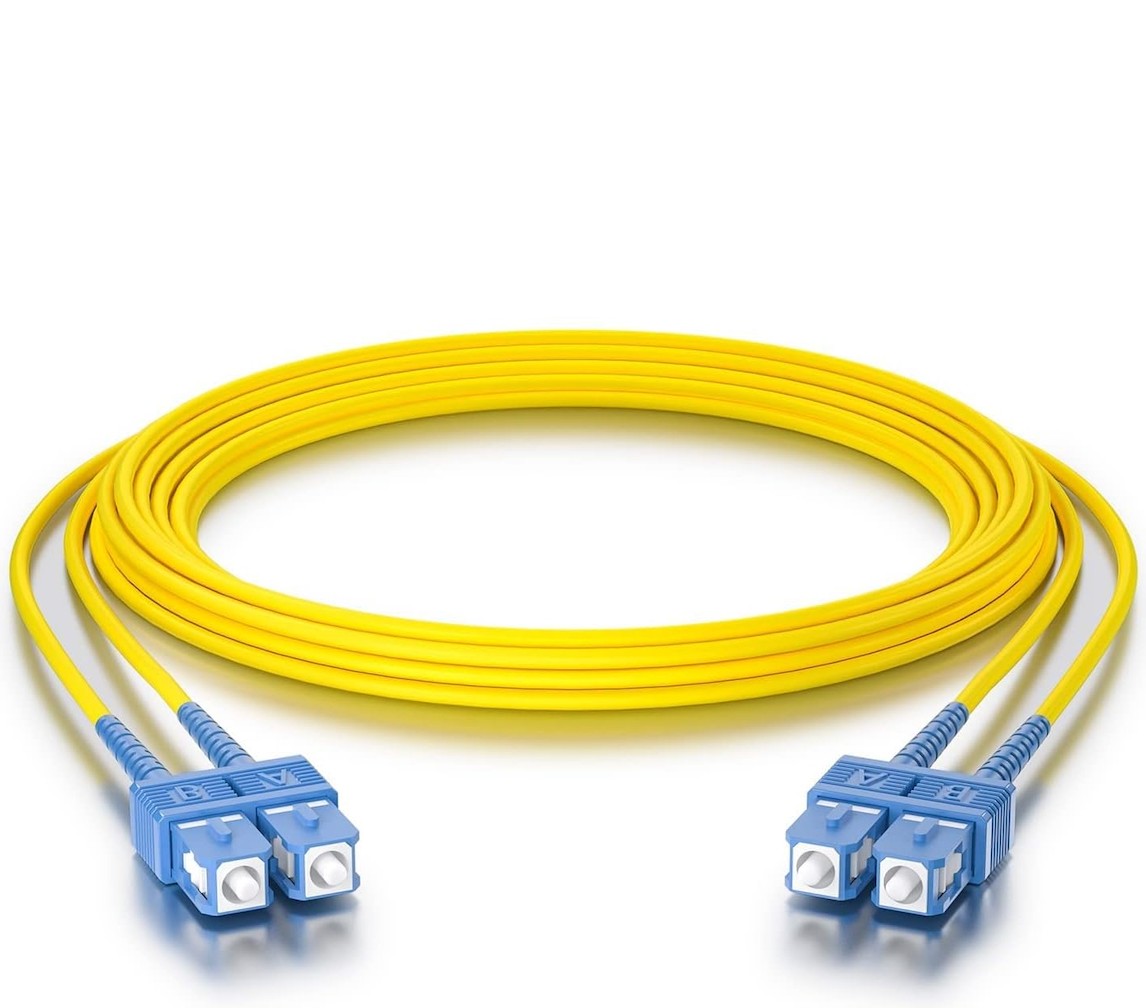

SC LC FC 2.0 3.0mm Fiber Optic Patch Cord LSZH PVC Optical Pigtail Optical Cable Patch Cord

1. Place of Origin: China
2. Brand Name:Hoton Link
3.Connctor:SC/LC/ST/FC/MTRJ
4. Minimum Order Quantity:1000pcs
5. Payment Terms: L/C, T/T, Western Union
6. Application:Data Center Interconnections,Fiber to the Home/Desktop,Structured Cabling Cross-Connects

Select the number of specifications

Please check the product information you want!

Product Detail

SC LC FC 2.0 3.0mm Fiber Optic Patch Cord LSZH PVC Optical Pigtail Optical Cable Patch Cord

Fiber Patch Cord (Patch Cable) Specification

A fiber patch cord is a short, flexible cable with factory-terminated fiber optic connectors on both ends, used to create cross-connections between equipment and panels in a fiber optic network.

Fiber Type:
- Single-Mode (SMF/OS1/OS2): Has a small core (~9µm). Used for long-distance transmission (up to tens of kilometers) with laser sources. Common for telecom, campus backbones, and DWDM.
- Multi-Mode (MMF/OM1/OM2/OM3/OM4/OM5): Has a larger core (50µm or 62.5µm). Used for shorter distances (up to 550m) with LED or VCSEL sources. Common in data centers, LANs, and premises networks.

Connector Types: The most common are:
- LC (Lucent Connector): Small form-factor, widely used in high-density applications (switches, panels).
- SC (Subscriber Connector): Square push-pull design, common in data centers and telecom.
- ST (Straight Tip): Bayonet-style, common in older installations and some security systems.
- MTP/MPO (Multi-fiber Push-On): A single connector housing 12, 24, or more fibers, used for 40G/100G/400G parallel optics.

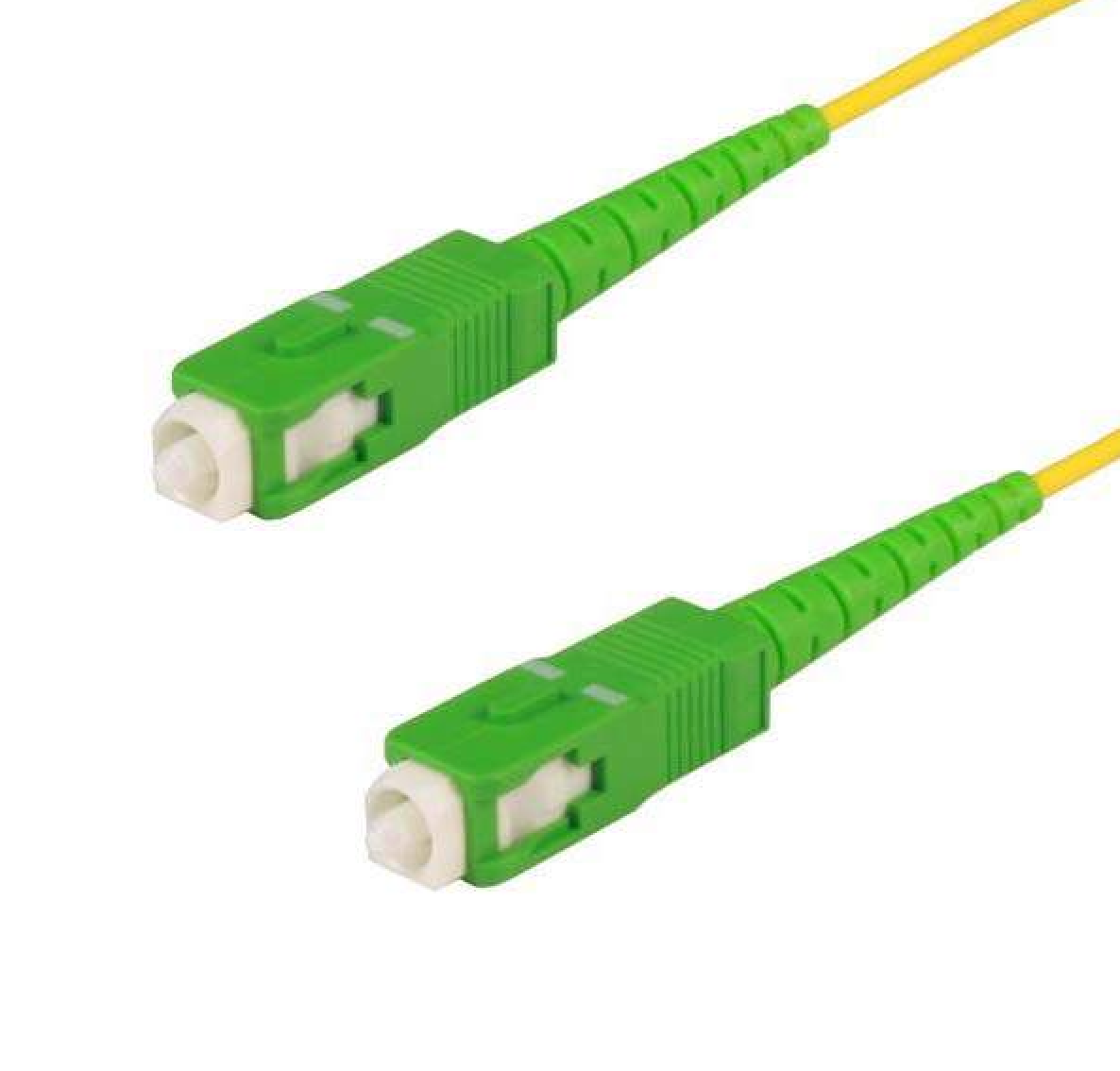

Polish Type: The shape of the fiber end face, critical for low loss. Common types: PC (Physical Contact), UPC (Ultra Physical Contact), and APC (Angled Physical Contact). APC (green connector) has an 8° angle to minimize back-reflection and is used in high-speed and PON networks.

Cable Construction:
- Simplex: One fiber, one cord.
- Duplex: Two fibers (typically for Tx/Rx) in a single jacket, the standard for most network links.
- Jacket: Often OFNR (Riser) or OFNP (Plenum) rated for fire safety. Colors: Yellow (SMF), Aqua (OM3/OM4 MMF), Orange (OM1/OM2 MMF), Lime Green (OM5 MMF).
Length: Customarily sold in standard lengths (1m, 2m, 3m, 5m, 10m, etc.).
Performance: Rated for a specific insertion loss (typically <0.2 dB to 0.5 dB per mated pair) and return loss.

Advantage

Factory-Terminated Reliability: Connectors are precision-terminated and polished in a controlled factory environment, ensuring optimal performance, low loss, and high reliability compared to most field terminations.
Plug-and-Play Simplicity: Allows for quick, flexible, and tool-free connections between equipment, patch panels, and wall outlets. Installation and reconfiguration are fast and easy.
High Performance and Low Loss: Engineered for maximum signal integrity, with very low insertion loss and back-reflection, which is critical for high-speed data transmission.
Durability and Protection: The cable is robust, with strain relief boots on connectors to protect the fragile fiber from bending and breaking at the termination point.
Standardization and Interoperability: Available in a wide range of standard connector types and fiber specifications, ensuring compatibility with all major network equipment.

Application

Data Center Interconnections: The most common use. Connecting servers, storage, and switches within and between racks. MTP cords are used for 40G/100G spine-leaf architectures.
Equipment to Patch Panel Links: Connecting ports on a network switch or router to the corresponding ports on a fiber optic patch panel in a telecom room or data center.
Structured Cabling Cross-Connects: Making connections between different patch panels (e.g., between the main distribution and intermediate distribution areas).
Fiber to the Home/Desktop (FTTH/FTTD): Connecting the customer's optical network terminal (ONT) to the wall outlet or network interface device.
Test and Measurement: Used as reference cables and to connect equipment during fiber network installation, certification, and troubleshooting.
Telecom Central Offices: Interconnecting transmission equipment, optical line terminals, and distribution frames.

Selection Guide: Always match the patch cord to the installed infrastructure. Use Single-Mode (Yellow) for long-distance/ISP links and Multi-Mode (Aqua/Orange) for short-distance/data center links. Ensure connector types (LC, SC) match the equipment ports.
