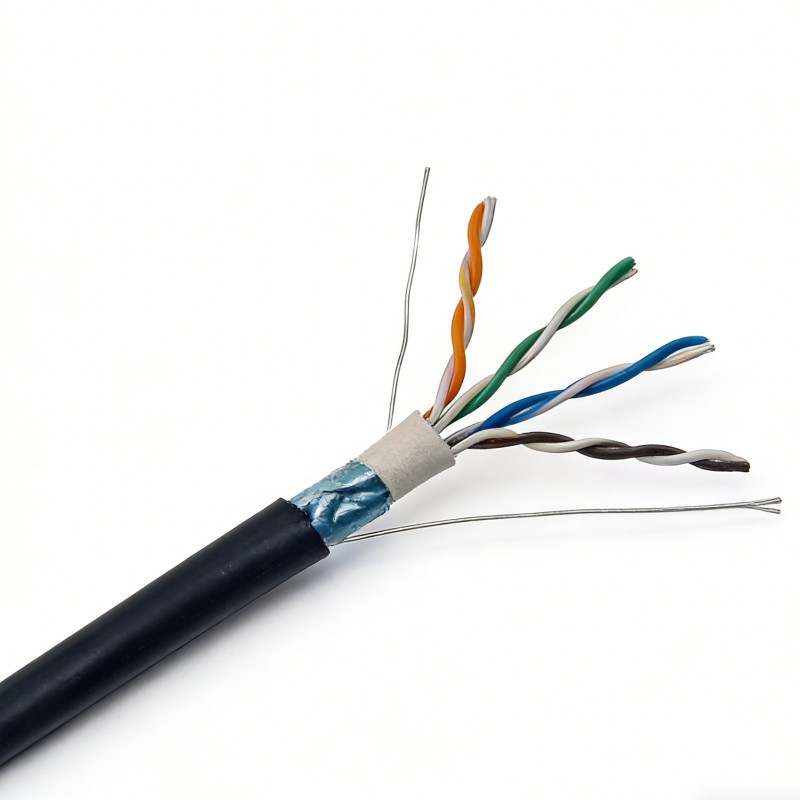

Outdoor CAT5E FTP 24AWG CU/CCA External Double PVC+PE Jacket Ethernet Cable
FTP (Foiled Twisted Pair) Cat5e is a shielded outdoor cable designed for environments with electromagnetic interference (EMI) where UTP performance might degrade. The foil shield provides protection against external noise while maintaining Cat5e performance standards.
Construction & Specifications

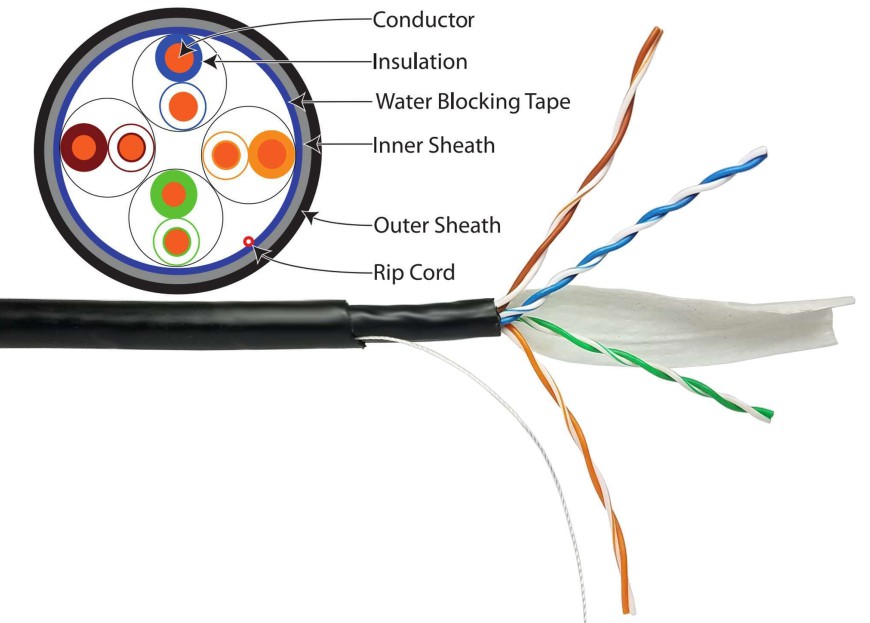

Layered Construction:
- Conductors: 4 pairs of 24 AWG solid bare copper
- Insulation: High-density polyethylene (HDPE), color-coded per TIA-568
- Twisting: Differential twist rates (3-5 twists/inch, pair-dependent)
- Pair Shield: Individual aluminum/polyester foil (optional, in some designs)
- Overall Shield: Aluminum foil tape with draining wire
- Jacket: Black UV-resistant polyethylene (PE) or low-density polyethylene (LDPE)
- Optional: Flooded core for wet environments
Shielding Details:
- Shield Type: Overall foil (100% coverage) + optional individual pair foils
- Drain Wire: 24-26 AWG tinned copper drain wire for grounding
- Shield Effectiveness: Typically 40-60 dB at 30-100 MHz
- Capacitance: Slightly higher than UTP (approx. 5% increase)
Technical Data & Performance
Electrical Specifications:
Parameter | Value | Condition/Standard |
|---|
Category | 5e Enhanced | TIA-568-C.2 |
Impedance | 100Ω ±15% | 1-100 MHz |
Propagation Velocity | 0.65c (typical) | NVP ~65% |
DC Resistance | ≤9.38Ω/100m | Per conductor |
Mutual Capacitance | ≤5.6 nF/100m | @ 1 kHz |
Shield Resistance | ≤7.5Ω/km | Drain wire |
Shield Transfer Impedance | ≤100 mΩ/m @ 100 MHz | Characteristic |
Transmission Performance (Worst Case):
Frequency | Attenuation | NEXT | PS-NEXT | ACR-F | Return Loss |
|---|
1 MHz | 2.0 dB | 65.3 dB | 62.3 dB | 63.3 dB | 20.0 dB |
10 MHz | 6.3 dB | 49.3 dB | 46.3 dB | 43.0 dB | 25.0 dB |
100 MHz | 21.3 dB | 32.3 dB | 29.3 dB | 11.0 dB | 16.0 dB |
Mechanical & Environmental:
Parameter | Specification | Notes |
|---|
Temperature Range | -40°C to +75°C | Operation |
Bend Radius | 8× OD (installed) | 4× OD (once installed) |
Tensile Strength | ≥200 N | During installation |
Crush Resistance | ≥1000 N/100mm | Per IEC 61156 |
Jacket Thickness | 0.9-1.2 mm | Typical |
Cable Diameter | 6.2-6.8 mm | With shield |
Weight | 45-55 kg/km | Approximately |
Environmental Ratings:
- UV Resistance: 3000+ hours UV exposure (per UL 1581)
- Water Resistance: May include gel fill (optional)
- Flame Rating: CMX (outdoor) or CMR (riser) available
- Temperature Cycling: Stable from -40°C to +75°C
Key Advantages
1. EMI/RFI Protection:
- 40-60 dB noise rejection (compared to 20-30 dB for UTP)
- Reduced crosstalk between cables in bundled installations
- Better performance near power lines (minimum 30cm separation vs 60cm for UTP)
2. Data Integrity:
- Lower bit error rates in noisy environments
- More stable performance over temperature variations
- Reduced alien crosstalk in multi-cable installations
3. Security Enhancement:
- Reduced electromagnetic emissions (TEMPEST considerations)
- Harder to tap/intercept compared to UTP
- Better ground fault tolerance
4. Installation Benefits:
- Can run closer to power sources than UTP
- Suitable for mixed cable trays (with proper separation)
- Longer potential runs in high-noise areas
Applications
Primary Use Cases:
1. Industrial Environments:
- Factory automation (PLCs, motor controls, sensors)
- Manufacturing floors with variable frequency drives
- Power generation facilities (near generators/transformers)
- Process control systems in chemical plants
2. Transportation Infrastructure:
- Traffic signal interconnect (near high-voltage systems)
- Railway/transit communications (electrified rail areas)
- Tunnel communication systems
- Airport ramp/tarmac networks
3. Commercial/Utility:
- Elevator communication lines
- HVAC control systems near motors
- Lighting control networks with dimmers
- Parking garage security (near fluorescent lighting)
4. Specialized Outdoor:
- Marina/boatyard networks (near marine electronics)
- Amateur radio station interconnects
- Broadcast facility cabling (TV/radio stations)
- Medical facility outdoor links (near imaging equipment)
Specific Installation Examples:
Environment | Interference Source | Benefit of FTP |
|---|
Streetlight Poles | Ballasts, HID lighting | Prevents flickering video |
Cell Tower Sites | RF transmitters | Cleaner backhaul links |
Industrial Parks | Welding equipment | Stable process control |
Public Transit | Electric motors, pantographs | Reliable CCTV feeds |
Installation Considerations
