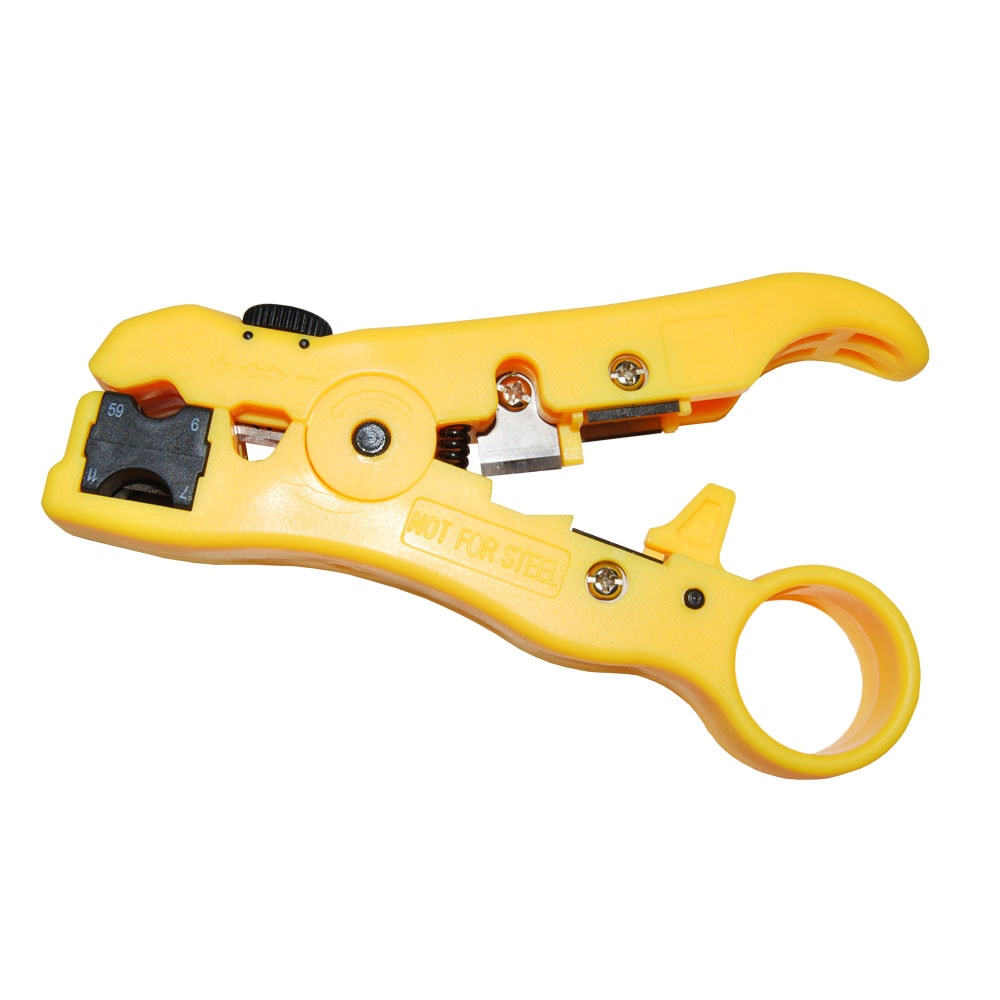

Wire Cutter Stripping Tool
This is a dual-purpose hand tool designed for two key tasks in cable preparation: cutting wires/cables to length and removing insulation from the conductor ends without damaging the metal core.
Specification
Cutting Mechanism:
Jaws: Made of hardened, sharpened tool steel. Bypass-style jaws provide a clean, flush cut. Some have a notch for cutting bolts or nails.
Capacity: Rated for maximum wire gauge and cable diameter (e.g., cuts solid/stranded wire up to 10 AWG, and coaxial/data cable up to 8mm diameter).
Stripping Mechanism:
Adjustable Blades: Features precision-ground, opposing stripping blades with a calibrated adjustment screw to set the exact depth for different wire gauges and insulation thicknesses. This prevents nicking the conductor.
Gauge Holes: Often has multiple sized, labeled holes in the jaws for stripping common AWG sizes (e.g., 10, 12, 14, 16, 18, 20, 22 AWG).
Handles: Insulated, ergonomic grips for comfort and leverage. High-leverage compound-action design reduces hand force required.
Construction: Forged steel or high-carbon steel for durability and longevity.
Spring: Often includes a return spring to automatically reopen the jaws after each cut or strip.
Length: Typically 6 to 8 inches, offering a balance of cutting power and control for detailed work.
Advantage
Precision Stripping: The primary advantage. Adjustable or gauged blades cleanly remove insulation without scratching or cutting into the copper conductors, which is critical for a reliable electrical or data connection. Poor stripping is a major cause of failures.
All-in-One Efficiency: Combines two essential functions in a single, compact tool, speeding up workflow and reducing the number of tools a technician must carry.
Speed and Consistency: Enables fast, uniform stripping of wire ends, which is vital for quality terminations (punch-downs, crimps, screw terminals) and professional results.
Clean Cuts: Provides sharp, flush cuts on wires and small cables, ensuring they fit properly into connectors and terminals.
Durability: A quality tool lasts for thousands of cycles, making it a cost-effective, long-term investment for any toolkit.
Application
Network Cable Termination: Essential for preparing Ethernet (Cat5e/6/6a) cable ends before inserting them into an RJ45 connector for crimping. Precisely strips the outer jacket and prepares the inner conductor insulation.
Electrical Work & Low-Voltage Installation: Stripping insulation from THHN, Romex, thermostat, speaker, and security system wires for connections to outlets, switches, panels, and terminals.
Telecommunications: Preparing and cutting telephone, coaxial, and fiber optic (buffer tube) cables during installation and repair.
Electronics, Prototyping, and Repair: Stripping hook-up wire, component leads, and multiconductor cable for soldering, breadboarding, and assembly in labs, factories, and repair shops.
General Purpose Cable Preparation: Any task requiring a wire or cable to be cut to length and have its ends stripped for connection, from industrial controls to automotive wiring.
Core Function: This tool is a fundamental preparative tool. It does not make the final connection (like a crimper or screwdriver) but is absolutely critical for preparing the wire correctly so that subsequent connections are reliable, secure, and perform to specification.
